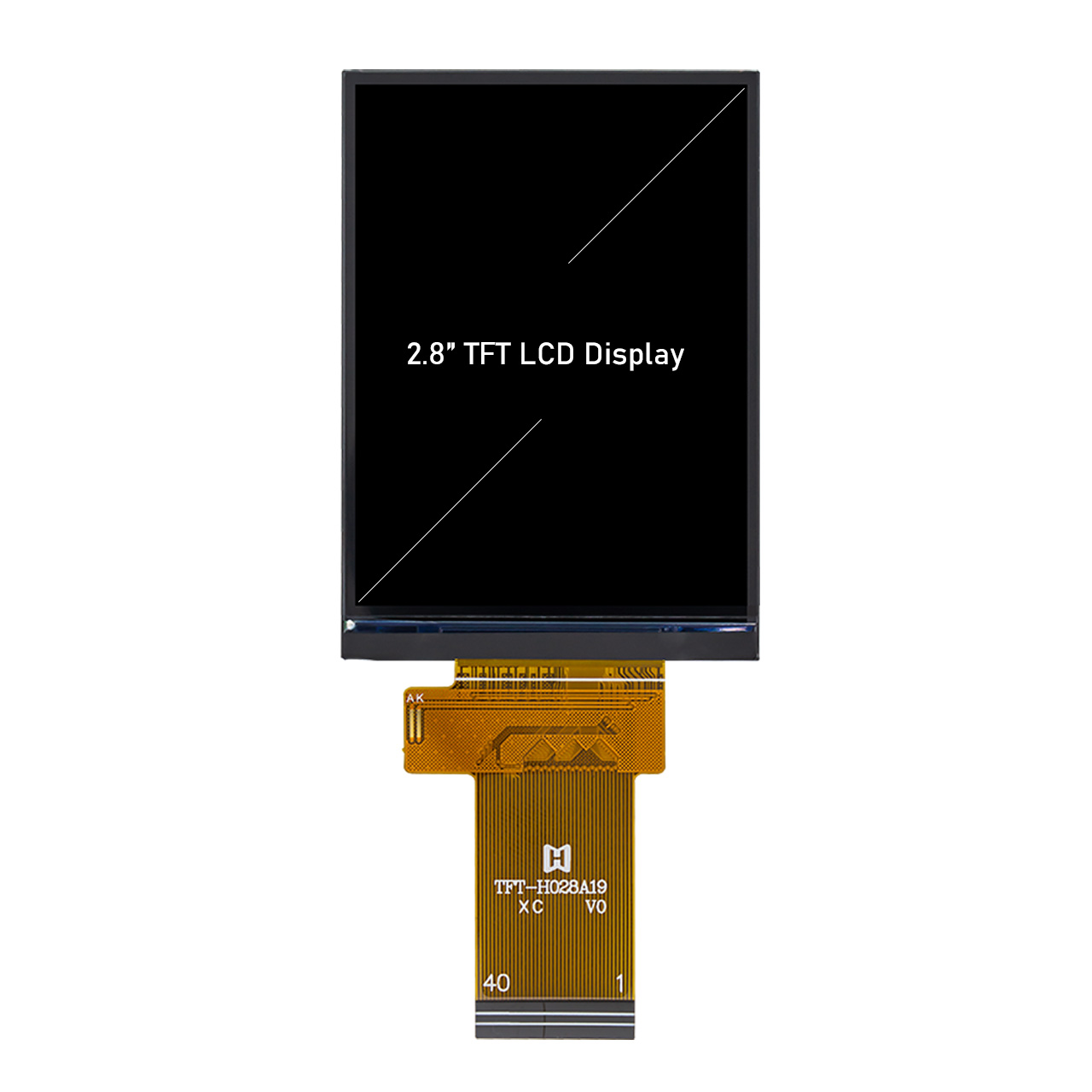

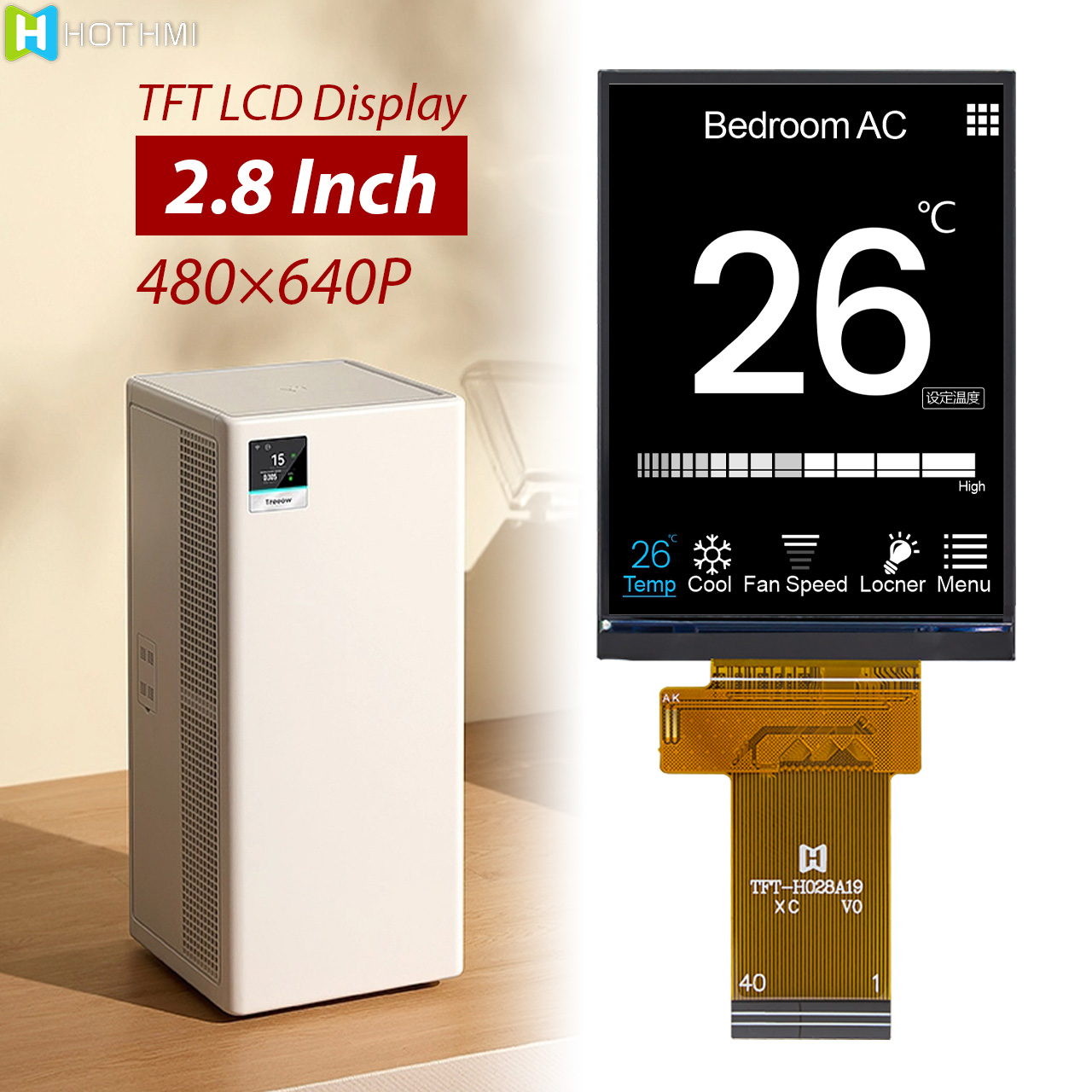

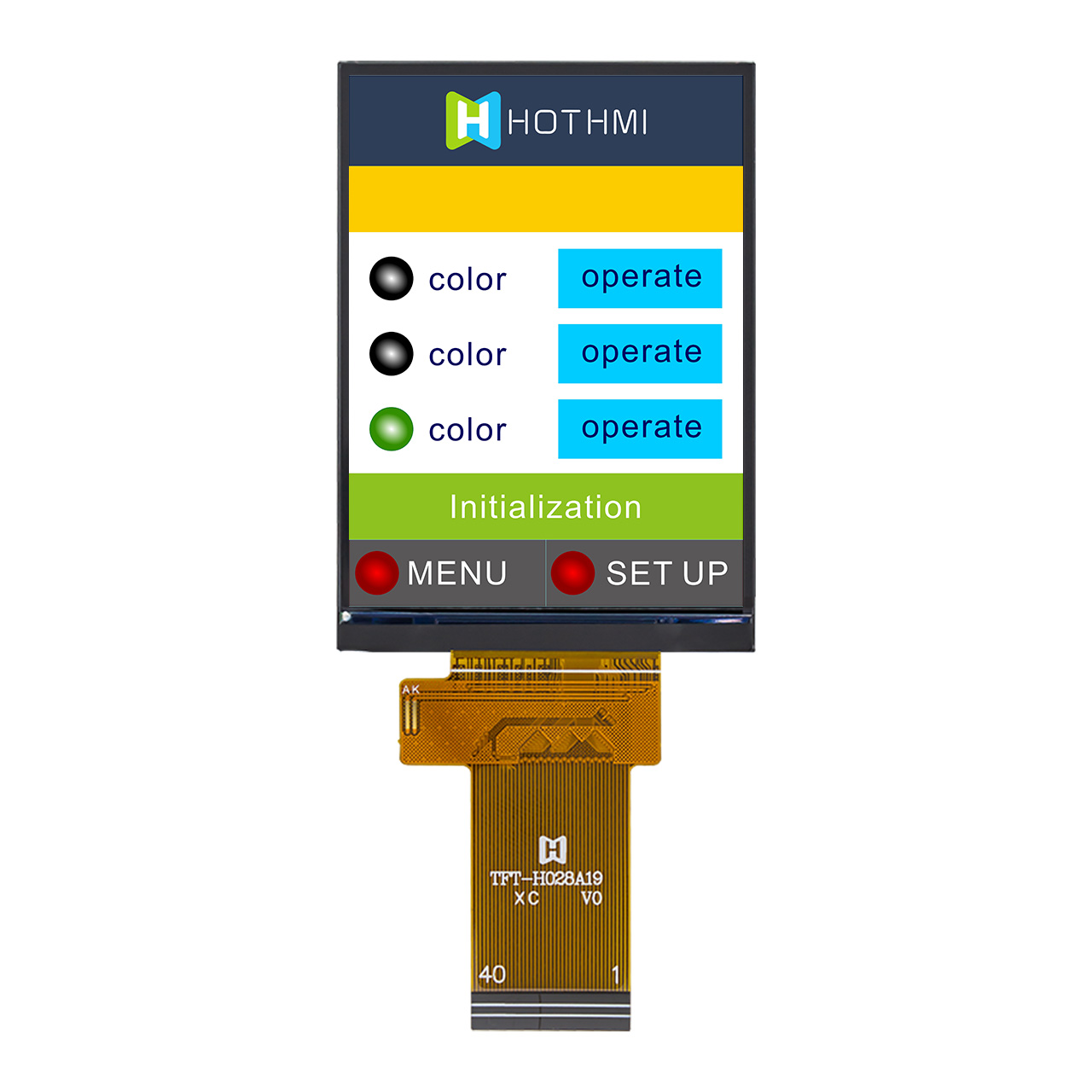

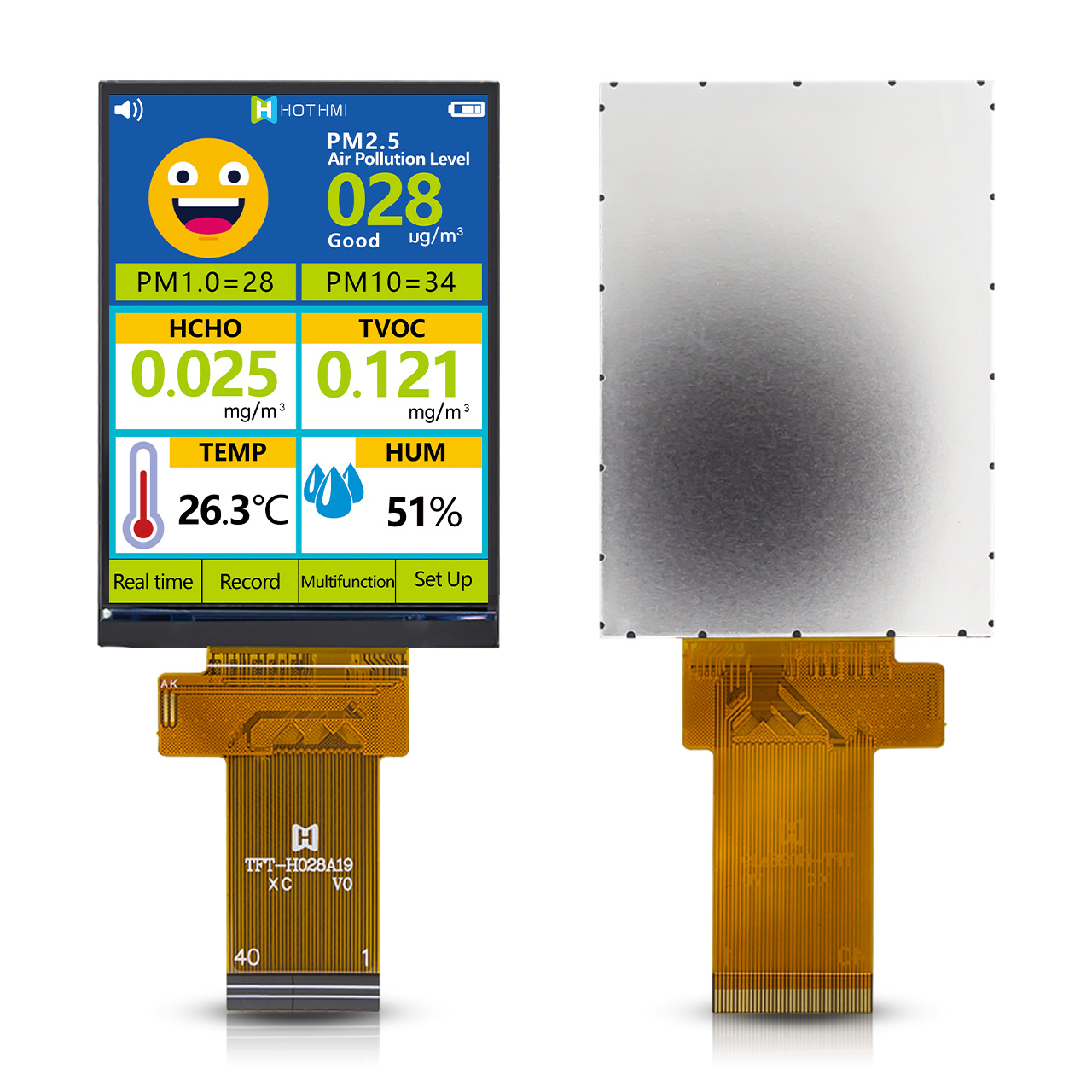

2.8 inch TFT LCD Screen | 480x640 RGB Interface TFT Panel | ST7701S
This 2.8 inch TFT LCD screen is a 2.8-inch TFT LCD module with RGB+SPI dual interface design, supporting 24-bit color depth (default configuration) and a resolution of 480 (RGB) × 640 pixels. Its core driver chip is ST7701S, with an operating voltage range of 3.0V~3.6V (typical value 3.3V). It is equipped with a non-touch screen version, and the backlight adopts constant current drive (voltage 18.0~20.4V, current 22mA), with a typical brightness of 500 cd/m², which meets the needs of various indoor and outdoor scenes.

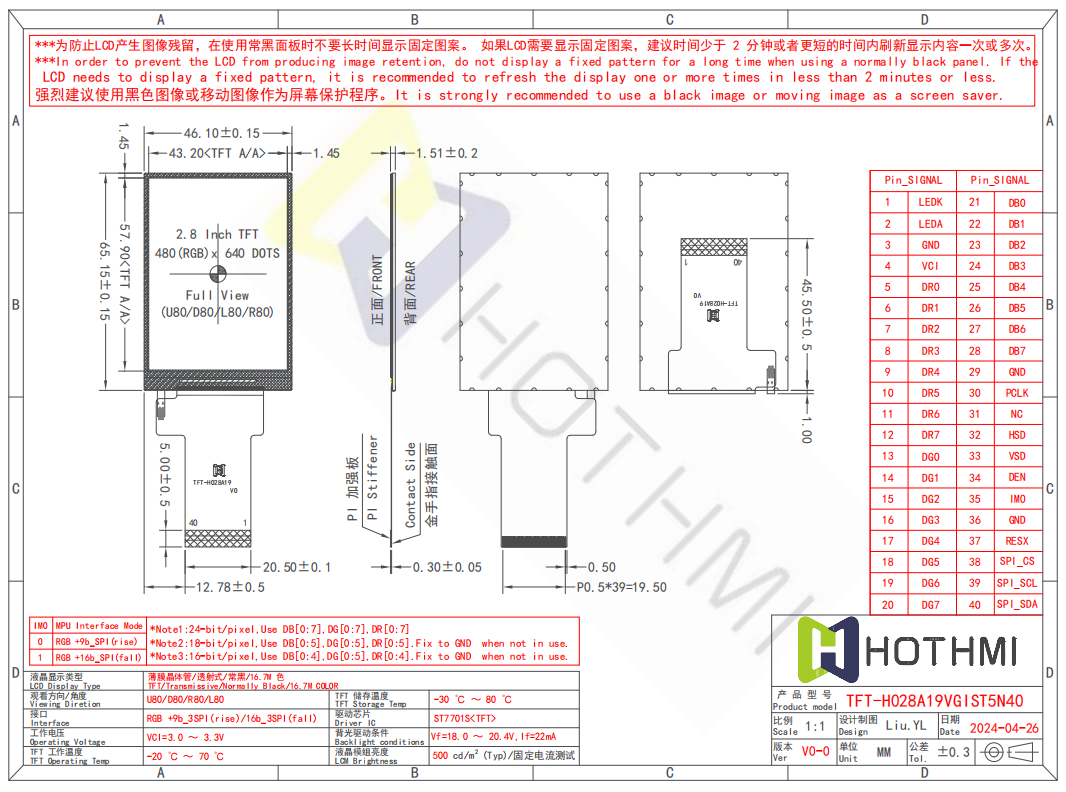

2.8 inch TFT LCD screen supports wide viewing angle (85° up, down, left and right), a typical contrast ratio of 1000:1, a response time of 30ms, a color gamut coverage of about 71% (CIE 1931 standard), and excellent optical performance. The mechanical dimensions are 38.2mm (width) × 182.47mm (height) × 3.5mm (thickness), and the compact design is suitable for embedded applications. The operating temperature range is -20℃～+70℃, and the storage temperature is -30℃～+80℃. It has passed reliability tests such as high temperature, low temperature, vibration and electrostatic discharge, and has strong stability.
In terms of interface, it provides 40-pin RGB parallel bus and SPI serial communication options (default RGB 24-bit mode), supports flexible configuration to 18/16-bit mode, and unused data pins need to be grounded. When using, be careful to avoid displaying static images for a long time (it is recommended to refresh within 2 minutes). It is recommended to use a black or dynamic screen saver to prevent image retention. This module is suitable for industrial control, medical equipment, portable terminals and other fields, taking into account high performance and reliability.
This 2.8 inch TFT LCD screen can be used in handheld devices, household appliances and other products. It has a moderate size and a wide range of applications.
