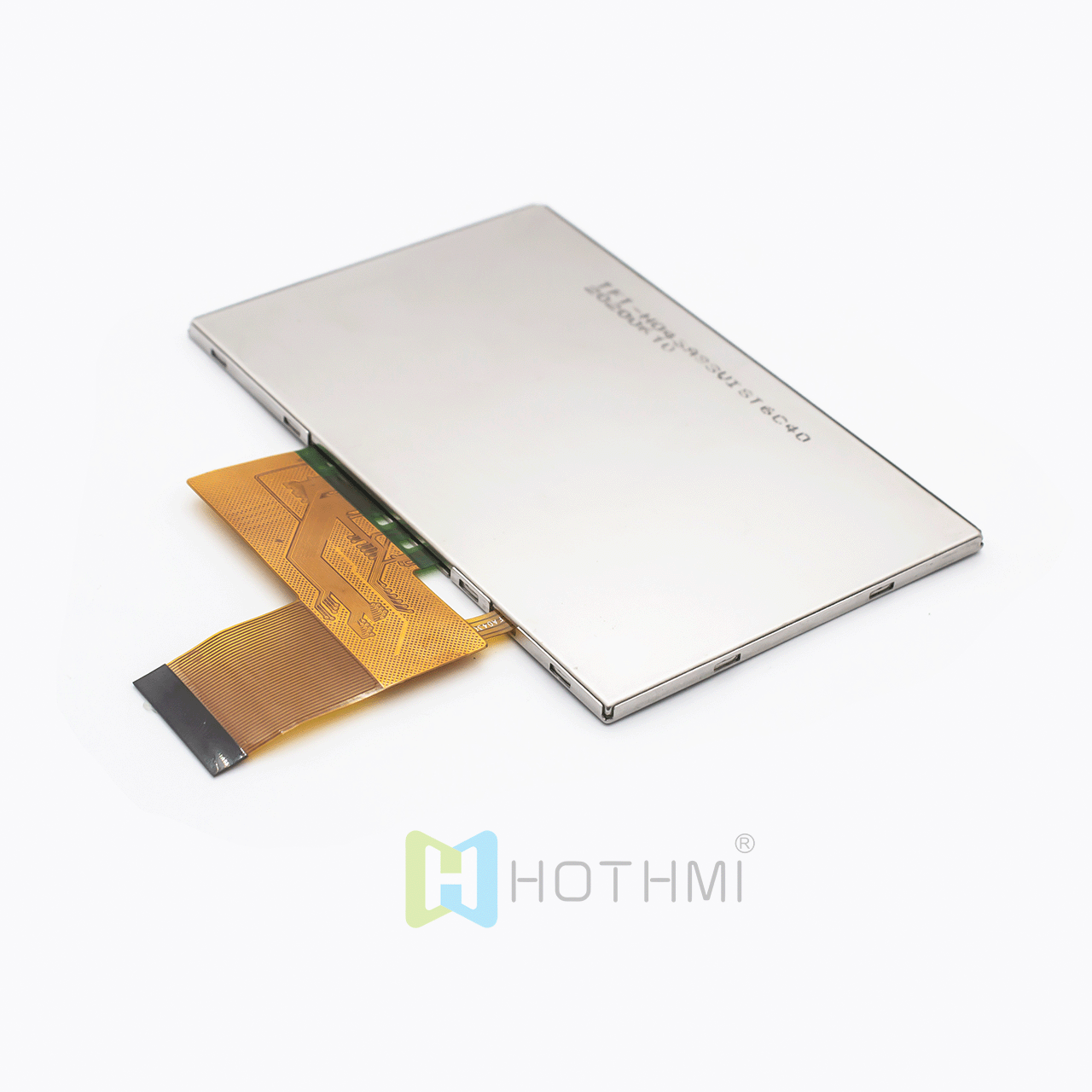

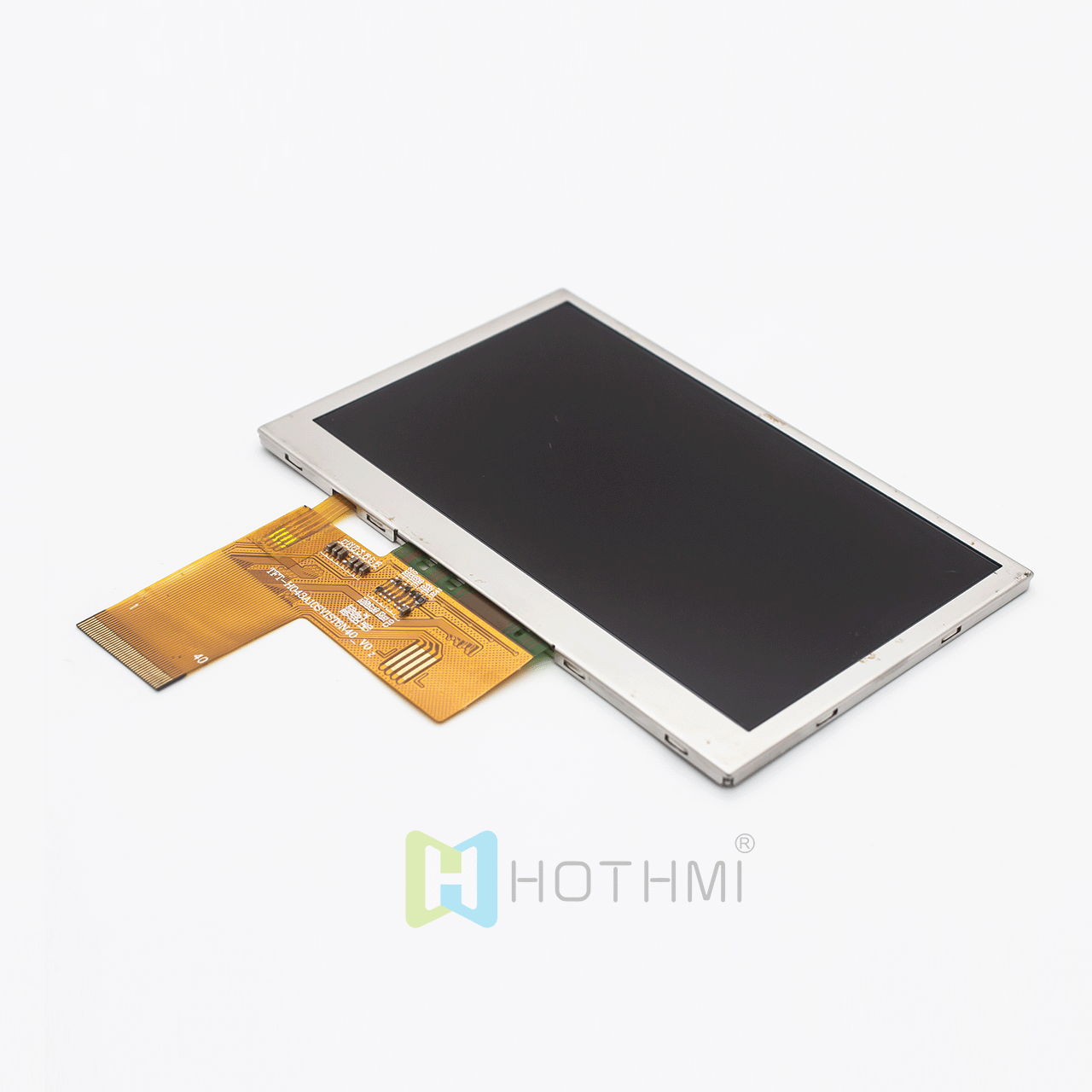

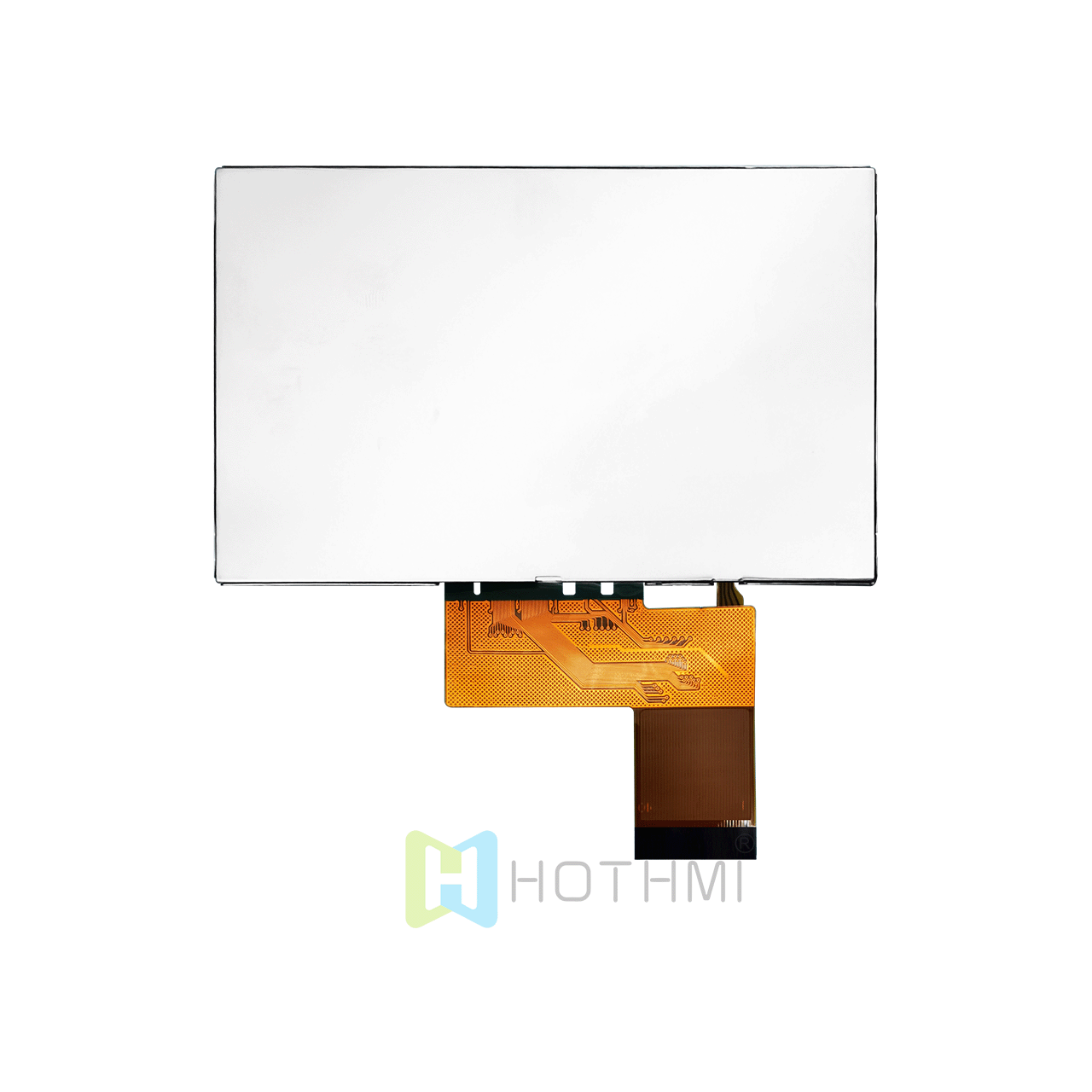

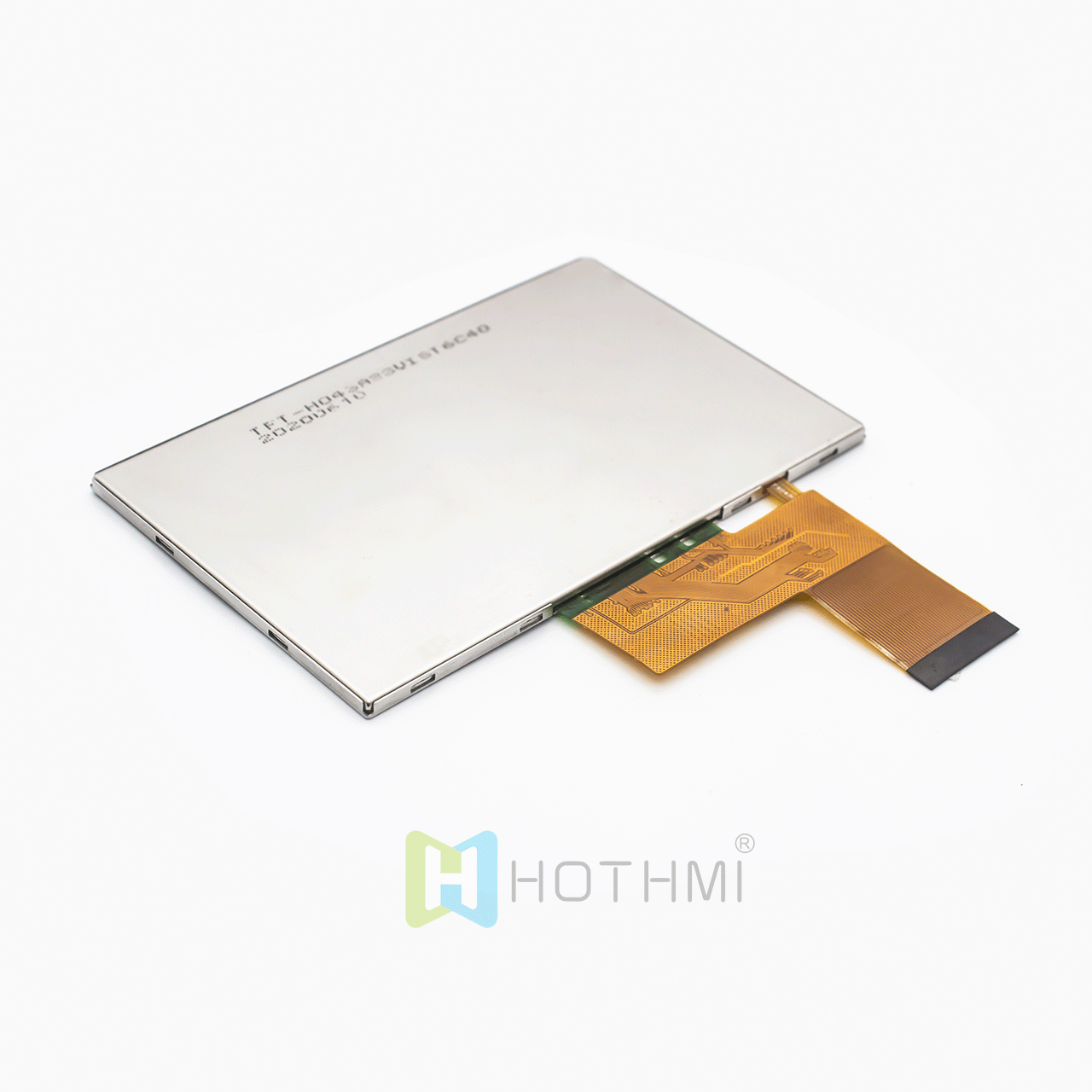

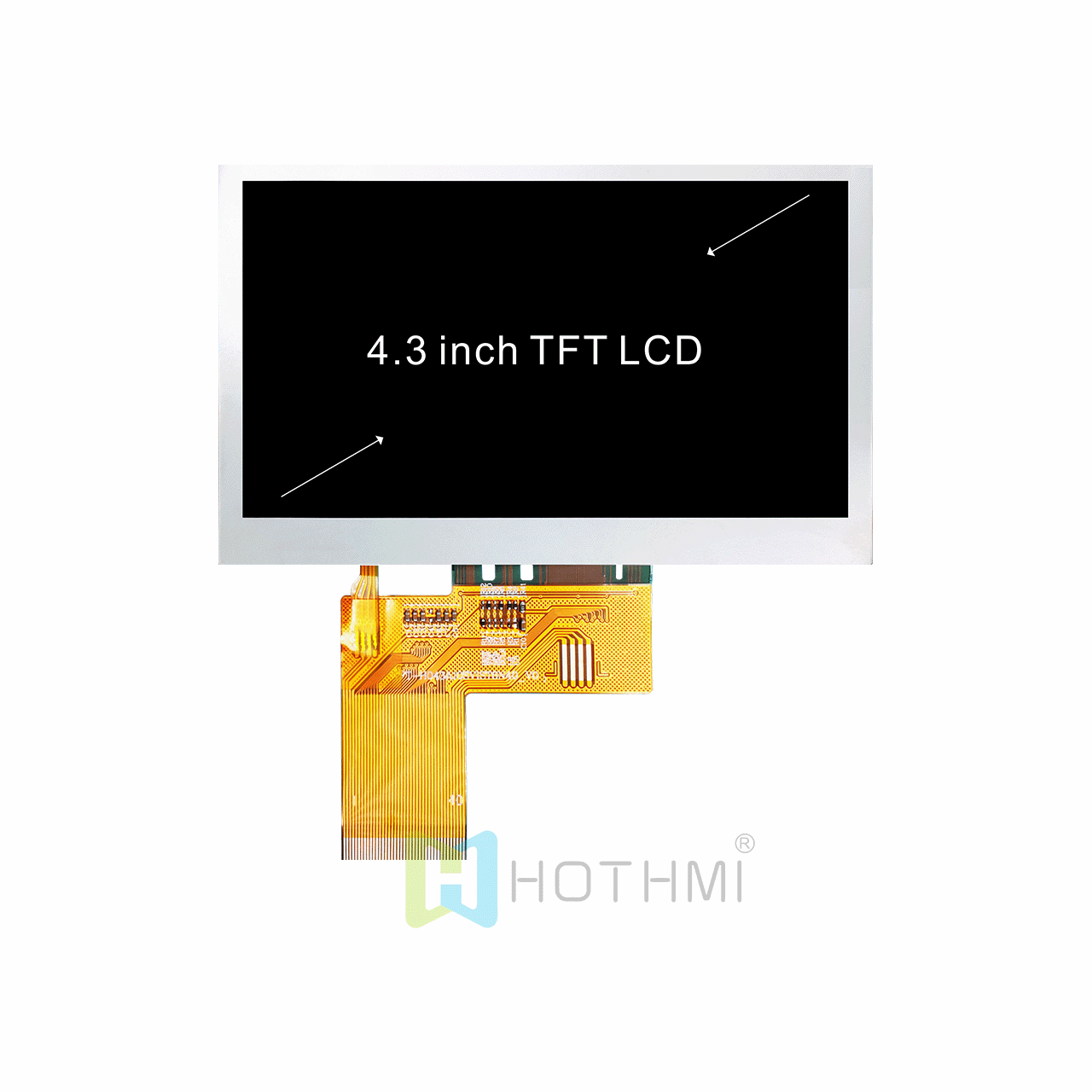

4.3 inch TFT LCD display module 800x480 dot matrix wide temperature IPS full viewing angle sunlight readable RGB compatible with industrial computers

4.3 inch TFT LCD display module 800x480 dot matrix wide temperature IPS full viewing angle sunlight readable RGB compatible with industrial computers

▶ Model: TFT-H043A10SVIST6N40

▶ Type: TFT wide temperature display screen
▶ Display pixel: 800x480 dot matrix
▶ External dimensions (mm): 105.50x67.15x3.05
▶ Display inches: 4.3"
▶ Effective size (mm): 95.04x53.86
▶ Application: Industrial computers, intelligent devices
▶ Visual angle: IPS (U80/D80/L80/R80)
▶ Brightness: 600cd/m2
▶ Pin: FPC-40PIN
▶ Interface: 24 bit TTL RGB
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -40~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7262

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H043A10SVIST6N40 | 4.3-inch TFT wide temperature LCD display | RGB interface | 800x480 pixel resolution LCD screen | optional capacitive touch/resistive touch | readable in sunlight | wide temperature -40~80 ℃

TFT-H043A10SVIST6N40 is a 4.3-inch TFT wide temperature LCD display with a resolution of 800x480 pixels. It uses ST7262 display driver IC and plug-in FPC, which can be used together with connectors. This monitor uses IPS technology to provide full view and excellent color reproduction, allowing you to easily view from all angles without distortion. The display screen has a high contrast of 1000:1 and can provide deep black and bright colors. Can be read in the sunlight. Brightness up to 1000cd/m2, FPC connection (optional connector), 3.3V voltage, supporting vertical screen display. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for various microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

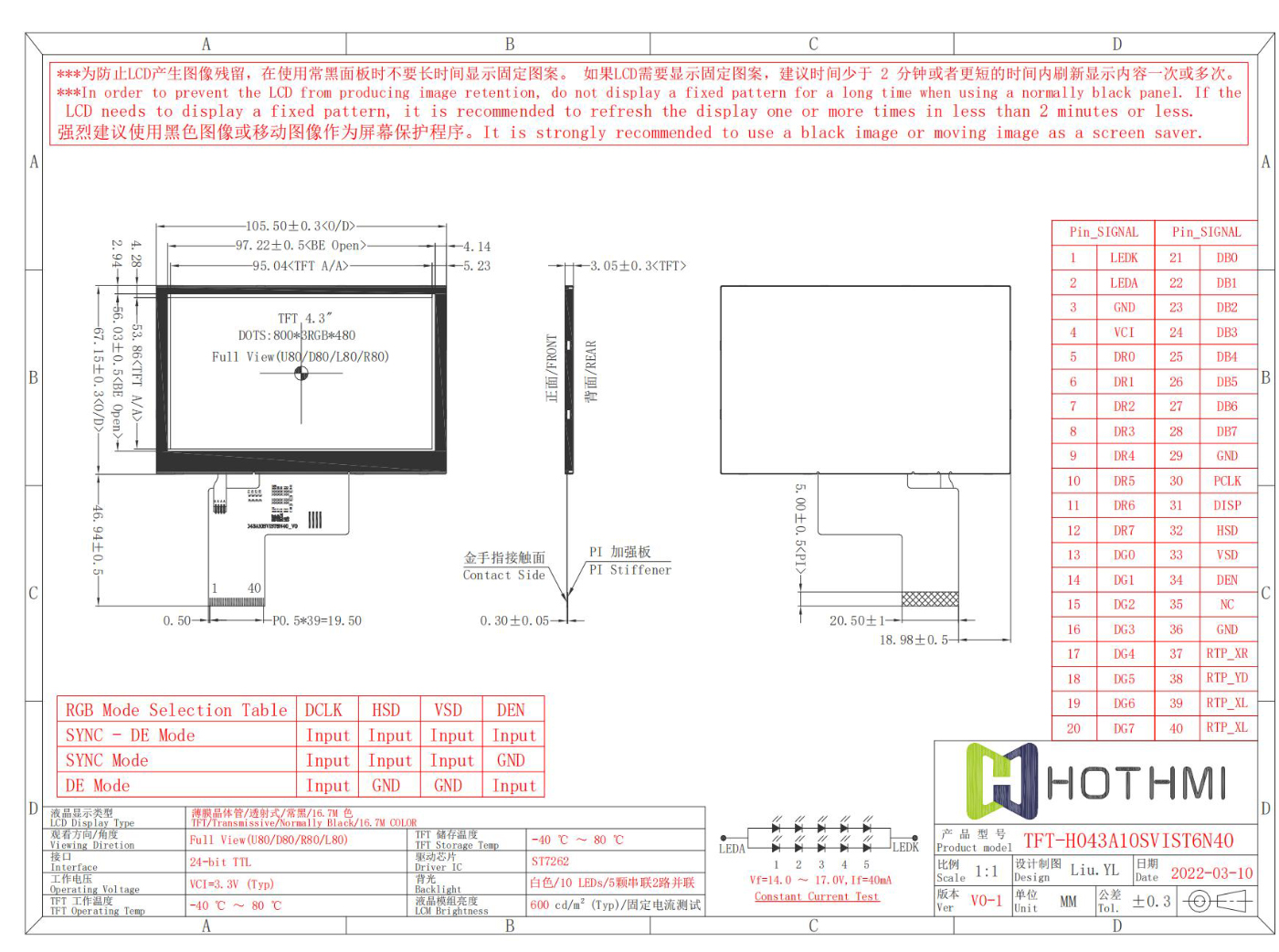

parameter	Parameter Description	unit
TFT LCD	Standard TFT
Diagonal inches	4.3”	Inch
resolution	800 × RGB × 480 (TFT)	dots
Dimensions	105.50x67.15x3.05	mm
Size (AA) area	95.04x53.86	mm
LCD specifications	TFT, white, transmissive
Display perspective	（80/80/80/80） (IPS)
aspect ratio	1.1:2
Backlight specifications	LED, white
TFT driver chip	ST7262
Touch glass type	None
surface	Glossy
Display brightness	600	cd/㎡
Operating temperature	-40~+80	°C
Storage temperature	-40~+80	°C
