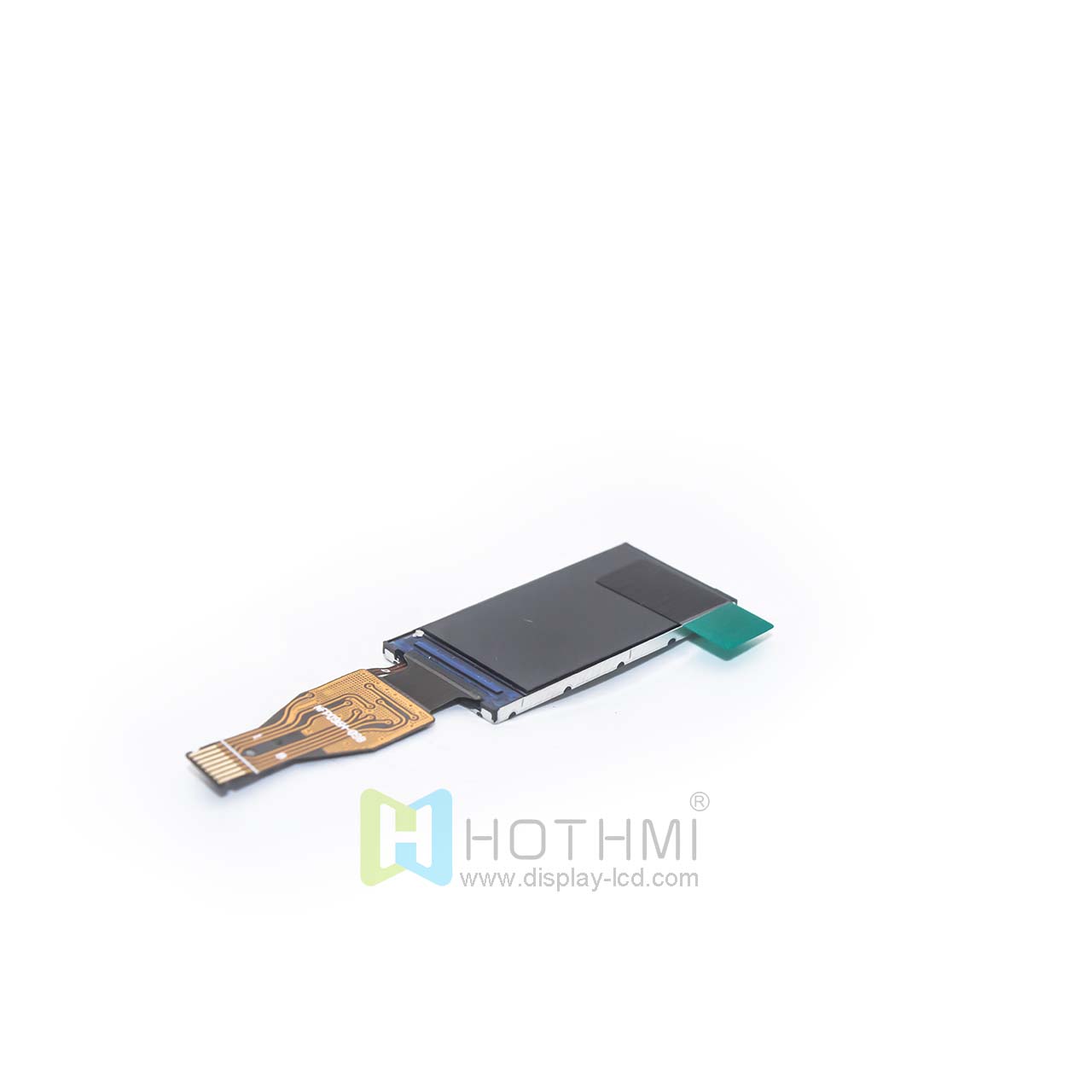

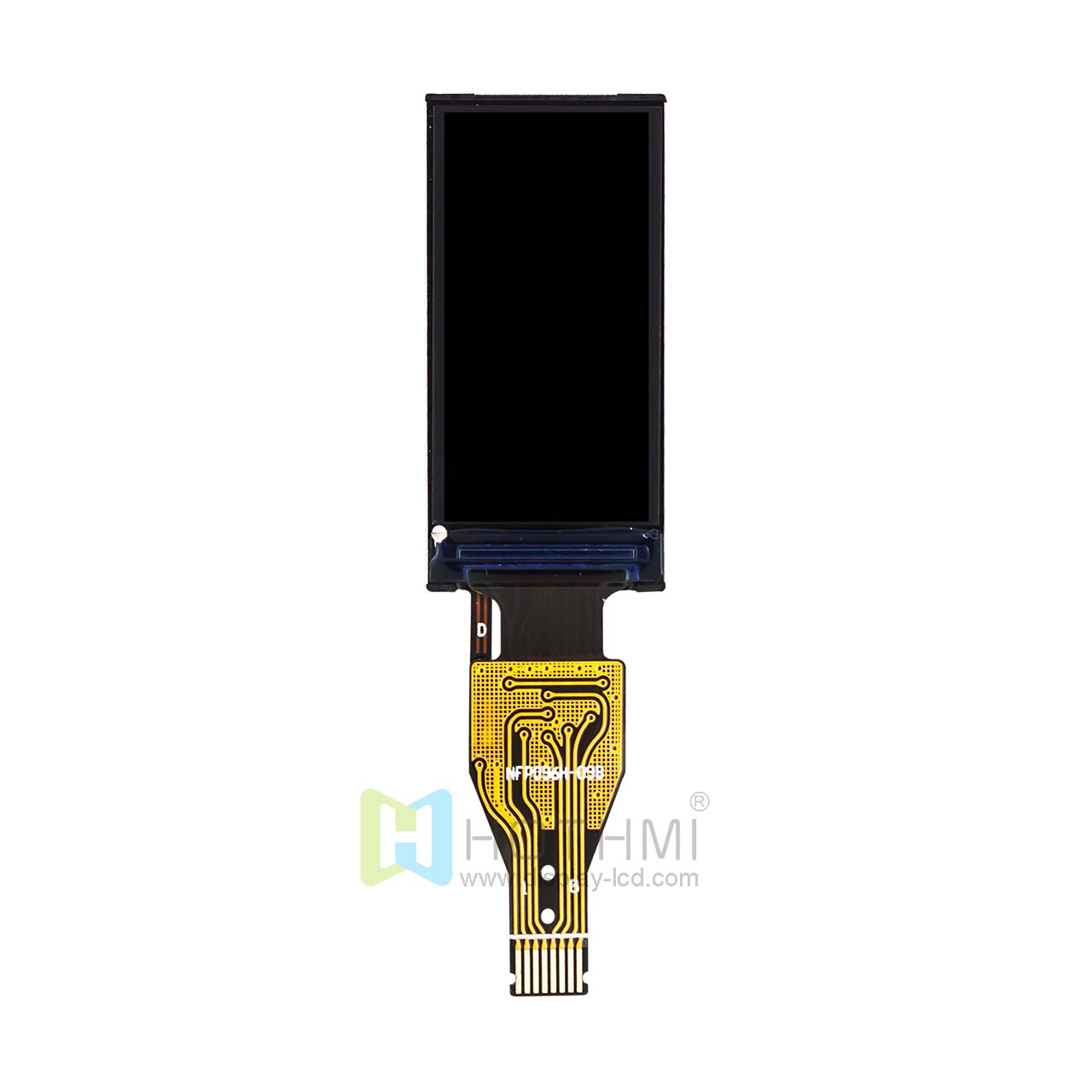

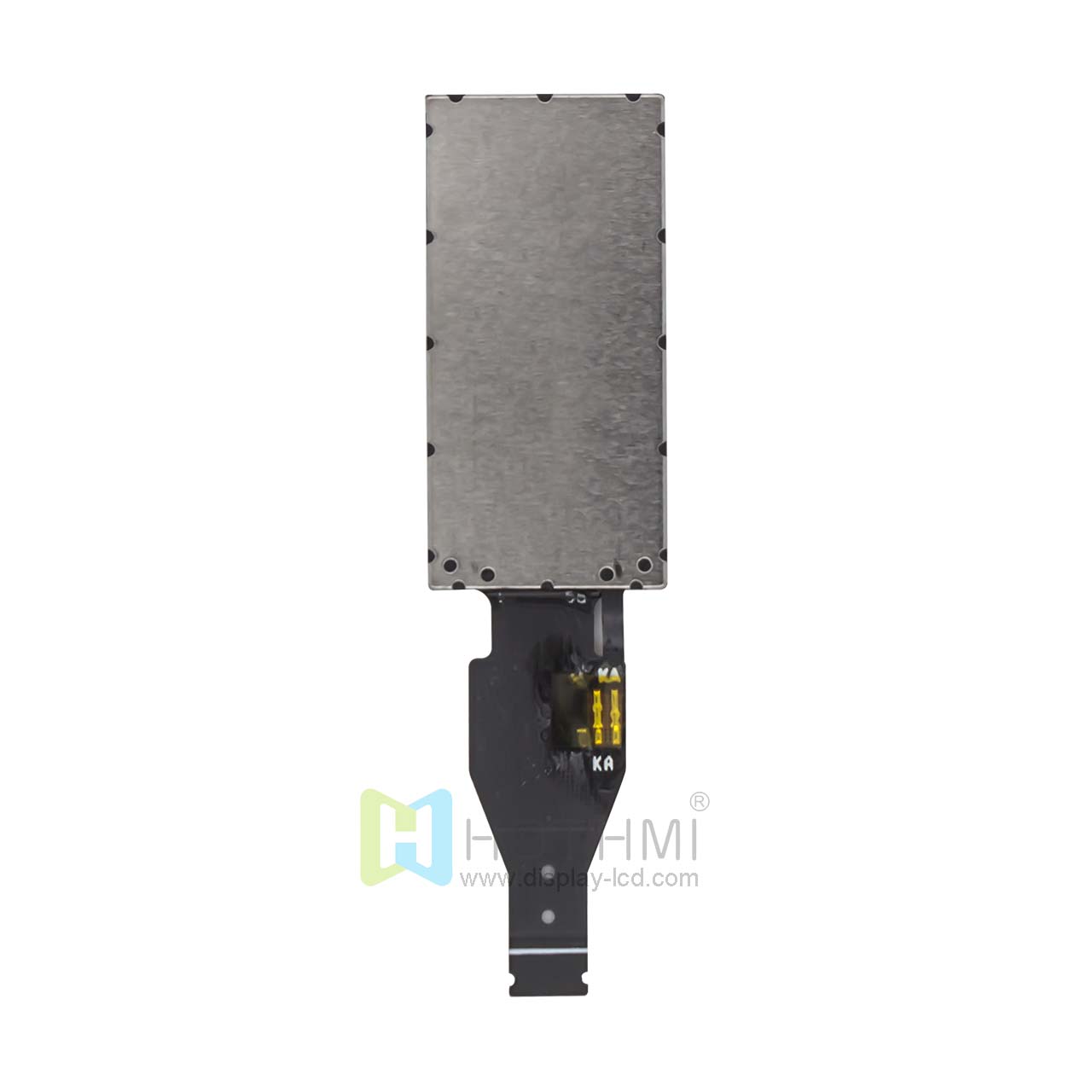

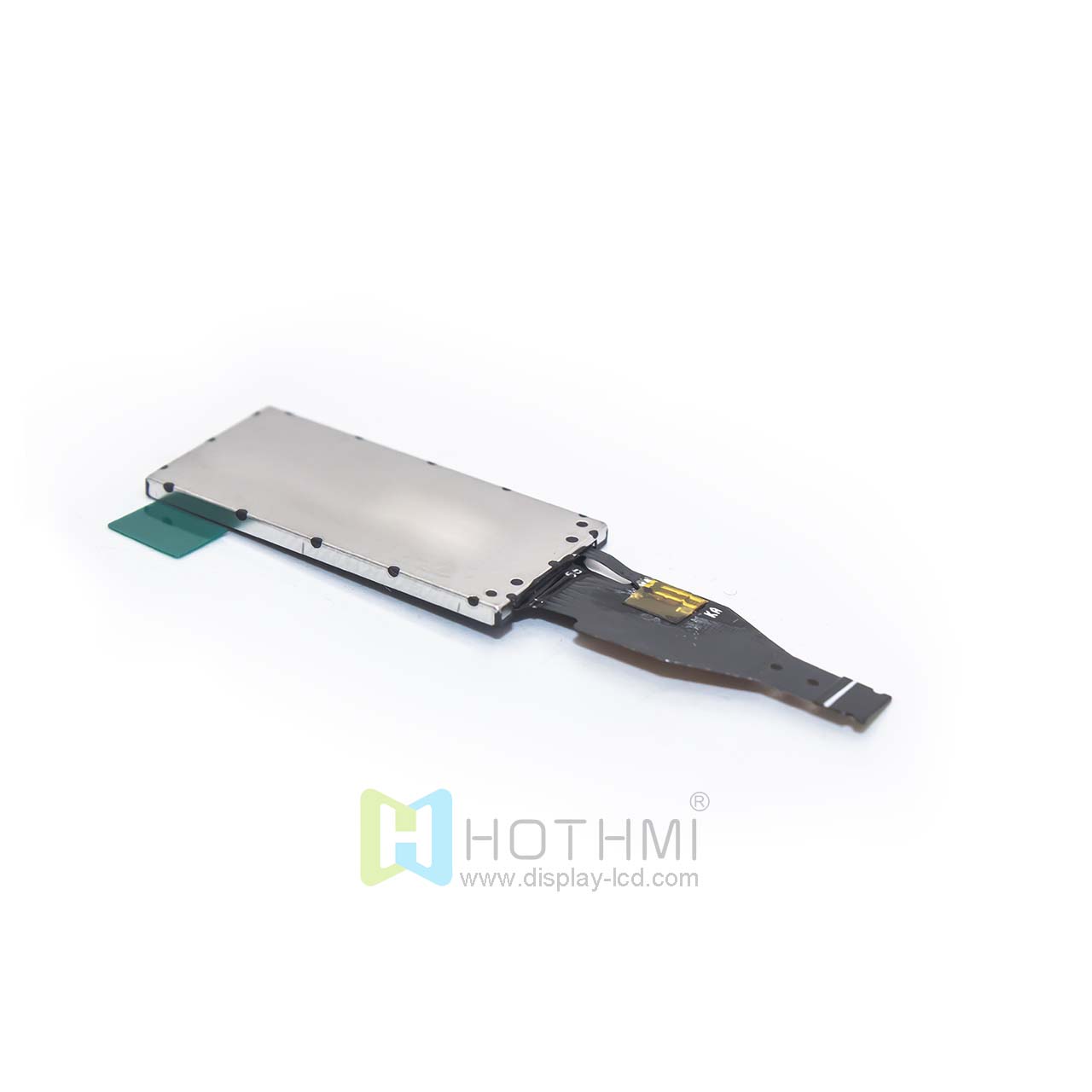

  • 0.96 " TFT LCD Display Screen | 80x160 SPI TFT LCD

    The 0.96" TFT LCD display is an IPS TFT-LCD display with optical bonding (OCA) and a resolution of 80x160 pixels. This 0.96" TFT LCD display is in portrait mode and is equipped with an IPS (Plane Switching) panel with a wide viewing angle (Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees (typical). The capacitive touch screen uses optical bonding technology, a silicone optically clear adhesive (OCA) process that fills the air gaps between LCD display components, thereby enhancing the robustness and durability of the display and making it better resistant to scratches, liquids, stains and dust. The TFT module has an ST7735S touch screen IC built in and supports single-point capacitive touch screen detection. This 0.96" TFT LCD display model is a display panel with an easy-to-plug FPC that can be used in conjunction with a variety of user driver boards; in the same series, we can also provide a display panel with EZUI UART smart display of the driver board, users can click the link HTM-H010A1-UART-A01 to learn more about this module.


    This 0.96" TFT LCD display has a built-in ST7735S control IC, supports a four-wire SPI interface, a VCC power supply range of 3.0V to 3.6V, a brightness of 400 nits (typical value), and a contrast ratio of 800:1. This module is very suitable for applications such as wearable devices and medical devices. The operating temperature range is -20℃ to +70℃; the storage temperature range is -30℃ to +80℃.

  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    TFT-H010W21AIST4N8 March 03, 2025 58.49KB

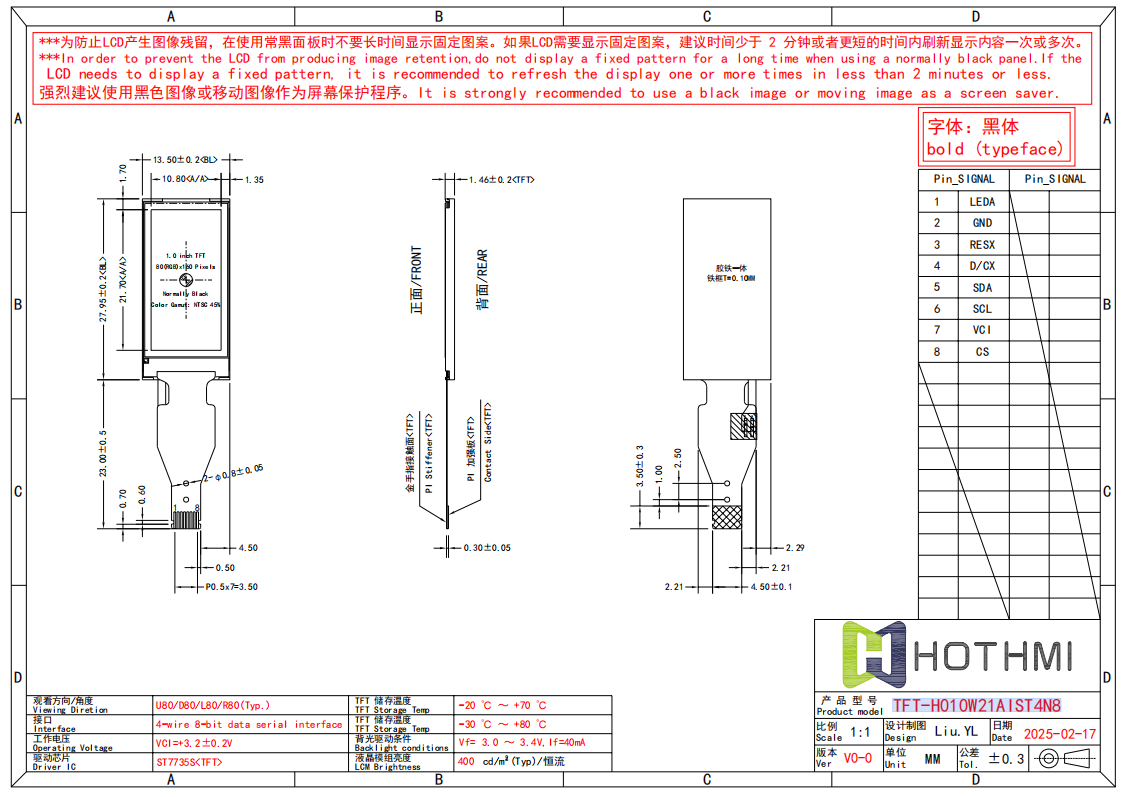

  • 010W21.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H010W21AIST4N8


    Diagonal size

    0.96”

    Inch

    Resolution

    80x160

    Dot

    Dimensions

    13.5x27.95x1.46

    mm

    Active area (AA)

    10.8x21.7

    mm

    LCD type

    TFT LCD Panel

    mm

    Display viewing angle

    Full View


    Aspect ratio

    1:2


    Backlight type

    LED white


    TFT driver IC

    ST7735S


    Brightness

    400

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
