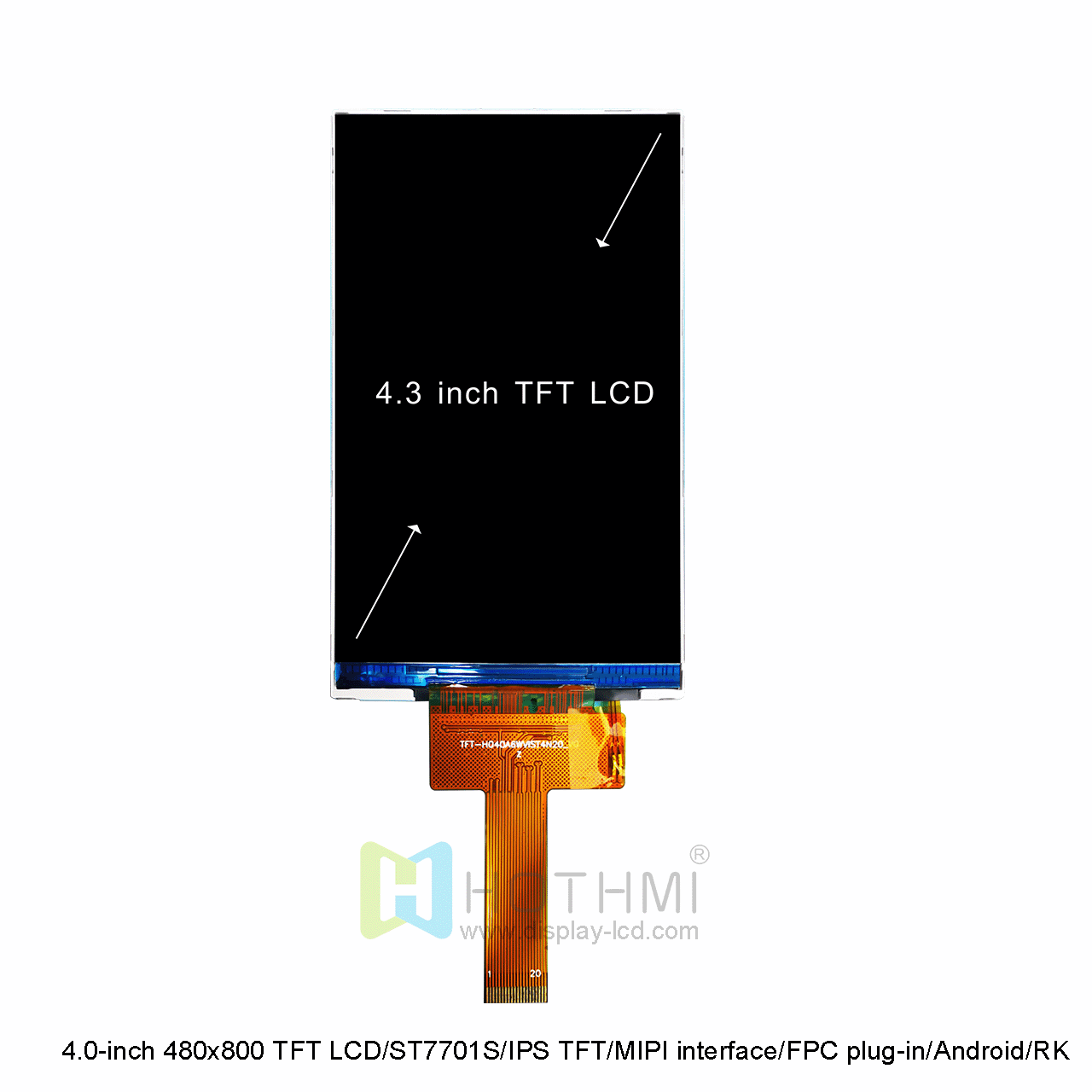

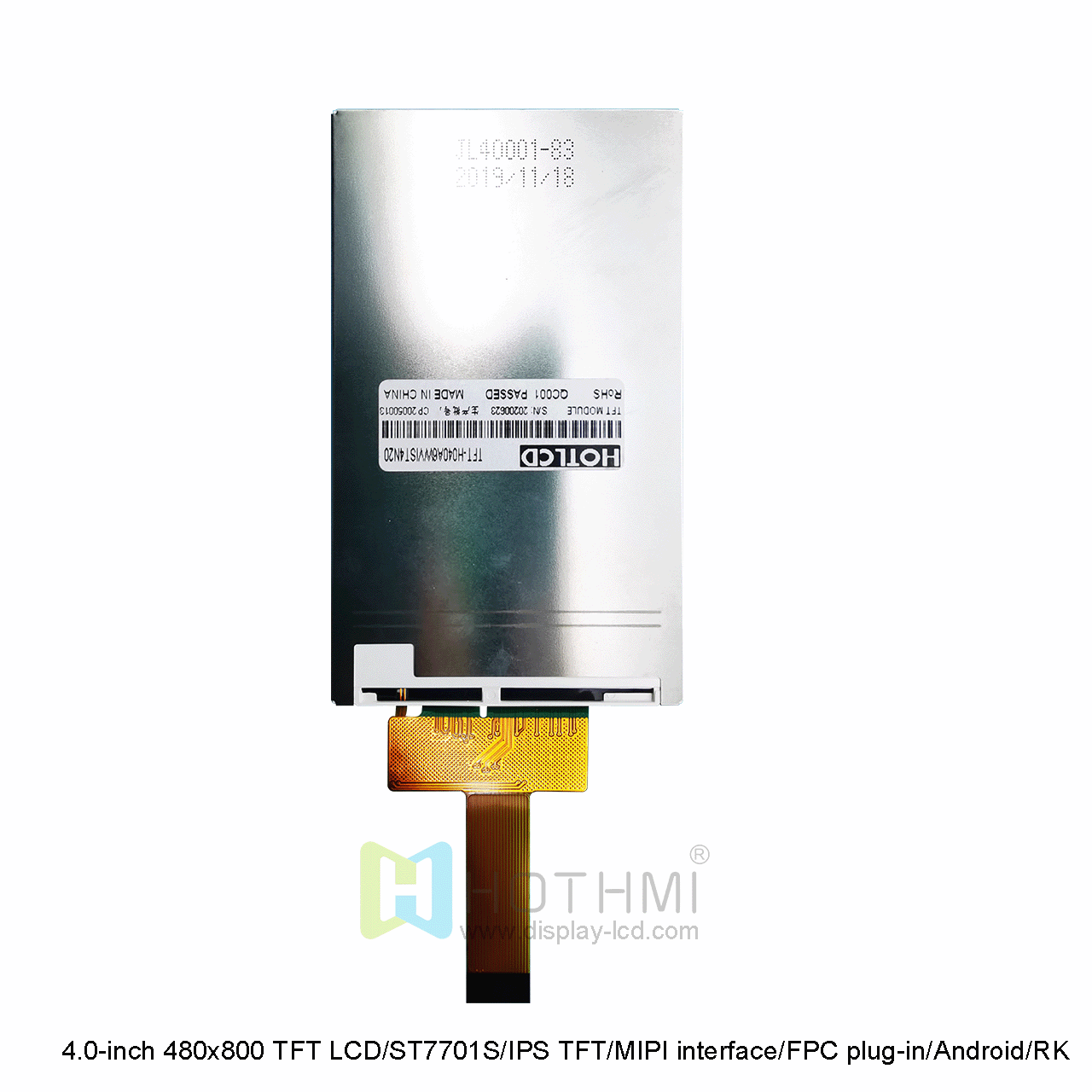

4.0-inch 480x800 TFT LCD/ST7701S controller/IPS full-view wide-temperature TFT/MIPI interface/FPC plug-in/Android/RK

4.0-inch 480x800 TFT LCD/ST7701S controller/IPS full-view wide-temperature TFT/MIPI interface/FPC plug-in/Android/RK

▶ Model: TFT-H040A6WVIST4N20

▶ Type: TFT standard display
▶ Display pixels: 480x800
▶ Dimensions (mm): 57.14x 96.85x 2.1
▶ Display inches: 4.0"
▶ AA size (mm): 51.84x86.4
▶ Application: industrial control systems, portable electronic devices
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 400cd/m2
▶ Pin: FPC-20 pin
▶ Interface: MIPI
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

4.0-inch 480x800 TFT LCD/ST7701S controller/IPS full-view wide-temperature TFT/MIPI interface/FPC plug-in/Android/RK
4.0-inch 480x800 TFT LCD/ST7701S controller/IPS full-view wide-temperature TFT/MIPI interface/FPC plug-in/Android/RK TFT-H040A6WVIST4N20 This display is a full-view display, which has a good viewing effect no matter which angle you watch it from. Controlled by ST7701S, it is a wide-temperature industrial-grade display with an operating temperature range of -20 degrees Celsius to +70 degrees Celsius. This model uses FPC connection, and FPC requires a connector. Just connect with our optional soldered FPC connector, which is easy to insert or remove. This display has a brightness of 400cd/m2. If you need higher brightness, we can achieve it for you by adjusting the arrangement and number of backlights. This model is a non-touch version, and we also provide models with capacitive touch for the same product.
For the use and detailed instructions of the display, we have also prepared a detailed tutorial, which includes interface information, demo code and development kit. You can contact us to request and learn. Our displays are all RoHS compliant and comply with strict environmental and safety standards.

Datasheet for Touch Panel,Controller

Name	Date	Size
TFT-H040A6WVIST4N20	January 01, 1970	1.59MB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H040A6WVIST4N20
Diagonal size	4.0”	Inch
Resolution	480x800	Dot

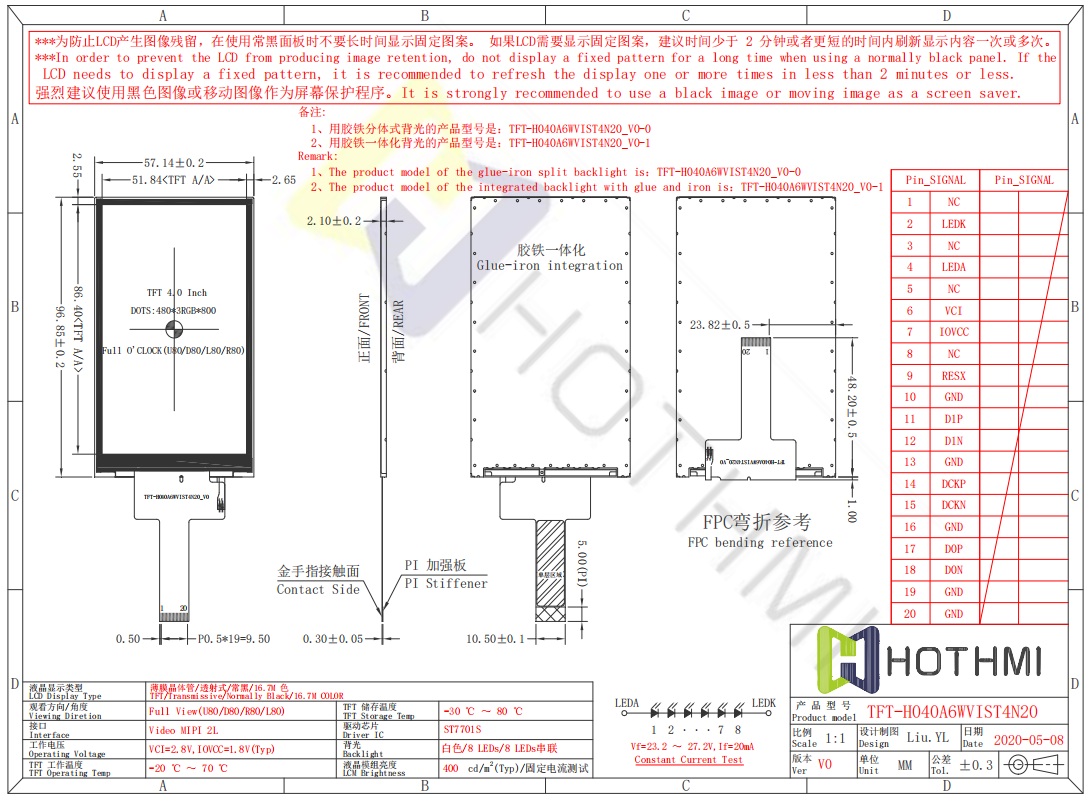

Dimensions	57.14（W)x96.85（H)x2.1（D)	mm
Active area (AA)	51.84x86.4	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	400	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
