1X16 character mono LCD Display | STN+Gray background with White backlight-Arduino

1X16 character mono LCD Display | STN+Gray background with White backlight-Arduino

▶ Model: HTM1601A-11W-A5P

▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ View window size (mm): 64.5x16.0
▶ Display size (mm): 59.46x5.96
▶ Point spacing mm: 0.65x0.75
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

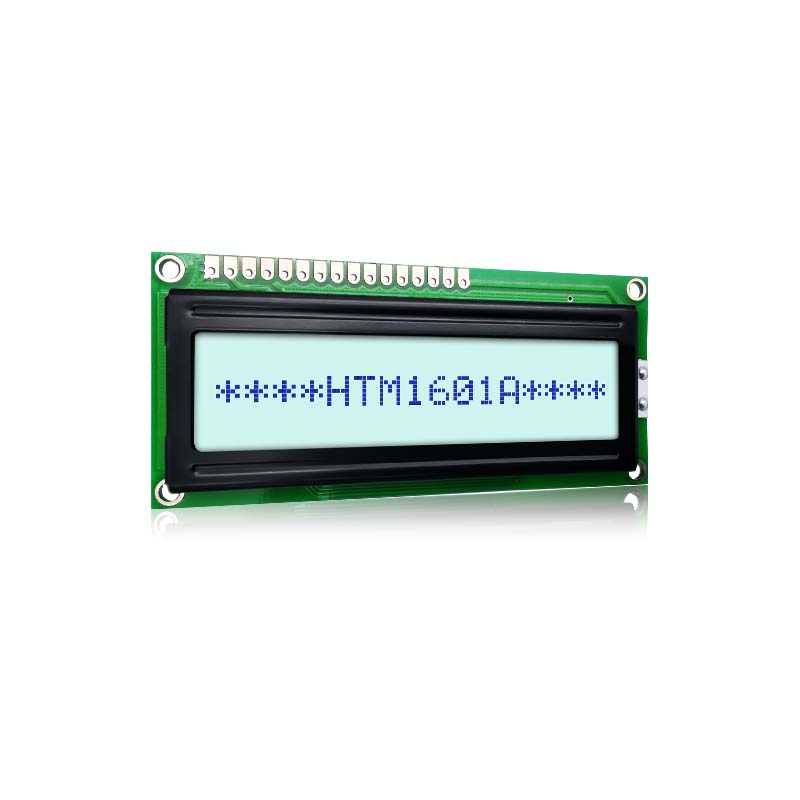

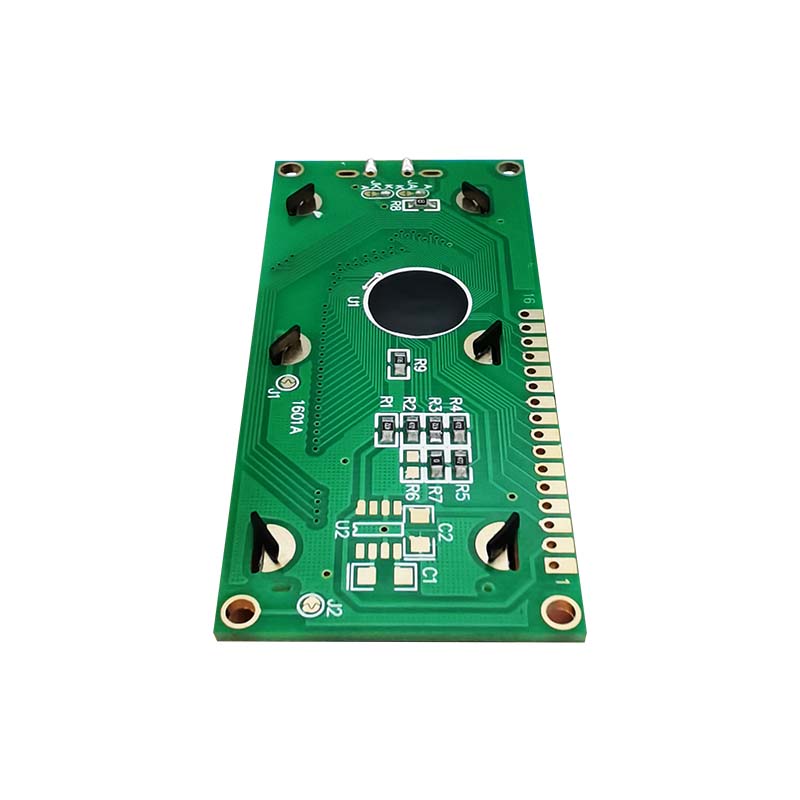

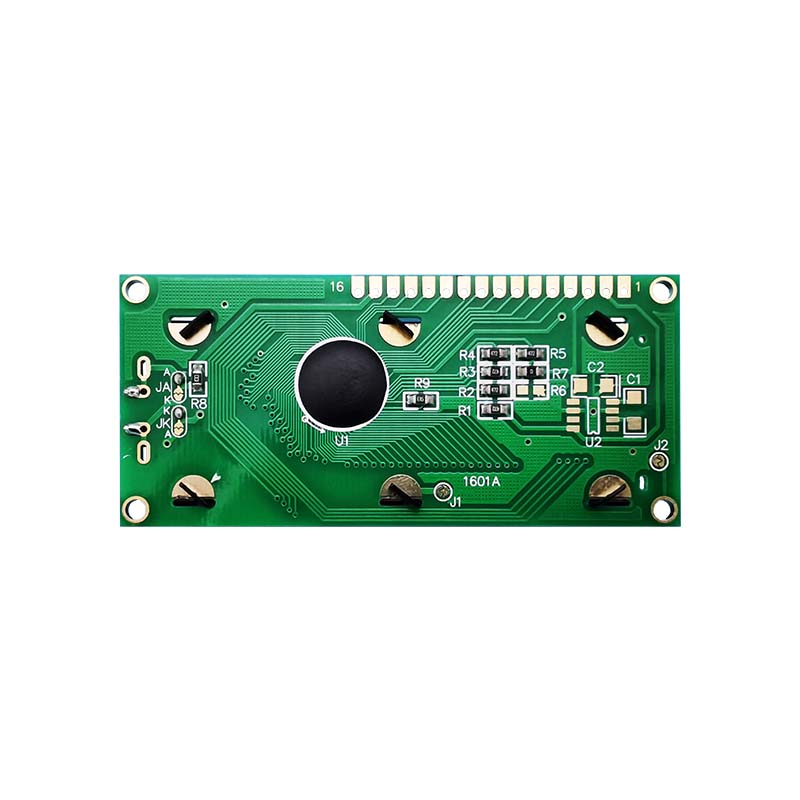

HTM-1601A-11W-A5P | 1x16 Character Display | Reflective LCD | STN +Gray Display | Arduino Display

This 16-character single-line LCD screen displays characters with dark grey pixels on a very bright white background when lit. The controller / reader of this template is st7066u. It operates at a supply voltage of 5V and complies with the RoHS standard, ensuring compliance with health and environmental standards. LCD screens have an operating temperature range of -20 to 70 degrees Celsius and are suitable for a wide variety of environments. This trans-reflex htm1601a-11w-a5p LCD screen can be seen with ambient light or backlighting, offering flexibility in various lighting conditions. The best angle of view for this LCD 16-character compatible Arduino screen is 6: 00.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

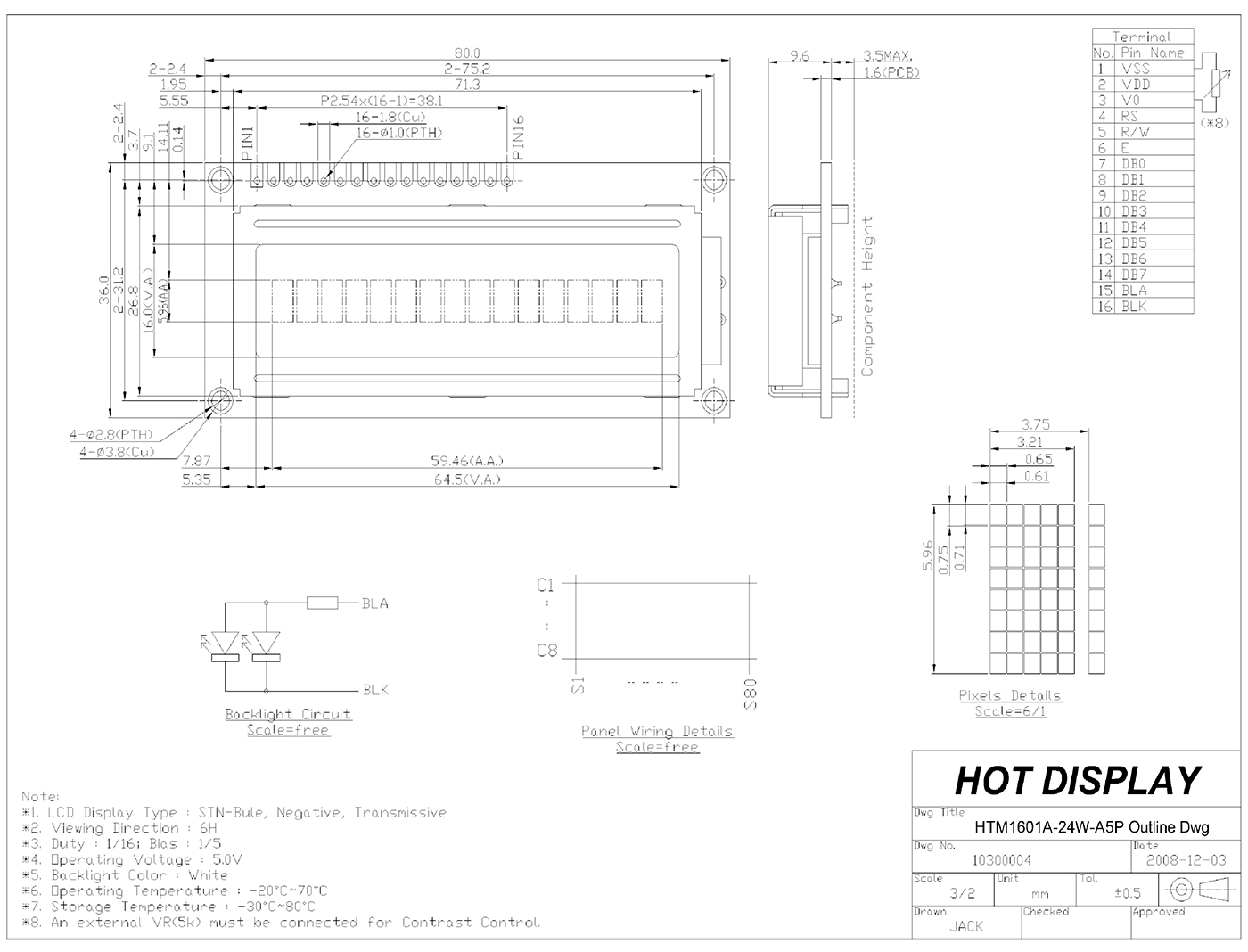

Project	Specification content	Unit
name	HTM1601A-11W-A5P
Number of lattice points	16 x 1	dots
Module Size	80.0（W） × 36.0（H） × 13.1 （T）	mm
Visible (VA) area	64.5x16.0	mm
AA size	59.46（W） × 5.96（H）	mm
Point (pixel) spacing	0.65（W） × 0.75（H）mm	mm
IC	ST7066U driver
Application voltage	5.00V	V
Back lighting	White light
mode	STN+
Duty driving mode	1/16 duty cycle
type	Character LCD
Polarizer Type	Semi-transparent reflection polarizer
