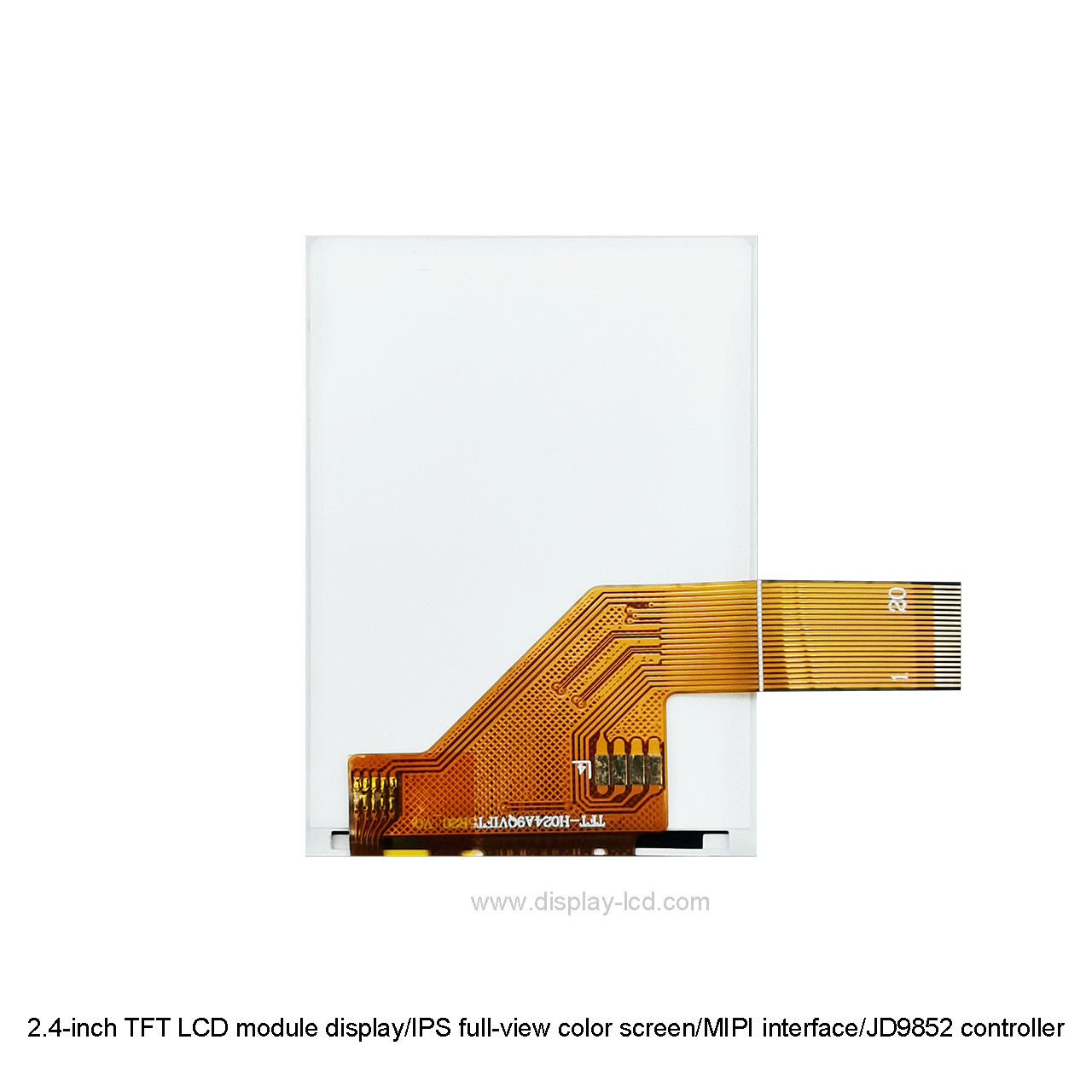

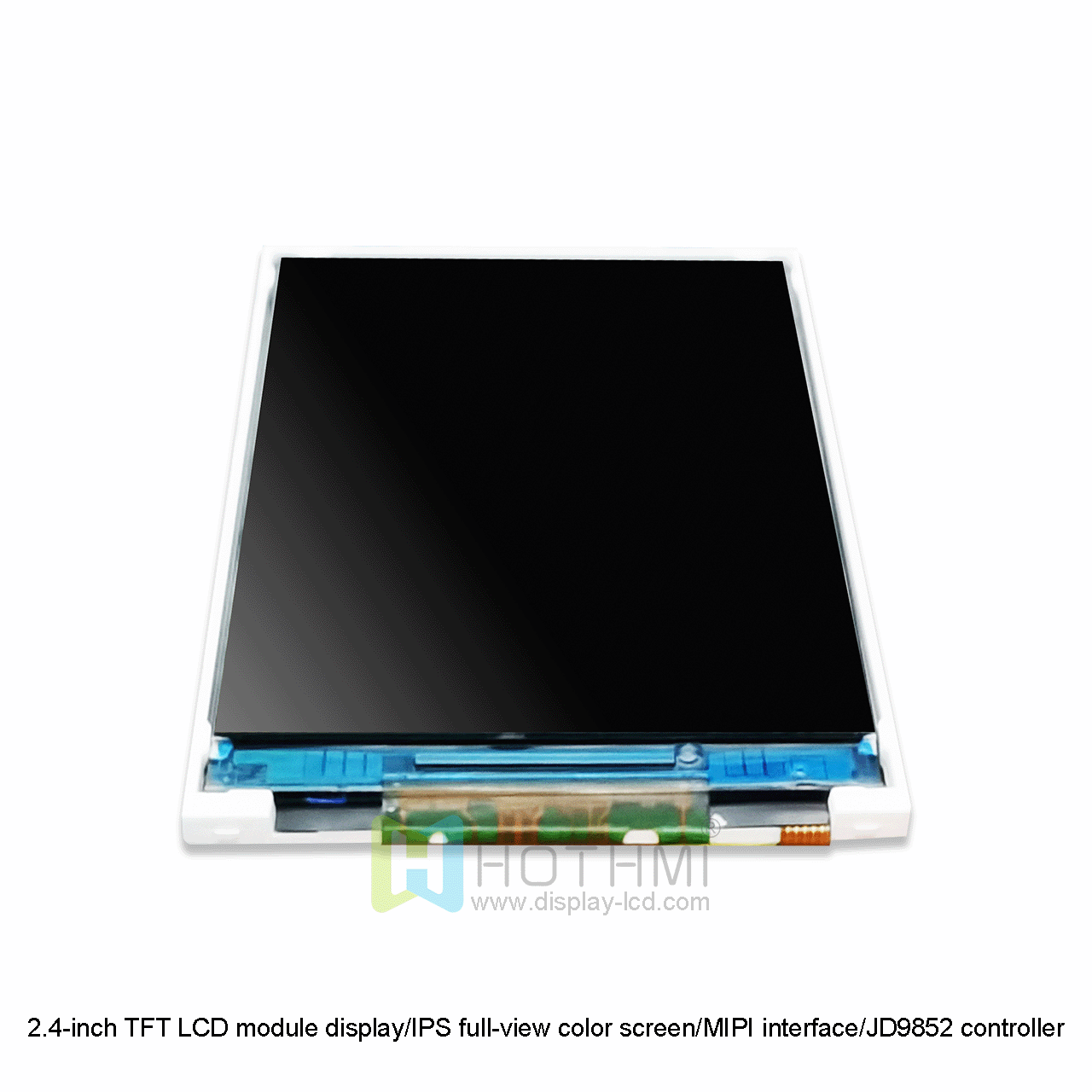

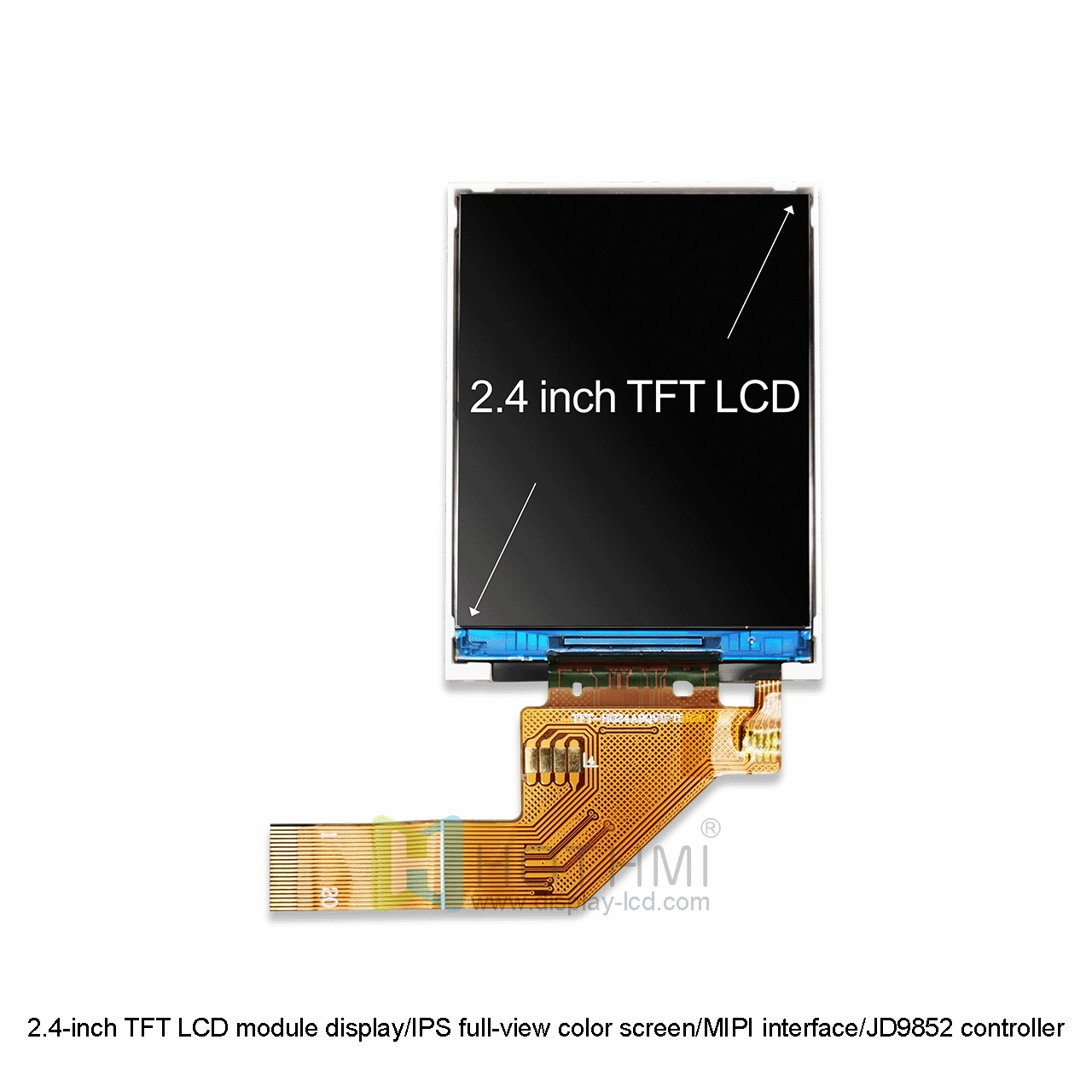

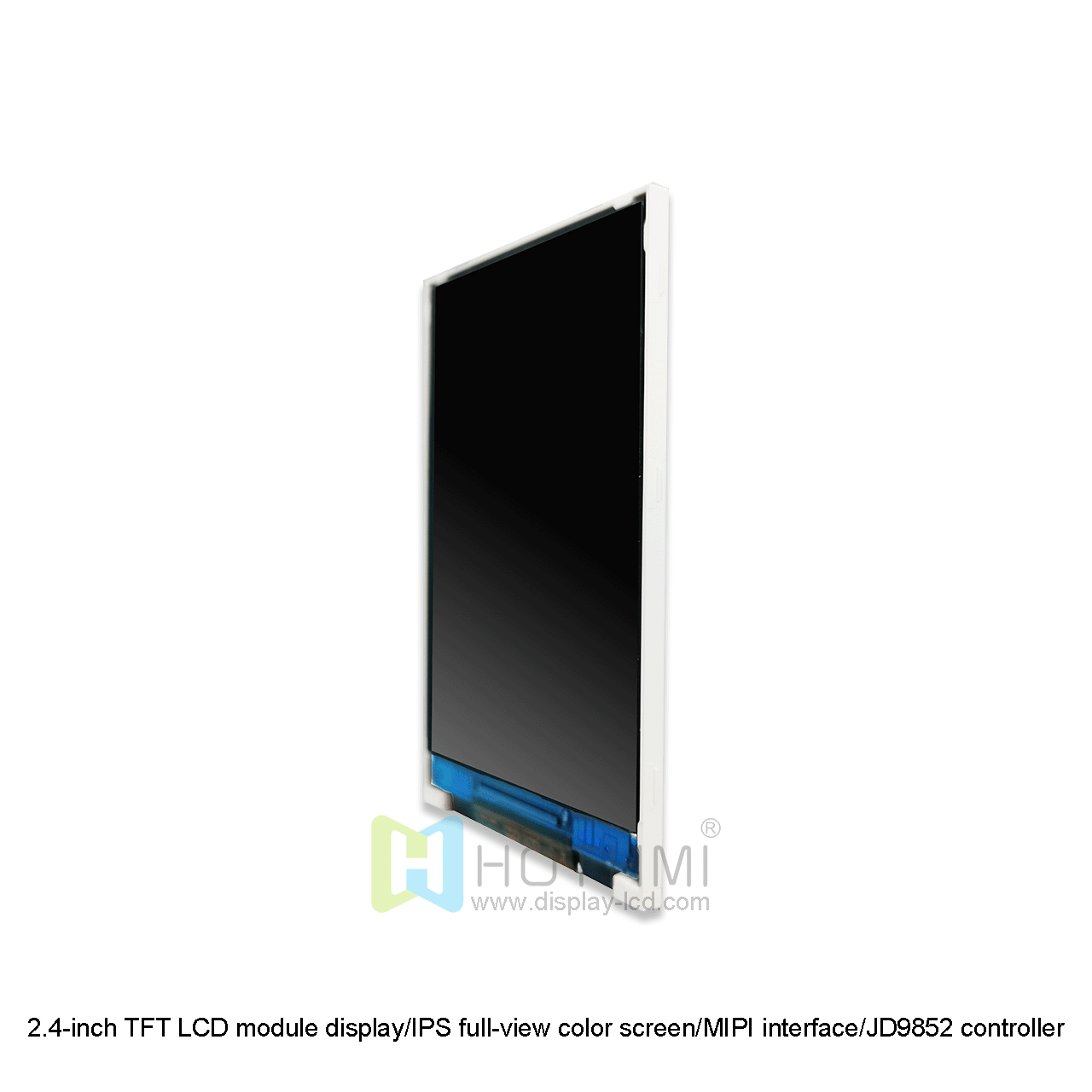

2.4-inch TFT LCD module display / IPS full-view color screen / 240x320 resolution / MIPI interface / JD9852 controller/Android/RK

2.4-inch TFT LCD module display / IPS full-view color screen / 240x320 resolution / MIPI interface / JD9852 controller/Android/RK

▶ Model: TFT-H024A9QVIFT8N20

▶ Type: TFT standard display
▶ Display pixels: 240x320

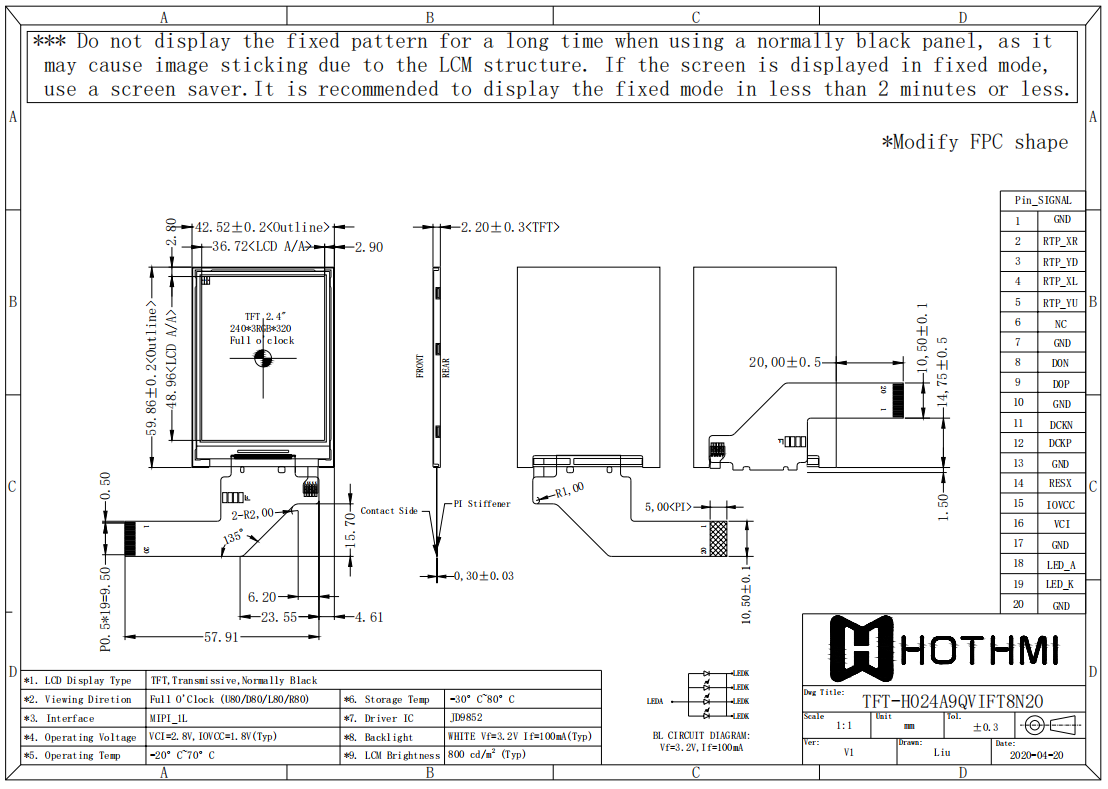

▶ Dimensions (mm): 45.52x59.86x2.2
▶ Display inches: 2.4"
▶ AA size (mm): 36.72x48.96
▶ Applications: industrial control systems, handheld electronic devices,
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 800cd/m2
▶ Pin: FPC-20 pin
▶ Interface mode: MIPI_1L
▶ Special instructions: anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 2.8V
▶ Driver chip: JD9852

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

2.4-inch TFT LCD module display / IPS full-view color screen / 240x320 resolution / MIPI interface / JD9852 controller/Android/RK
2.4-inch TFT LCD module display / IPS full-view color screen / 240x320 resolution / MIPI interface / JD9852 controller TFT-H024A9QVIFT8N20 is a 2.4-inch IPS full-view display. No matter which angle you watch it from, you will get a good display effect. The standard brightness LED backlight is 800 nits, which is moderately bright. This transmissive LCD requires a 2.8 voltage power supply and includes a MIPI_1L interface. It uses a flexible cable FPC cable. It is easy to connect and remove, multi-touch, sensitive and smooth, making it an excellent choice for projects that require simple touch functions. The touch screen will allow users to interact with your application intuitively and create opportunities for interactive menus, control systems, or more attractive user experiences. Some industries and applications include industrial control panels, kiosks, point of sale (POS) systems, e-readers, kiosks, ATMs, navigation systems, consumer products, home appliances, etc. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024A9QVIFT8N20
Diagonal size	2.4”	Inch
Resolution	240X320	Dot
Dimensions	45.52X59.86X2.2	mm
Active area (AA)	36.72X48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	1:1.1
Backlight type	LED white
TFT driver IC	JD9825
Brightness	800	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
