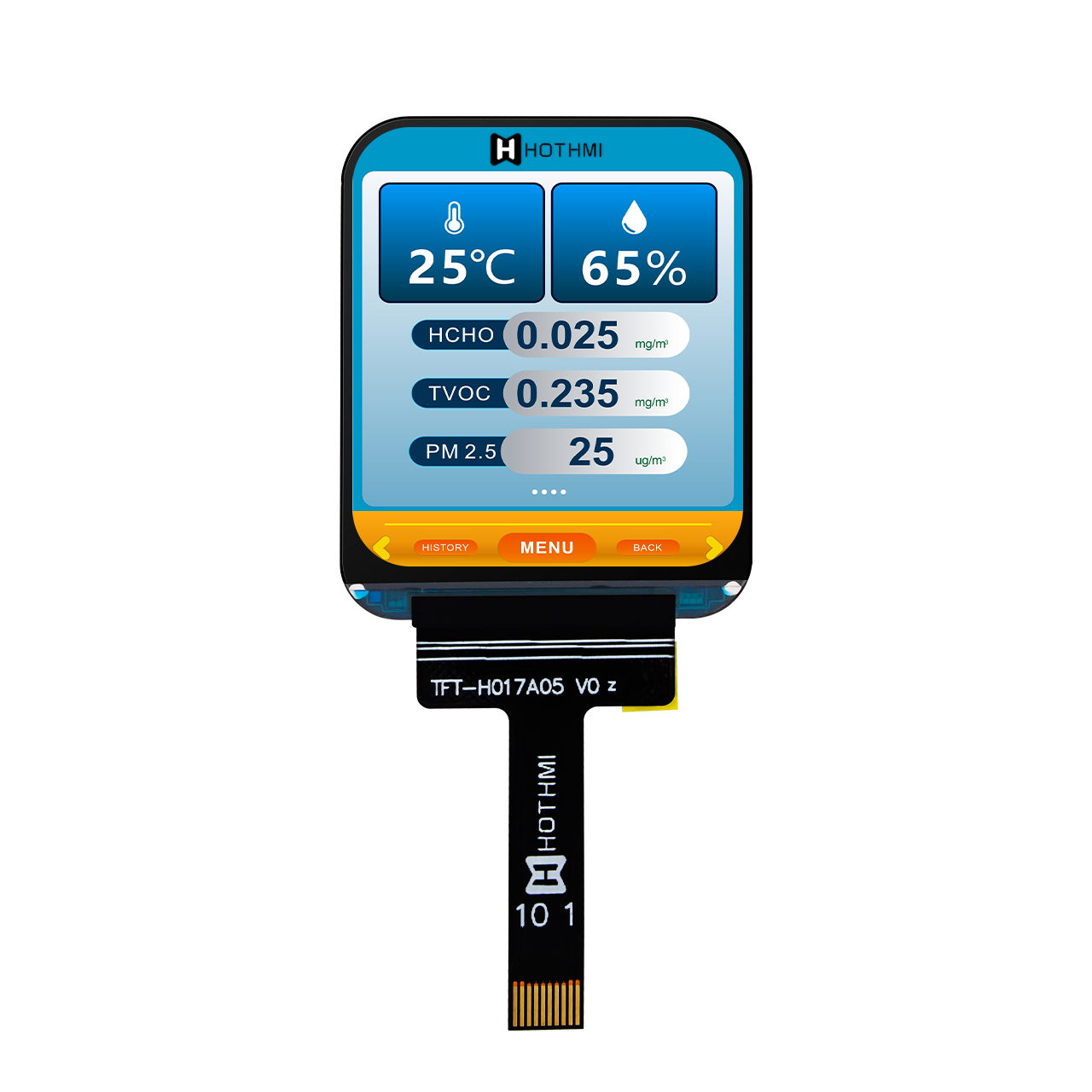

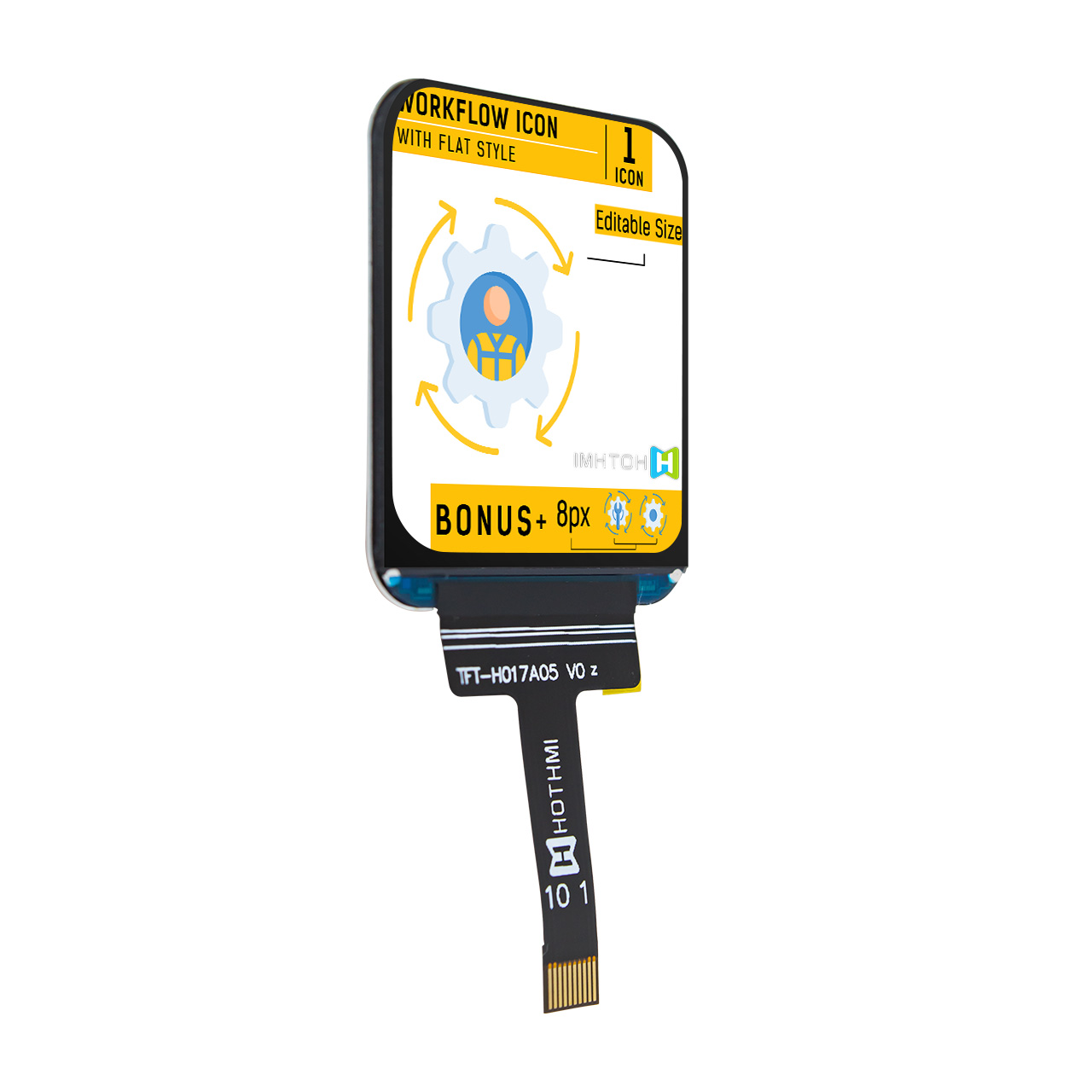

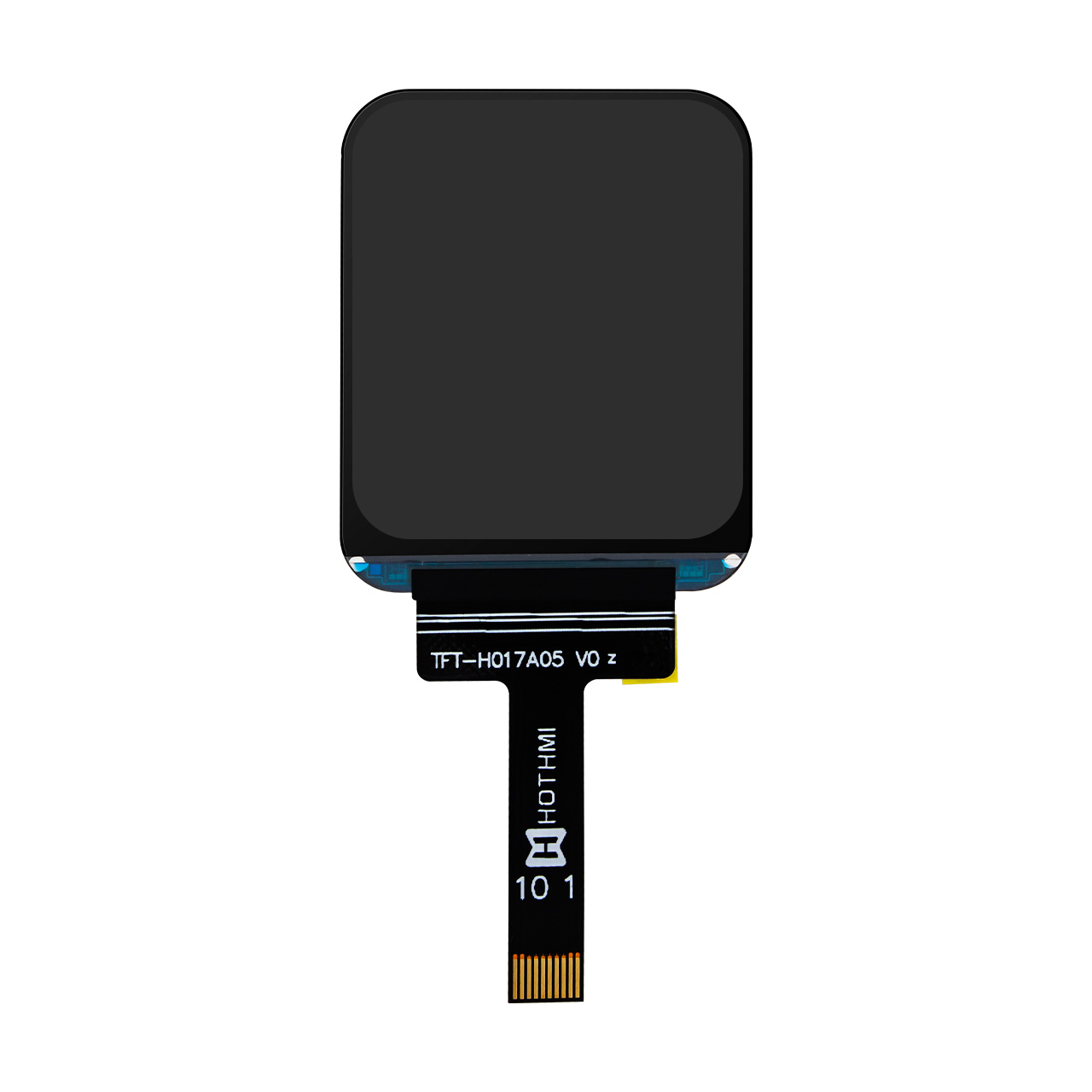

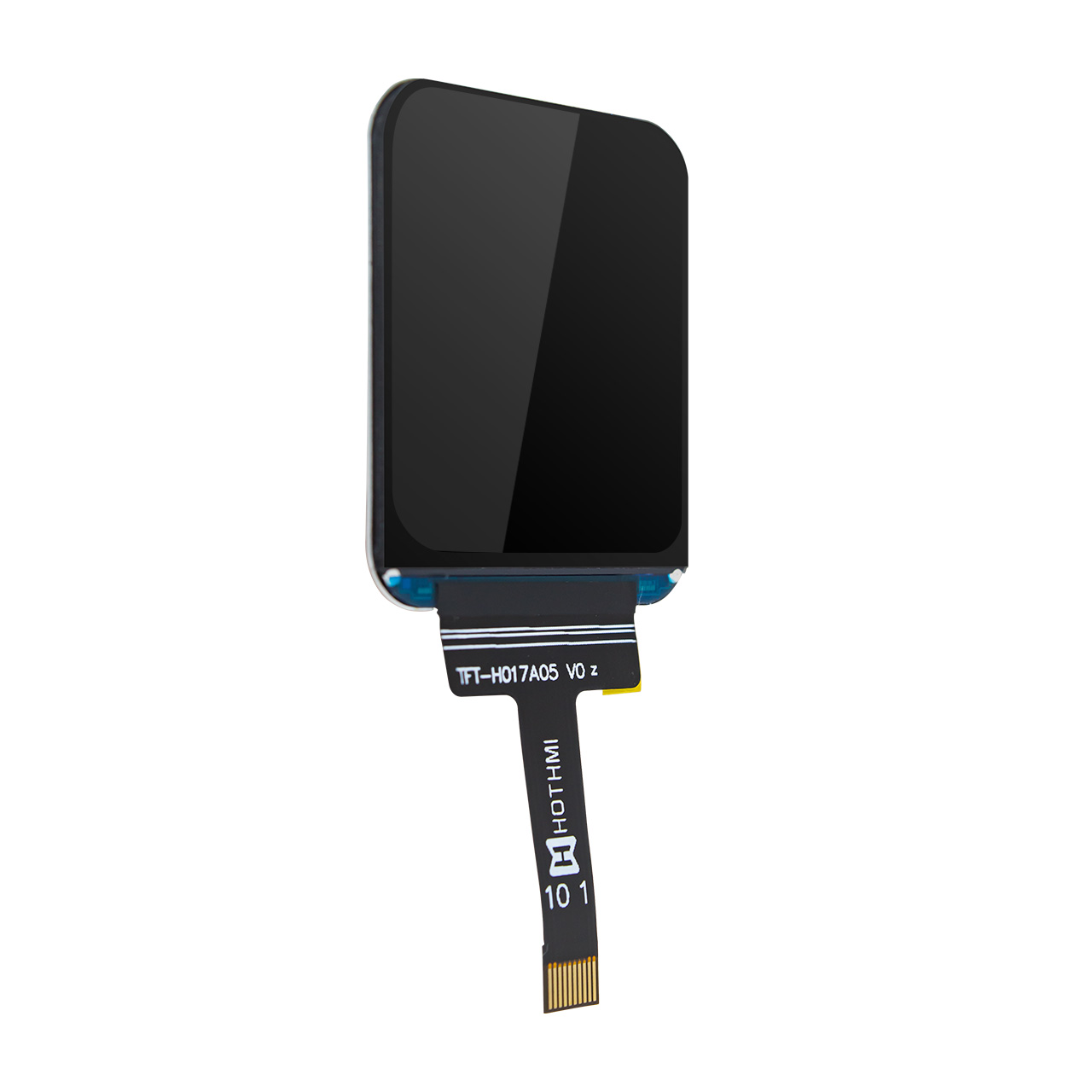

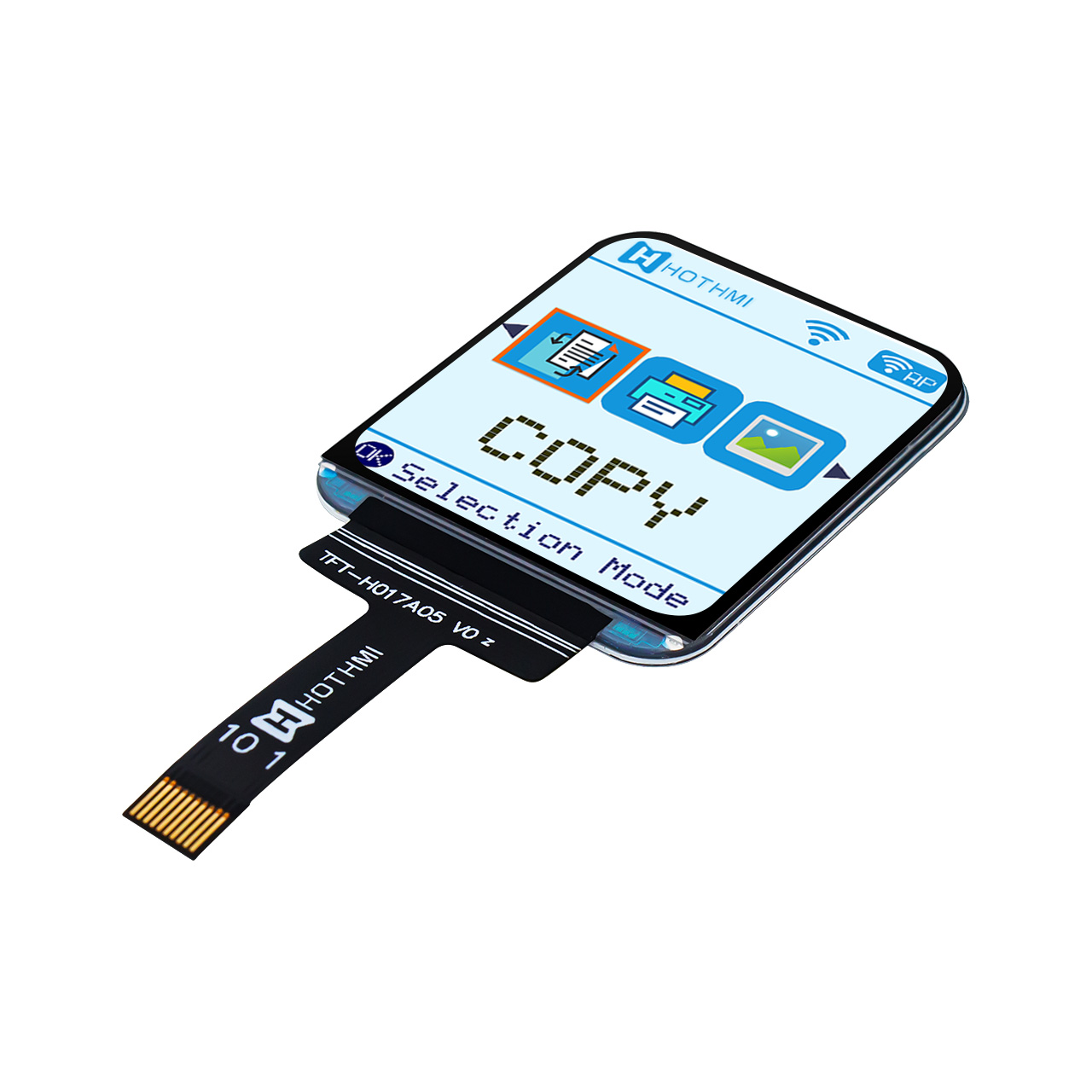

1.7 Inch 240x280 IPS LCD Display with ST7789 Driver

1.7 Inch 240x280 IPS LCD Display with ST7789 Driver | SPI Interface

▶ Model: TFT-H017A05QVIST5N10

▶ Type: 1.7"TFT LCD Screen
▶ Display pixels: 240x280

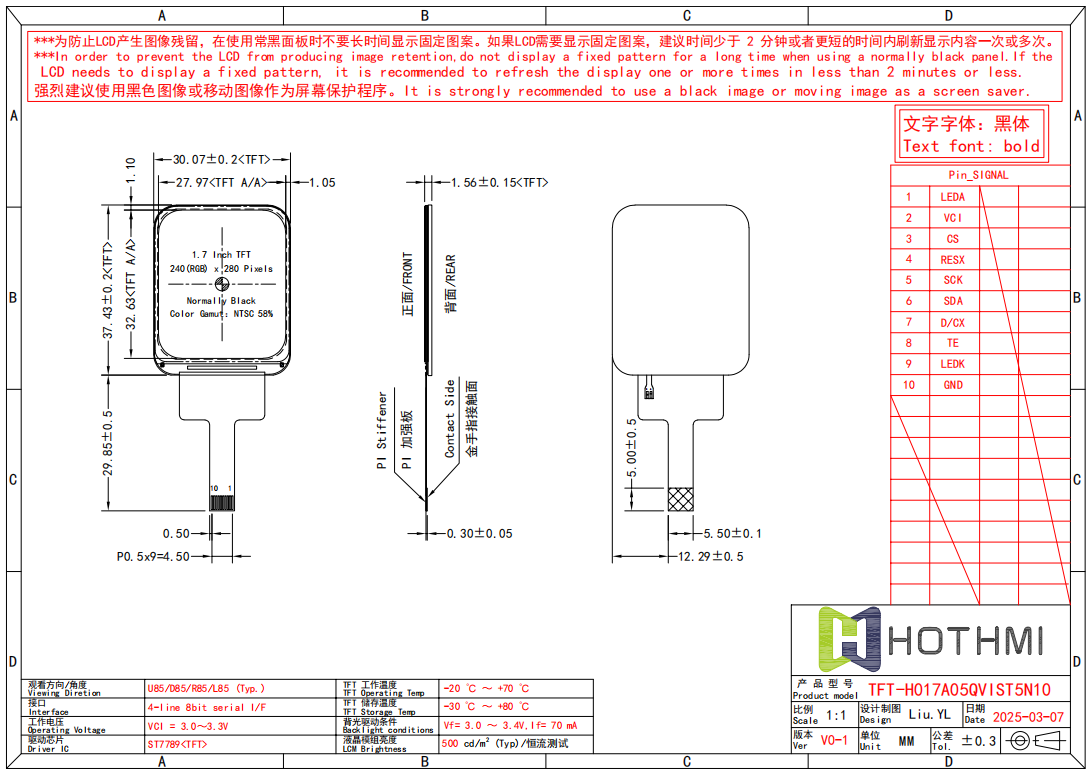

▶ Dimensions (mm): 30.07x37.43x1.56

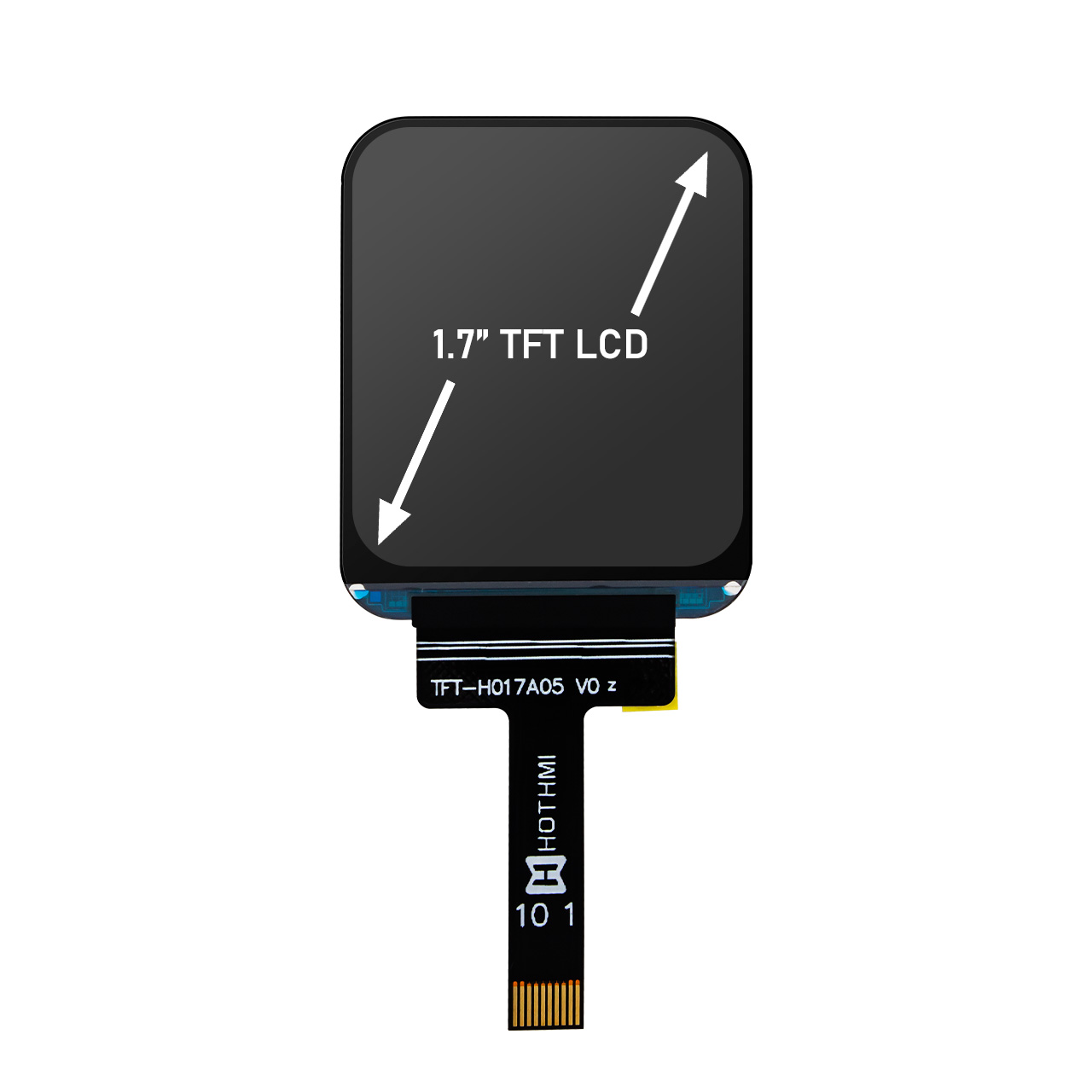

▶ Display inches: 1.7"
▶ Effective size (mm): 27.97x32.63

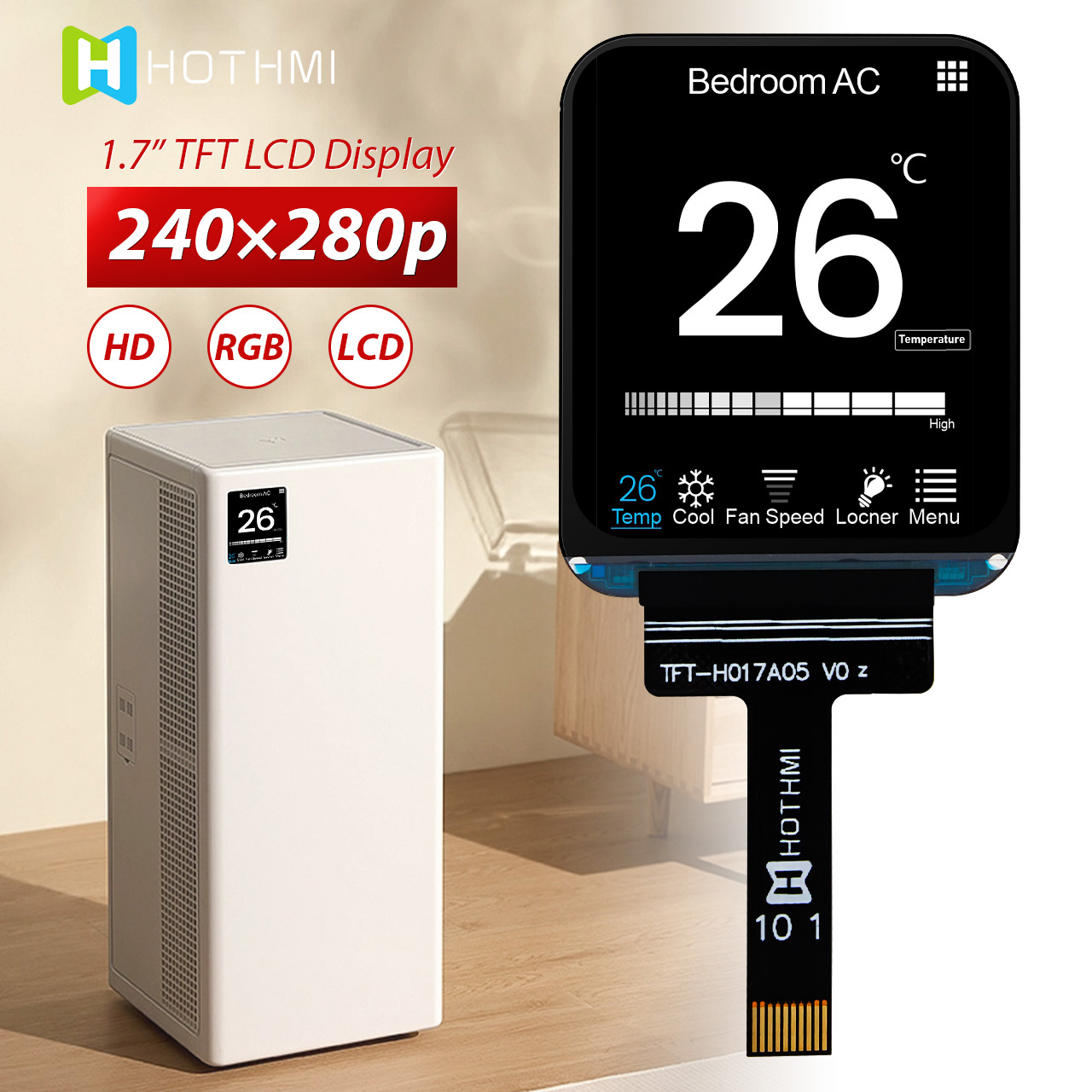

▶ Application: Handheld devices, home appliances
▶ Viewing angle: full viewing angle
▶ Brightness: 500cd/m2
▶ Pin: FPC-10PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

STM32-SPI-10PIN+MCU-40Pin main control board
EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
EZUI Universal Adapter Board-10PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
ESP32-C3 driver board/SPI-10 pin
EZUI-H serial port driver board-SPI interface universal
Full-function test development PCB-Bluetooth-WIFI-UART-CAN-LVGL-RS485

Product Description
Customized Services
Attributes

TFT-H017A05QVIST5N10 | 1.7"TFT LCD Screen | 240x280 IPS TFT Panel | ST7789 driver chip
This 1.7-inch TFT LCD, model TFT-H017A05QVIST5N10, features a normally black panel design with a resolution of 240x280 pixels. Its IPS full viewing angle and moderate brightness provide users with high-definition, high-quality images. Equipped with an ST7789 driver chip and supporting an SPI interface, it is compatible with development platforms such as Arduino and C8051.

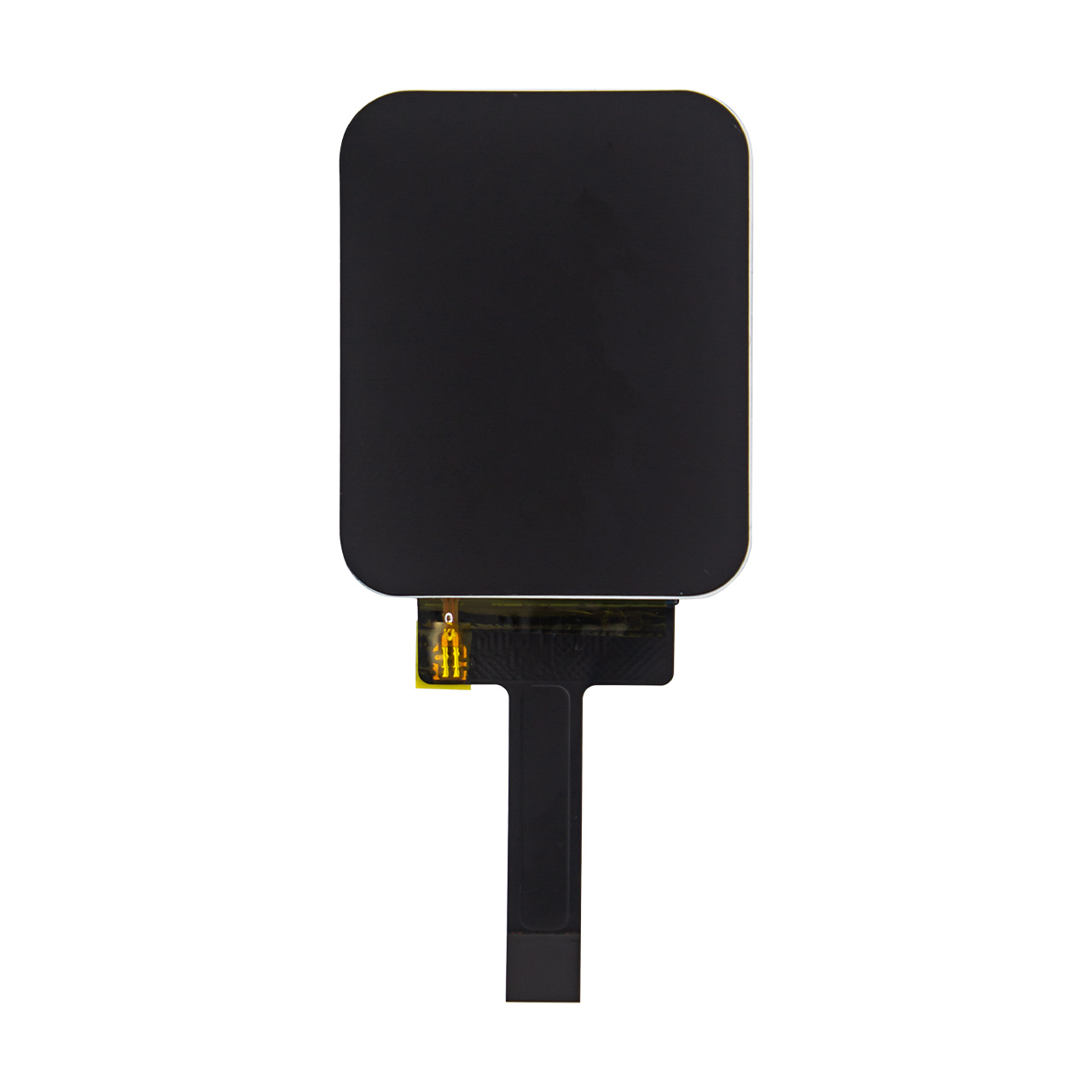

This 1.7-inch TFT LCD comes with an FPC connector for easy assembly and disassembly. Users can connect to the driver board via simple plug-in or soldering. This product features a customizable cover with rounded edges for an aesthetically pleasing appearance. This industrial-grade TFT display has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, making it suitable for a wide range of applications.

This version does not include a driver board, allowing users to design their own main control board based on their needs. Developers lacking experience shouldn't worry; we also offer a corresponding module, the HTM-H017A05-SPI-V0. This module has metal pins, allowing users to simply plug it into the main control board for convenient and reliable operation.

We also offer customization services, including the shape, size, silkscreen pattern, and color of the display cover. We can also optionally apply AF/AG/AR processing to the display cover, as well as modify the FPC.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H017A05QVIST5N10	April 04, 2025	1.11MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H017A05QVIST5N10
Diagonal size	1.7”	Inch
Resolution	240x280	Dot
Dimensions	30.07x37.43x1.56	mm
Active area (AA)	27.97x32.63	mm
LCD type	1.7"TFT LCD Screen	mm
Display viewing angle	Full View
Aspect ratio	1:1
Backlight type	LED white
TFT driver IC	ST7789
Brightness	500	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
