8.0 inch TFT LCD display module/800x600 dot matrix TTL color screen/FPC plug STM32

8.0 inch TFT LCD display module/800x600 dot matrix TTL color screen/FPC plug STM32

▶ Model: TFT-H080A1SVTHX3N50

▶ Type: TFT standard display
▶ Display pixels: 800x1280 px
▶ Dimensions (mm): 182.9X141.0X7.0
▶ Display inches: 8.0"
▶ AA size (mm): 162.0X121.5
▶ Application: industrial control systems, portable electronic devices
▶ Viewing angle: 12 O'CLOCK (U70/D75/L75/R75)
▶ Backlight/brightness: 300cd/m2
▶ Pin: FPC-50 pin
▶ Interface mode: TTL 18/24 Bit
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: HX8264+HX8696

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

8.0 inch TFT LCD resistive touch display module/800x1280 dot matrix resistive touch color screen/FPC plug-in
8.0 inch TFT LCD resistive touch display module 800x1280 dot matrix resistive touch color screen FPC plug-in TFT-H080A1SVTHX3R50 is an 8.0 inch IPS TFT display with a resolution of 800x1280 pixels. The best viewing angle is 12 O'CLOCK (U70/D75/L75/R75). This model uses FPC connection, and FPC requires a connector. Just connect with our optional solder FPC connector, which is easy to insert or remove.
This display also has a brightness of up to 300cd/m2.
For users using 8051 microcontrollers, we have also prepared a detailed tutorial that includes interface information, demo code, and development kits. You can contact us to request and learn.

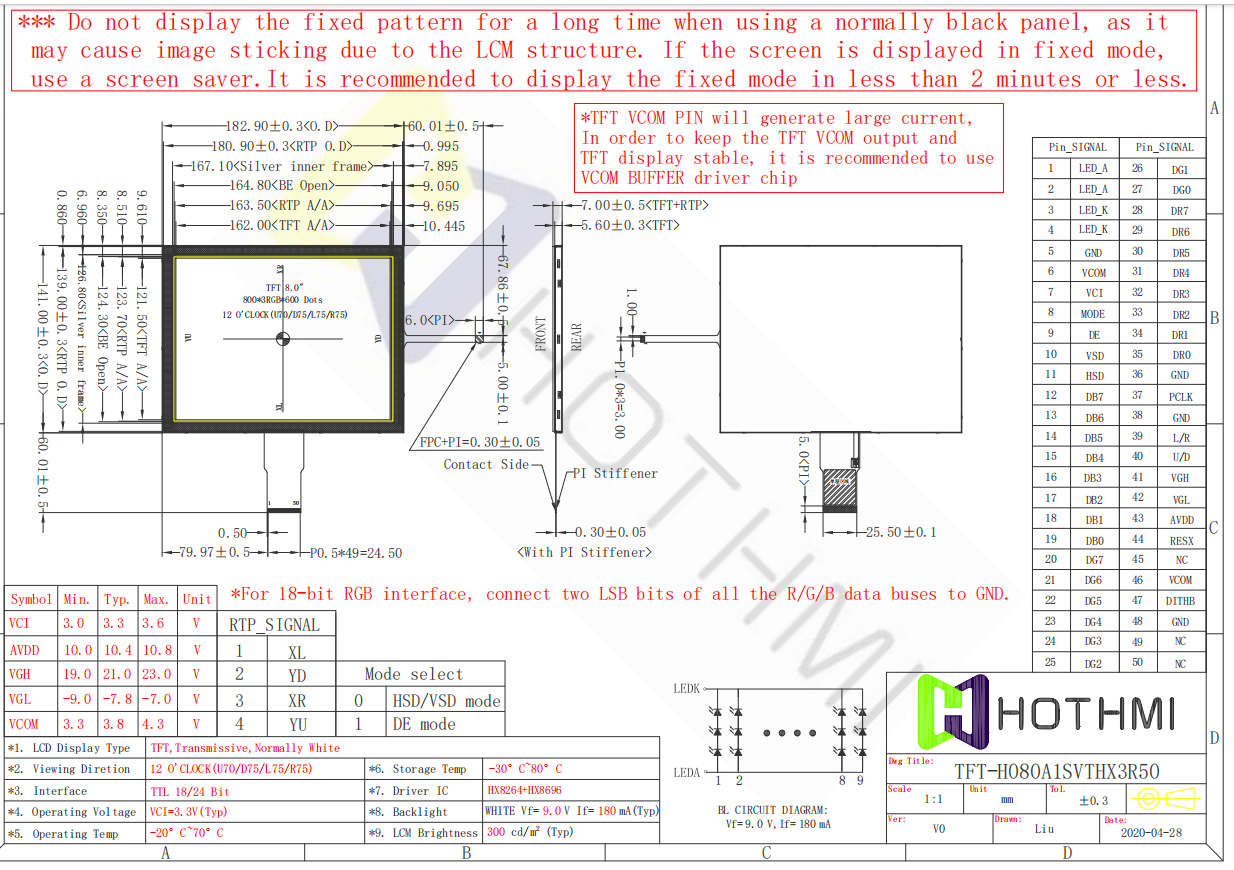

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H080A1SVTHX3R50
Diagonal size	8.0”	Inch
Resolution	800X1280	Dot
Dimensions	182.9X141.0X7.0	mm
Active area (AA)	162.0X121.5	mm
LCD type	TFT LCD Display	mm
Display viewing angle	12 O'CLOCK(U70/D75/L75/R75)
Aspect ratio	1:1.6
Backlight type	LED white
TFT driver IC	HX8264+HX8696
Brightness	300	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
