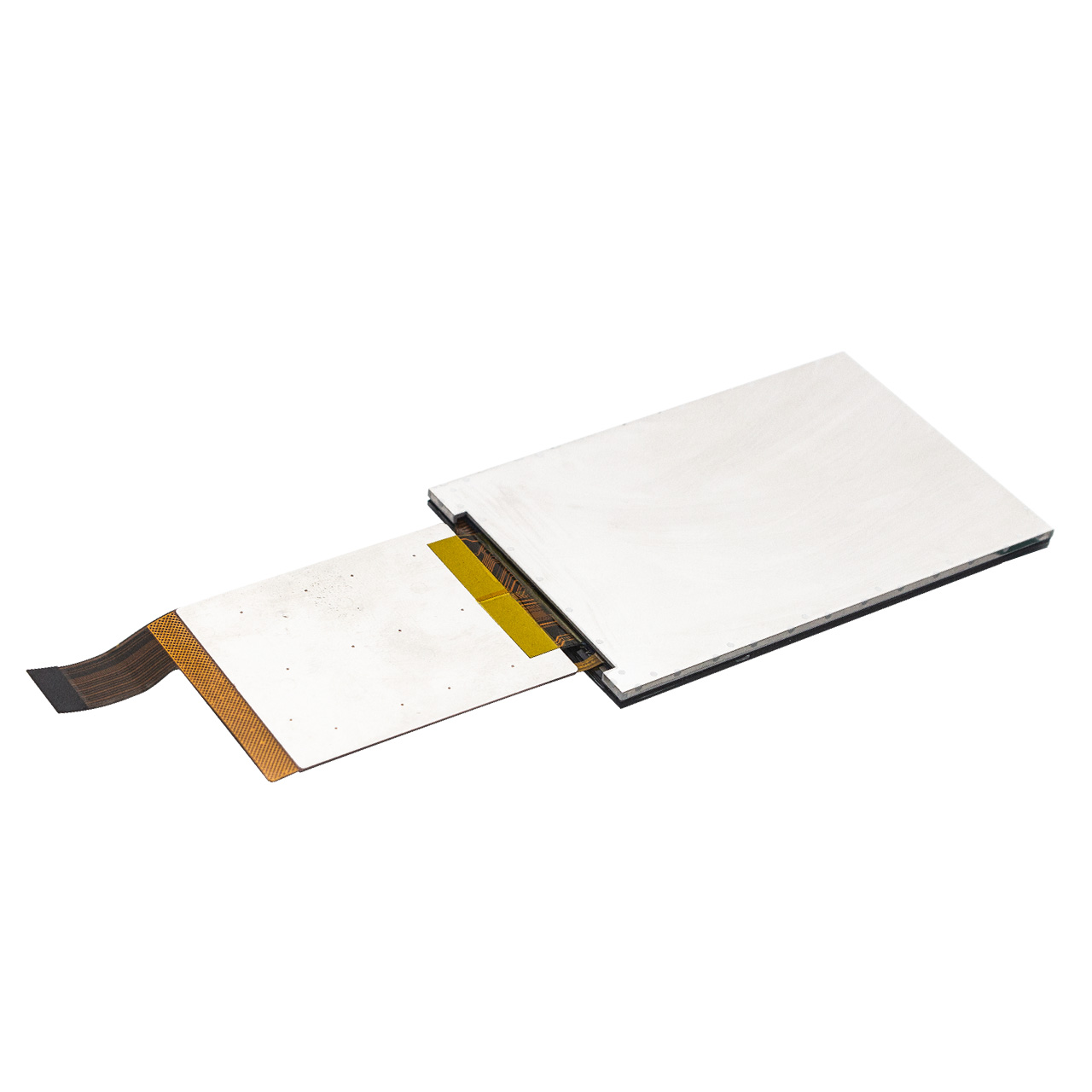

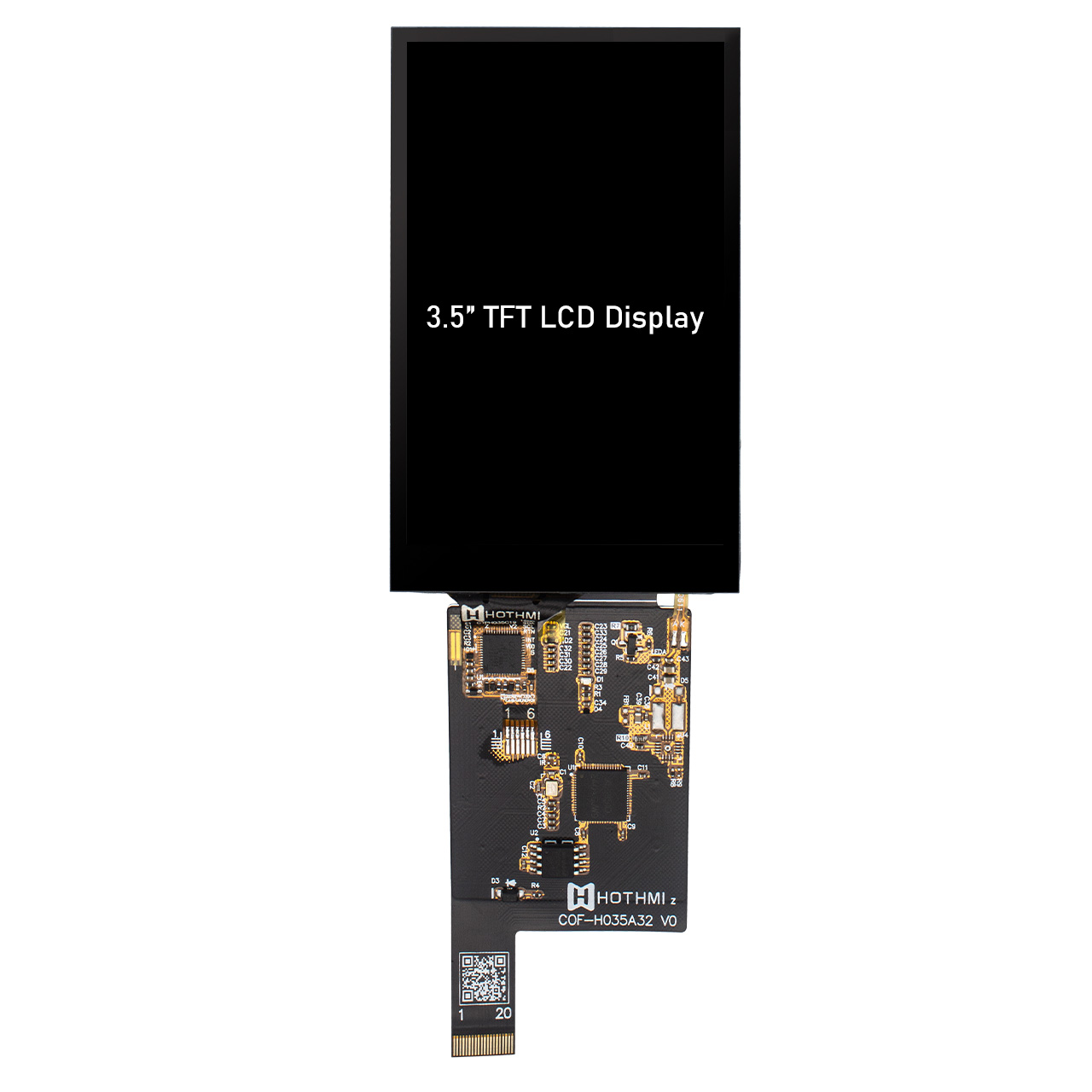

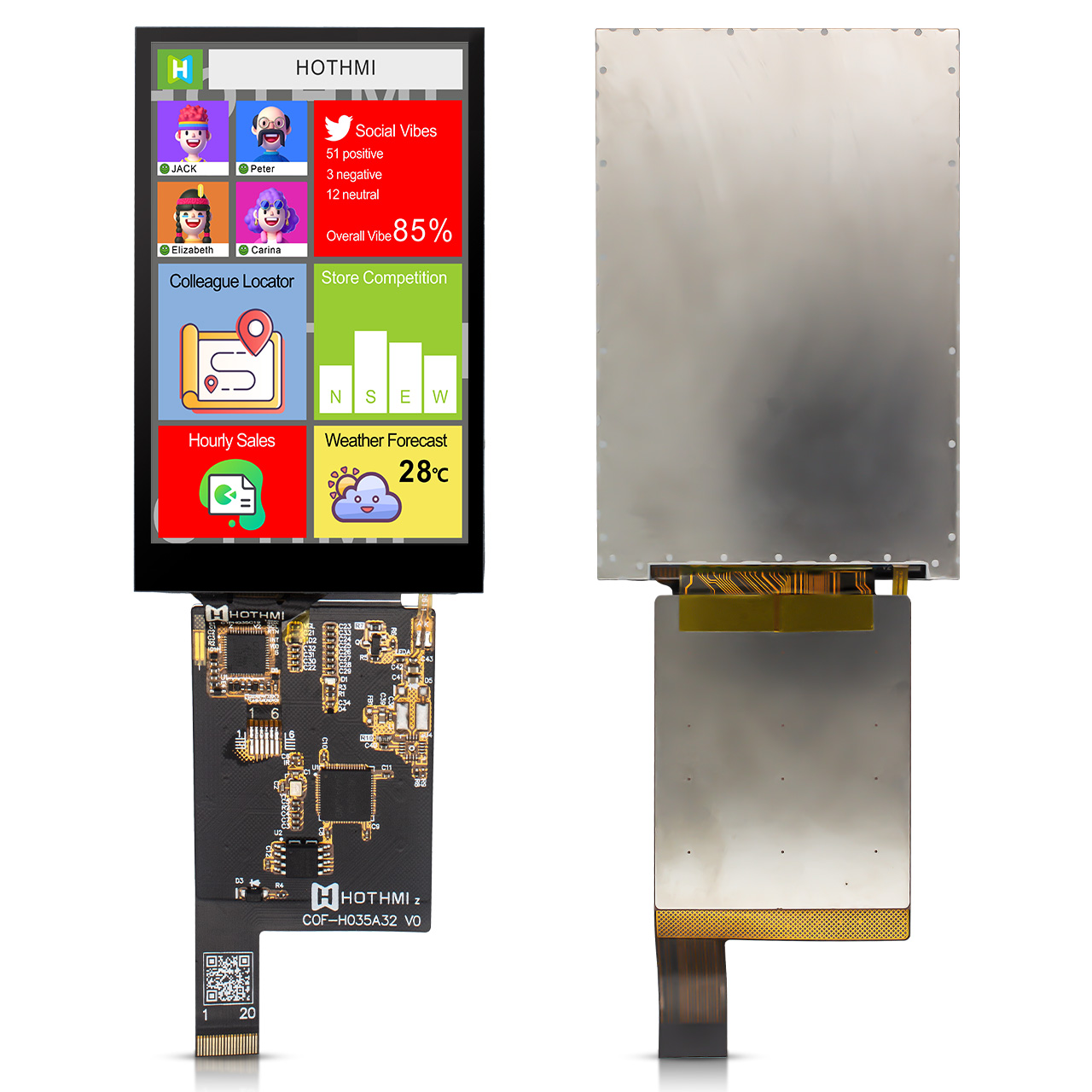

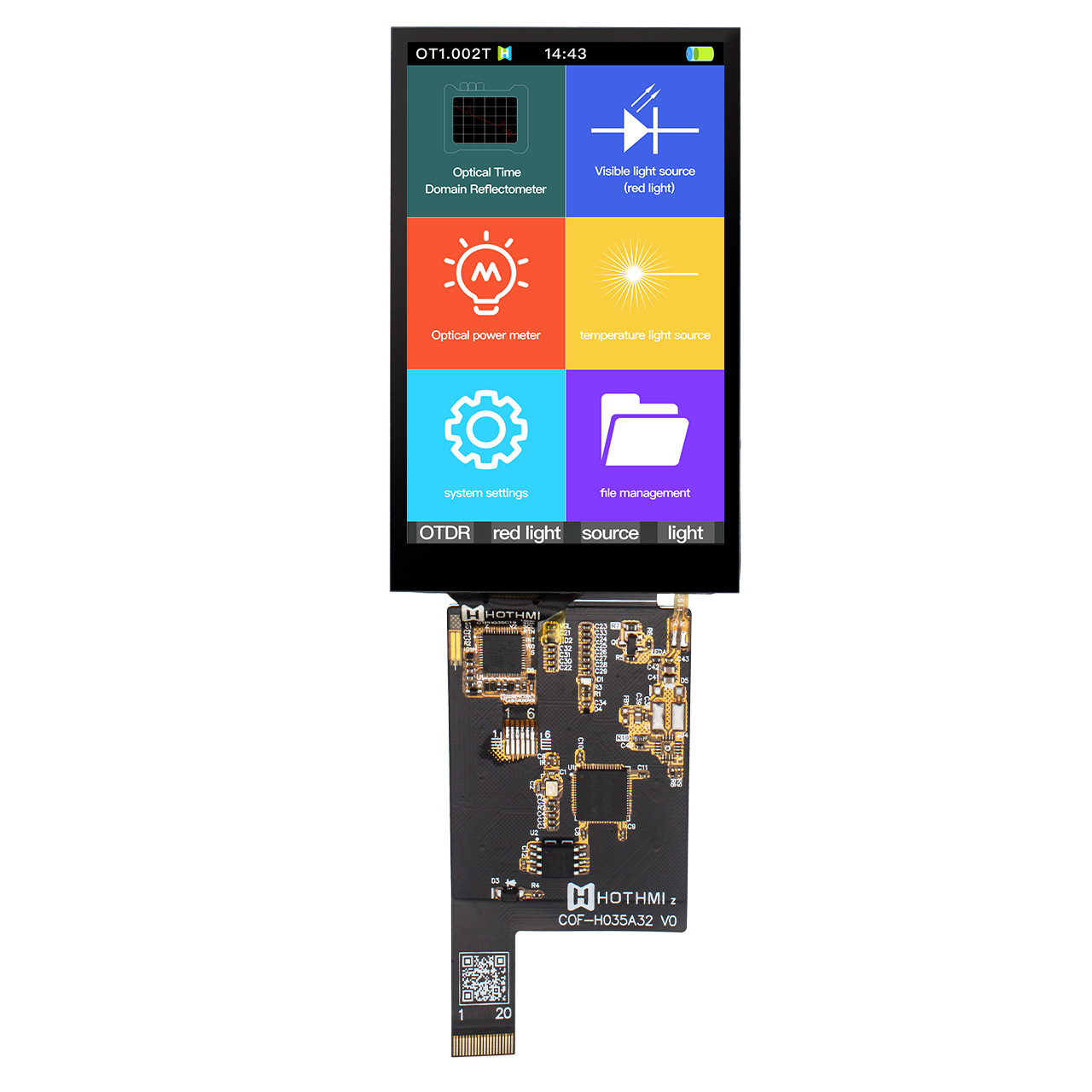

3.5 inch smart TFT Module | 320x480 UART EzUI LCD Module
This is a 3.5 inch smart TFT Module that supports capacitive touch function (CTP), with a resolution of 320 (RGB) × 480 pixels and uses Normally Black (Normally Black) design. Two versions are available:
A01C (V0-0): brightness 400 cd/m², color gamut covers NTSC 85%, suitable for high color reproduction scenes.
A01R (V0-1): brightness 300 cd/m², color gamut NTSC 69%, suitable for basic display needs.

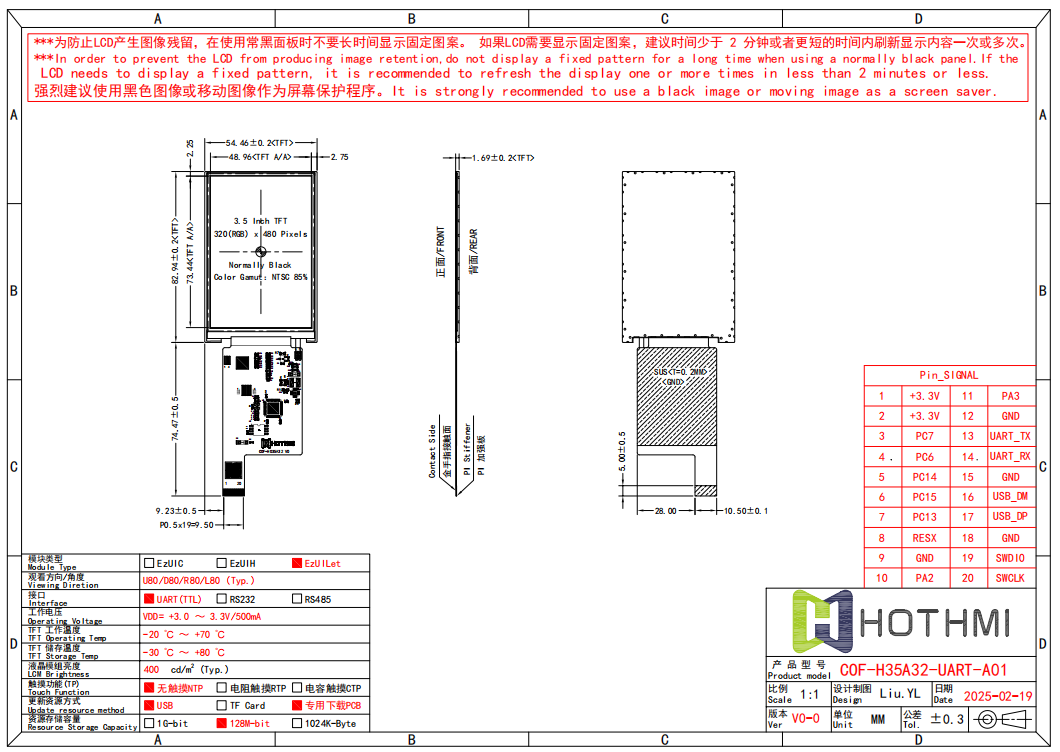

The 3.5 inch smart TFT Module has an operating voltage of 3.0V to 3.3V, supports wide temperature operation (-20℃ to +70℃) and storage (-30℃ to +80℃), and meets the harsh environmental requirements of industrial and embedded devices. Built-in UART (TTL), RS232, RS485 interfaces, equipped with USB pins (DM/DP) and 1G-bit resource storage capacity, support content update through TF card or dedicated download PCB.
Core features:
Gold finger contact surface design, PI reinforcement board to improve mechanical stability.
Capacitive touch response is sensitive, suitable for interactive devices.
Provides full viewing angle (U80/D80/R80/L80) display, clear and uniform picture.
Usage suggestions:
Avoid displaying static images for a long time. It is recommended to refresh the content every 2 minutes or enable black/dynamic screen saver to prevent image retention. 3.5 inch smart TFT Module is Suitable for scenes such as industrial control panels, medical equipment, portable terminals, etc., with high reliability and flexibility.
