5.1 inch 160x128 LCD Graphic LCD Module | STN- | RA6963 | MCU | Arduino | White on Blue

5.1 inch 160x128 LCD Graphic LCD Module | STN- | RA6963 | MCU | Arduino | White on Blue | Fully Transmissive Polarizer

▶ Model: HTM160128B-25W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 160x128
▶ Overall dimensions (mm): 129.0x102.0x8.6
▶ VA size (mm): 101.0x82.0
▶ AA size (mm): 92.76x74.2
▶ Point spacing (mm): 0.58x0.54
▶ Application: Automatic packaging machine
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 22PIN
▶ Interface mode: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: RA6963

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

5.1 inch 160x128 LCD Graphic LCD Module | STN- | RA6963 | MCU | Arduino | White on Blue | Fully Transmissive Polarizer

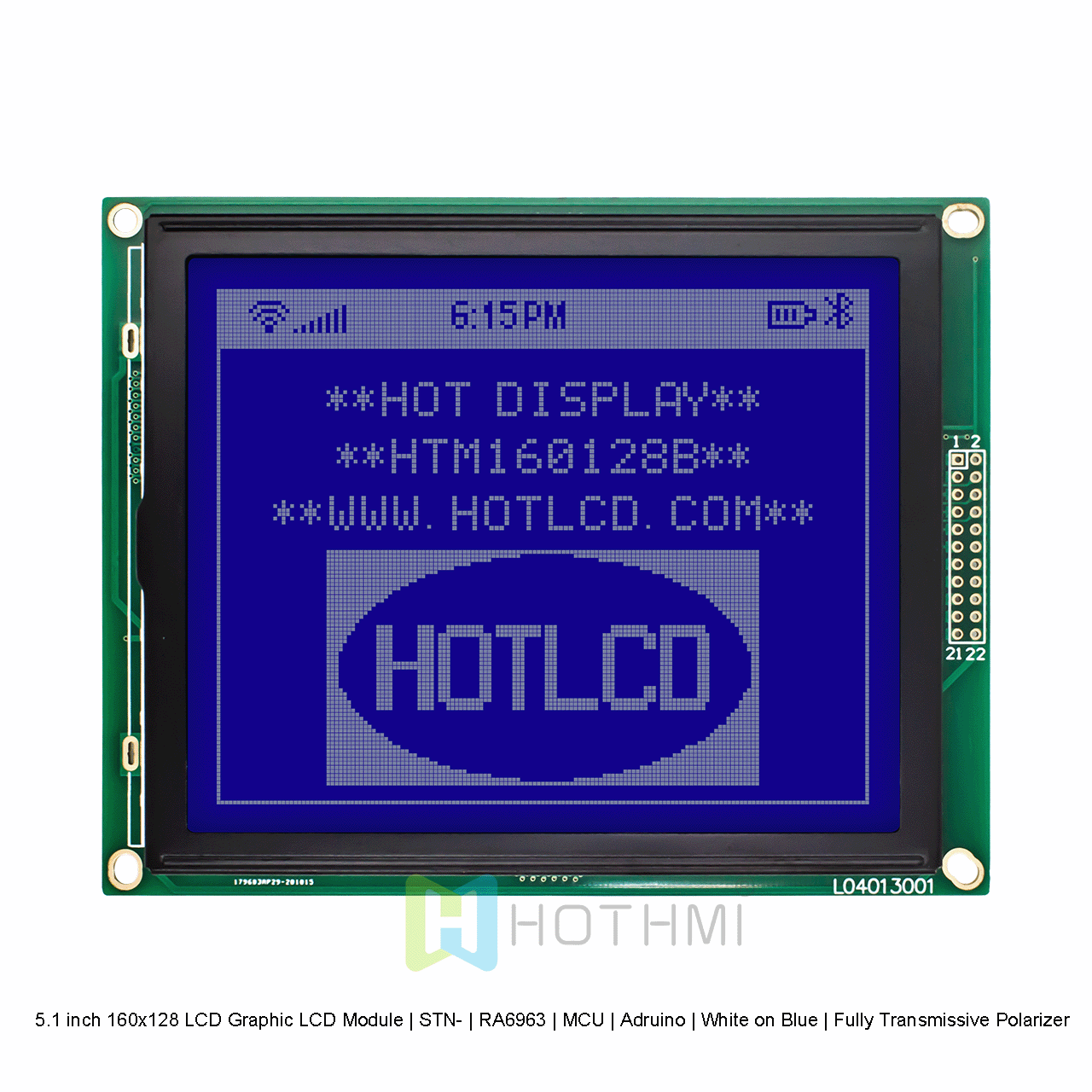

The 5.1 inch 160x128 LCD Graphic LCD Module displays white pixels on a blue background. This fully transmissive LCD display is designed to use backlight in darker environments, and the backlight is fully transmitted due to the fully transmissive polarizer, providing viewers with optimal visibility and impressive colors.

This graphic LCD display module is created with built-in negative voltage and selectable font size. It is also fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This product is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The best viewing angle of this LCD is 6:00, it operates on a 5V supply voltage, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

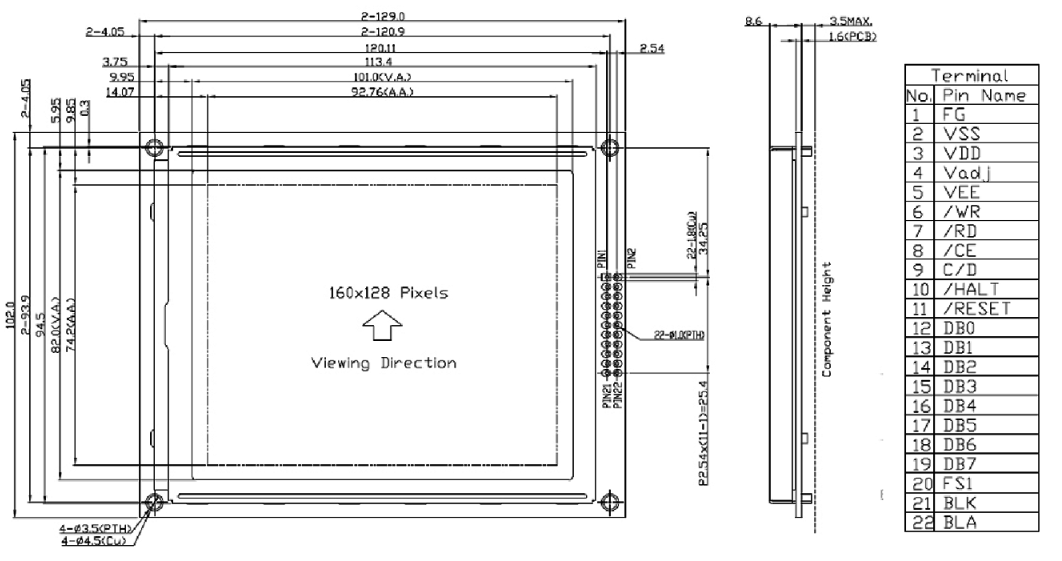

Parameter	Specification content	Unit
Name	HTM160128B-25W-A5P
Graphics display	160 × 128	dots
Dimensions	129.0 x 102.0 x 8.6 (MAX)	mm
VA size	101.0 x 82.0	mm
AA size	92.76 x 74.2	mm
Pixel pitch	0.58 x 0.54	mm
Driver chip	RA6963
Applied voltage	5V	V
Backlight illumination	White
Display mode	STN(-)
Drive mode	1/128 duty cycle
Product type	Graphic
Polarizer type	Transmissive
