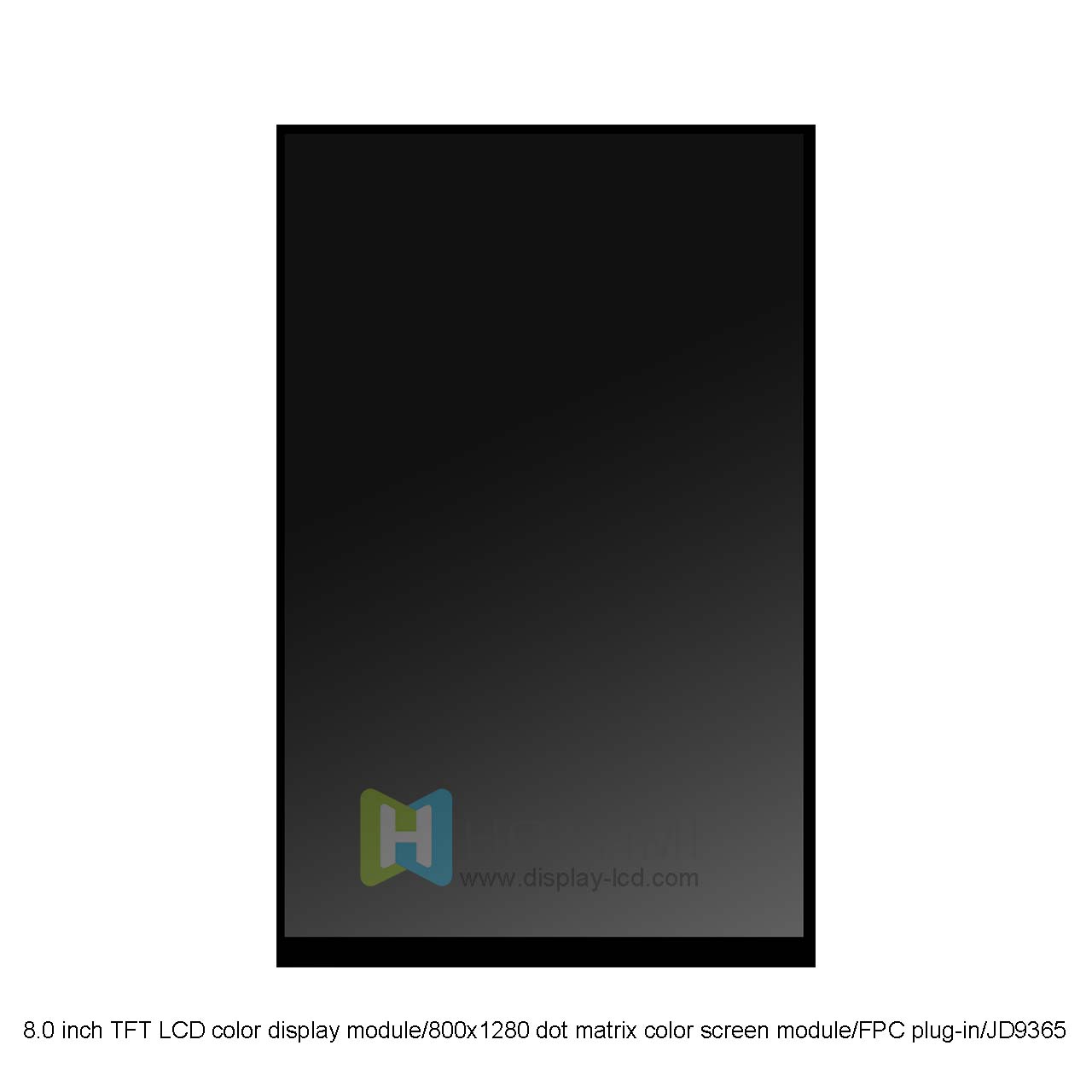

8.0 inch TFT LCD color display module/800x1280 dot matrix color screen module/FPC plug-in/JD9365 controller/Android/RK

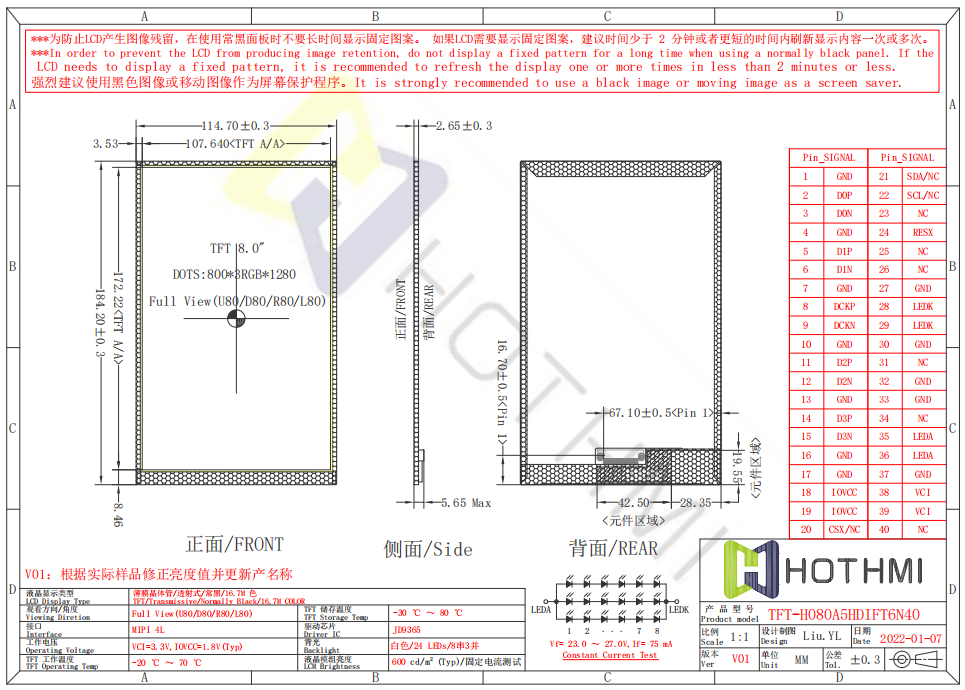

8.0 inch TFT LCD color display module/800x1280 dot matrix color screen module/FPC plug-in/JD9365 controller TFT-H080A5HDIFT6N40 is an 8.0 inch IPS TFT display with a resolution of 800x1280 pixels. It uses the JD9365 display driver IC and a 4-wire serial MIPI interface for communication.

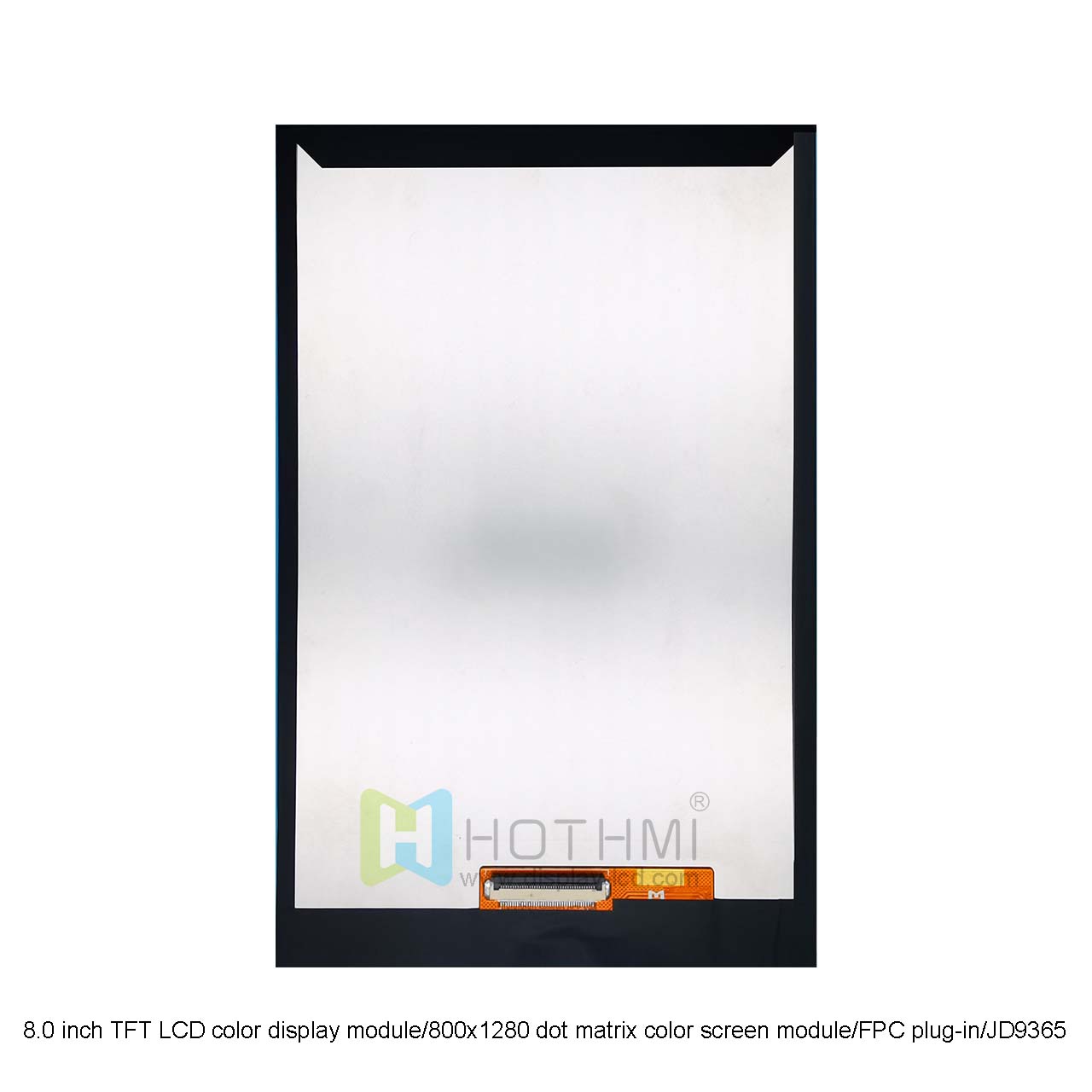

The FPC is a soldering type, no connector is required. Simply solder the FPC directly to the PCB or use our optional soldering FPC connector for connection, which is easy to insert or remove.
The IPS (Plane Switching) technology used in this display provides wide viewing angles and excellent color reproduction, which can be easily viewed from all angles without distortion. With a high contrast ratio of 800:1, this display is able to present deep blacks and vivid colors. Its brightness is also up to 600cd/m2. It is composed of 24 white LED lights, each 8 LEDs are connected in series, and three groups are connected in parallel.
For users using 8051 microcontrollers, we have also prepared a detailed tutorial, which includes interface information, demonstration code and development kit. You can contact us to request and learn.
