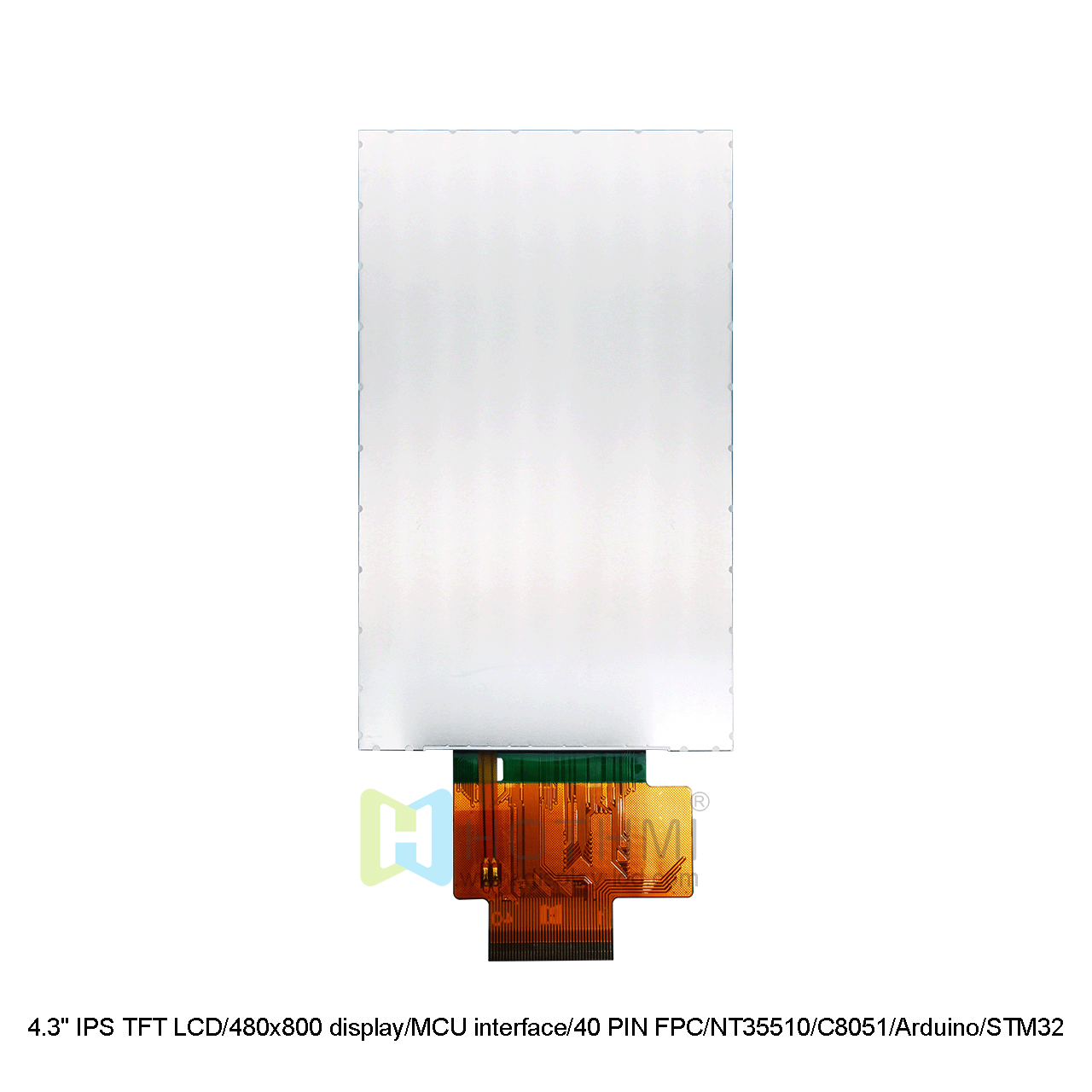

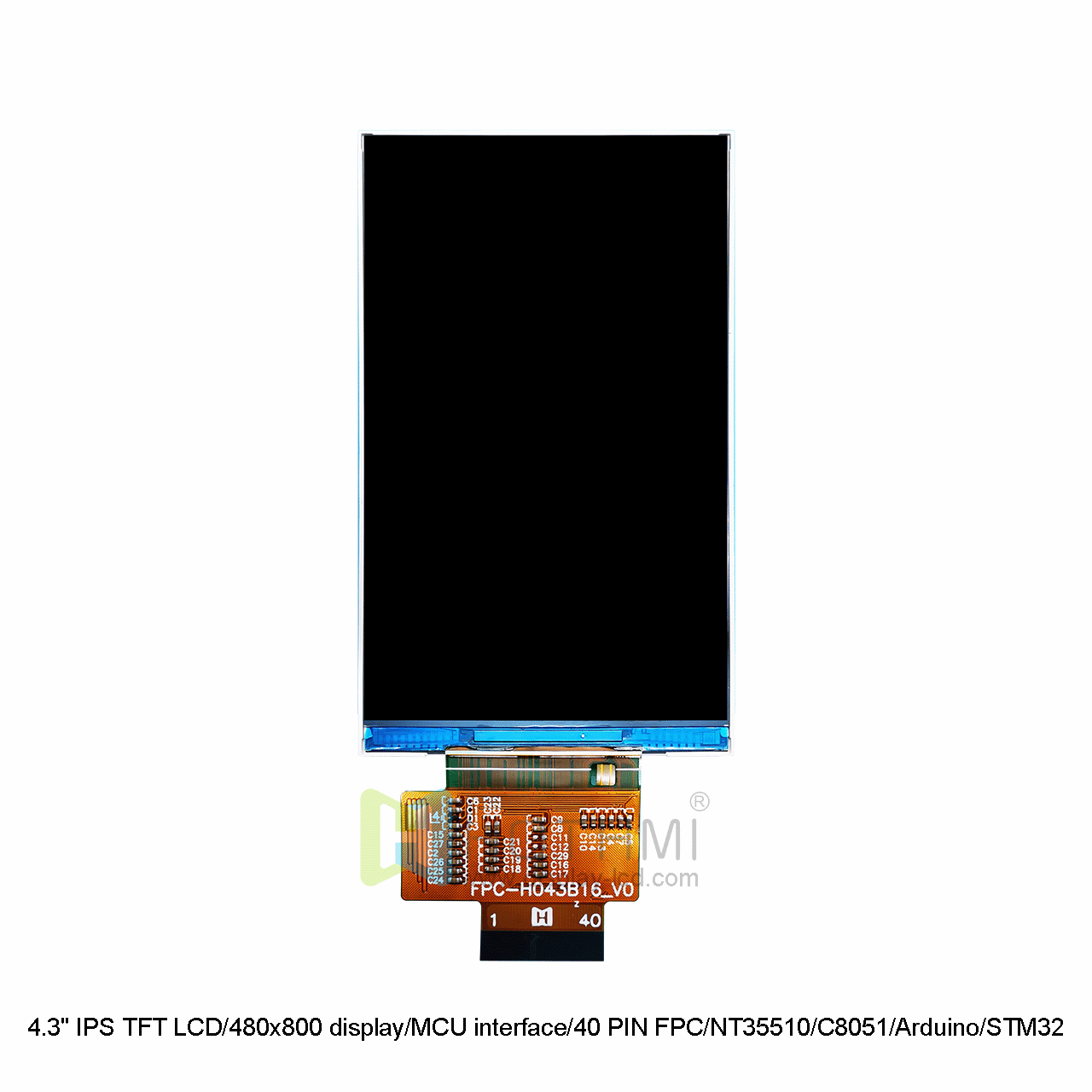

4.3" IPS TFT LCD | 480x800 MCU display

4.3" IPS TFT LCD | 480x800 MCU display | NT35510

▶ Model: TFT-H043B16WVINT4N40

▶ Type: 4.3" IPS TFT LCD
▶ Display pixels: 480x800
▶ Dimensions (mm): 60.86x102.57x2.3
▶ Display inches: 4.3"
▶ Effective size (mm): 56.16x93.6
▶ Application: C8051/Arduino/STM32
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 400cd/m2
▶ Pin: FPC-40PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: NT35510

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

EZUI-Let driver board/MCU/SPI (general purpose below 480*320)
EZUI-Let adapter board/MCU/40PIN
typ-c data cable T-port charging data cable/COB adapter board/COG adapter board
USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)

Product Description
Specification
Attributes

4.3" IPS TFT LCD | 480x800 MCU display | NT35510
4.3" IPS TFT LCD is equipped with NT35510 control board. This module has a resolution of 480x800 pixels and provides a typical brightness of 400 nits. This model does not have a touch function and the display interface is a vertical screen. It is very suitable for various applications that do not require a touch display, especially industrial control system display equipment applications.
This 4.3" IPS TFT LCD module uses the NT35510 controller and uses a unified 40-pin FPC connector. Overall, the 4.3" IPS TFT LCD is a high-performance TFT display tailored for embedded systems, providing excellent visual experience and reliability, and is an ideal choice for projects such as C8051/Arduino/STM32. Our displays are all RoHS-compliant and adhere to strict environmental and safety standards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H043B16WVINT4N40	December 12, 2024	172.12KB

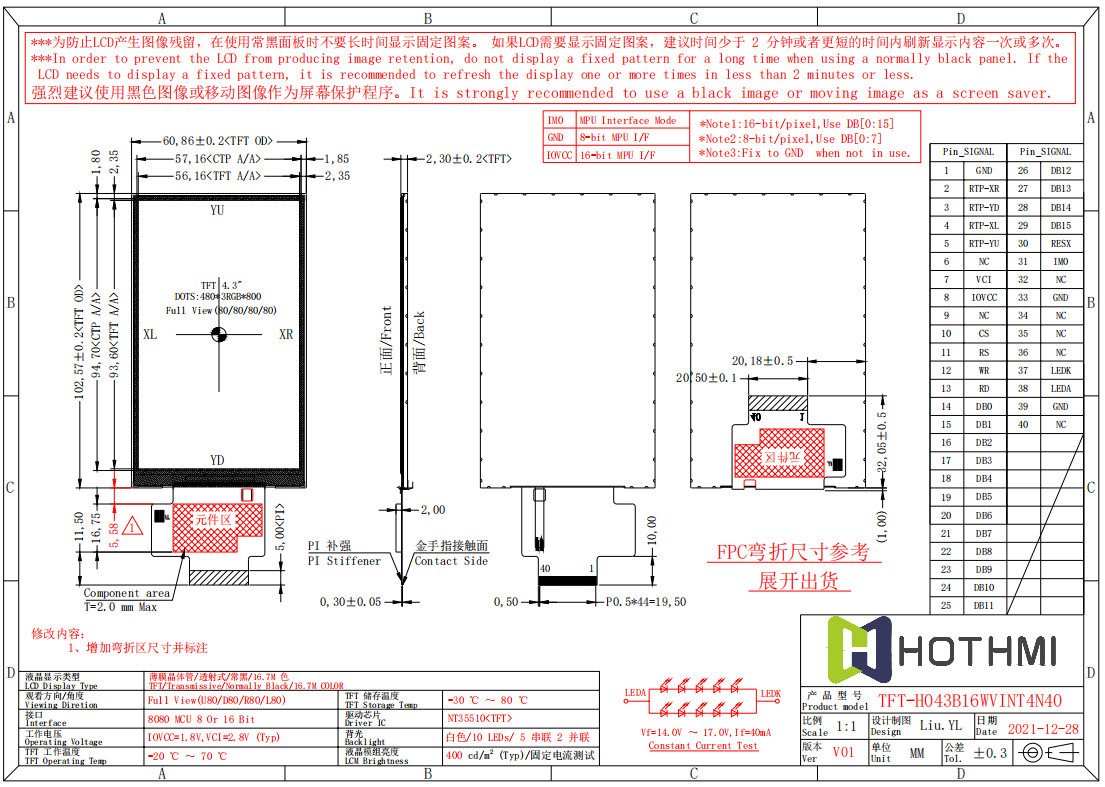

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043B16WVINT4N40
Diagonal size	4.3”	Inch
Resolution	480x800	Dot
Dimensions	60.86x102.57x2.3	mm
Active area (AA)	56.16x93.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	NT35510
Brightness	400	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
