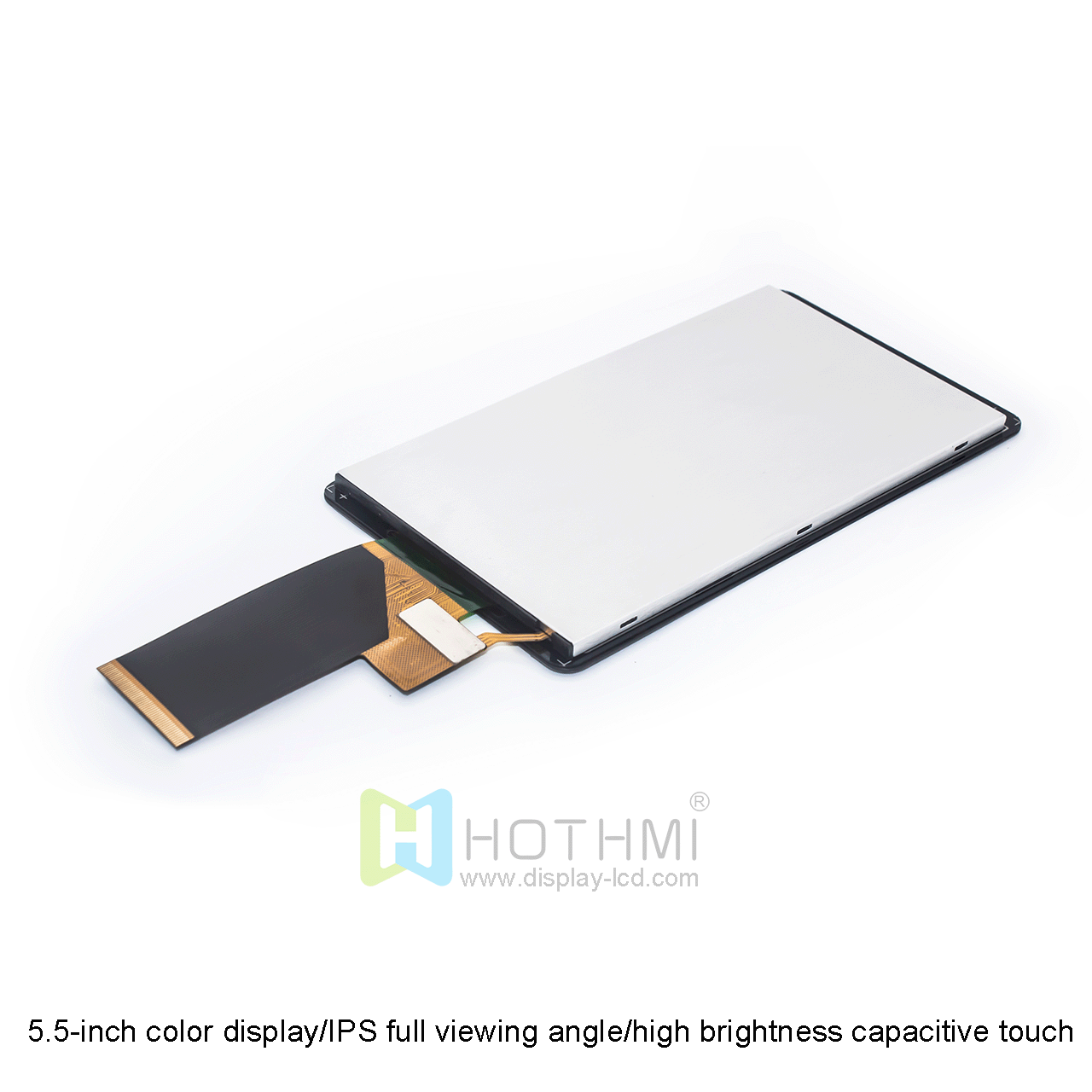

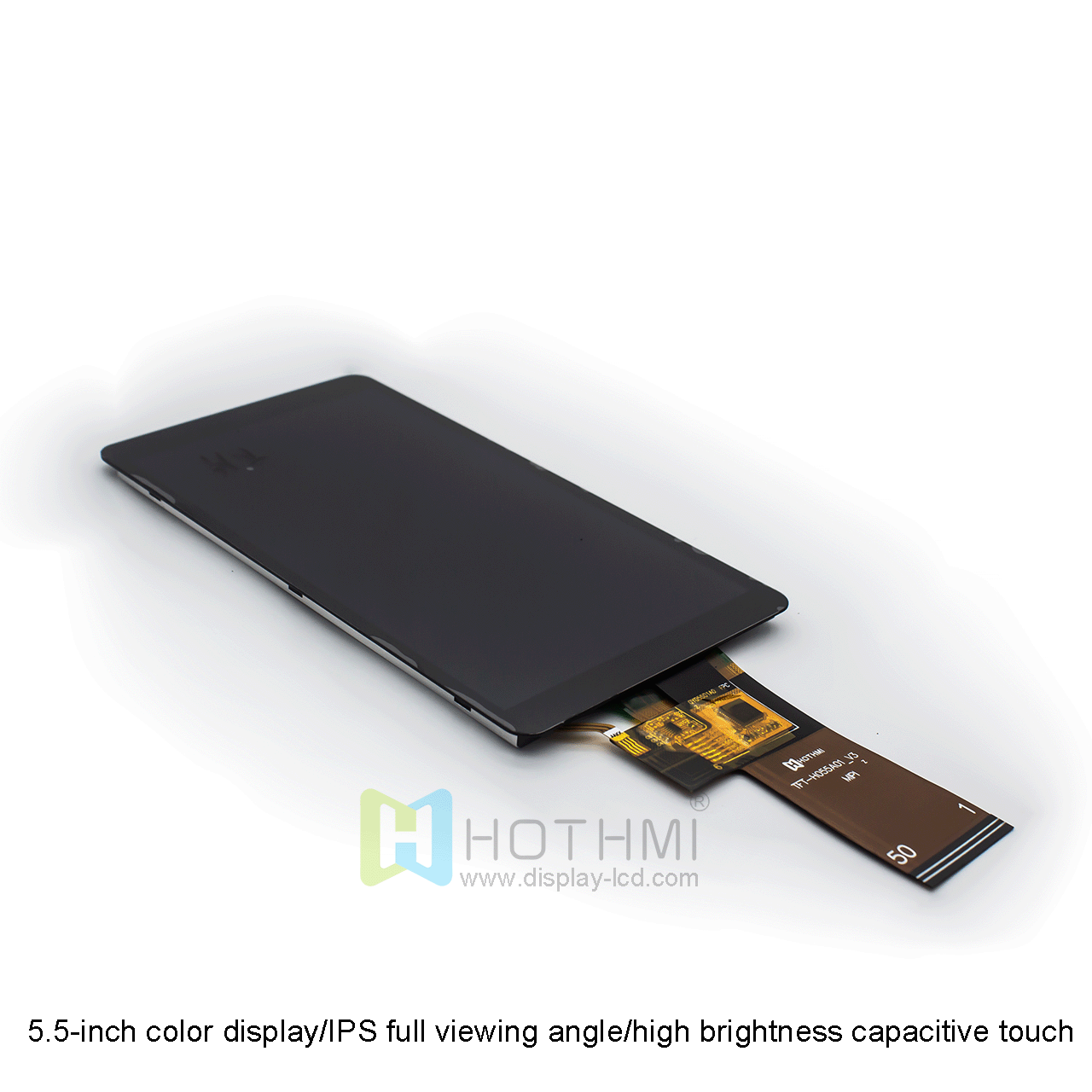

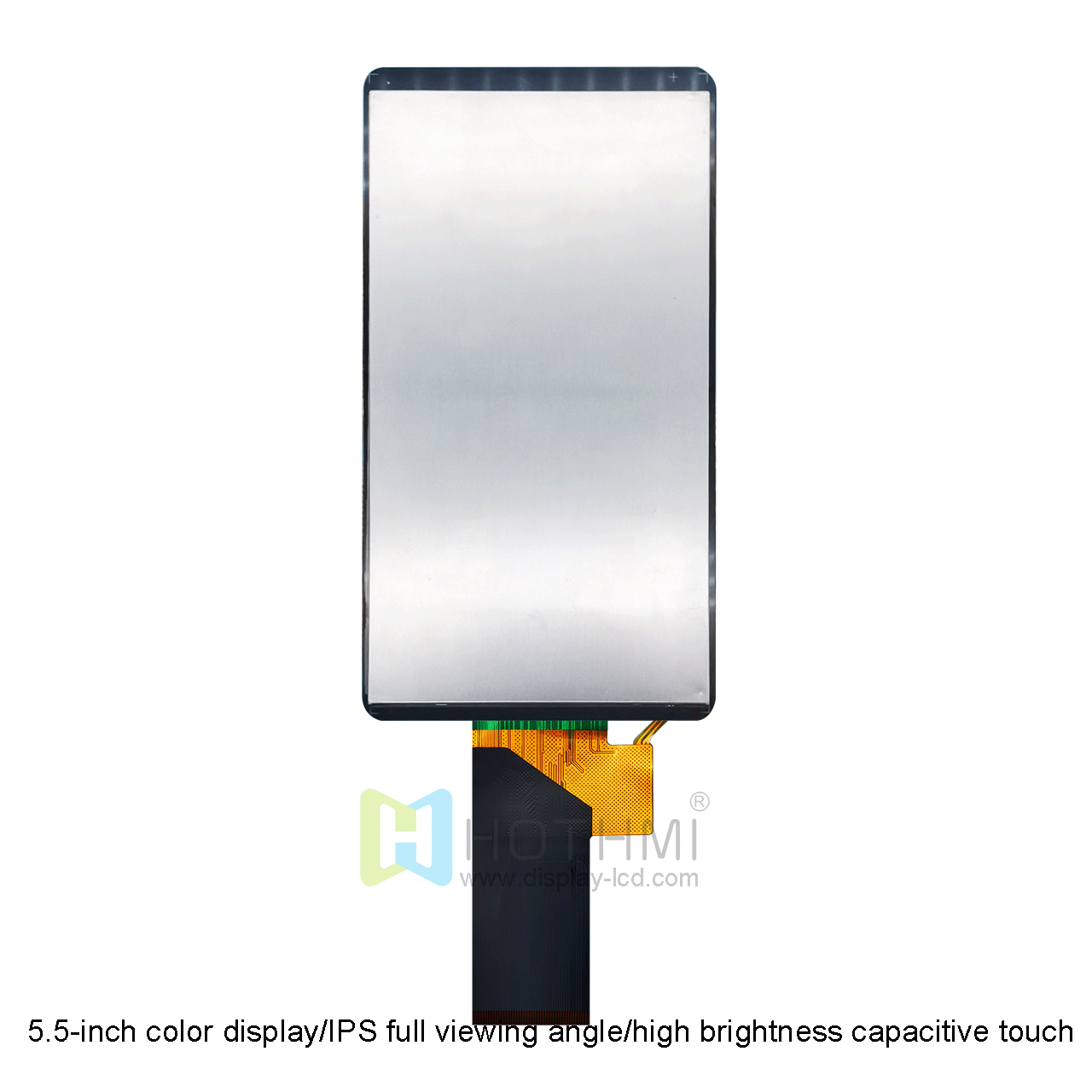

5.5-inch capacitive touch TFT/720X1280 resolution color display/IPS full viewing angle/NV3051F controller/high brightness capacitive touch TFT/MIPI interface

5.5-inch capacitive touch TFT/720X1280 resolution color display/IPS full viewing angle/NV3051F controller/high brightness capacitive touch TFT/MIPI interface

▶ Model: TFT-H055A61HDINVKC30

▶ Type: TFT LCD display
▶ Display content: 720X1280
▶ Display inches: 5.5"
▶ Dimensions (mm): 76.0x140x0.7
▶ AA size (mm): 68.04x120.96
▶ Product application: technical equipment, office equipment, access control
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: white backlight 1000cd/M2
▶ Connection method PIN number: FPC-50pin
▶ Interface method: MIPI 4L
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: TP-VDD=3.3V, VIN=5.0V(Typ)
▶ Driver chip: NV3051F<TFT>, GT911<CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

5.5-inch capacitive touch TFT/720X1280 resolution color display/IPS full viewing angle/NV3051F controller/high brightness capacitive touch TFT/MIPI interface
TFT-H055A61HDINVKC30 is a 5.5-inch IPS TFT display module with a resolution of 720X1280 pixels. With NV3051F controller and optional capacitive touch screen, it has excellent display quality and ultra-wide viewing angle, and can be easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO ARM and Raspberry PI. It can be used in any embedded system, industrial equipment, security and handheld devices that need to display with high quality and color images. FPC with zif connector is easy to assemble or disassemble. Landscape mode is also available.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H055A61HDINVKC30
Diagonal size	5.5”	Inch
Resolution	720X1280	Dot
Dimensions	76.0x140x0.7	mm
Active area (AA)	68.04x120.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio
Backlight type	LED white
TFT driver IC	NV3051F<TFT>,GT911<CTP>
Brightness	1000cd/m2	cd/m2
Operating temperature	-20-~70℃	℃
Storage temperature	-30~80℃	℃
