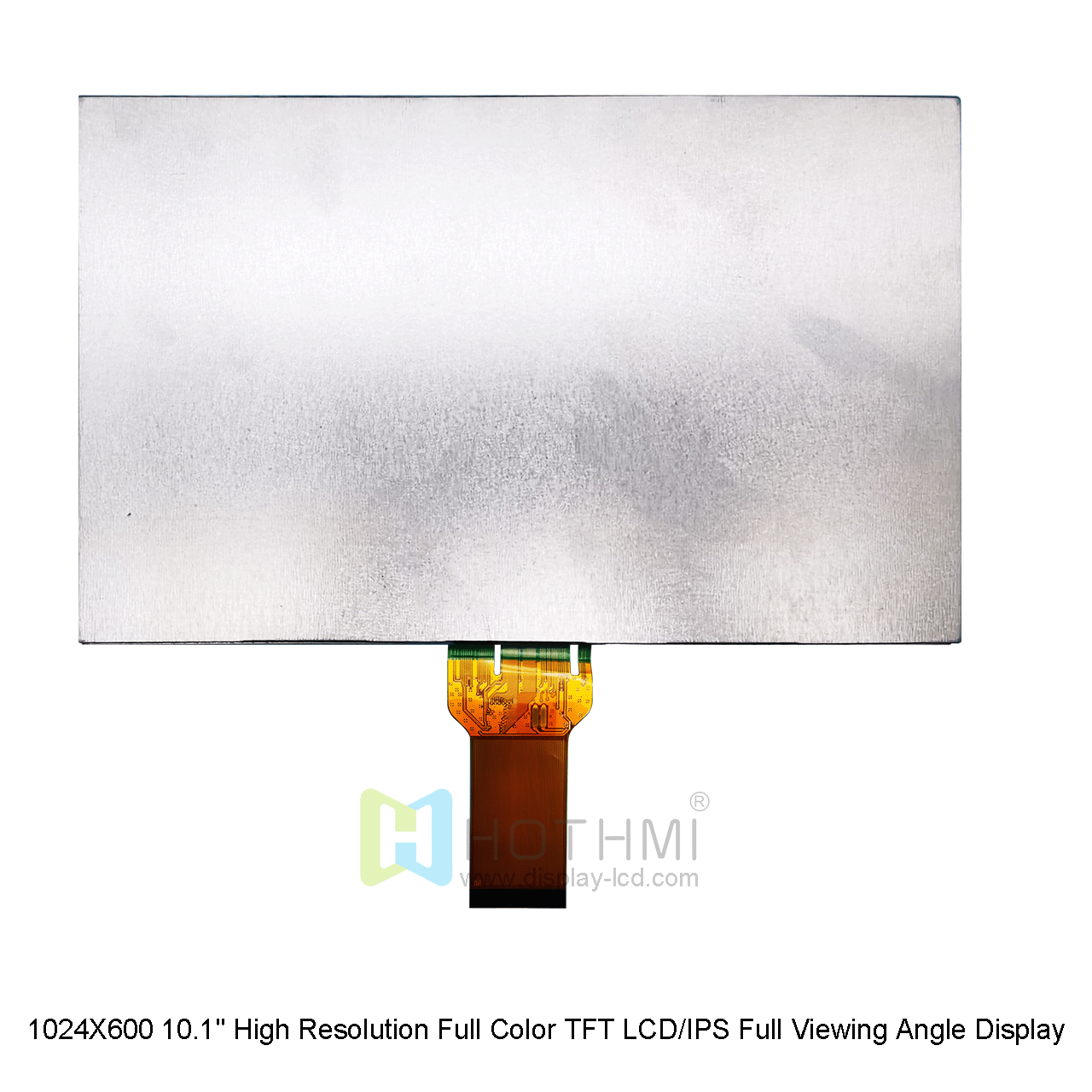

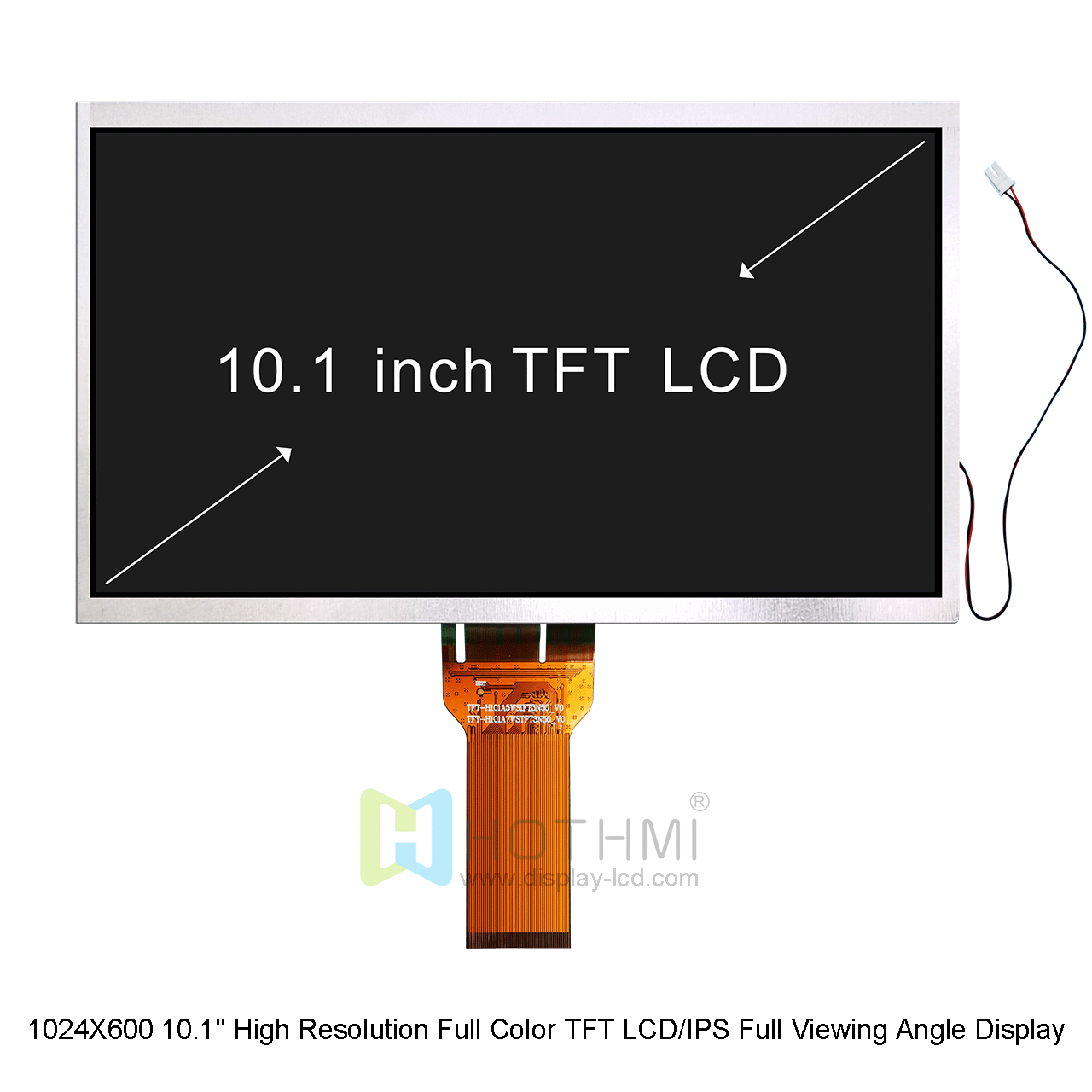

1024X600 10.1" High Resolution Full Color TFT LCD/IPS Full Viewing Angle Display

1024X600 10.1" High Resolution Full Color TFT LCD/IPS Full Viewing Angle Display

▶ Model: TFT-H101A5WSIFT3N50

▶ Type: TFT display
▶ Display pixels: 1024x600
▶ Dimensions (mm): 235x143x3.0
▶ Display inches: 10.1"
▶ AA size (mm): 222.72x125.28
▶ Application: Industrial equipment, advertising machine
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 300cd/m2
▶ Pin: FPC-50 pin
▶ Interface mode: TTL 24 bit
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver IC : EK79001+EK73215

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

1024X600 10.1" High Resolution Full Color TFT LCD/IPS Full Viewing Angle Display
This 10.1" diagonal full color (262K) 1024xRGBx600 TFT display has high resolution, clear display, and sharp contrast, which will add some vitality to your design.
Thanks to the built-in EK79001+EK73215 or compatible controller, only a single 3.3v power supply is required for power and logic. The electrical connection is very simple because the tail of the display mates with the ZIF connector.

More Features
The detailed images on this TFT display are clear and bright, with a typical contrast ratio of 500:1.
The 50-pin FFC/FPC flexible cable of the display module is used with a standard 0.5mm ZIF socket (such as a 50-position, 0.50mm pitch ZIF connector), and the applicable interface is TTL 24 bit.
Full viewing angle viewing range, can be used in portrait or landscape orientation.
The temperature operating range is -20°C to +70°C.

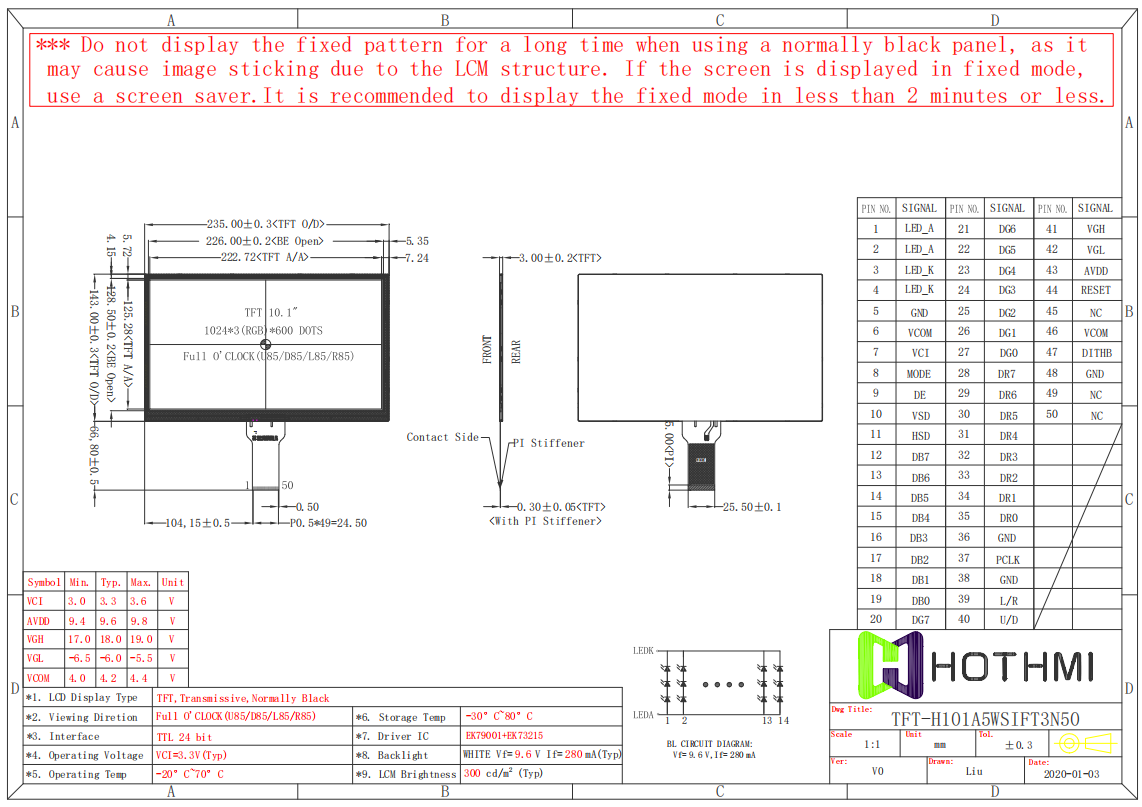

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H101A5WSIFT3N50
Diagonal size	10.1”	Inch
Resolution	1024x600	Dot
Dimensions	235x143x3.0	mm
Active area (AA)	222.72x128.28	mm
LCD type	TFT LCD Display	mm
Display viewing angle	IPS
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	EK79001+EK73215
Brightness	300	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
