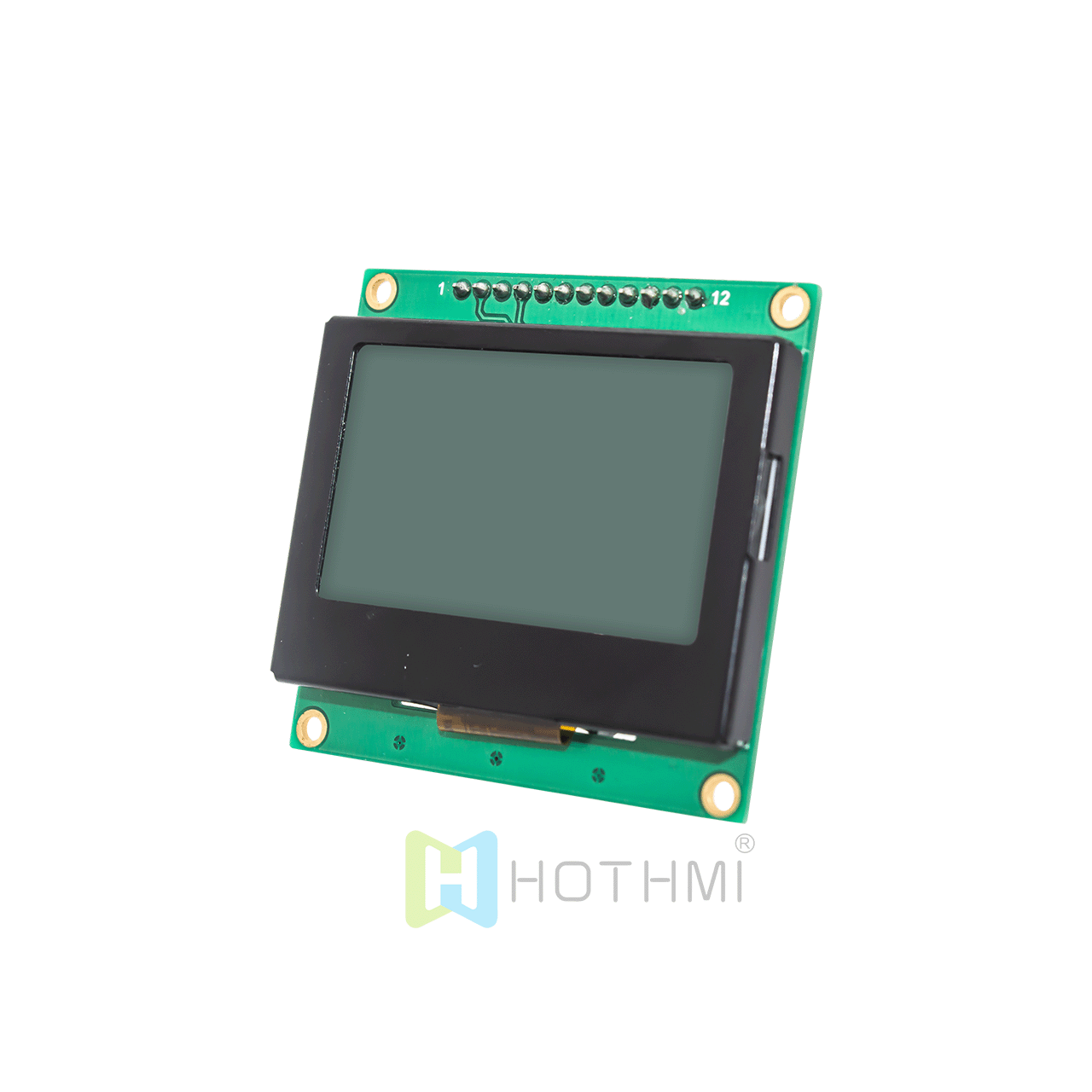

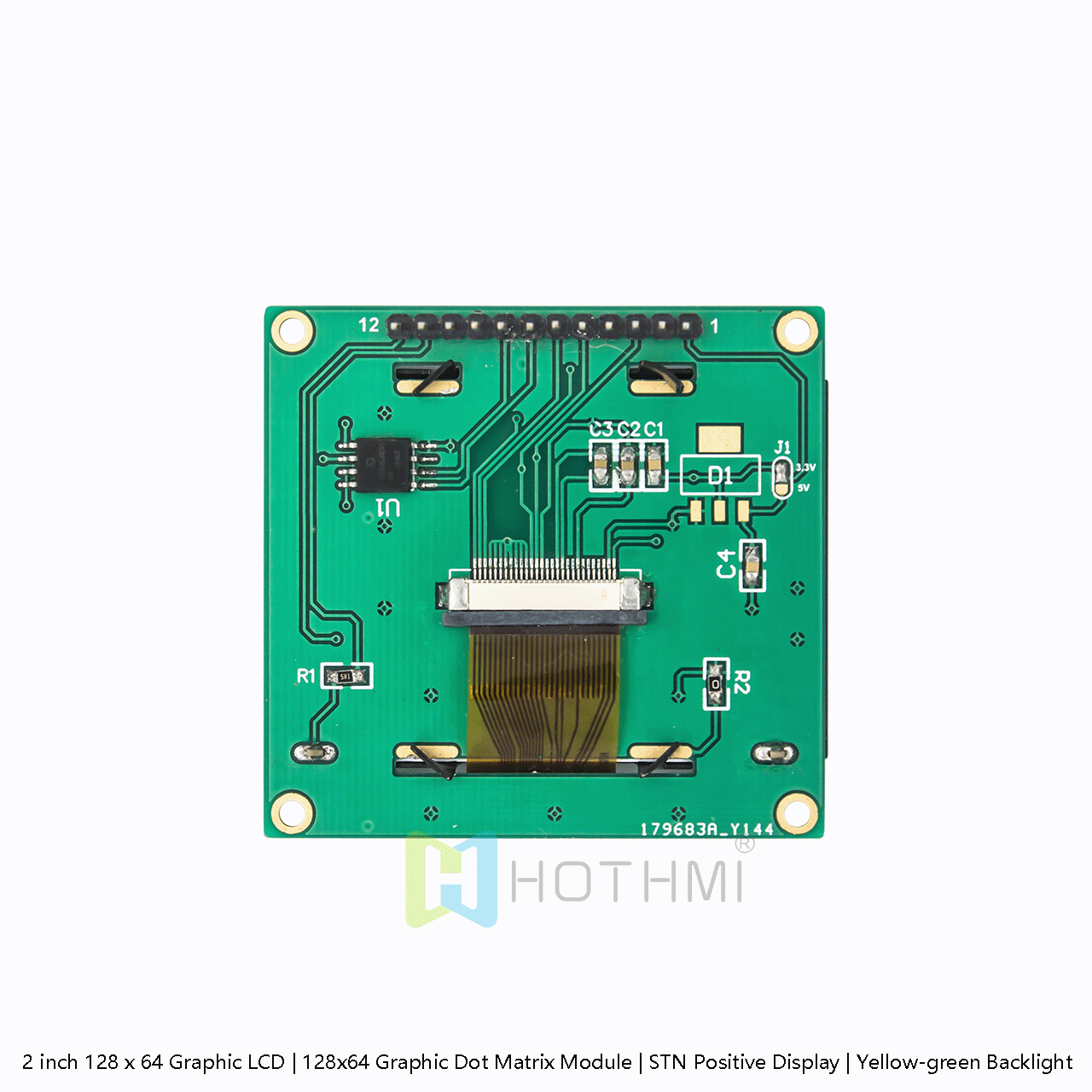

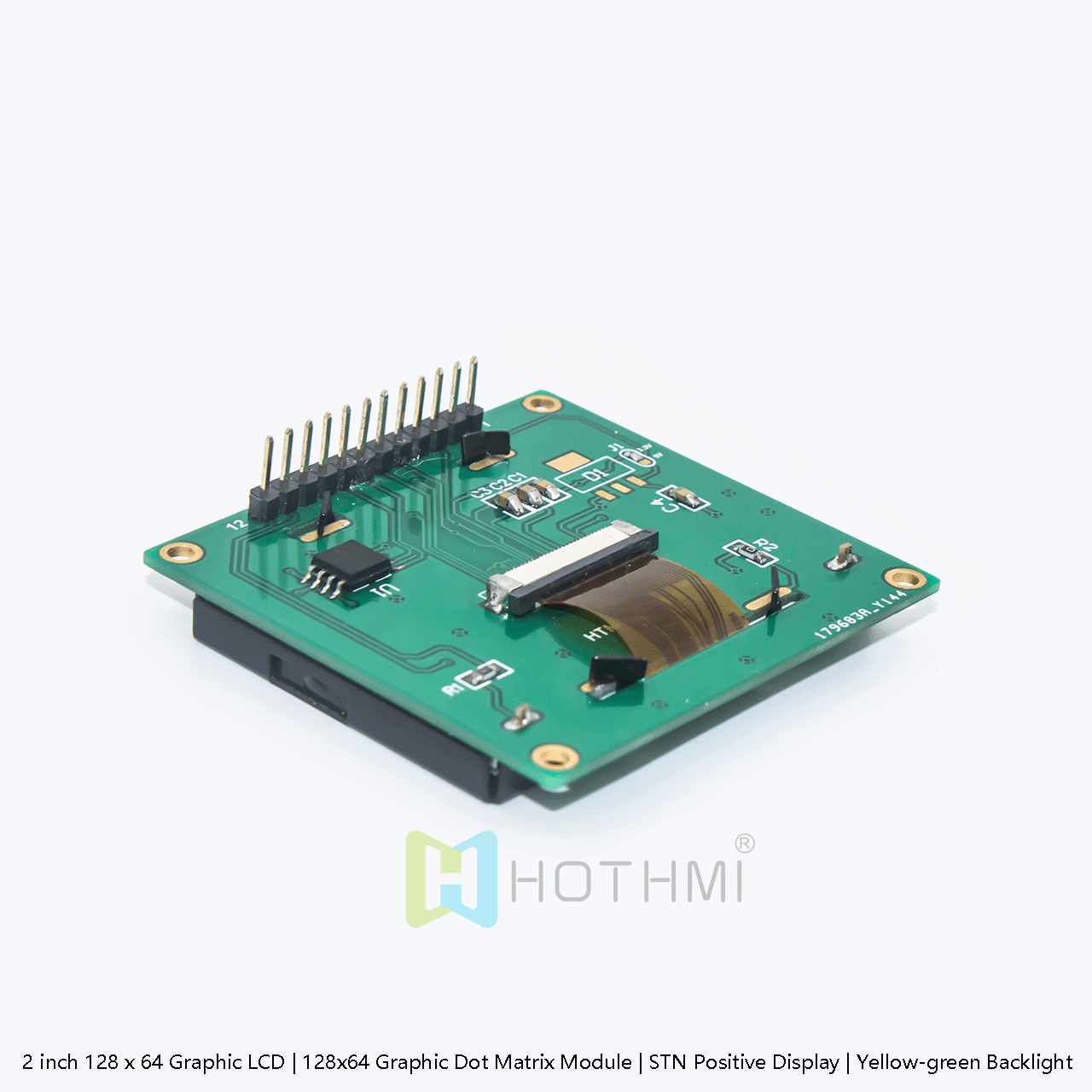

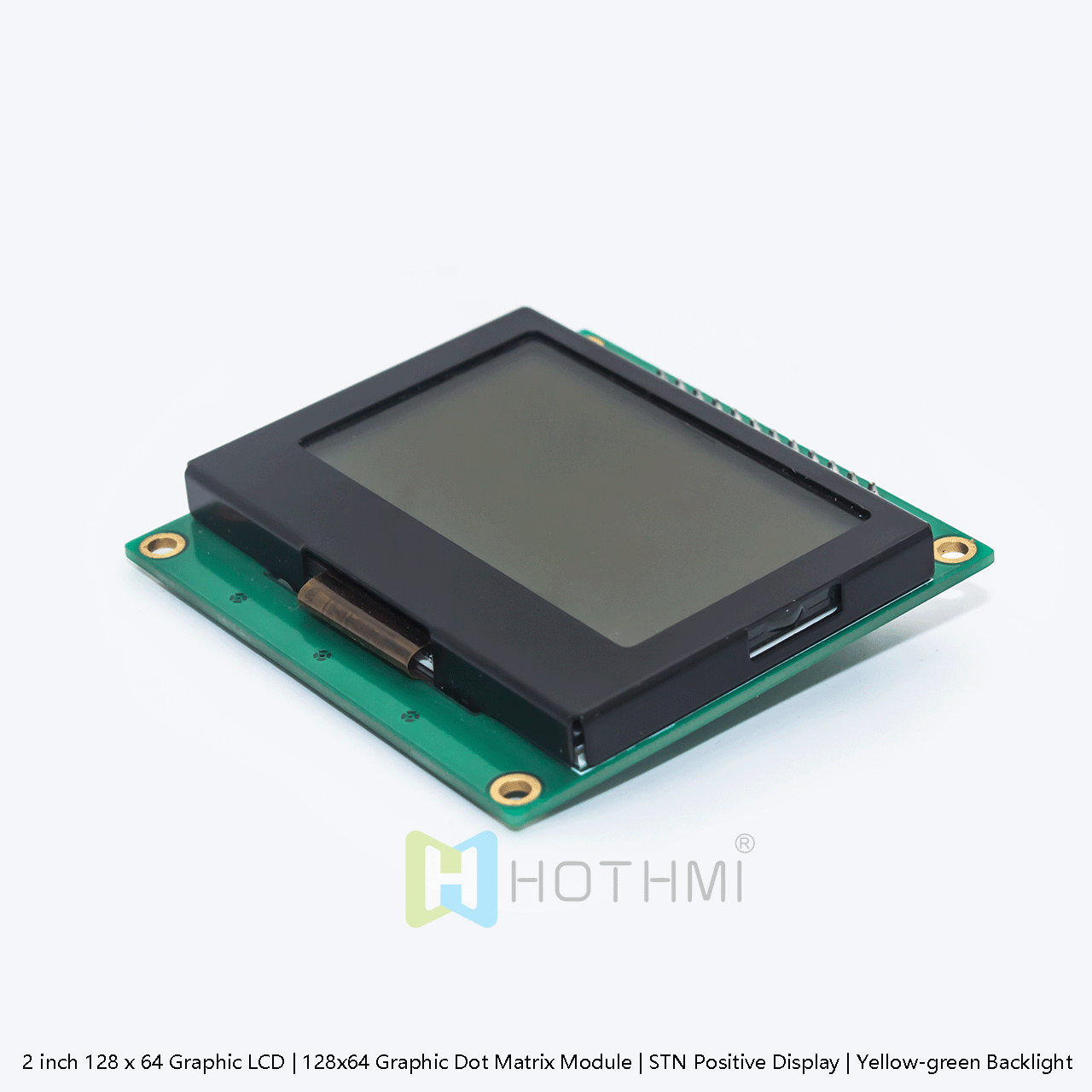

2 inch 128x64 Graphic LCD | 128 x 64 Graphic LCD | STN Positive

2 inch 128x64 Graphic LCD | 128 x 64 Graphic LCD | STN Positive | Grey Background with Blue Text

▶ Model: HTM12864-117-11W-A5P

▶ Type: LCM with Chinese font
▶ Display pixels: 128x64

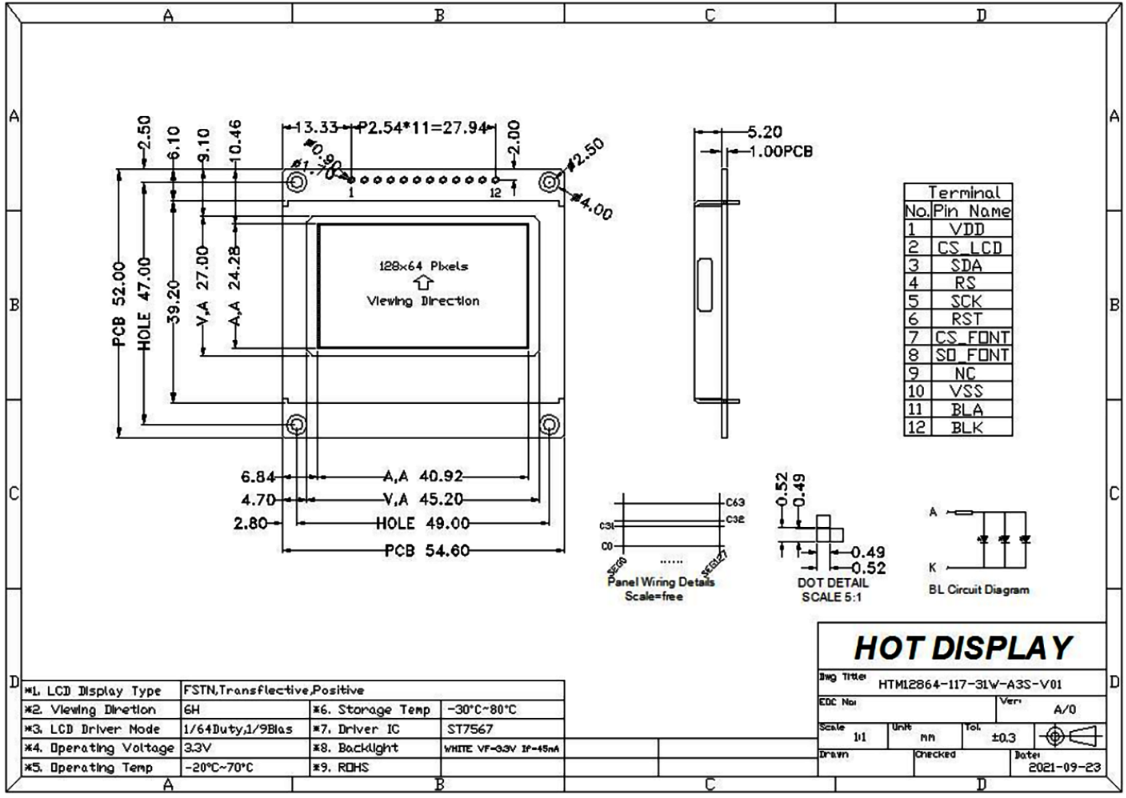

▶ Overall dimensions (mm): 54.6x52.0x5.2
▶ VA size (mm): 45.2x27.0
▶ AA size (mm): 40.92x24.2
▶ Point spacing (mm): 0.52x0.52
▶ Application: Industrial instrumentation
▶ Viewing angle: 6H
▶ Backlight/Brightness:white
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: Optional font library
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3V/5V optional
▶ Driver chip: ST7567
