3-Inch Blue Background 128x64 Graphic LCD Display Module, ST7565R, SPI for Arduino

3-Inch Blue Background 128x64 Graphic LCD Display Module, ST7565R, SPI for Arduino

▶ Model: HTM12864-7-25W-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 95.0x56.7x13.5
▶ VA size (mm): 65.6x38
▶ AA size (mm): 60.775x32.935
▶ Point spacing (mm): 0.475x0.515
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Brightness: white light
▶ PIN: 9PIN
▶ Interface mode: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM12864-7-25W-A5P | 3-inch blue 128x64 graphic LCD display module | ST7565R | SPI for Arduino

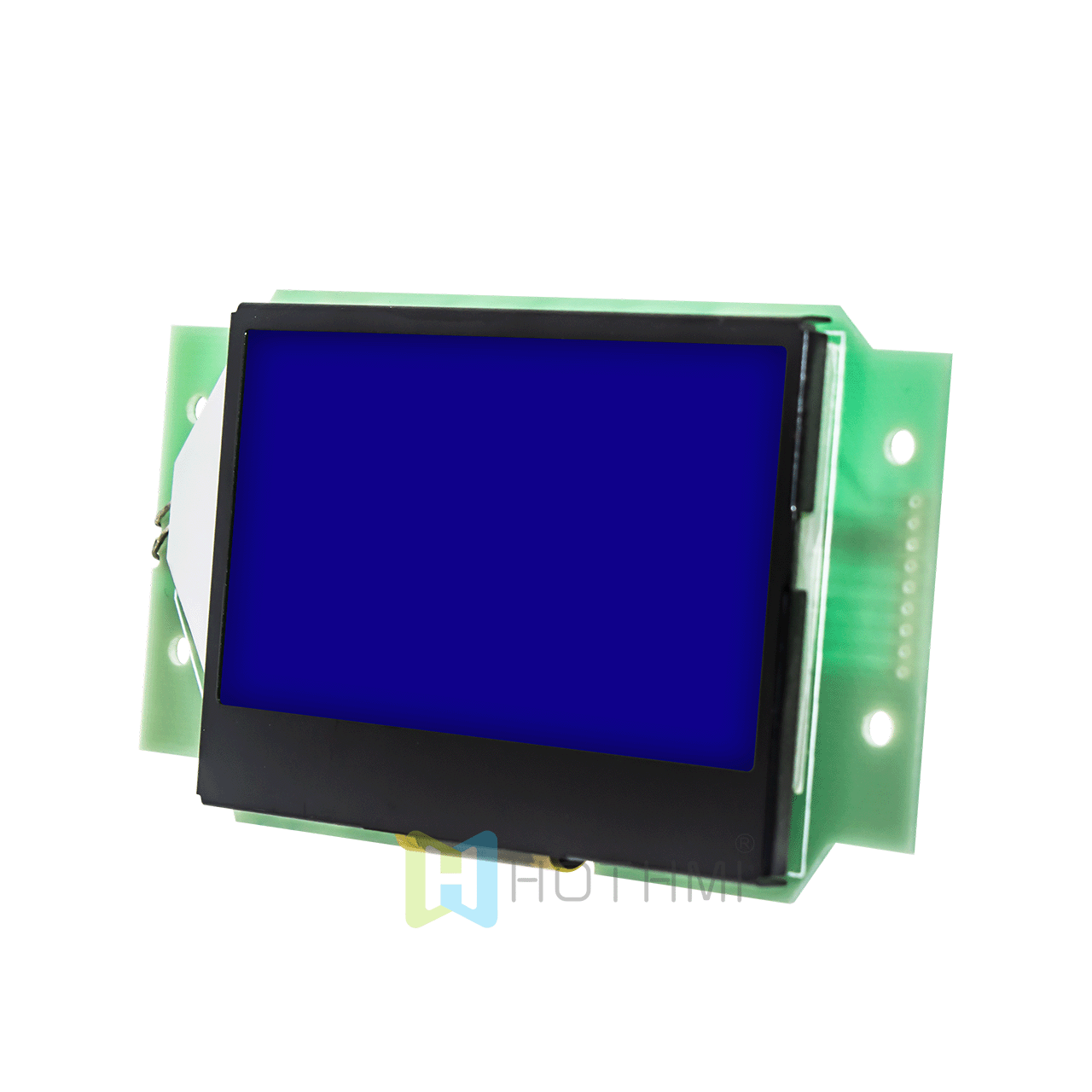

This LCD graphics module HotDisplay128x64 displays white pixels on a blue background.

Hot Display HTM12864-7-25W-A5P is a 128 x 64 LCD that displays white characters on a blue background. This transmissive graphics display operates on a 5V supply voltage. Compact design, blue LCD display, provides you with the best viewing experience and optimal 6 o'clock viewing direction. It operates over a wide temperature range, from as low as -20°C to as high as 70°C. It stands out with its unique side white backlighting, which improves visibility and readability in harsh lighting environments. This LCD display features a built-in ST4565R controller, ensuring high compatibility with a range of interfaces and development boards, including Arduino.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Parameter	Specifications	Unit
name	HTM12864-7-25W-A5P
graphic display	128 columns × 64 rows	dots

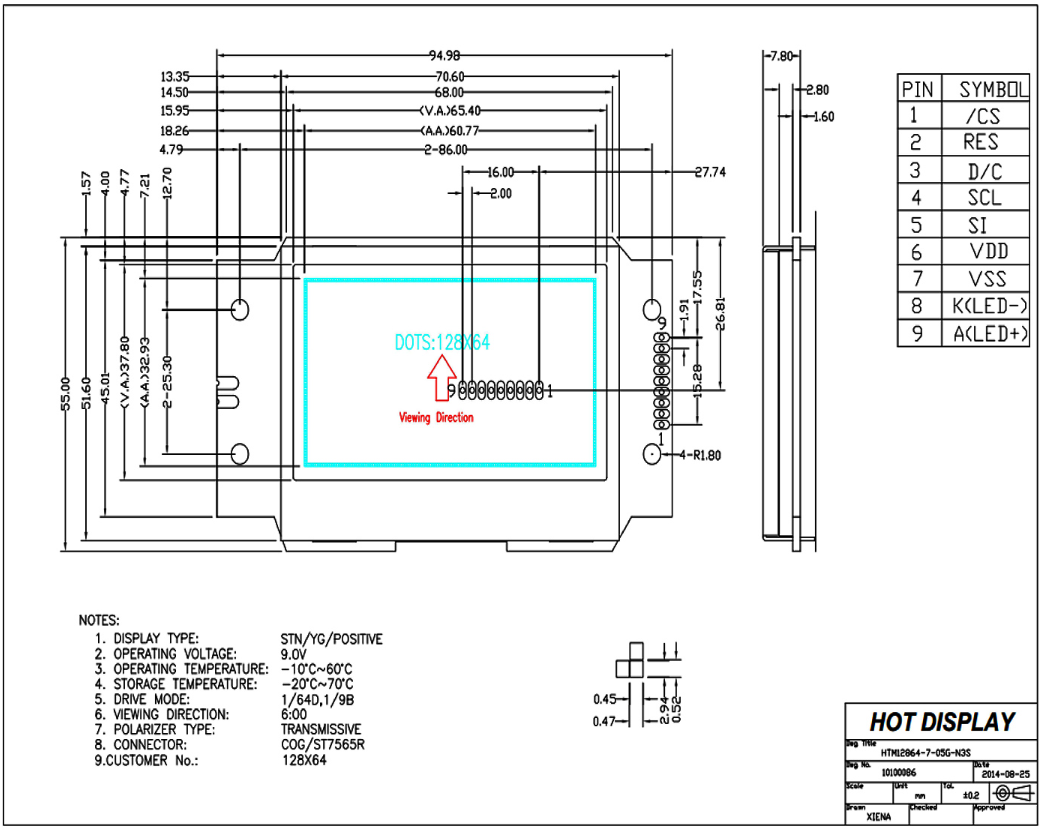

Dimensions	95.0x 56.7 x 13.5 (MAX)	mm
VA size	65.6 x 38.0	mm
AA size	60.77 x 32.935	mm
Pixel pitch	0.475 x 0.515	mm
driver chip	ST7565R
Applied voltage	5V	V
Backlighting	White
display mode	STN(-)
Drive mode	1/64 duty cycle
product type	Graphic LCD module
Polarizer type	Transmissive
