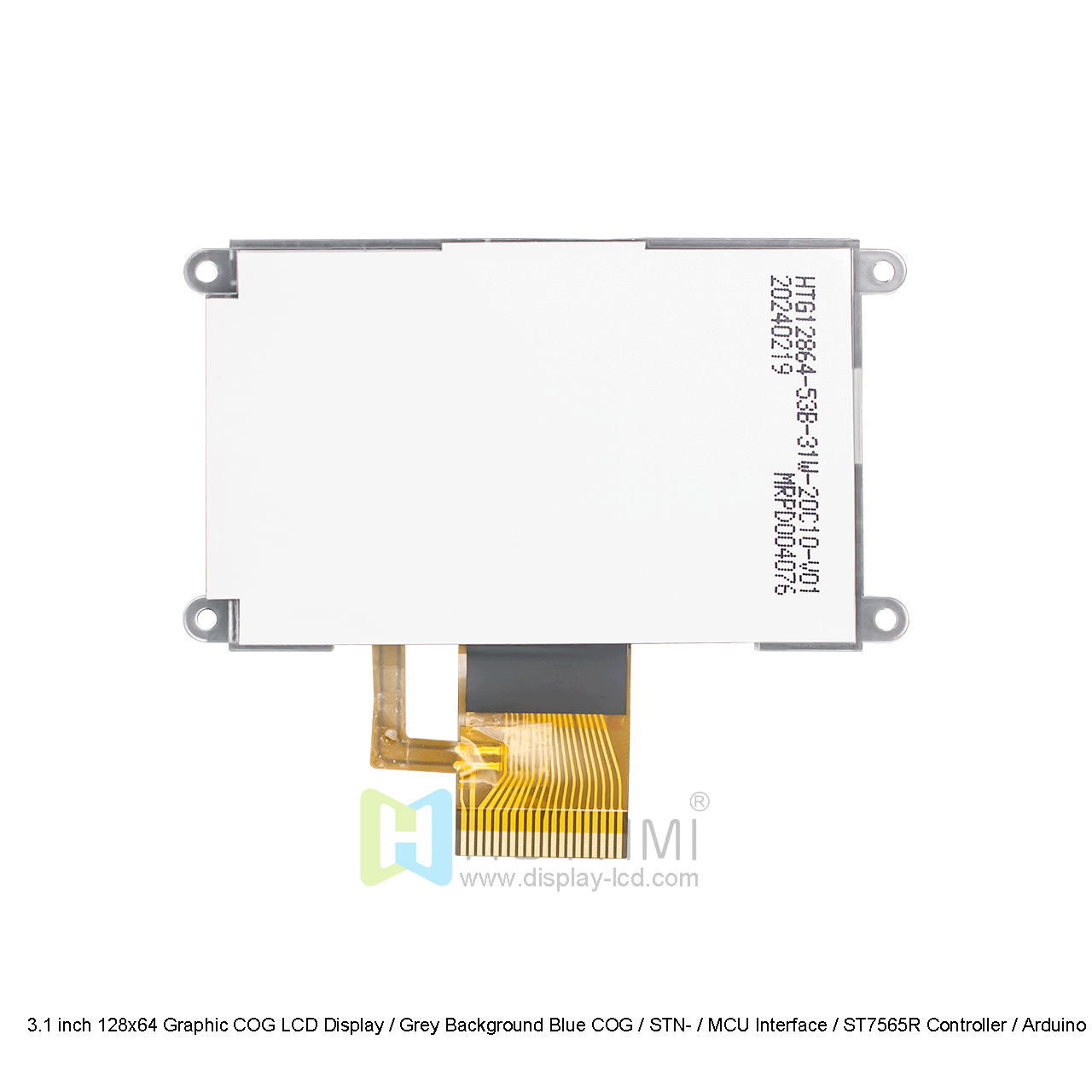

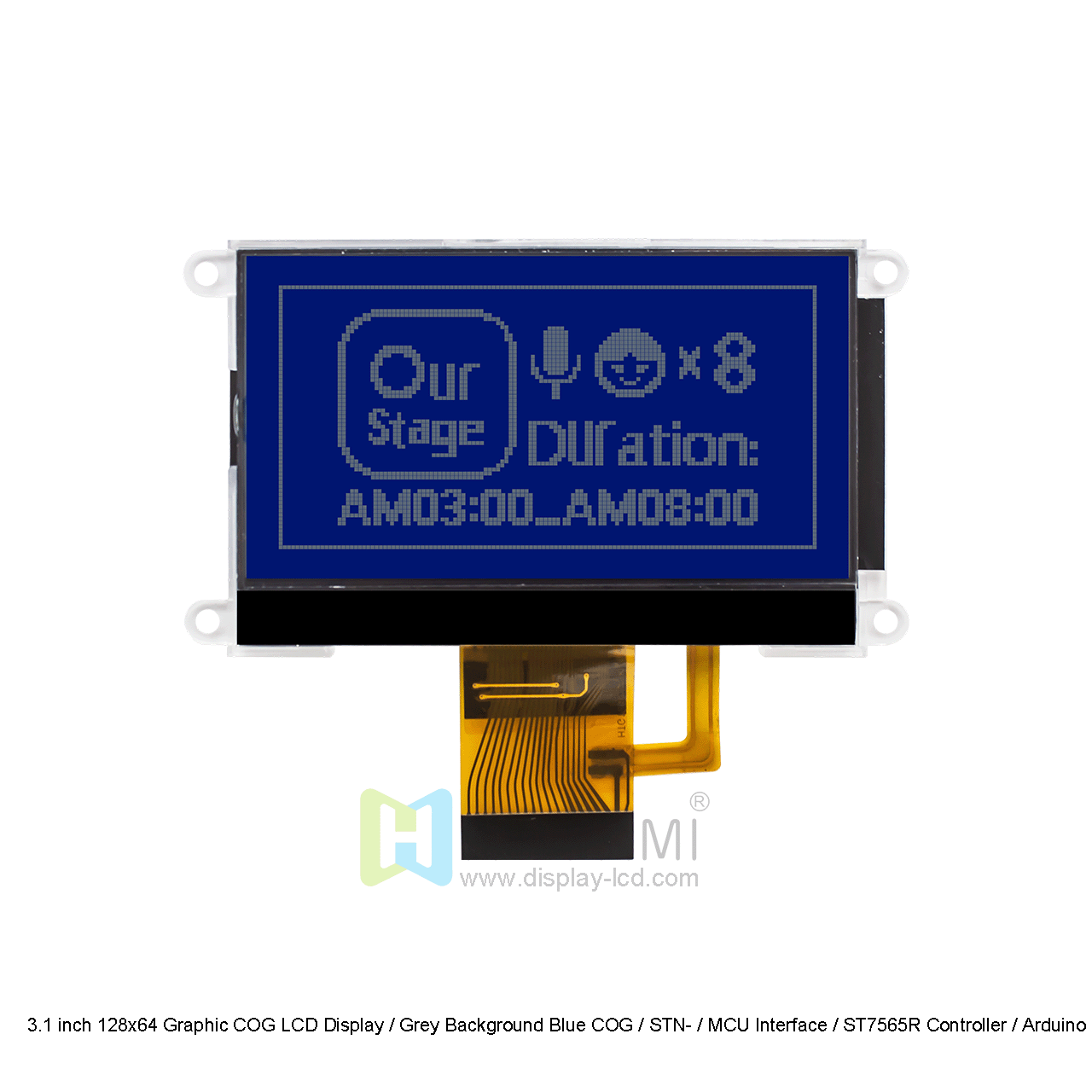

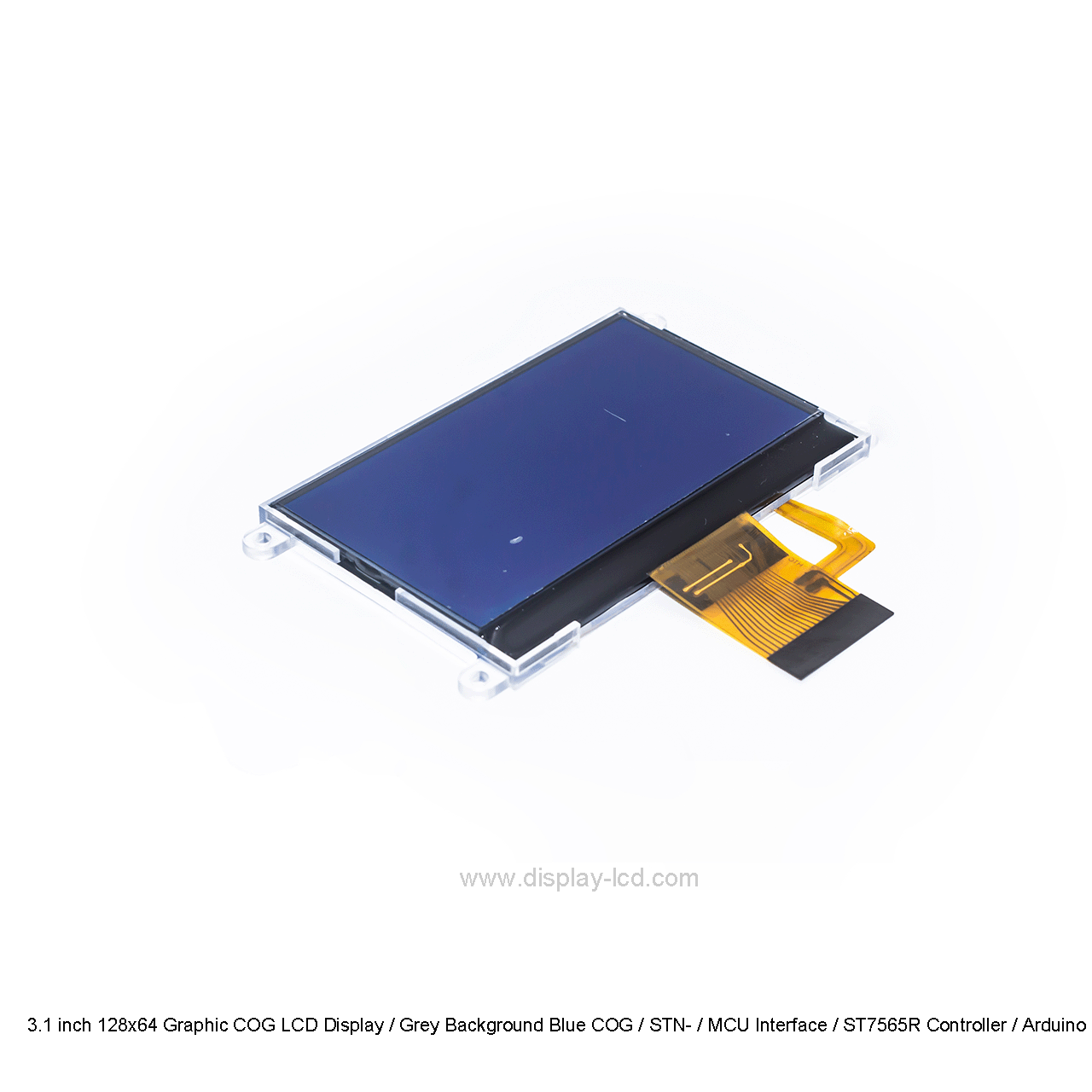

3.1 inch 128x64 Graphic COG LCD Display / Grey Background Blue COG / STN- / MCU Interface / ST7565R Controller / Arduino
The Hot Display 128x64 Graphic Chip-on-Glass (COG) LCD Display Module displays white pixels on a blue background. This fully transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in a variety of different environments. In bright sunlight, the display uses its fully transmissive polarizer to allow the backlight to pass through completely, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.
This Graphic LCD Display Module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, it operates on a 3V supply voltage, and is RoHS compliant.
