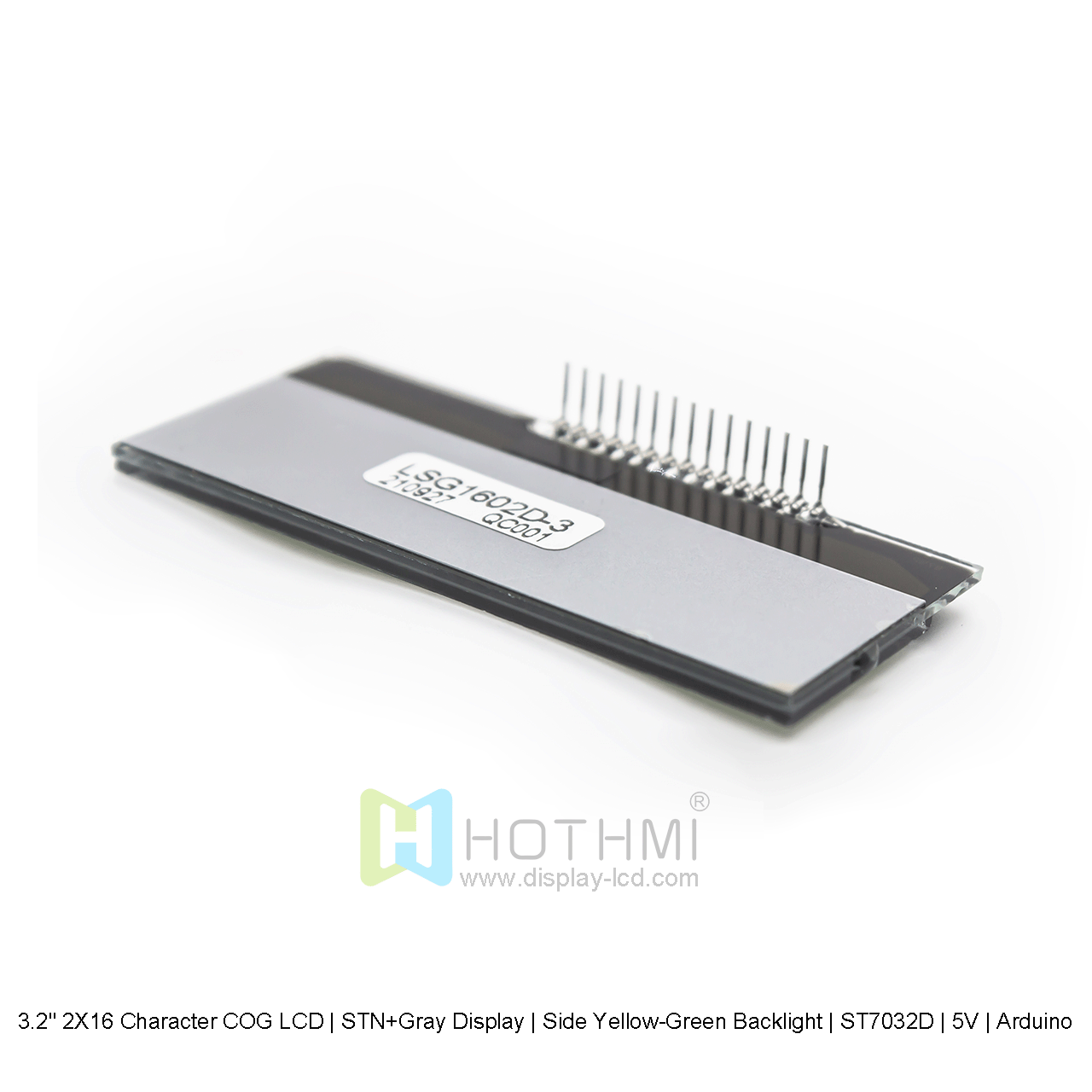

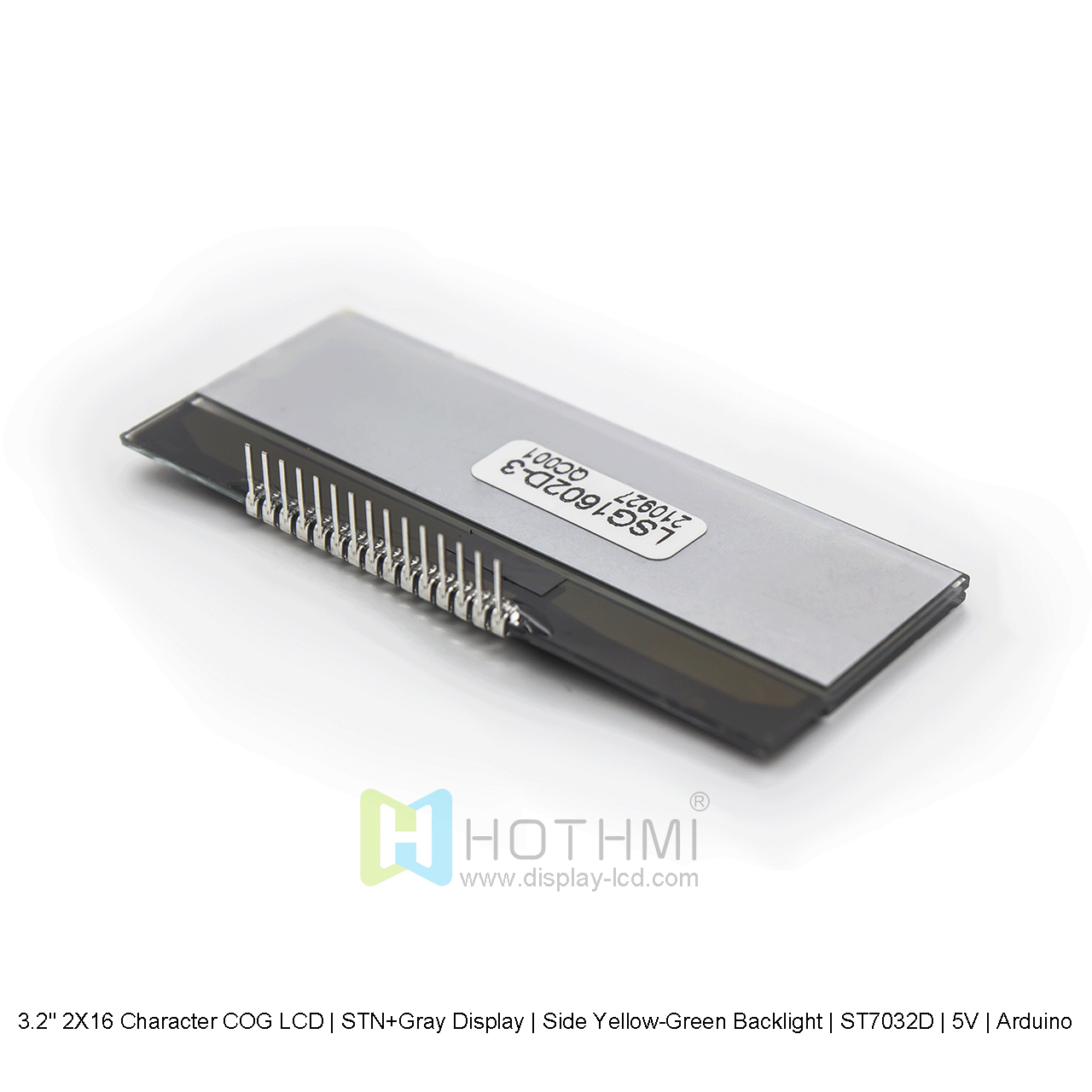

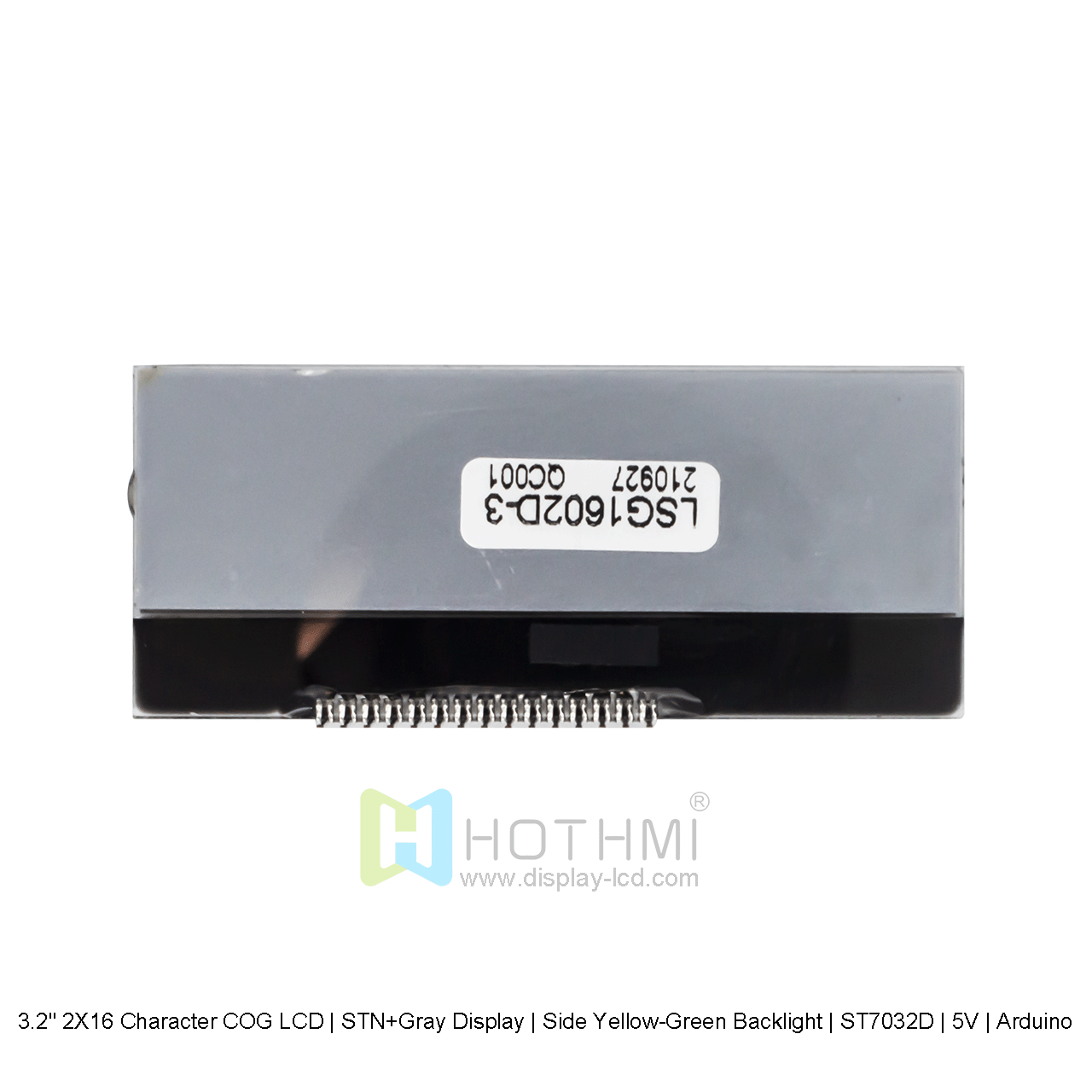

3.2" 2X16 Character COG LCD | STN+Gray Display | Side Yellow-Green Backlight | ST7032D | 5V

3.2" 2X16 Character COG LCD | STN+Gray Display | Side Yellow-Green Backlight | ST7032D | 5V | Arduino

▶ Model: HTG1602D-11Y-A5P

▶ Type: COG character module
▶ Display pixels: 16x2

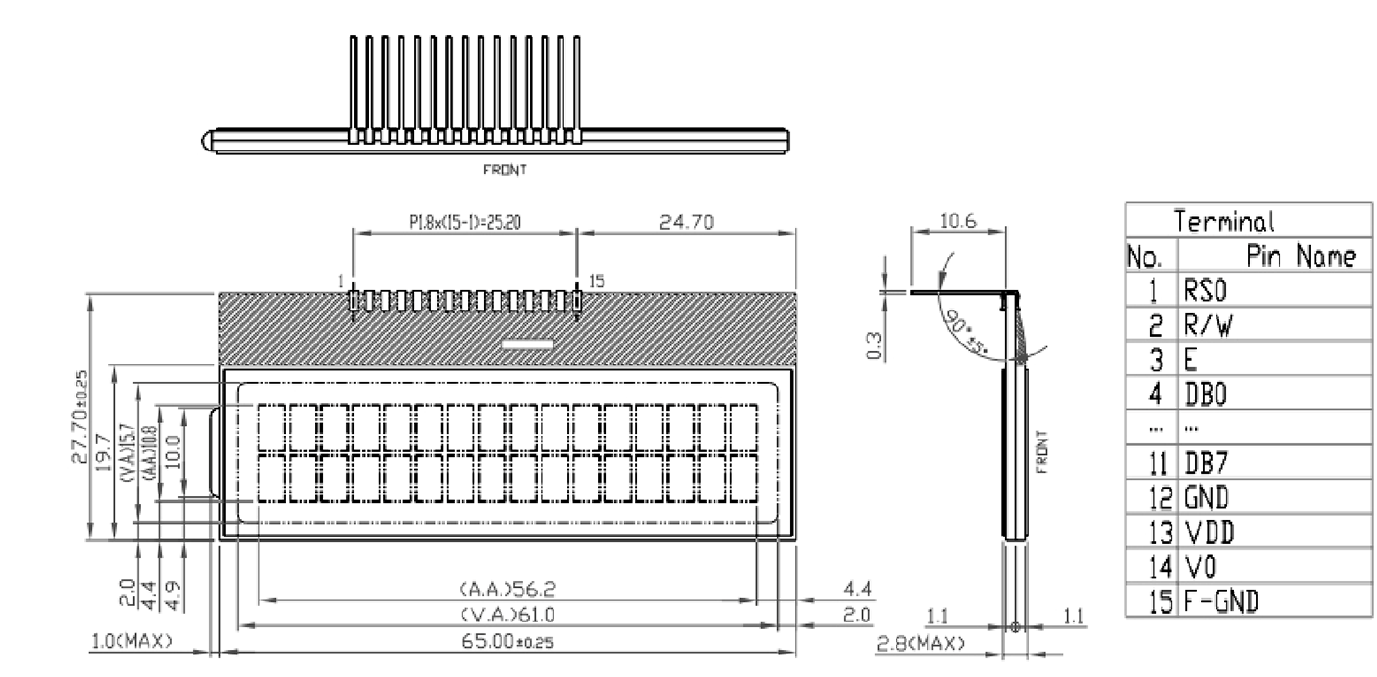

▶ Overall dimensions (mm): 65.0x27.7x2.8
▶ VA size (mm): 61.0x15.7
▶ AA size (mm): 56.2x10.8
▶ Point spacing (mm): 0.65x0.60
▶ Application: Internet phone
▶ Viewing angle: 6H
▶ Backlight/Brightness: yellow-green
▶ Pin: FPC-15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: ST7032D

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3.2" 2X16 Character COG LCD | STN+Gray Display | Side Yellow-Green Backlight | ST7032D | 5V | Arduino

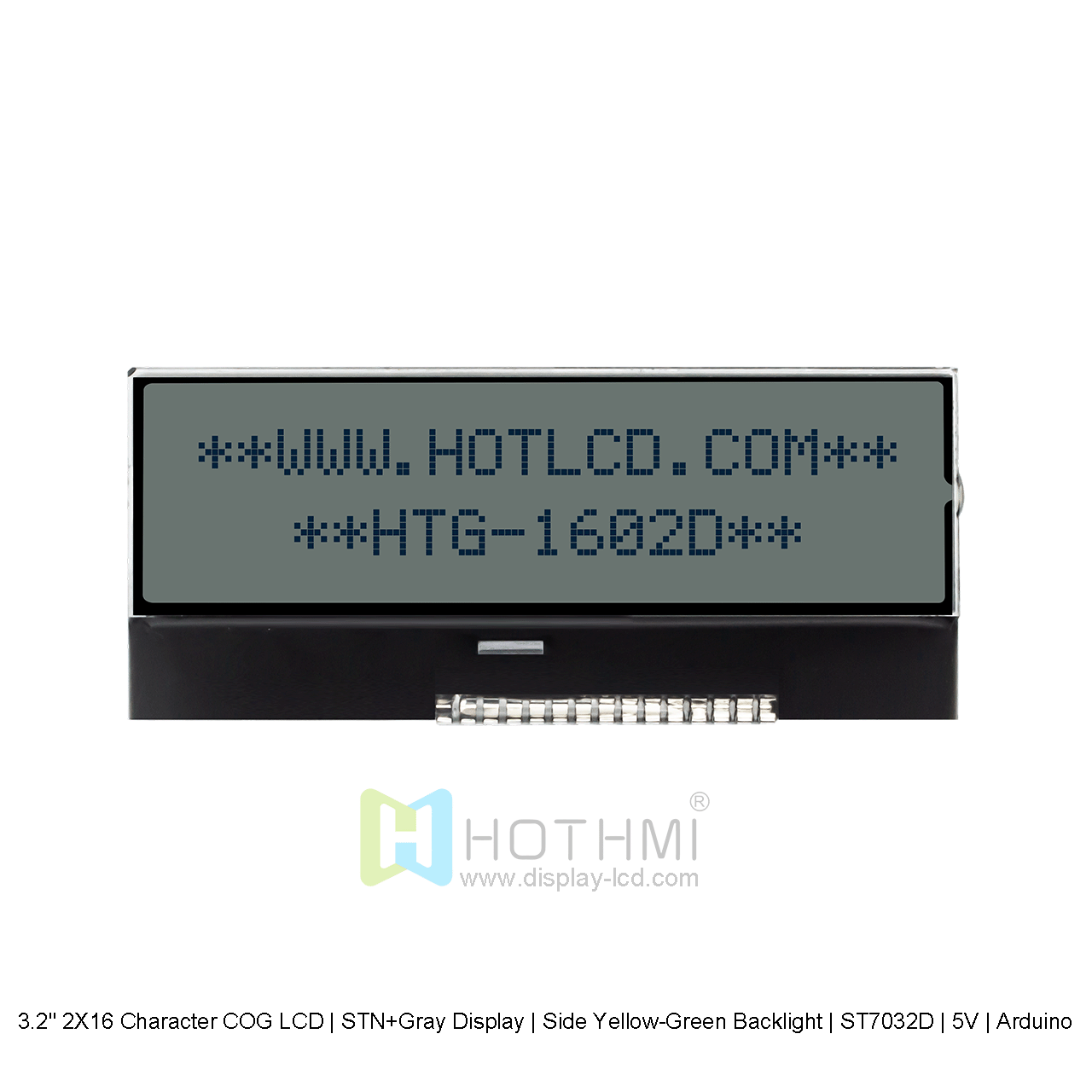

3.2" 2X16 Character COG LCD, this 16x2 character chip-on-glass (COG) LCD displays dark pixels on a yellow-green background. This transflective STN positive LCD is visible in ambient light or backlight. In ambient light, the image is reflected to the viewer due to the reflection of the polarizer, and in dark environments, the content of the display can be clearly seen with the backlight. As a COG display, there is no PCB, and the controller/driver is bonded directly to the glass of the display. The LCD offers a wide operating temperature range from -20 to 70 degrees Celsius. This one has a built-in ST7032D controller. The display has a 6:00 optimal view, a 4-bit/8-bit parallel interface, operates on a 5.0V supply voltage and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.

Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

Item	Parameter content	Unit
名称	HTG1602D-11Y-A5P
点阵数	16 × 2	dots
模组尺寸	65.0x 27.7 x 2.8 (MAX)	mm
VA尺寸	61.0 x 15.7	mm
AA尺寸	56.2 x 10.8	mm
像素间距	0.65 x 0.6	mm
IC	ST7032D
电源电压	5V	V
背光	黄绿色
显示模式	STN(+)
驱动方式(Duty)	1/2 duty cycle
类型	字符COG
特性	半透
