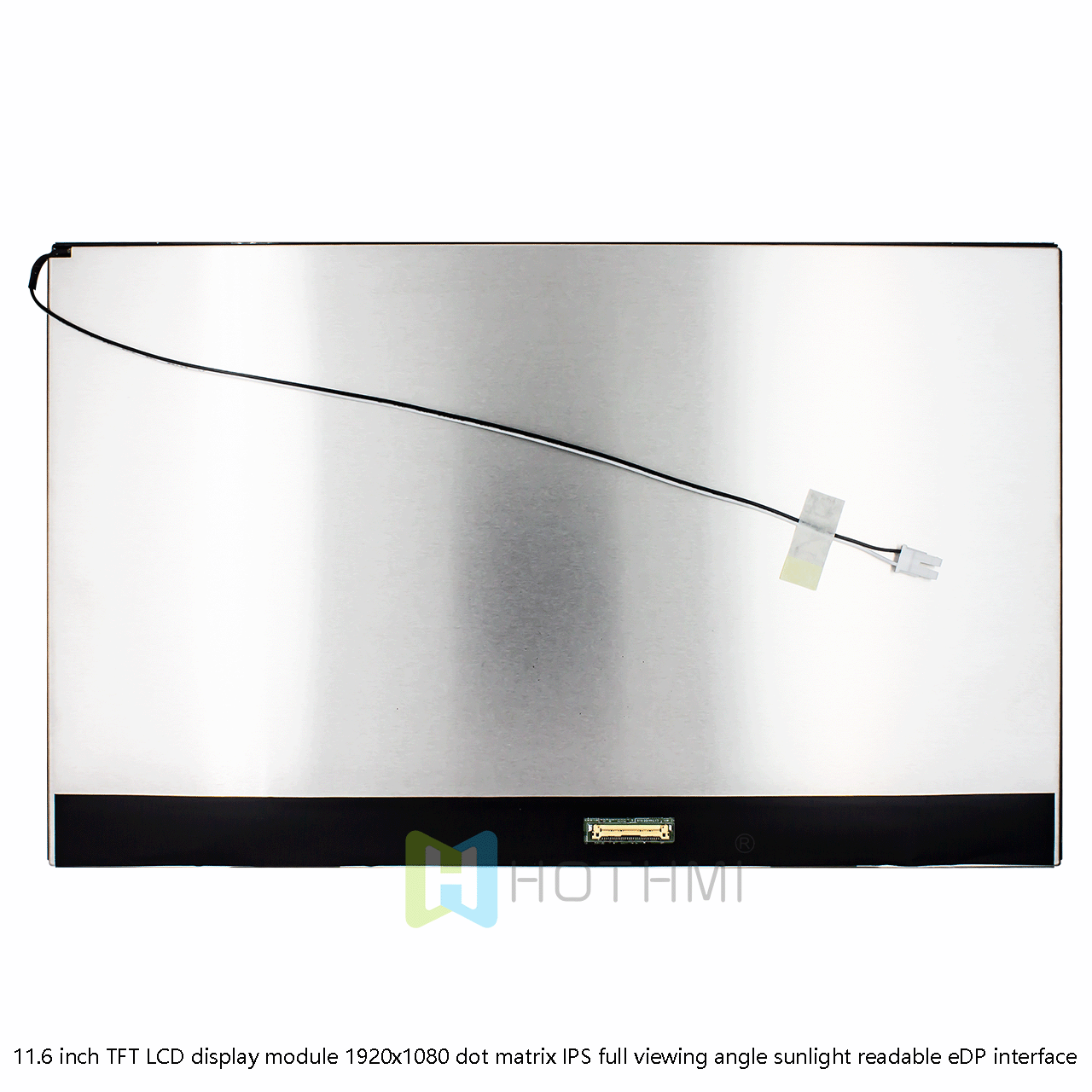

11.6 inch TFT LCD display module 1920x1080 dot matrix IPS full viewing angle sunlight readable eDP interface compatible with industrial computers

11.6 inch TFT LCD display module 1920x1080 dot matrix IPS full viewing angle sunlight readable eDP interface compatible with industrial computers

▶ Model: TFT-H116D01FHIWZKN30

▶ Type: TFT LCD color screen
▶ Display content: 1920x1080 PX
▶ External dimensions (mm): 267.72x164.42x6.15
▶ AA size (mm): 256.32x144.18
▶ Product application: Industrial computer, on-board equipment
▶ Perspective: IPS (U85/D85/L85/R85)
▶ Brightness: 1000cd/m2

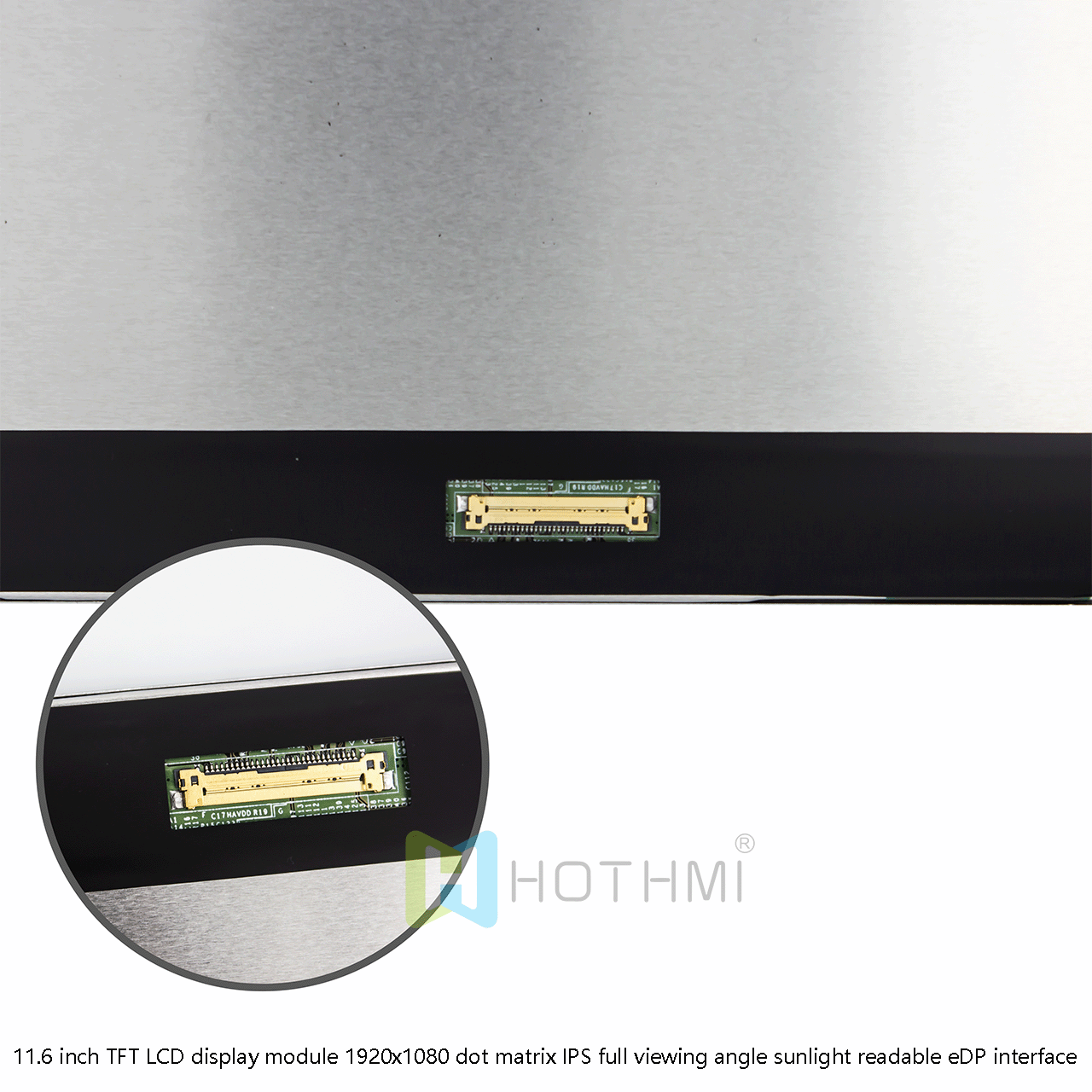

▶ Pin: FPC-30PIN
▶ Interface method: eDP
▶ Special note: Anti static ESD 8KV
▶ Working temperature: -20~70 ℃
▶ Power supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

TFT-H116D01FHIWZKN30 | 11.6-inch TFT high-definition LCD display | eDP interface | 1920x1080 pixel resolution LCD screen | optional capacitive touch/resistive touch | readable in sunlight

TFT-H116D01FHIWZKN30 is an 11.6-inch TFT high-definition LCD display with a resolution of 1920x1080 pixels. It uses TBD display driver IC and plug-in FPC, and can be used with eDP connectors. This monitor uses IPS technology to provide full view and excellent color reproduction, allowing you to easily view from all angles without distortion. The display screen has a high contrast of 1000:1 and can provide deep black and bright colors. Can be read in the sunlight. Brightness up to 1000cd/m2, FPC connection (optional connector), 3.3V voltage, supporting vertical screen display. All materials comply with environmental requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for various microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard TFT module

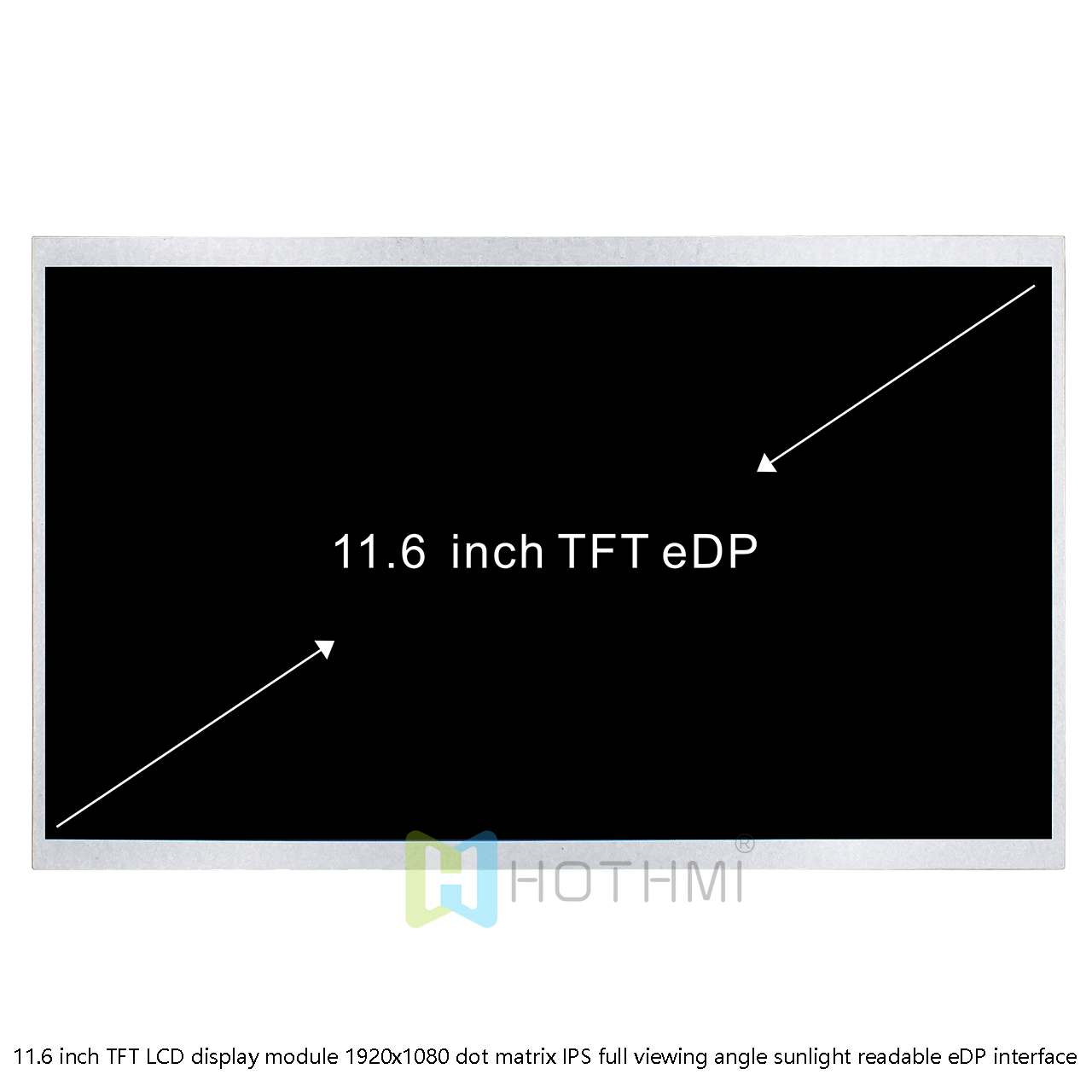

Diagonal size	11.6 "	Inch
Resolution	1920 x RGB x 1080 (TFT)	dots
Dimensions	267.72x164.42x6.15	mm
Effective area (AA)	256.32x144.18	mm
LCD type	Horizontal TFT module
Display perspective	85/85/85/85 (IPS)
Aspect ratio	1.1:2
Backlight type	LED, white
TFT driver IC	T.B.D
Touch panel	nothing
Surface	Bright surface
Brightness	one thousand	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
