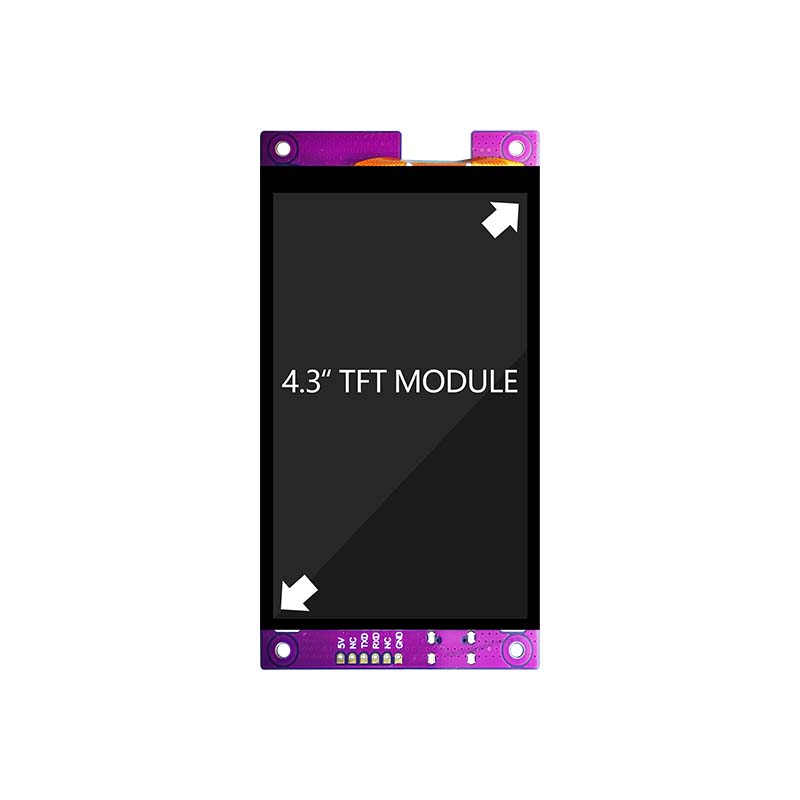

4.3 inch IPS 800x480 Px UART TFT smart serial screen capacitive touch

4.3 inch IPS 800x480 Px UART TFT smart serial screen capacitive touch

▶ Model: HTM-TFT043A07-UART

▶ Type: TFT smart serial screen
▶ Display content: 480x800 px

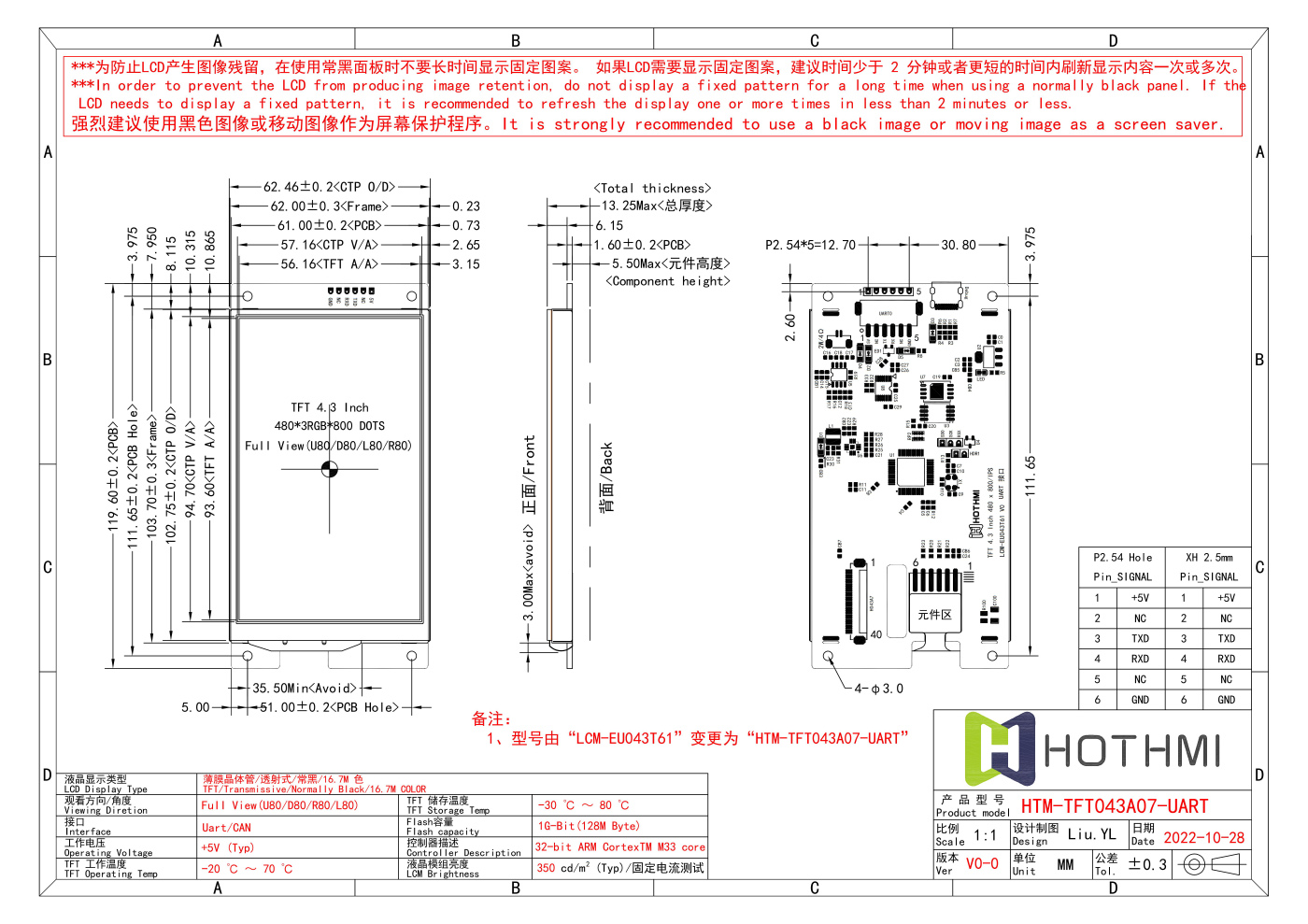

▶ Overall dimensions (mm): 62.46x119.6x13.25
▶ Display inches: 4.3"
▶ VA size (Mm): 57.16x94.7
▶ AA size (Mm): 56.16x93.6
▶ Product application: automotive, medical, industrial control
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: 350cd/M²
▶ Connection method PIN number: 12pin
▶ Interface mode: UART/RS232
▶ Special instructions: With capacitive touch function
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Specification
Attributes

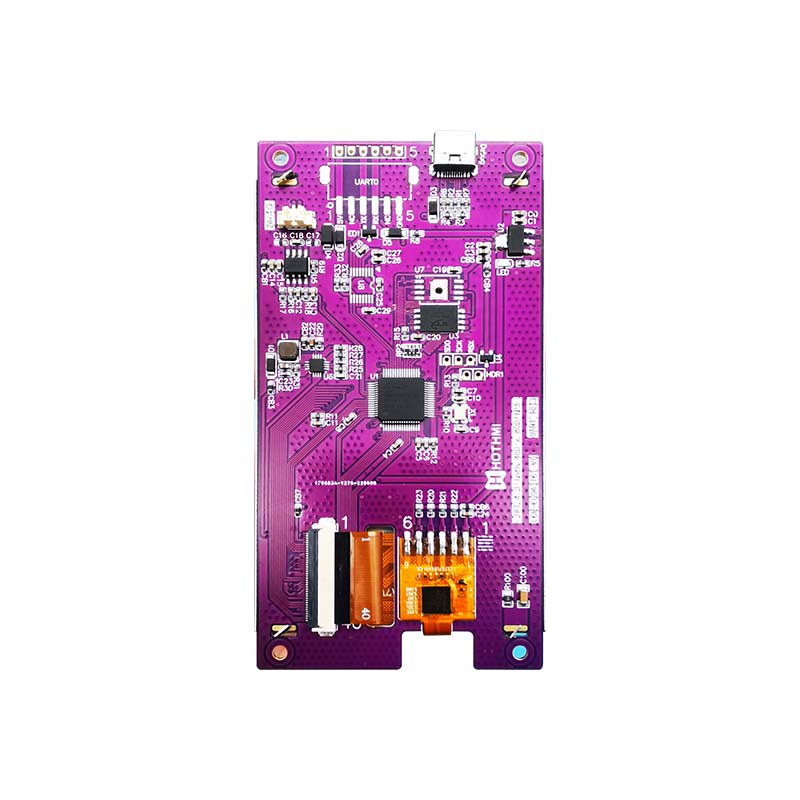

HTM-TFT043A07-UART | 4.3" TFT smart serial screen | 480x800 pixels | UART interface | 12-pin FFC ZIF connection | With driver control board | Optional capacitive/resistive touch screen | PC system/industrial control system/single chip microcomputer

This smart serial screen stands out for its excellent performance and multi-field applicability. Its high-resolution display content of 480x800 px enables users to enjoy clear and detailed image presentation. The compact size is only 62.46x119.6x13.25 mm, making it suitable for various application scenarios with limited space. Designed specifically for automotive, medical and industrial control fields, the screen performs excellently in complex environments. Adopting IPS full-viewing technology to ensure high-quality, realistic display effects from all angles. The 12pin connection method and UART/RS232 interface method make it more flexible in terms of integration and connection. It is particularly worth mentioning that the screen has capacitive touch function, providing users with a more intuitive and sensitive operating experience.

The backlight brightness reaches 350cd/M², which can remain clearly visible even in bright environments. The wide operating temperature range, from -20℃ to 70℃, ensures reliability under different working conditions.

Overall, this TFT smart serial screen is a comprehensive and reliable display solution that provides excellent image display and touch experience for applications in the automotive, medical and industrial control fields. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.
