3.0-inch black 128x64 graphic display LCD module | ST7565R |DFSTN negative display

3.0-inch black 128x64 graphic display LCD module | ST7565R |DFSTN negative display

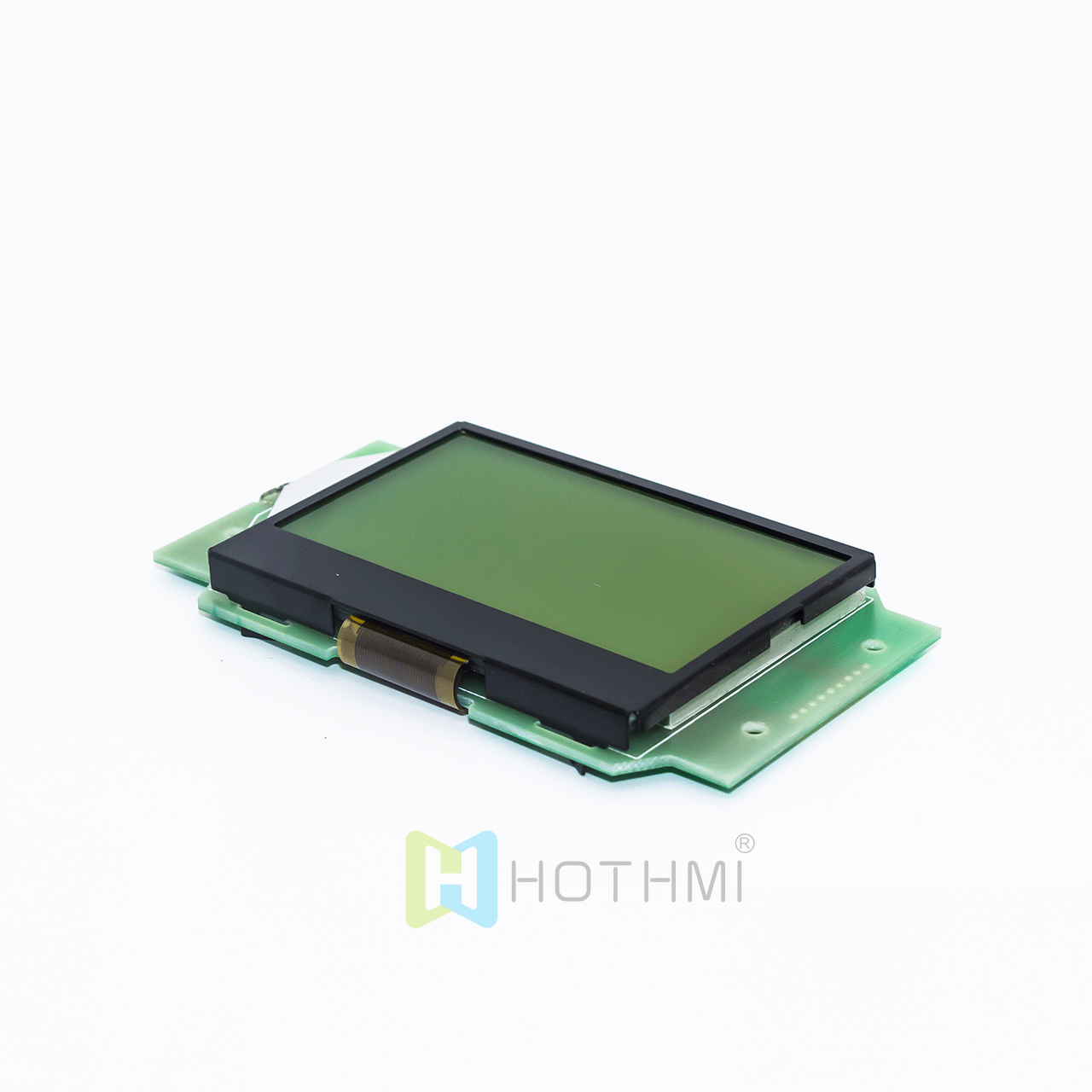

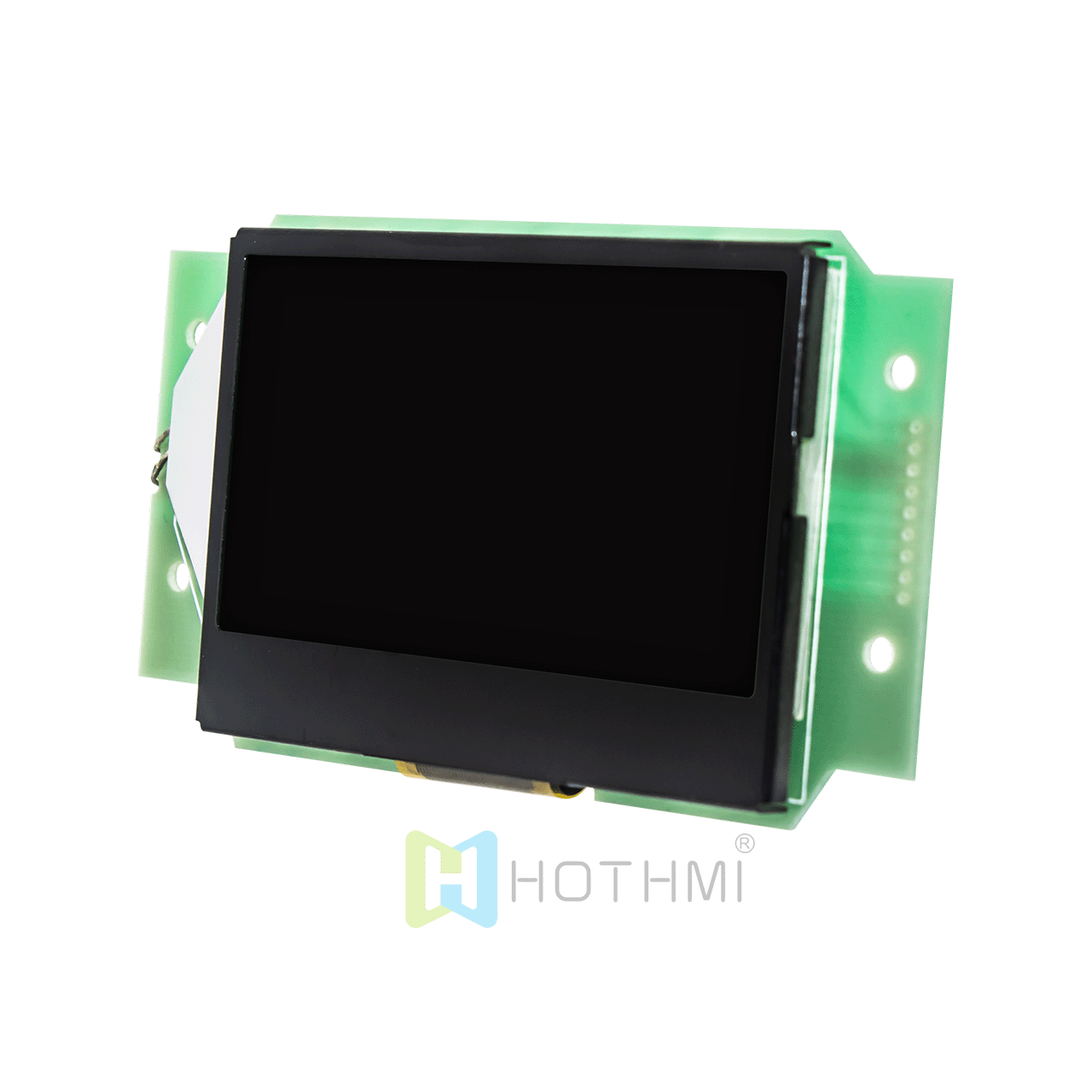

▶ Model: HTM12864-7-41W-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x64

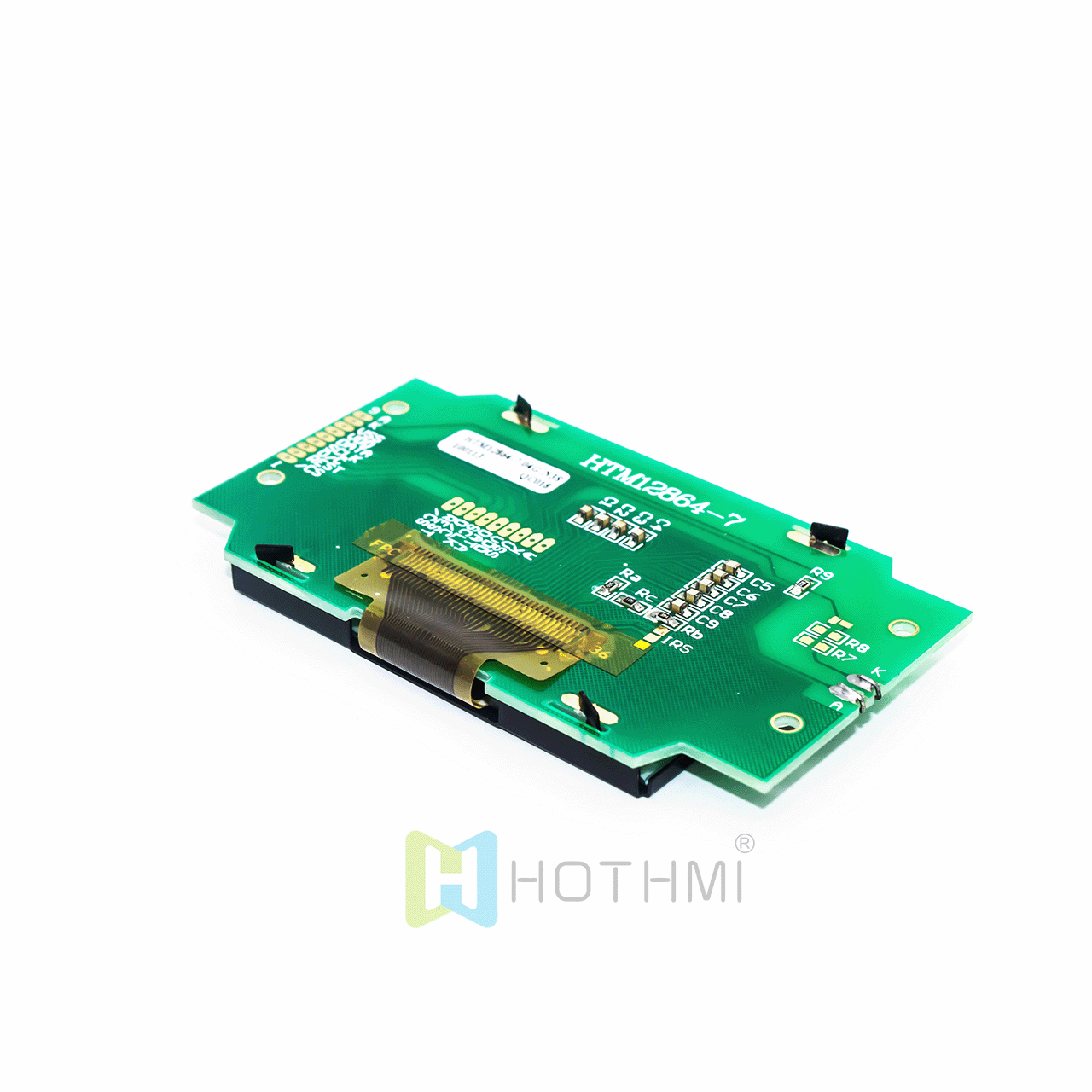

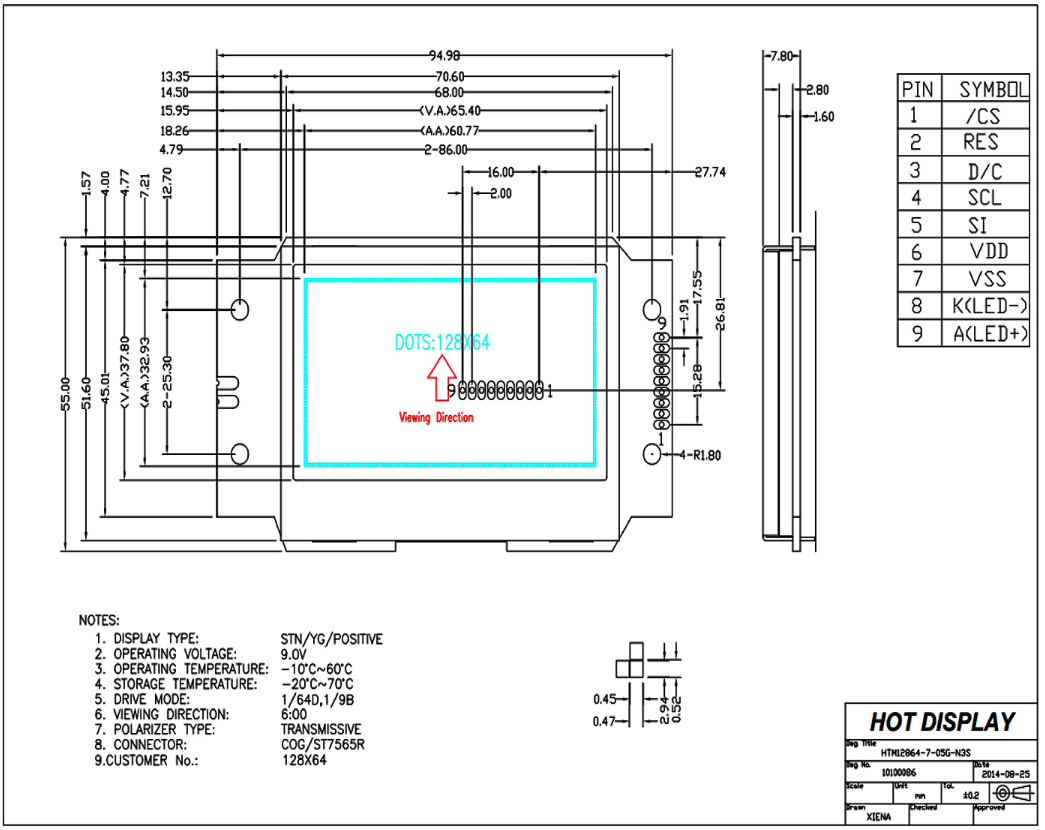

▶ Overall dimensions (mm): 95.0x56.7x13.5
▶ VA size (mm): 65.6x38
▶ AA size (mm): 60.775x32.935
▶ Point spacing (mm): 0.475x0.515
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Brightness: white light

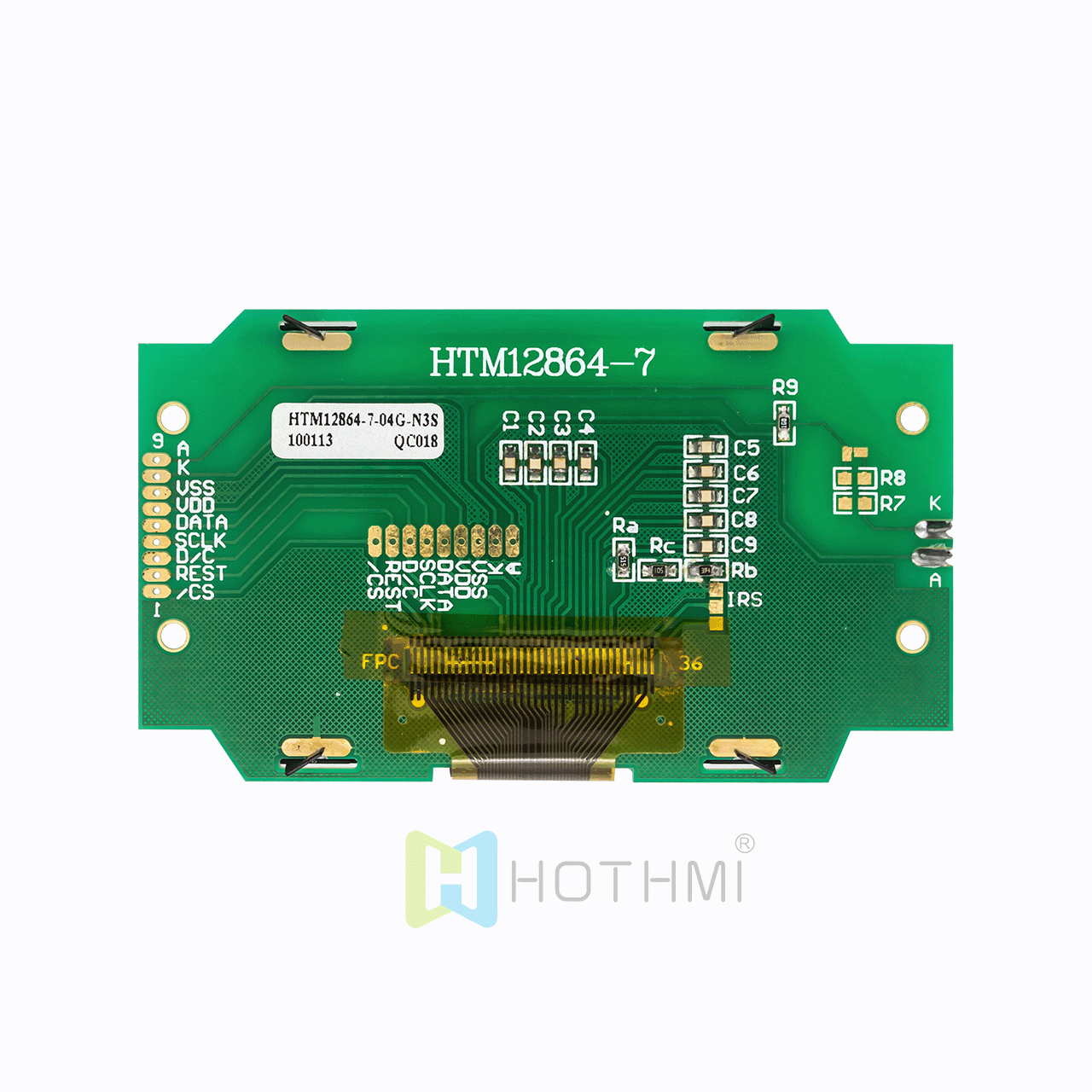

▶ PIN: 9PIN
▶ Interface mode: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R
