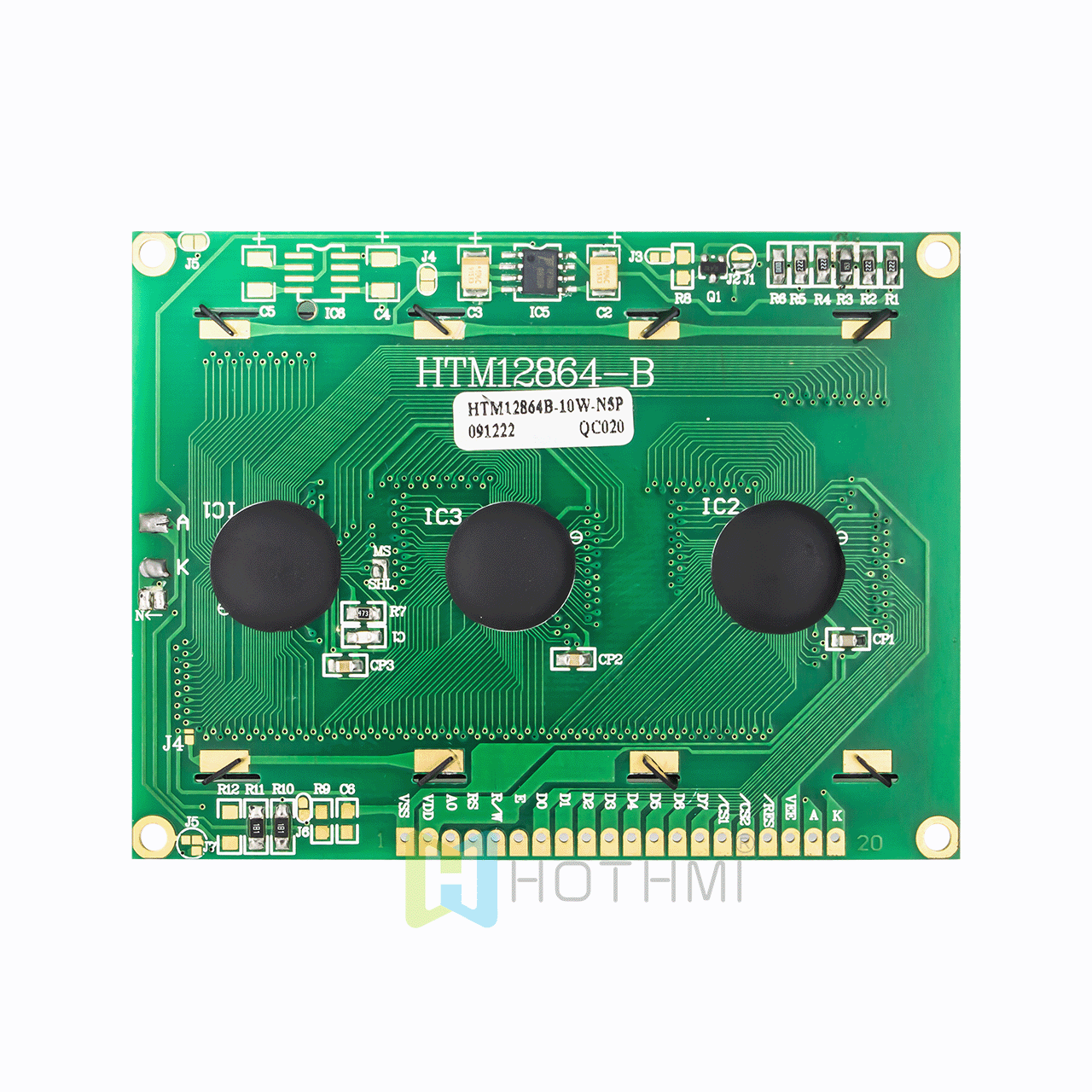

3.2" LCD12864 LCD screen/LCM128x64 graphic dot matrix module/yellow-green background with gray characters

3.2" LCD12864 LCD screen/LCM128x64 graphic dot matrix module/yellow-green background with gray characters

▶ Model: HTM12864B-11Y-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 93.0 (W) X 70.0 (H) X 14.0 (T)
▶ VA size (mm): 72.0 (W) X 39.0 (H)
▶ AA size (mm): 66.52 (W) X 33.24 (H)
▶ Point spacing (mm): 0.52 (W) X 0.52 (H)
▶ Application: Industrial Control
▶Viewing angle: 6H
▶ Backlight/Brightness: yellow/green light
▶ Pin: 20PIN
▶Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0v
▶ Driver chip: KS0108 + KS0107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM12864B-11Y-A5P/3.2-inch LCD12864 LCD screen/LCM128x64 graphic dot matrix module/yellow-green background with gray characters

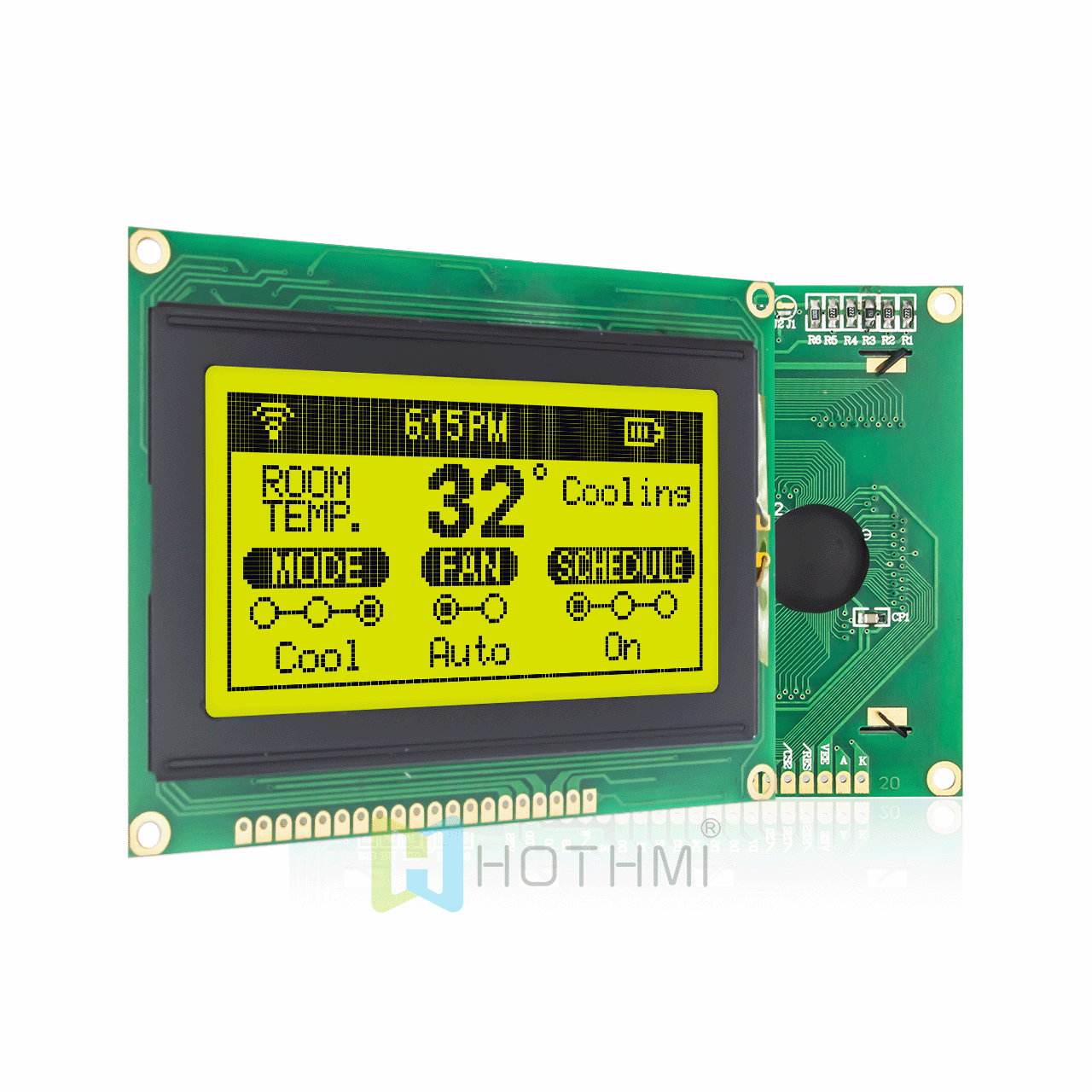

The LCD Graphics Hot Display module displays lit dark gray pixels on a bright yellow-green background. This semi-transverse LCD monitor is designed to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the screen uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a powerful built-in backlight design that provides high contrast and displays clear graphics to the viewer. This advanced visualization technology ensures that the screen is always easy to read, regardless of lighting conditions.

This LCD graphic display module is fully compatible with Arduino and can be perfectly connected to other electronic systems for various applications. The HTM12864B-11Y-A5P model is designed to withstand harsh conditions.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

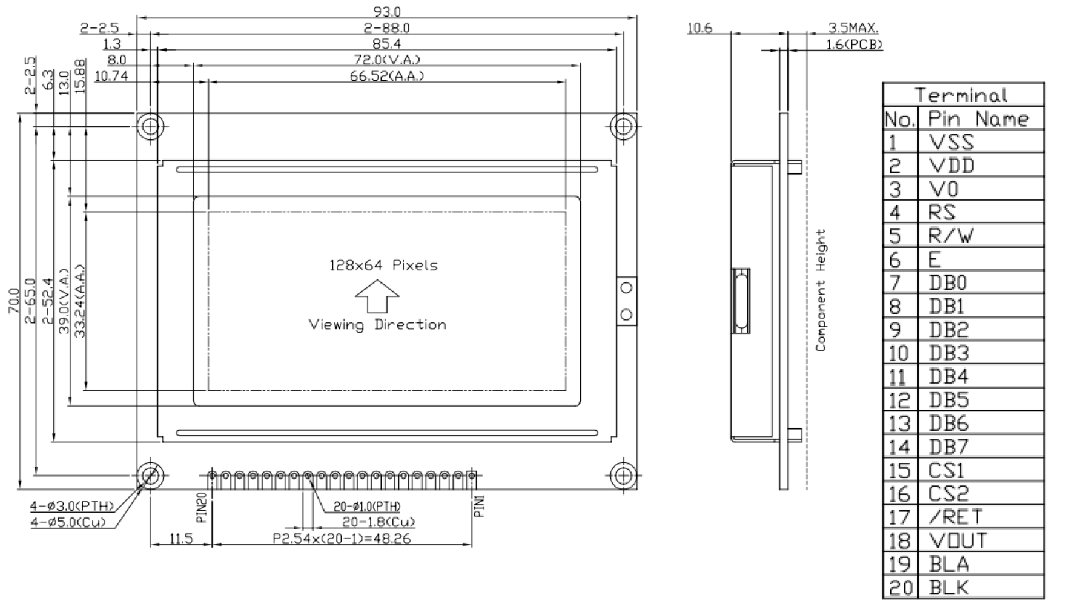

Project	Specification content	Unit
model	HTM12864B-11Y-A5P
Column × Row	128 columns × 64lines	dots
Module size	93.0 x 70.0 x 14.0 (MAX)	mm
Visual (VA) area	72.0 x 39.0	mm
Valid (AA) area	66.52 x 33.24	mm
Point (pixel) spacing	0.52 x 0.52	mm
IC	KS107+KS108 or compatible
voltage	5V	V
backlight	Yellow/green backlight
model	STN(+)
Drive mode (Duty)	1/64 duty cycle
type	Graphic LCD module
characteristic	Semi-transparent polarizer
