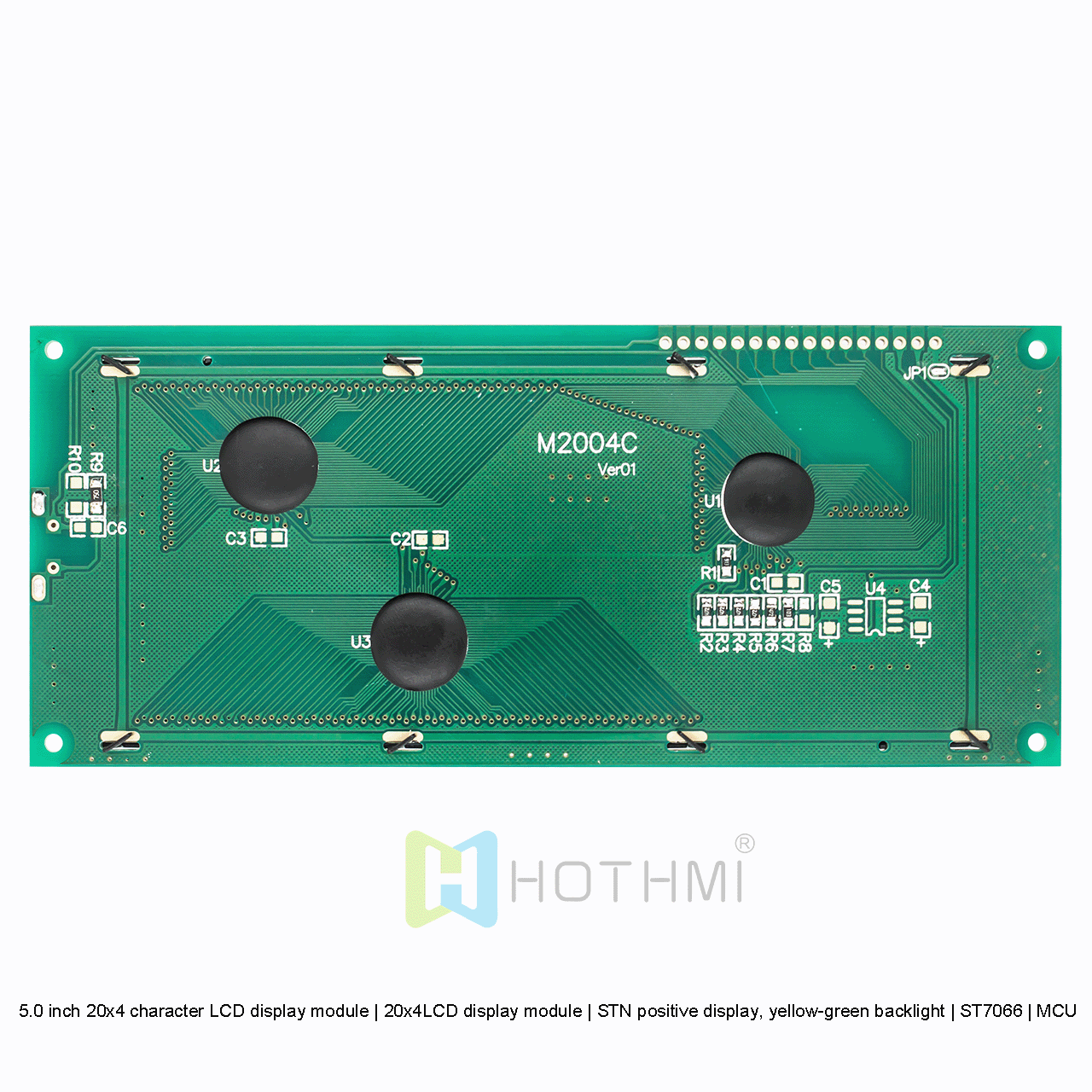

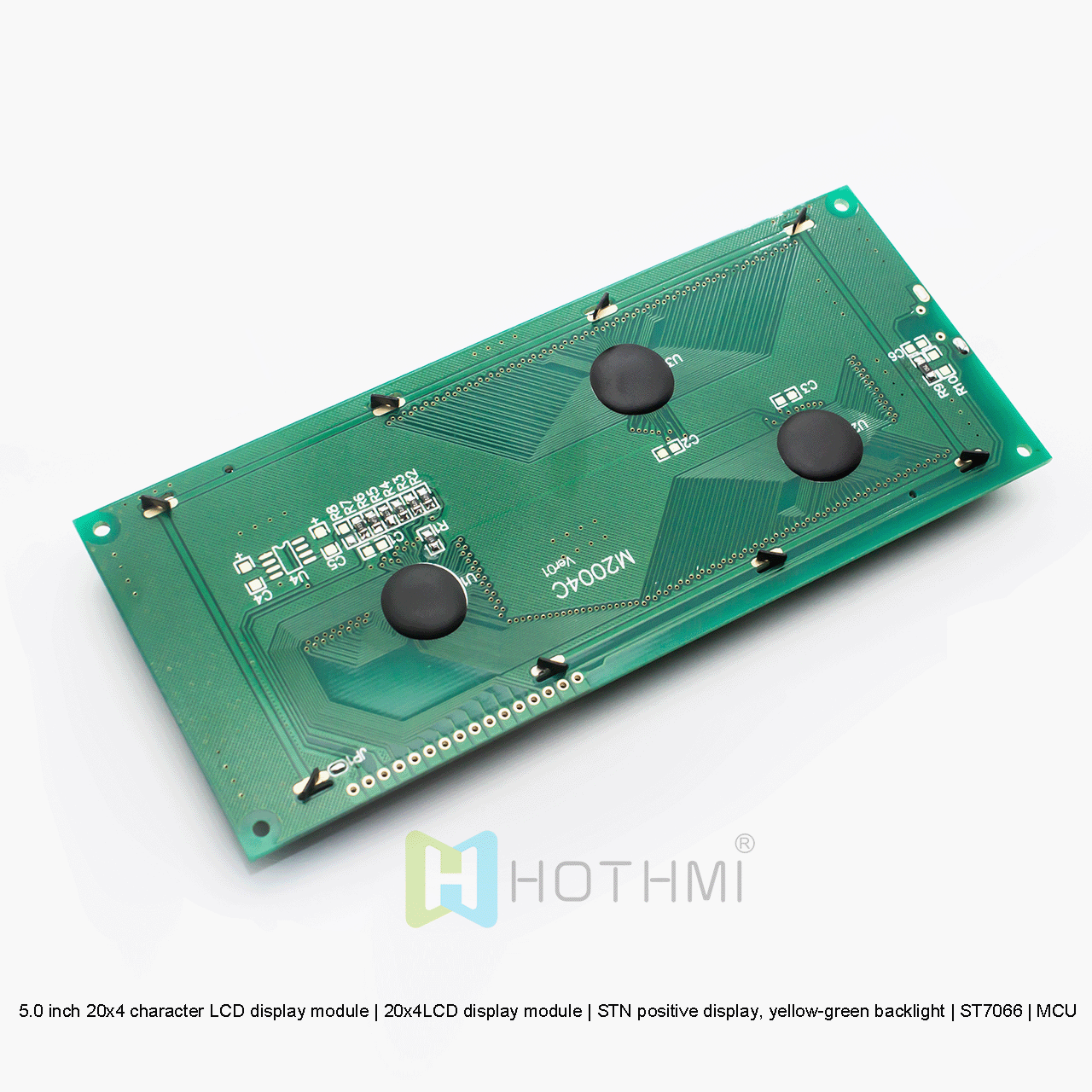

5.0 inch 20x4 LCD Character Module | FSTN Positive Display, RGB Red, Green and Blue Backlight | ST7066 | MCU Interface | For Arduino

5.0 inch 20x4 LCD Character Module | FSTN Positive Display, RGB Red, Green and Blue Backlight | ST7066 | MCU Interface | For Arduino | Fully Transparent Polaroid

▶ Model: HTM2004C-35S-A5P

▶ Product type: standard COB character LCD module
▶ Display content: 20x4 characters
▶ Dimensions (mm): 146X62.5X12.6
▶ Viewing window size (mm): 123X43
▶ Display size (mm): 118.84x38.47
▶ Dot pitch mm: 0.92x1.1
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: red green blue light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description

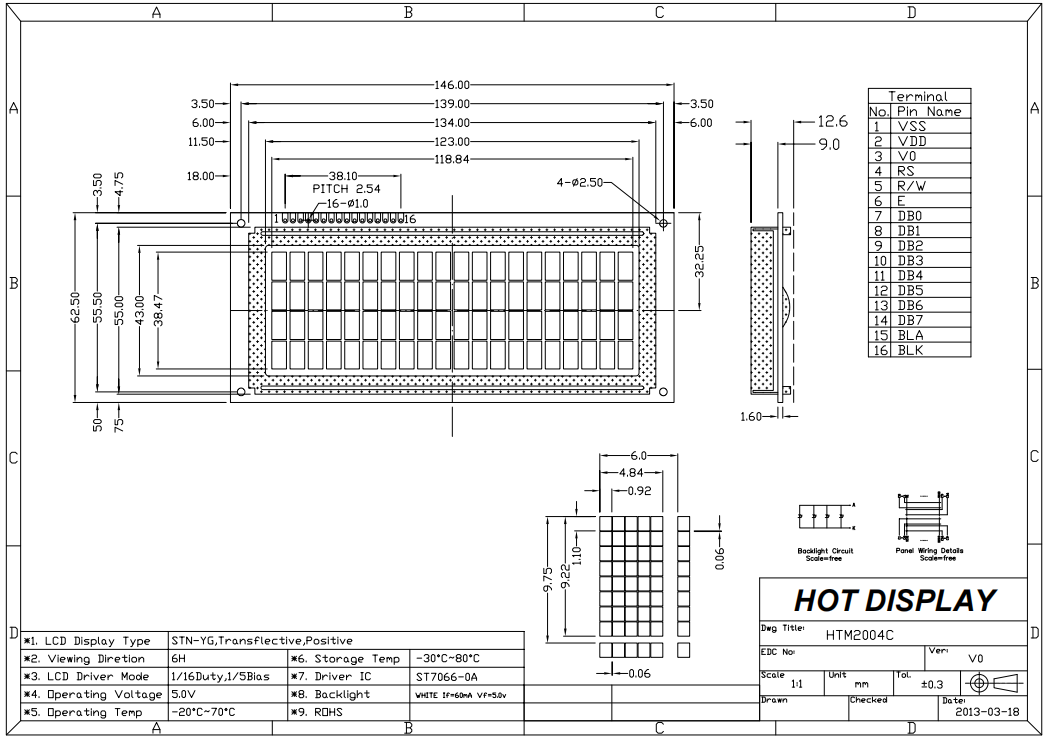

Specification
Attributes

5.0 inch 20x4 LCD Character Module | FSTN Positive Display, RGB Red, Green and Blue Backlight | ST7066 | MCU Interface | For Arduino | Fully Transparent Polaroid

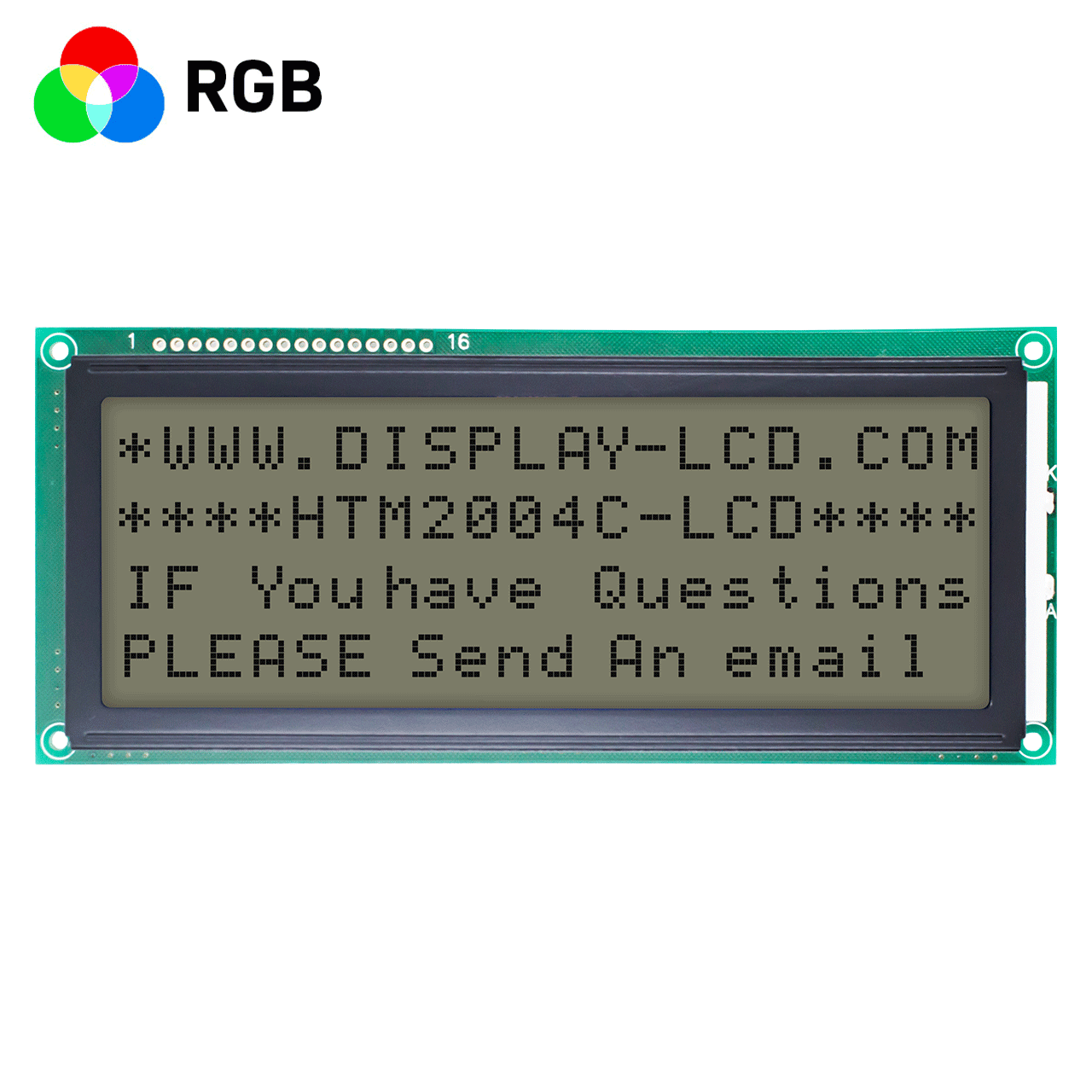

The 5.0 inch 20x4 LCD Character Module is a 4-line, 20-character display with dark gray characters on an RGB background. RGB three-color LED backlight, fully transparent polaroid allows the backlight to pass through completely, and the visual effect is very good. This 20x4 fully transparent LCD offers a wide operating temperature range from -20 to 70 degrees Celsius and is equipped with an integrated ST7066U controller. The applicable voltage of this product is 5.0v. This product has undergone multiple quality tests and is compatible with a variety of development boards including Arduino.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

ITEM	SPECIFICATION	UNIT
Name	HTM-2004C-35S-A5P
Number of dots	20 × 4	dots
Module size	146.0 x 62.5 x 12.6 (MAX)	mm
VA size	123 x 43.0	mm
AA size	118.84 x 38.7	mm
Pixel pitch	0.65 x 0.7	mm
IC	ST7066
Supply voltage	5V	V
Backlight	RED GREEN BLUE
Display mode	STN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Character LCD
Features	Transmissive
