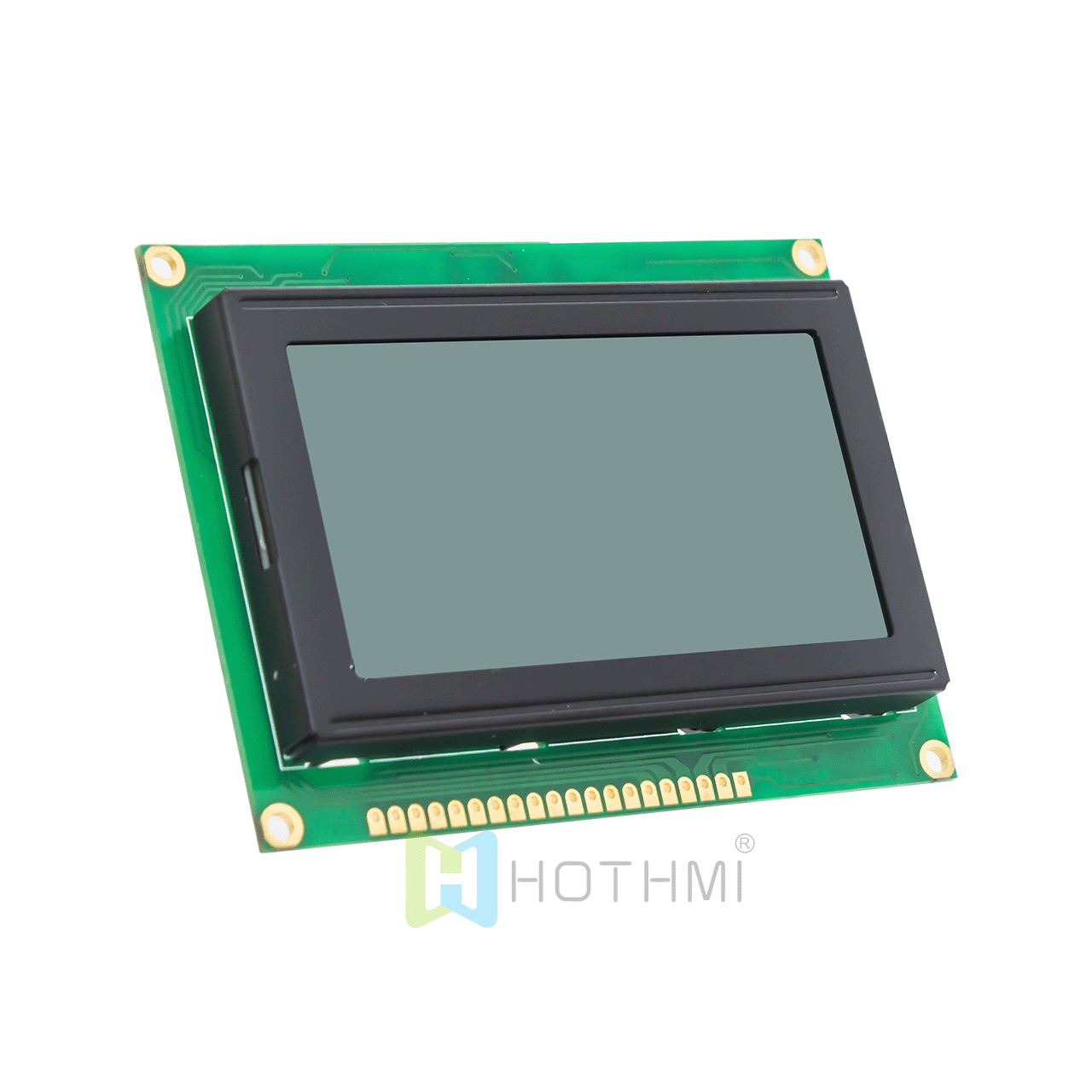

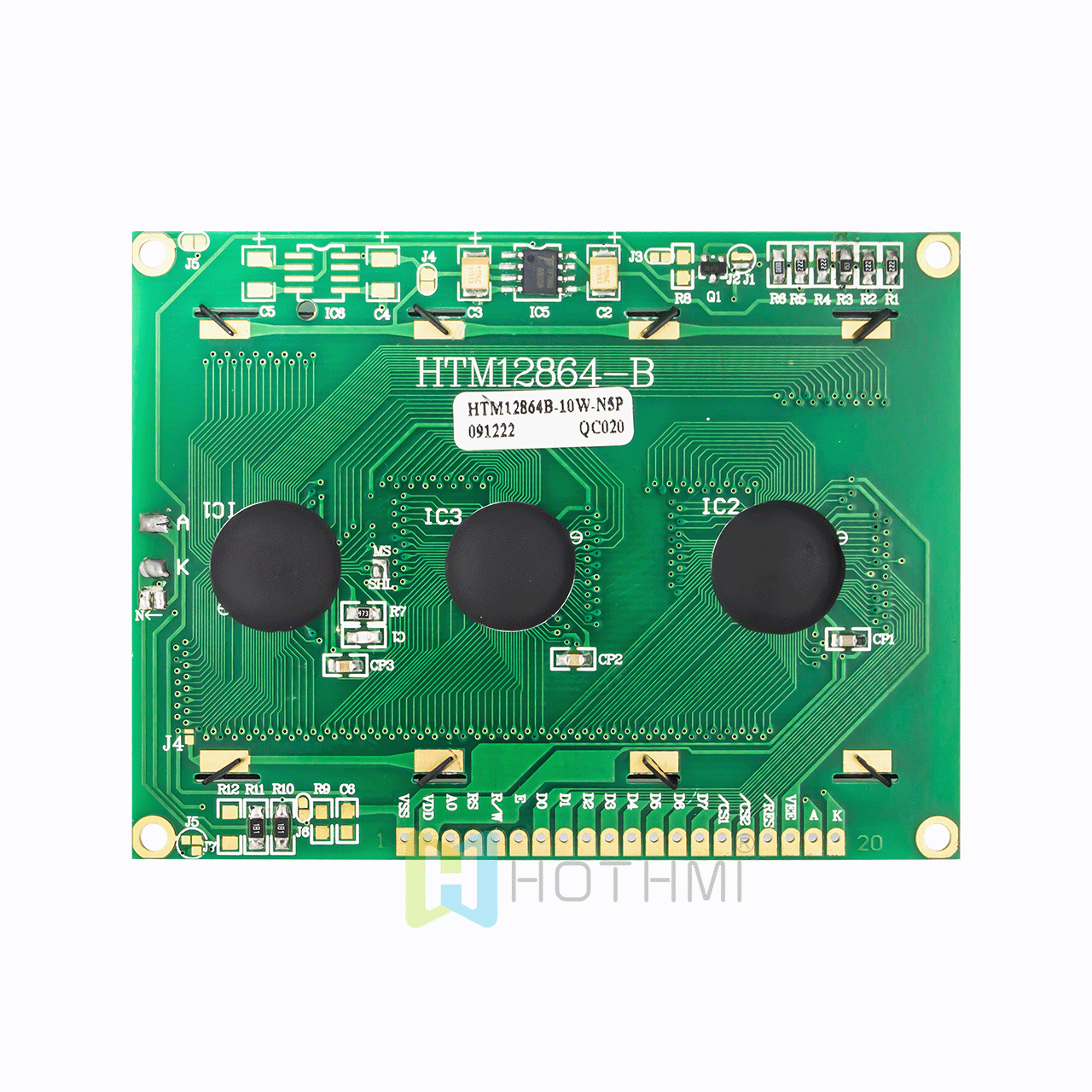

3.2"LCD display 128x64 graphics module display KS0107+KS0108 or compatible controller

3.2"LCD display 128x64 graphics module display KS0107+KS0108 or compatible controller

▶ Model: HTM12864B-11W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

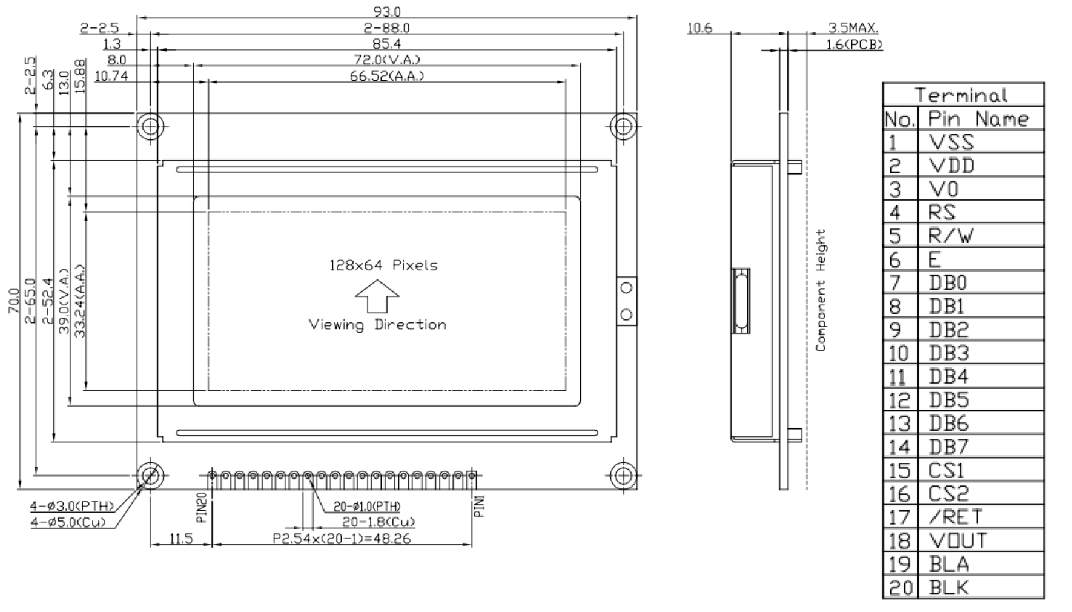

▶ Overall dimensions (mm): 93.0 (W) X 70.0 (H) X 14.0 (T)
▶ VA size (mm): 72.0 (W) X 39.0 (H)
▶ AA size (mm): 66.52 (W) X 33.24 (H)
▶ Point spacing (mm): 0.52 (W) X 0.52 (H)
▶ Application: Industrial Control
▶Viewing angle: 6H
▶ Backlight/Brightness: white light
▶ Pin: 20PIN
▶Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0v
▶ Driver chip: KS0108 + KS0107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

LCD display 128x64 graphics module display KS0107+KS0108 or compatible controller

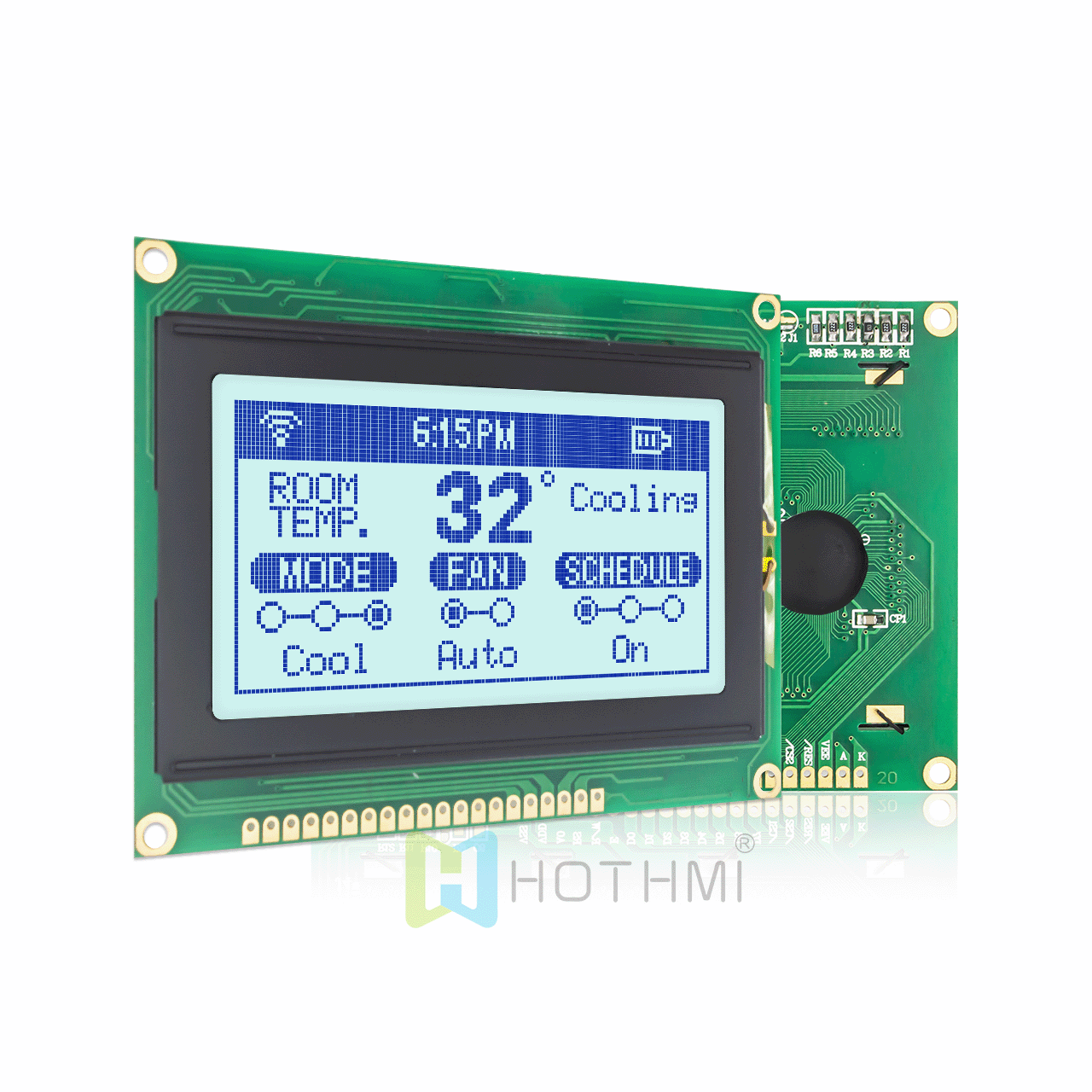

This 128x64 graphics LCD module displays dark blue patterns or fonts on a light gray background. This translucent LCD screen is engineered to ensure visibility in a variety of lighting conditions in a variety of environments. In sunlight, the screen uses reflectors to reflect the screen back to the viewer, making the screen easier to read. In darker environments, the LCD display has a powerful backlight that provides viewers with high contrast and displays clear graphics. This advanced display technology ensures that images are always easy to read regardless of lighting conditions.

The graphic LCD module is fully compatible with Arduino and can be seamlessly connected to other electronic systems and suitable for a variety of applications. The HTM12864B-11W-A5P model is designed to withstand harsh operating conditions, operating abnormally in temperatures ranging from 20 to 70 degrees. LCD screen viewing angle is 6:0

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

project	Parameter Description	UNIT
name	HTM12864B-11W-A5P
Number of dots	128x64 dots	dots
Module size	93.0 x 70.0 x 14.0 (MAX)	mm
VA size	72.0（W） × 39.0（H）	mm
AA size	65.52（W） × 33.24（H）	mm
Pixel pitch	0.52 × 0.52	mm
IC	KS107+KS108 or Compatible
voltage	5.0V	V
backlight	White backlight
display mode	STN+
Drive mode (Duty)	1/64 duty cycle
type	Graphic LCD
characteristic	Semi-transparent polarizer
