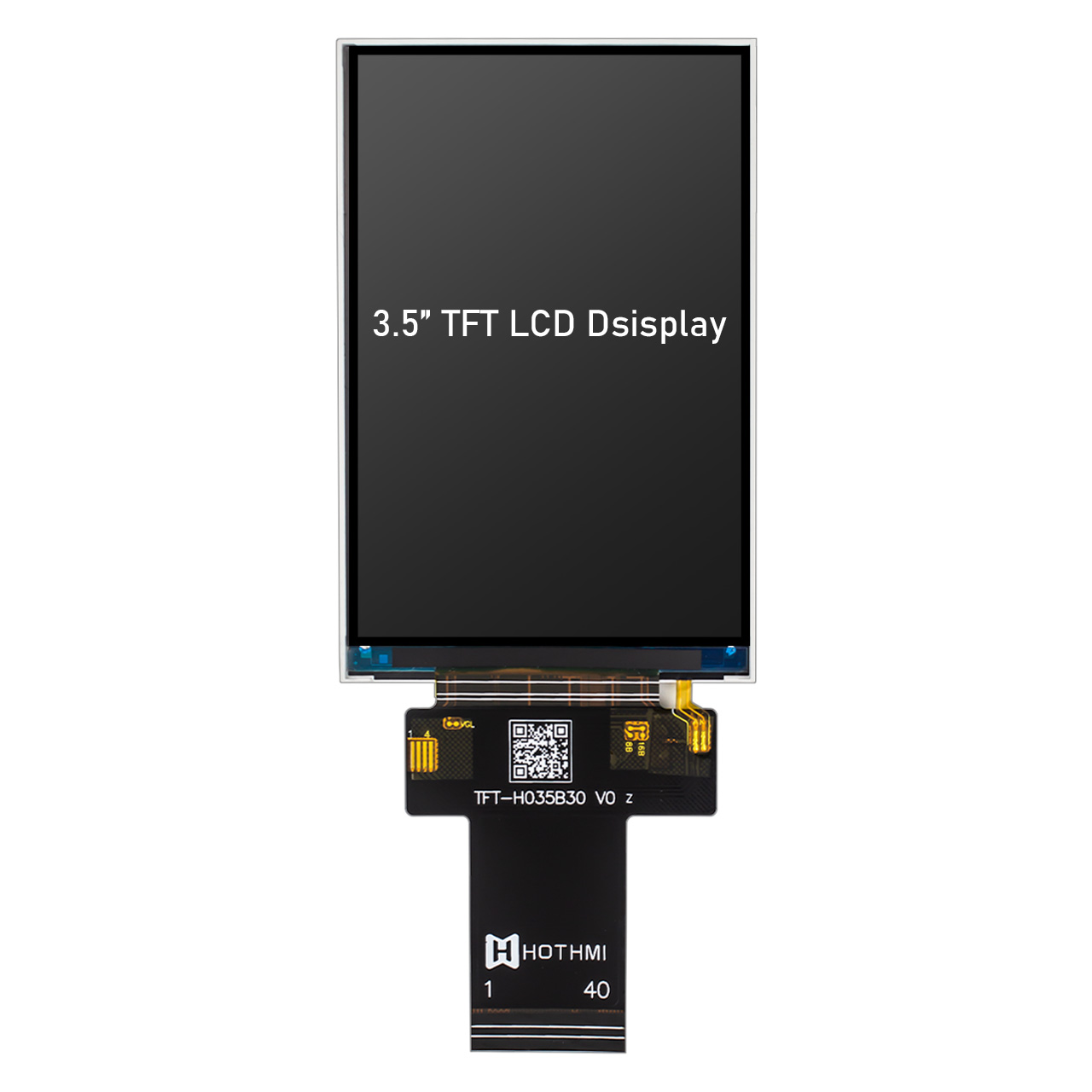

  • 3.5 Inch 320x480 TFT LCD Display Module with ST7796 Controller

    This standard 3.5" TFT display has a resolution of 320x480 pixels and a standard brightness LED backlight with 300 nits brightness. This transmissive LCD is compact in size and powered by a low voltage of 3.3V, while also featuring an ST7796 controller, making it ideal for applications that require a portrait mode visual output.


    The 16-bit parallel interface enables fast and efficient communication between the Arduino and the display, ensuring smooth data transfer and real-time updates. This interface is flexible and compatible with a wide range of Arduino models. This TFT LCD display features an ST7796 controller for superior performance and reliability. The controller optimizes the functionality of the display, ensuring smooth operation and accurate image and graphics rendering. The reliable and secure 40-pin hot-press solder FPC connection makes installation a breeze, allowing you to focus on your project without worrying about loose connections. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, handheld devices, and due to their compatibility with Arduino, they are perfect for DIY or prototyping projects. All of our displays are RoHS compliant and adhere to strict environmental and safety standards.


    This model does not come with a driver board, which provides a flexible option for product development. Engineers can develop a suitable main control board according to the actual needs of the product. This display supports development platforms such as Arduino, Raspberry Pi, and LVGL. The universal configuration makes it a favorite of developers.


    Developers do not have development capabilities? Don't worry, we also provide modules with main control boards of this size. Users can choose modules with MCU master control HTM-H035A31-MCU-A01, smart display ATFLet035 V40 with UART interface, HTM-H035A12-A9-UART. No matter what your needs are, there is always one that will suit you.



  • Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

    Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

    Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

    Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.


  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H035B30HVIST3N40


    Diagonal size

    3.5”

    Inch

    Resolution

    320x480

    Dot

    Dimensions

    53.76x82.39x2.23

    mm

    Active area (AA)

    48.96x73.44

    mm

    LCD type

    3.5"TFT LCD

    mm

    Display viewing angle

    Full View


    Aspect ratio

    2:3


    Backlight type

    LED white


    TFT driver IC

    ST7796


    Brightness

    300cd/m2

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
