2.2" 128x64 Graphic COG | STN+ | Yellow-Green Backlight | SPI | ST7567

2.2" 128x64 Graphic COG | STN+ | Yellow-Green Backlight | SPI | ST7567 | Arduino

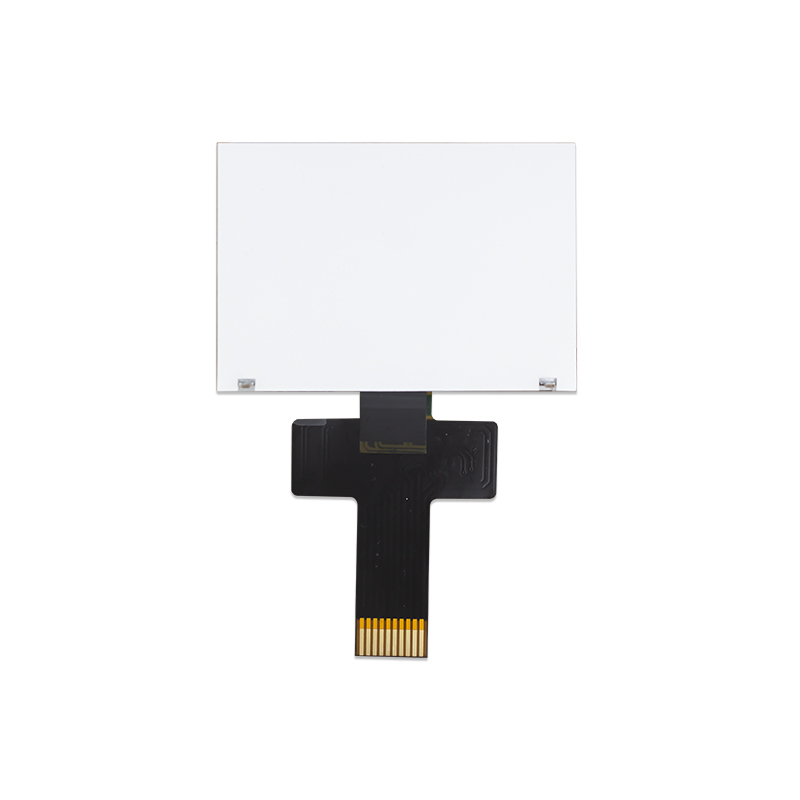

▶ Model: HTG12864T02A-11Y--SPI-FONT

▶ Type: COG graphic lattice
▶ Display pixels: 128x64

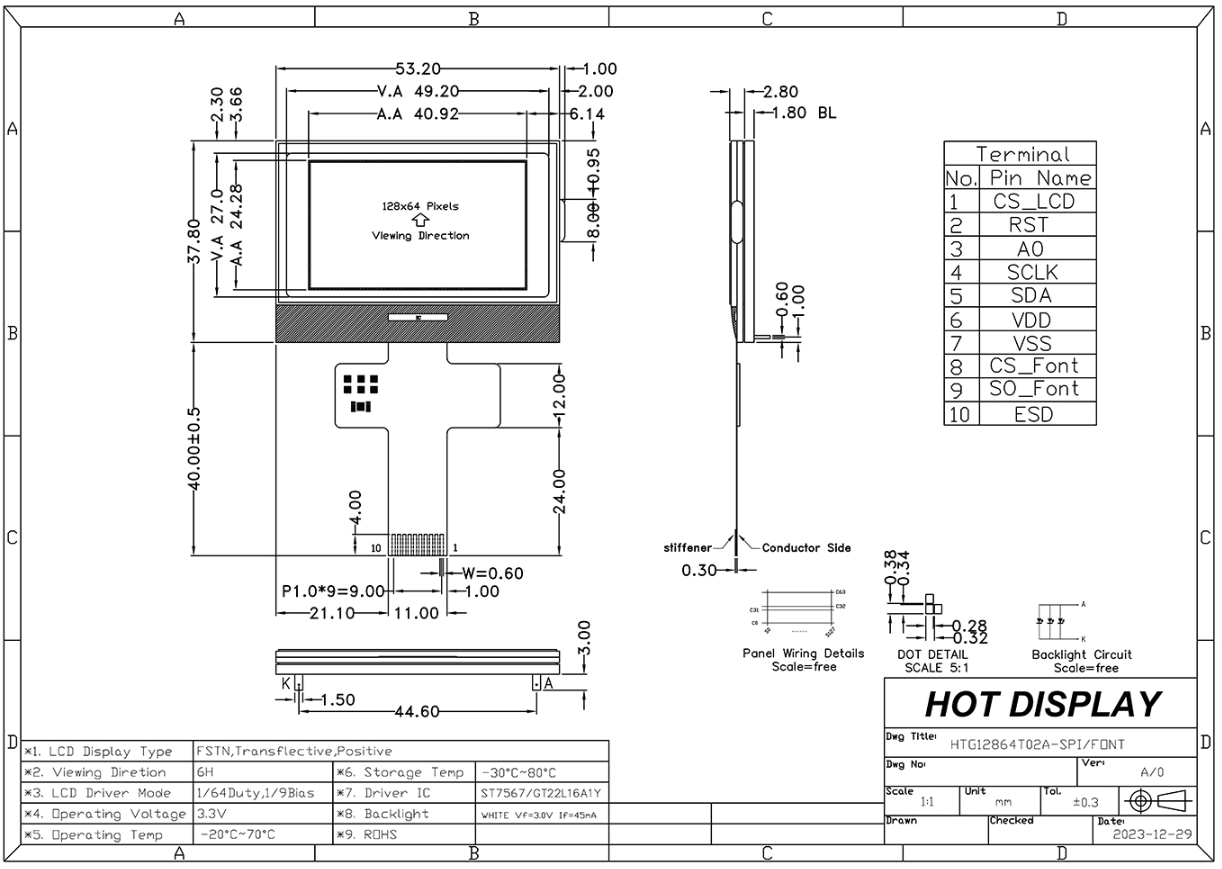

▶ Overall dimensions (Mm): 53.2x37.8x2.8
▶ Display inches: 2.2"
▶ VA size (mm): 49.2x27.0
▶ AA size (mm): 40.92x24.28
▶ Point spacing (mm): 0.38x0.32
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: FPC-10PIN
▶ Interface mode: SPI
▶ Description: With Chinese, English and Russian text library
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

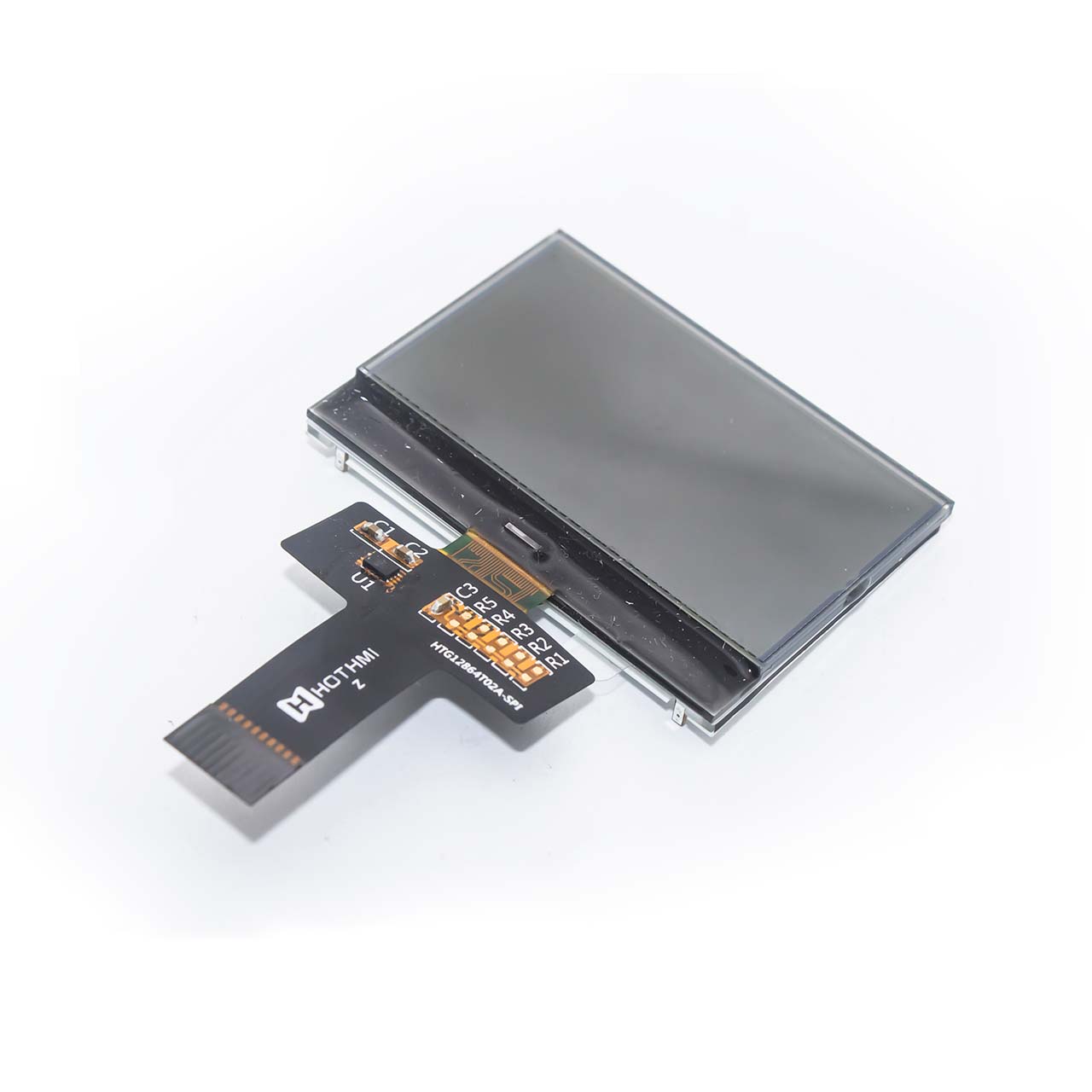

2.2" 128x64 Graphic COG | STN+ | Yellow-Green Backlight | SPI | ST7567 | Arduino

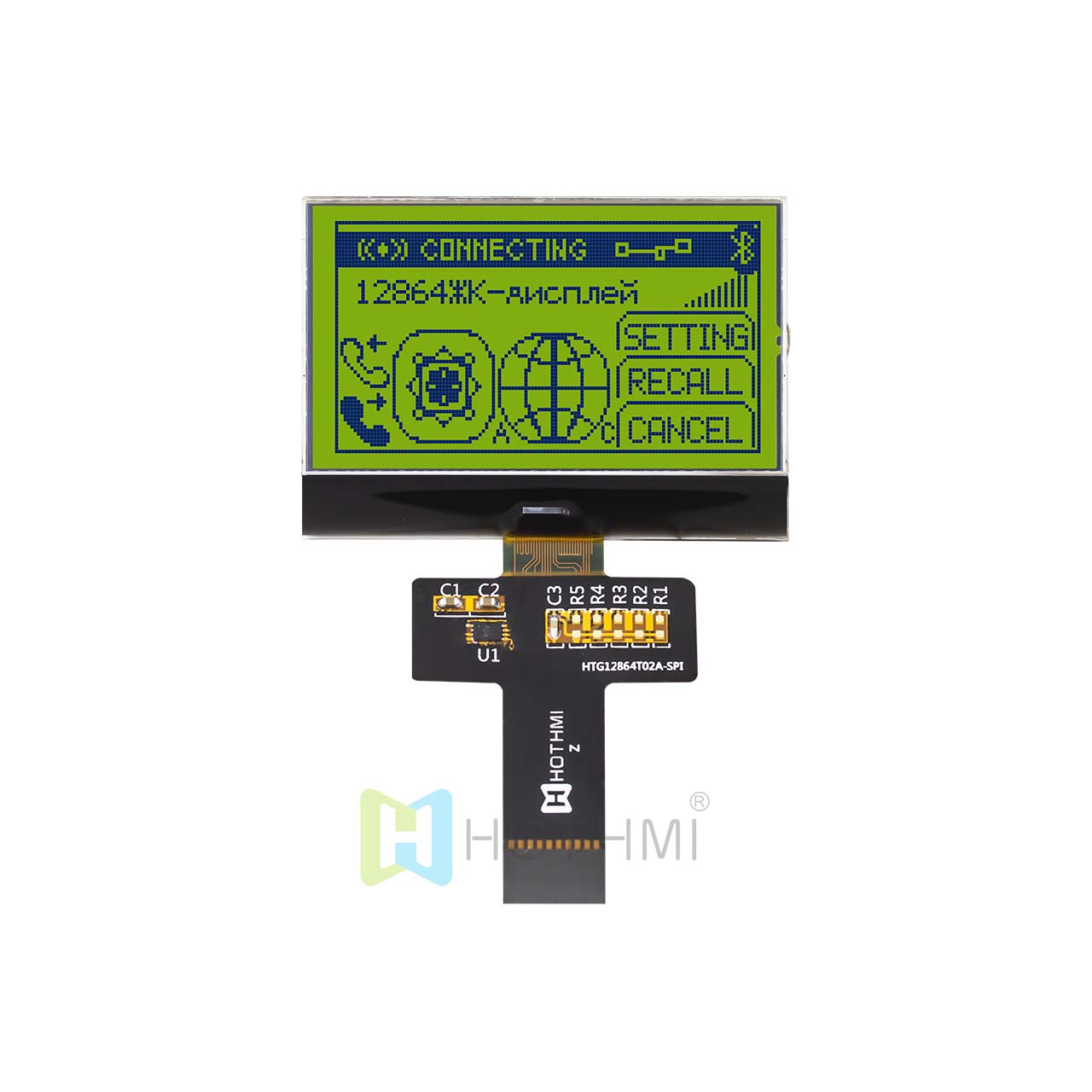

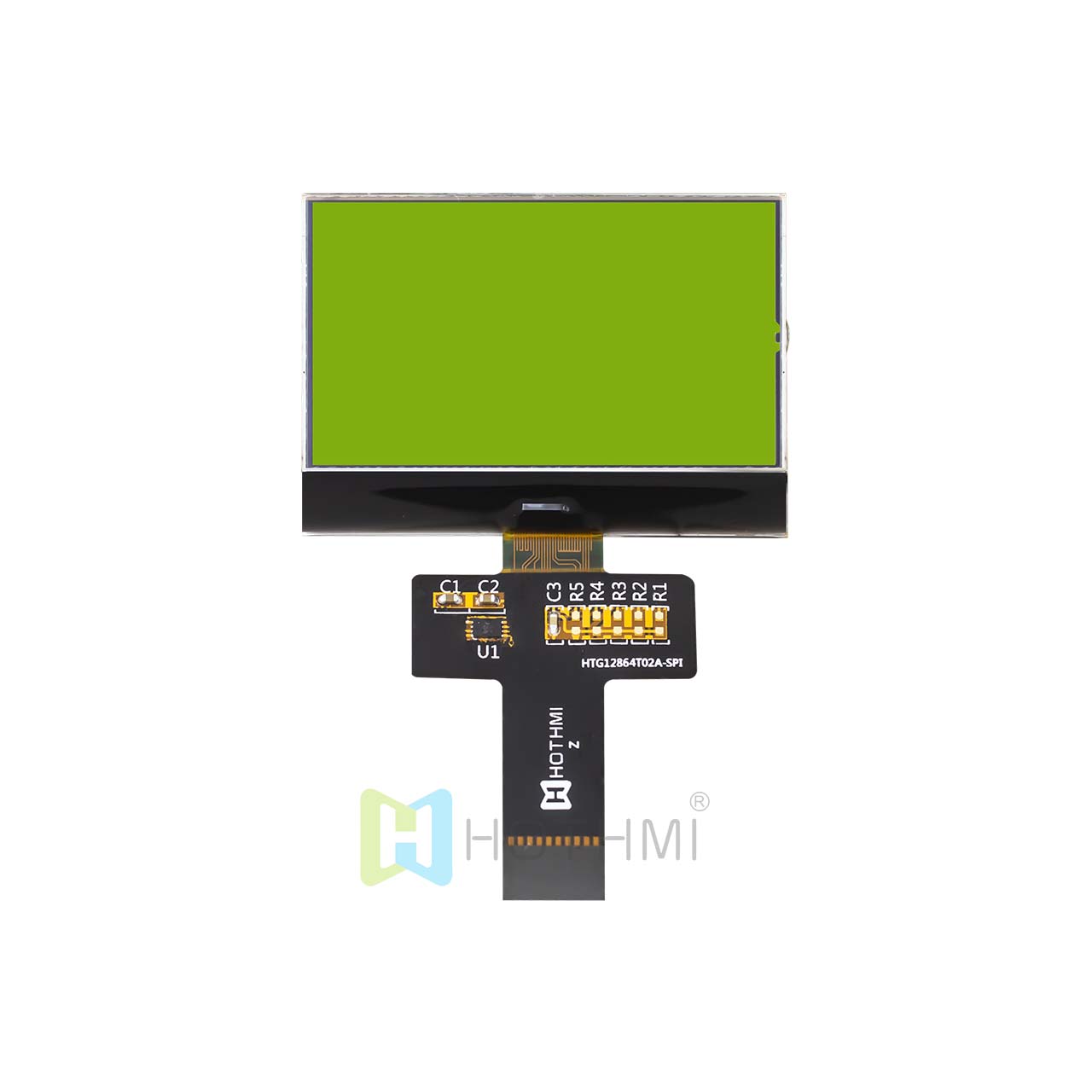

This 2.2" HOT Display 128x64 Graphic Chip on Glass (COG) LCD module displays dark grey pixels on a yellow-green background. This transmissive LCD display is engineered to reflect the image to the viewer in ambient light through the polarizer and to provide optimal visibility and impressive colors when used in darker environments through the backlight. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.

The display of this Graphic LCD Display Module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.

Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

Item	specification	Unit
Name	HTG12864T02A-11Y- A5P
Number of dots	128 × 64	dots
Module size	53.2x 37.8 x 2.8 (MAX)	mm
Viewable (VA) area	49.2 x 27	mm
AA size	40.92 x 24.28	mm
Dot (pixel) pitch	0.38 x 0.32	mm
IC	ST7567
Applied voltage	3.3V	V
Backlight	Yellow-green
Mode	STN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic COG
Polarizer type	Transflective
