1X16 character LCD display | FSTN+ RGB backlight-Arduino-1601B

1X16 character LCD display | FSTN+ RGB backlight-Arduino-1601B

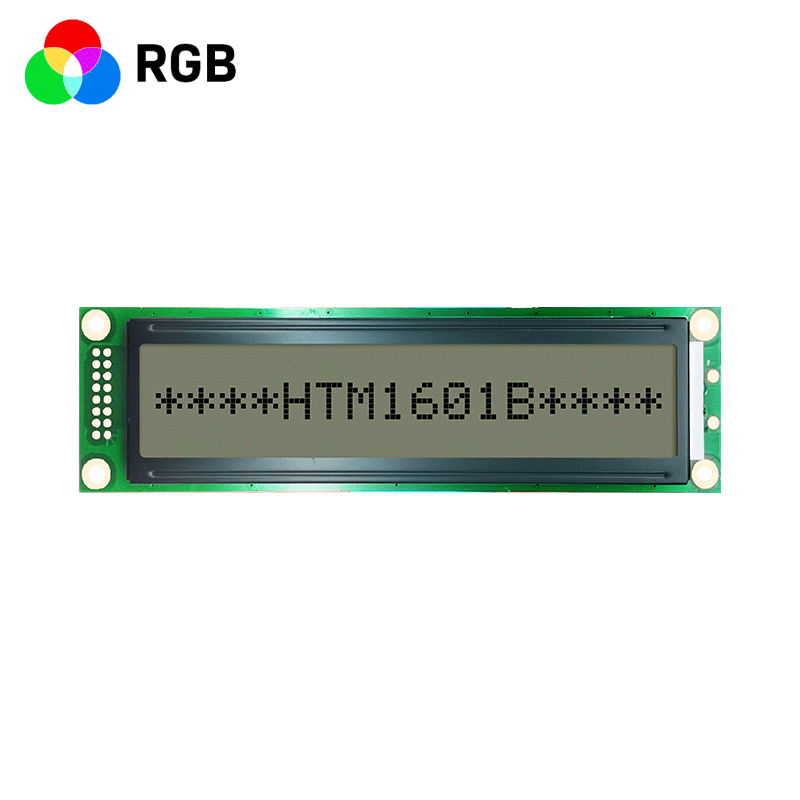

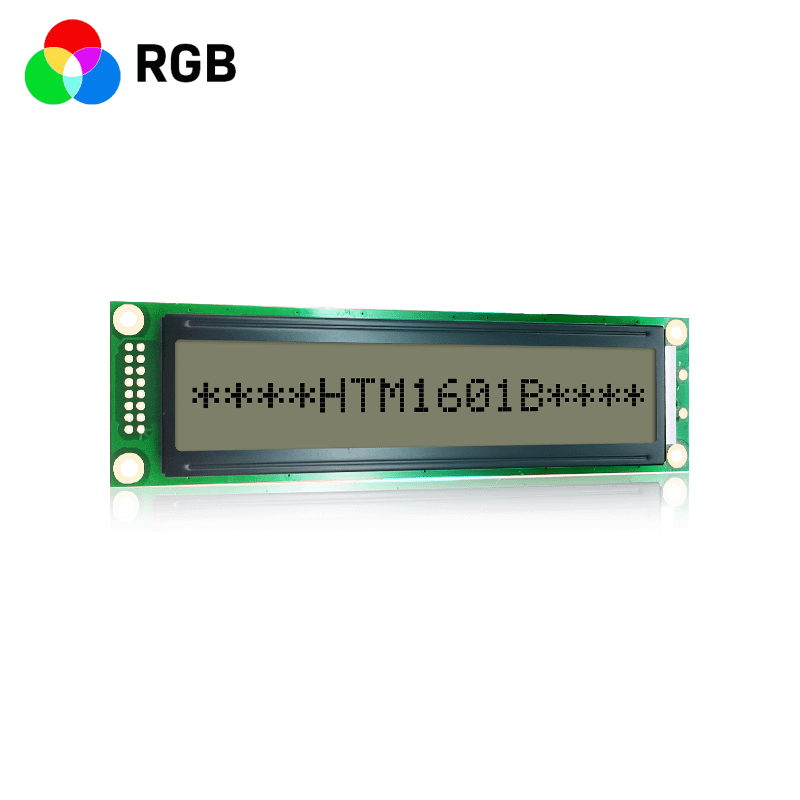

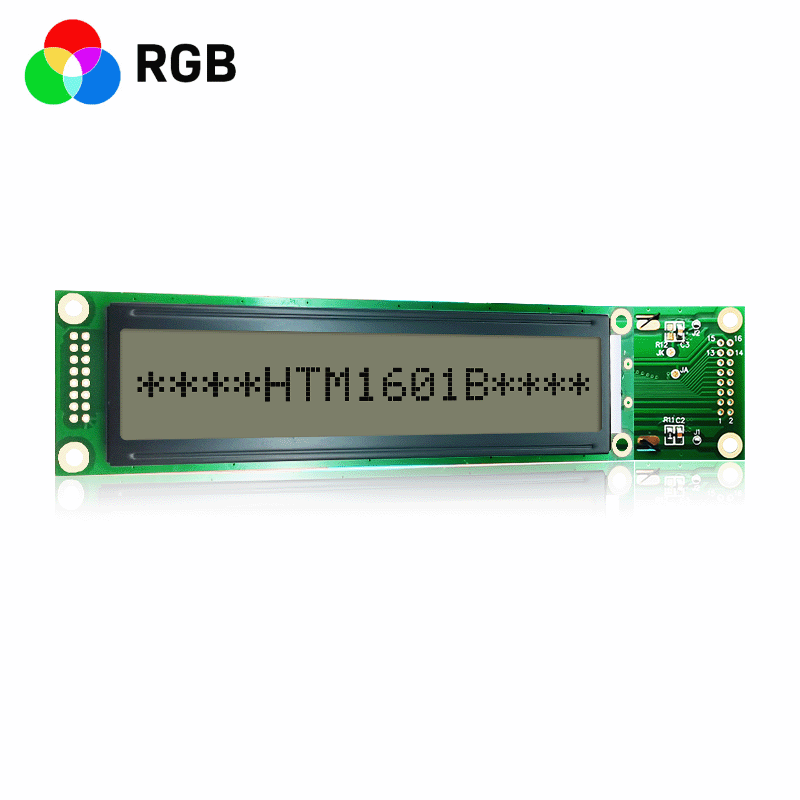

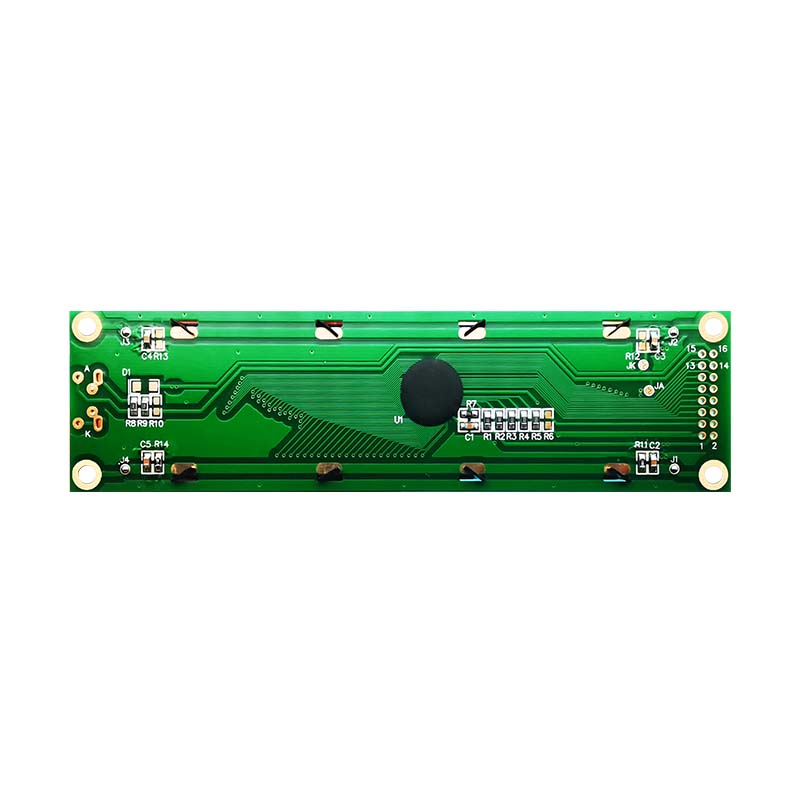

▶ Model: HTM-1601B-35S-A5P

▶ Type: Standard COB character module
▶ Display content: 16x1 characters

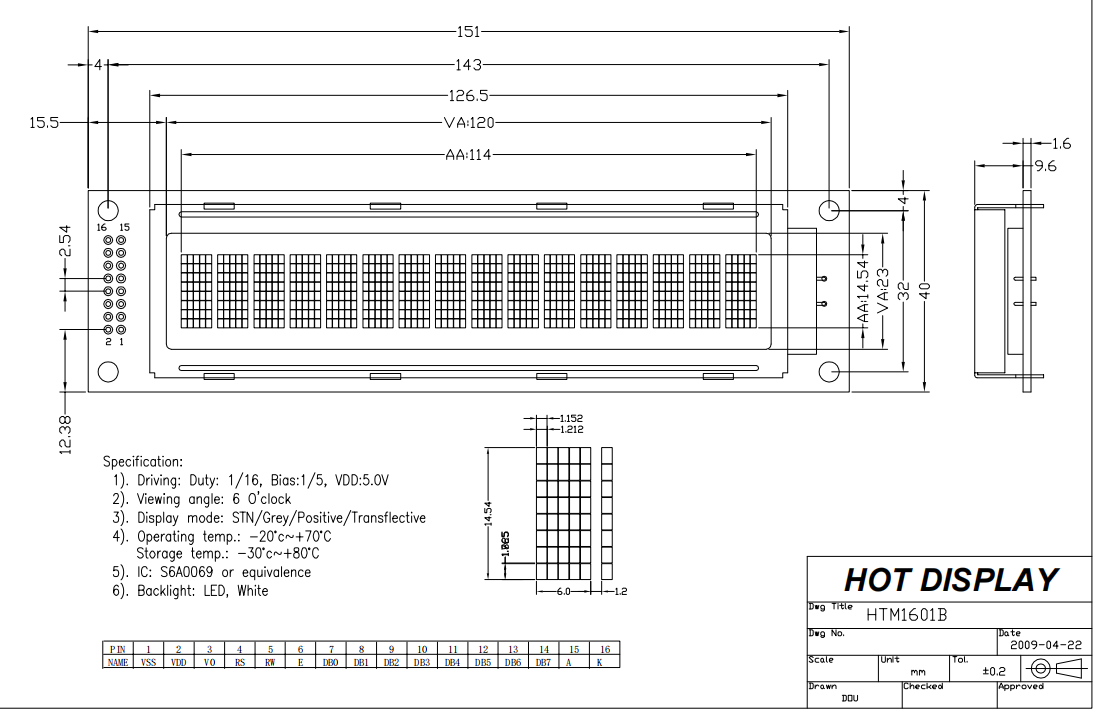

▶ Overall dimensions (mm): 151.0x40.0x9.6
▶ VA size (mm): 120.0x23.0
▶ AA size (mm): 114.0x14.54
▶ Point spacing mm: 1.212x1.825
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type:RGB
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
