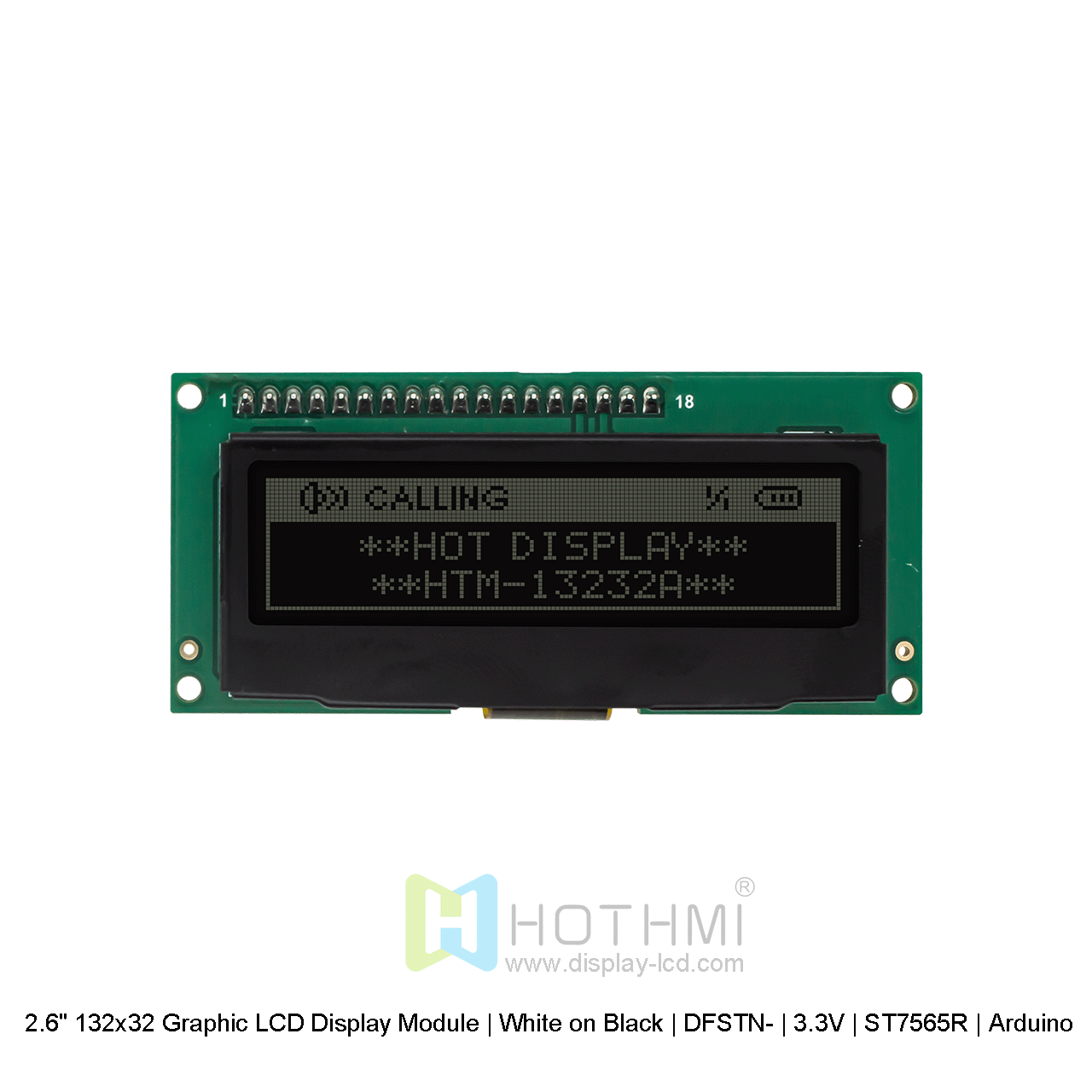

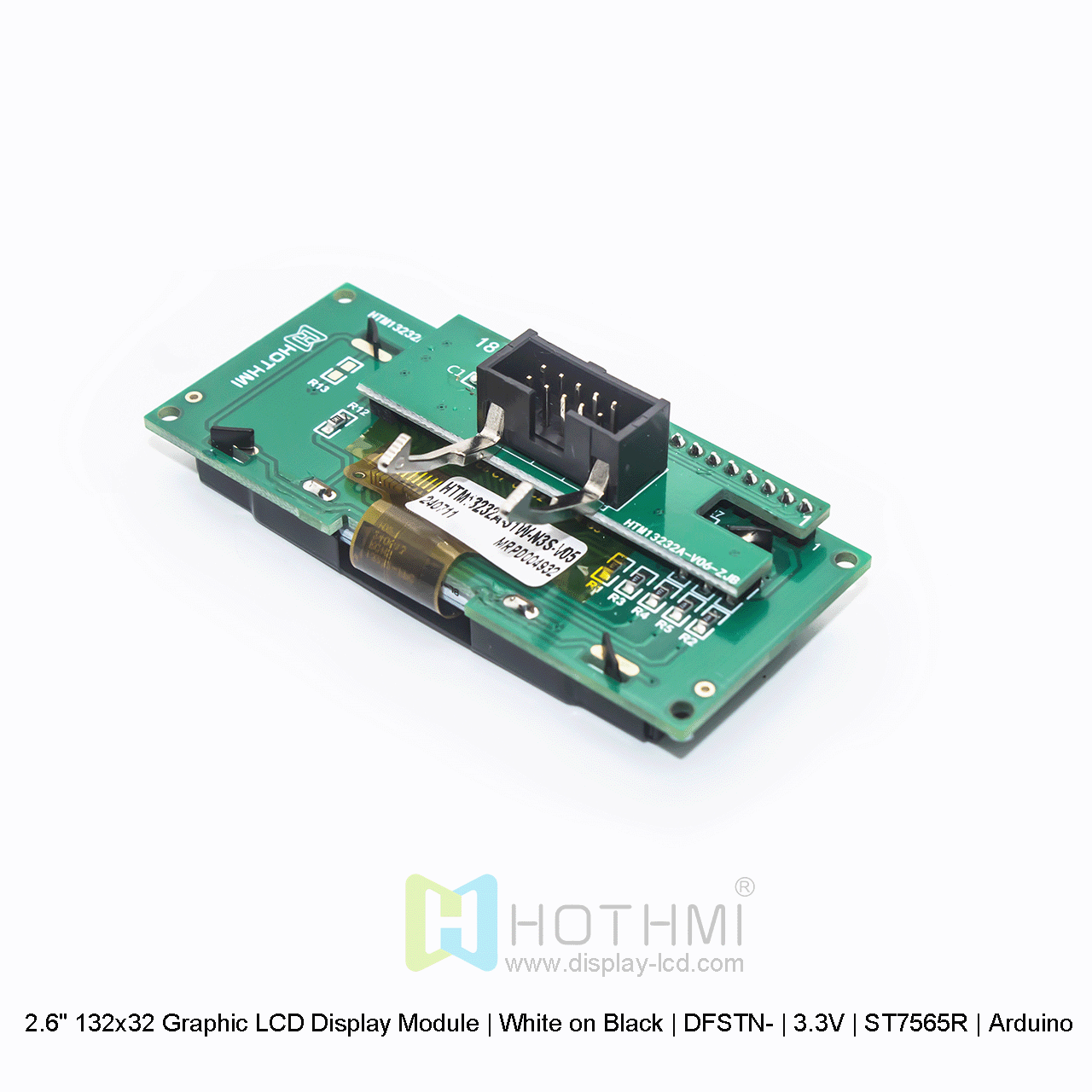

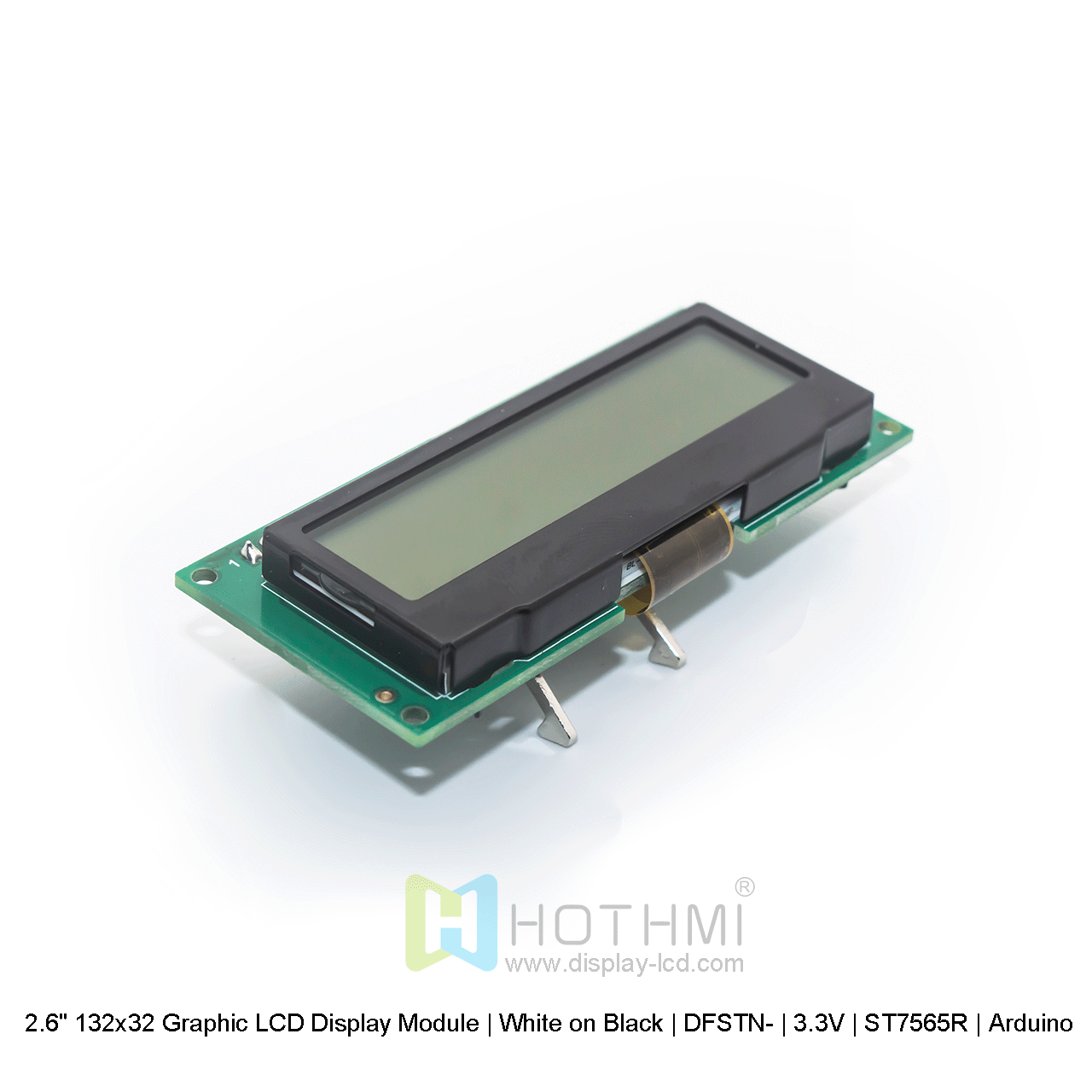

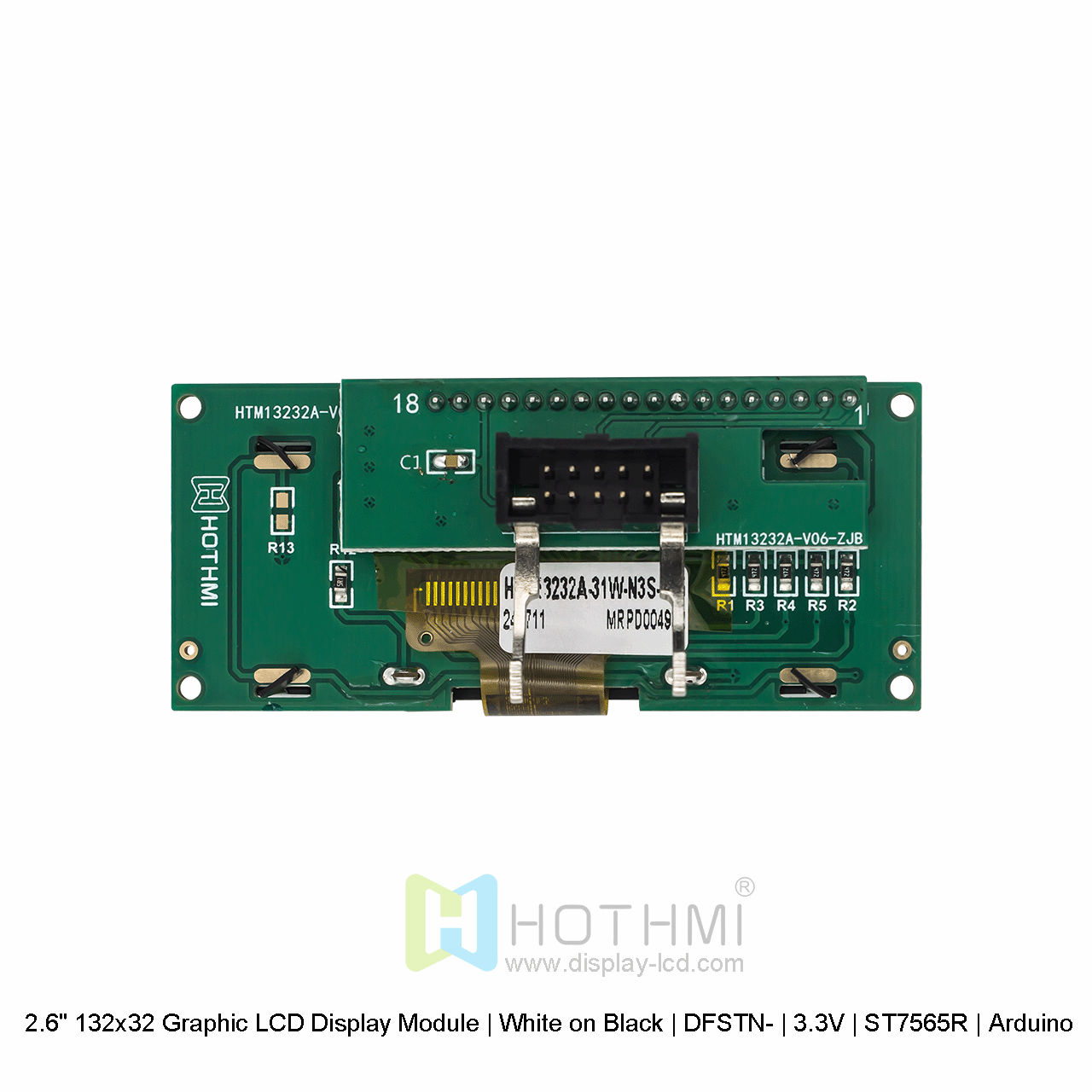

2.6" 132x32 Graphic LCD Display Module | White on Black | DFSTN- | 3.3V | ST7565R

2.6" 132x32 Graphic LCD Display Module | White on Black | DFSTN- | 3.3V | ST7565R | Arduino

▶ Model: HTM13232A-41W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 132x32

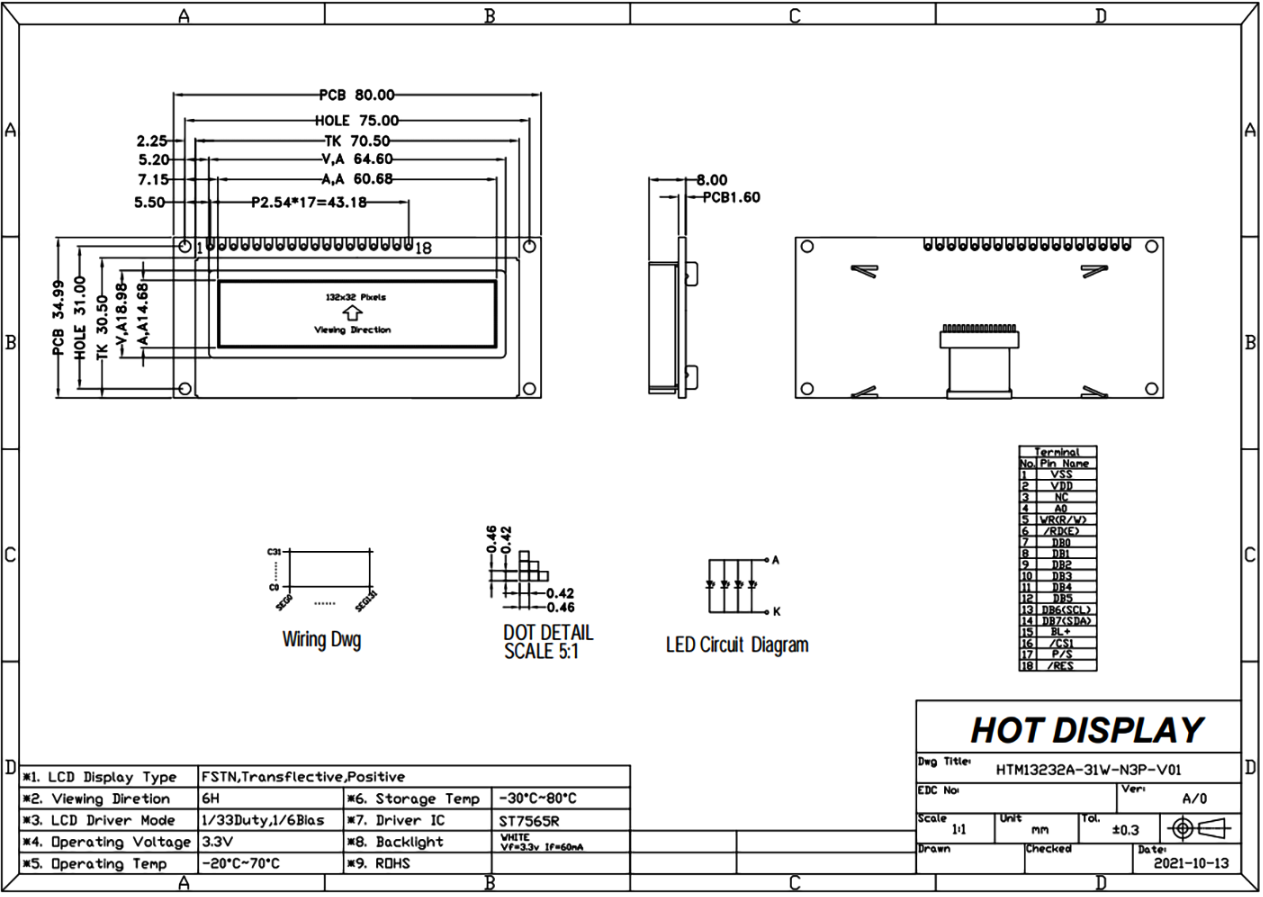

▶ Overall dimensions (mm): 80.0x34.99x8.0
▶ VA size (mm): 64.60x18.98
▶ AA size (mm): 60.68x14.68
▶ Point spacing (mm): 0.46x0.46
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 18PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R
