Graphic COG 2.2" 128x64| FSTN+ | RGB Backlight | SPI

Graphic COG 2.2" 128x64| FSTN+ | RGB Backlight | SPI | Arduino

▶ Model: HTG12864T02A-35S--SPI-FONT

▶ Type: Graphic COG
▶ Display pixels: 128x64
▶ Overall dimensions (Mm): 53.2x37.8x2.8
▶ Display inches: 2.2"
▶ VA size (mm): 49.2x27.0
▶ AA size (mm): 40.92x24.28
▶ Point spacing (mm): 0.38x0.32
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-10PIN
▶ Interface mode: SPI
▶ Description: With Chinese, English and Russian text library
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Graphic COG 2.2" 128x64| FSTN+ | RGB Backlight | SPI | Arduino

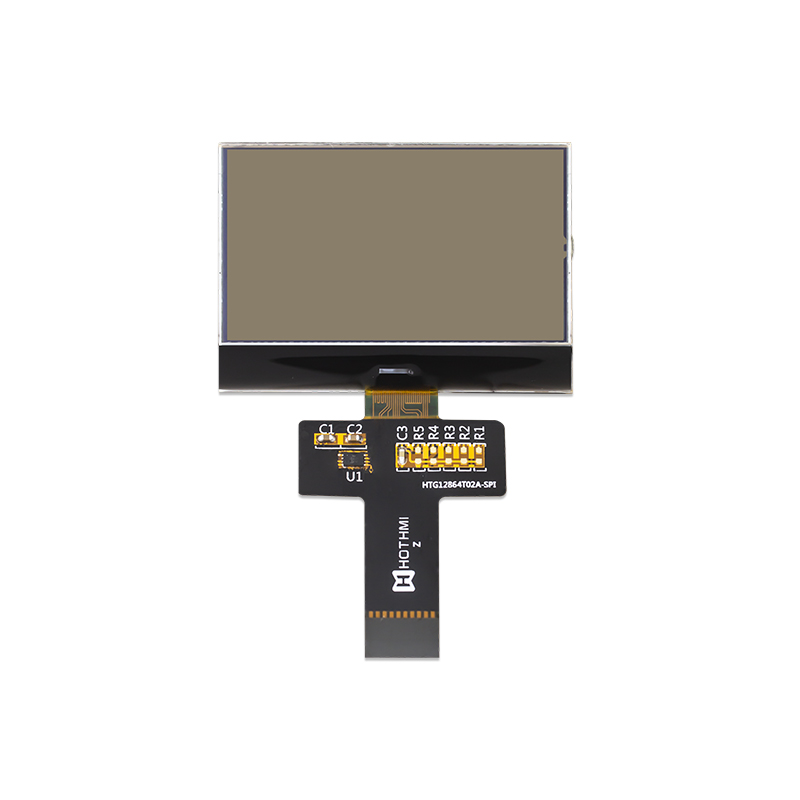

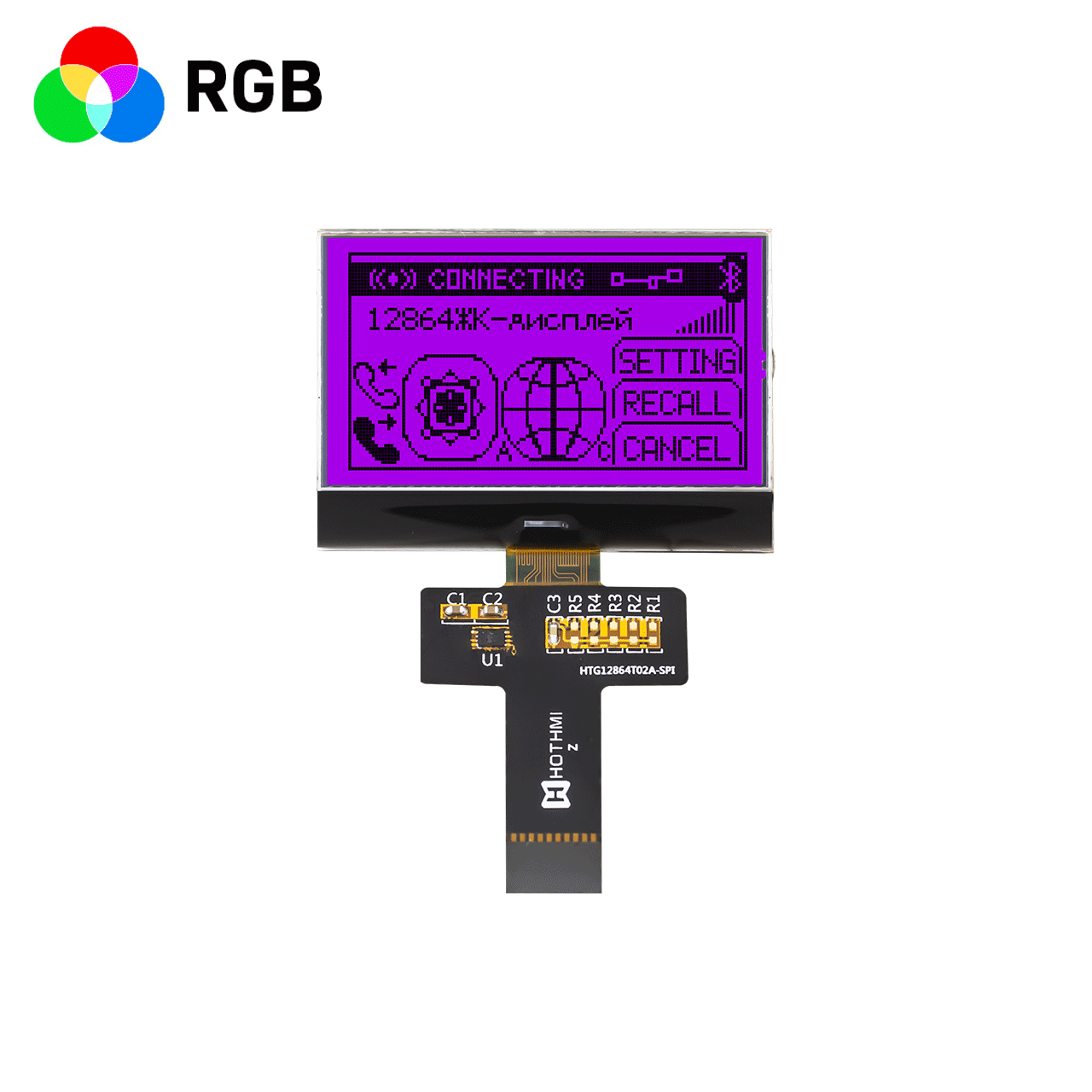

This HTG12864T02A-35S--SPI-FONT Graphic Glass Chip (COG) LCD module displays dark pigments on a red, green and blue background. This transmissive LCD display is carefully designed to increase the brightness of the display under ambient light, and the backlight is fully transparent under the full penetration of the polarizer, so that the viewer can clearly see the image; when used in darker environments, the backlight makes the graphics clearly visible, providing optimal visibility and impressive colors. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.
The display of this graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.

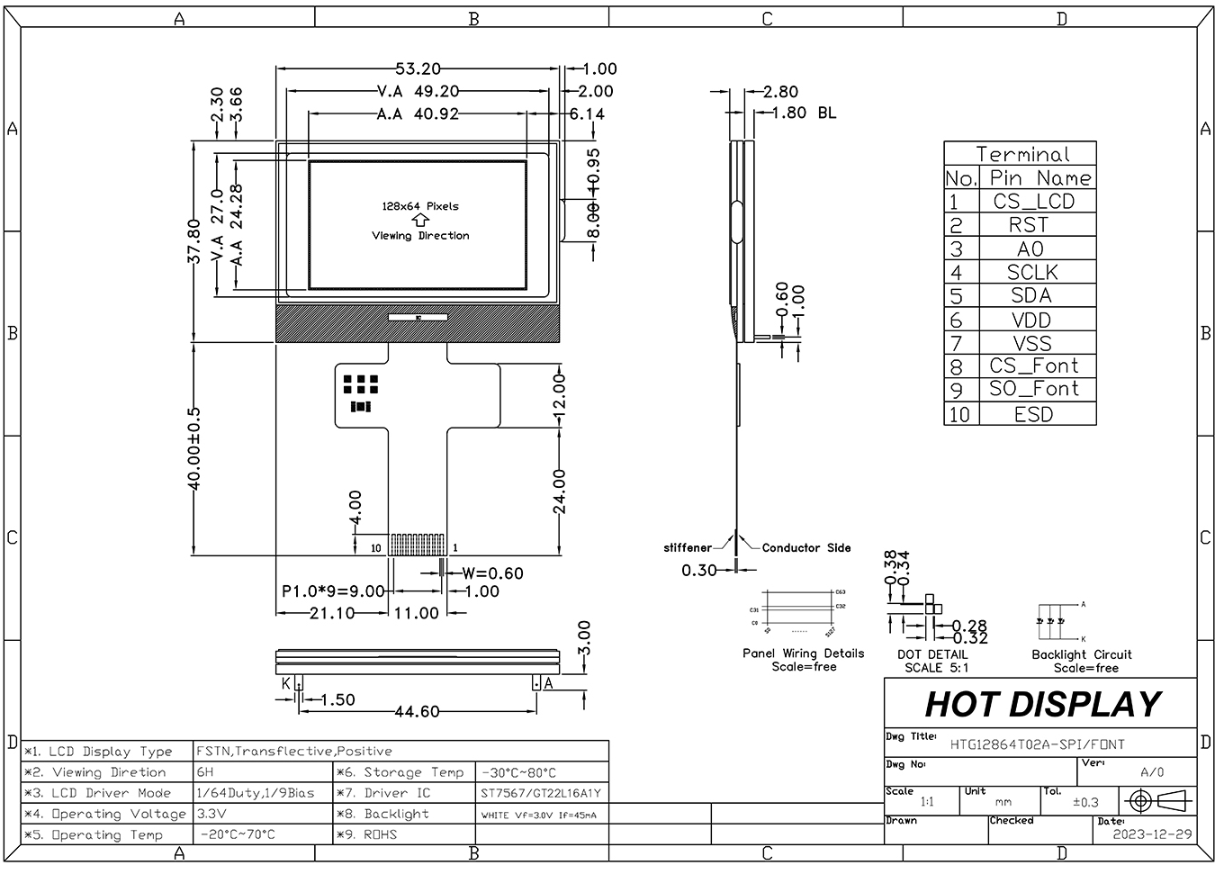

Item	Specification content	Unit
Name	HTG12864T02A-25W- A5P
Number of dots	128 × 64	dots
Module size	53.2x 37.8 x 2.8 (MAX)	mm
Viewable (VA) area	49.2 x 27	mm
AA size	40.92 x 24.28	mm
Dot (pixel) pitch	0.38 x 0.32	mm
IC	ST7567
Applied voltage	3.3V	V
Backlight	Red green blue
Mode	FSTN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic COG
Polarizer type	Transmissive
