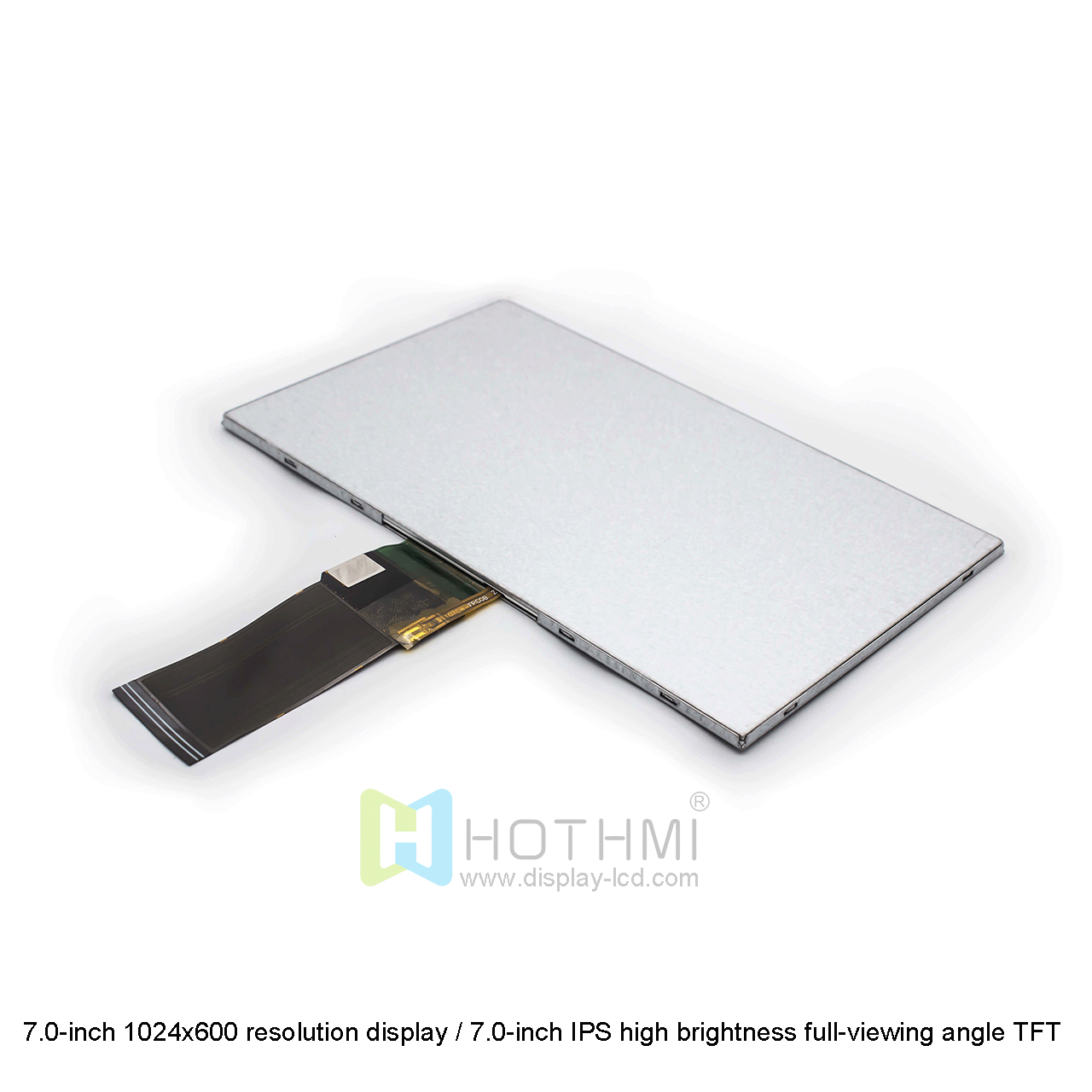

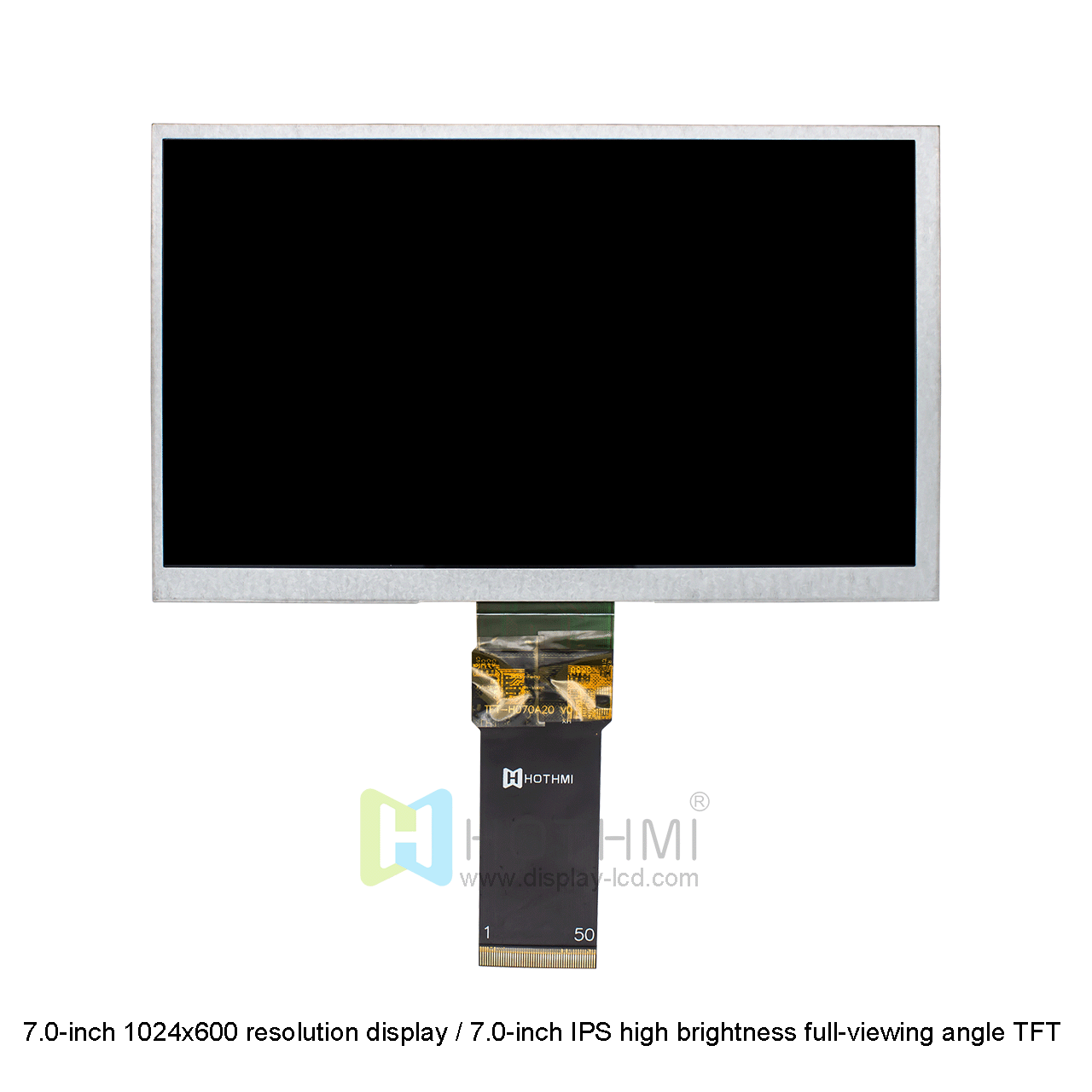

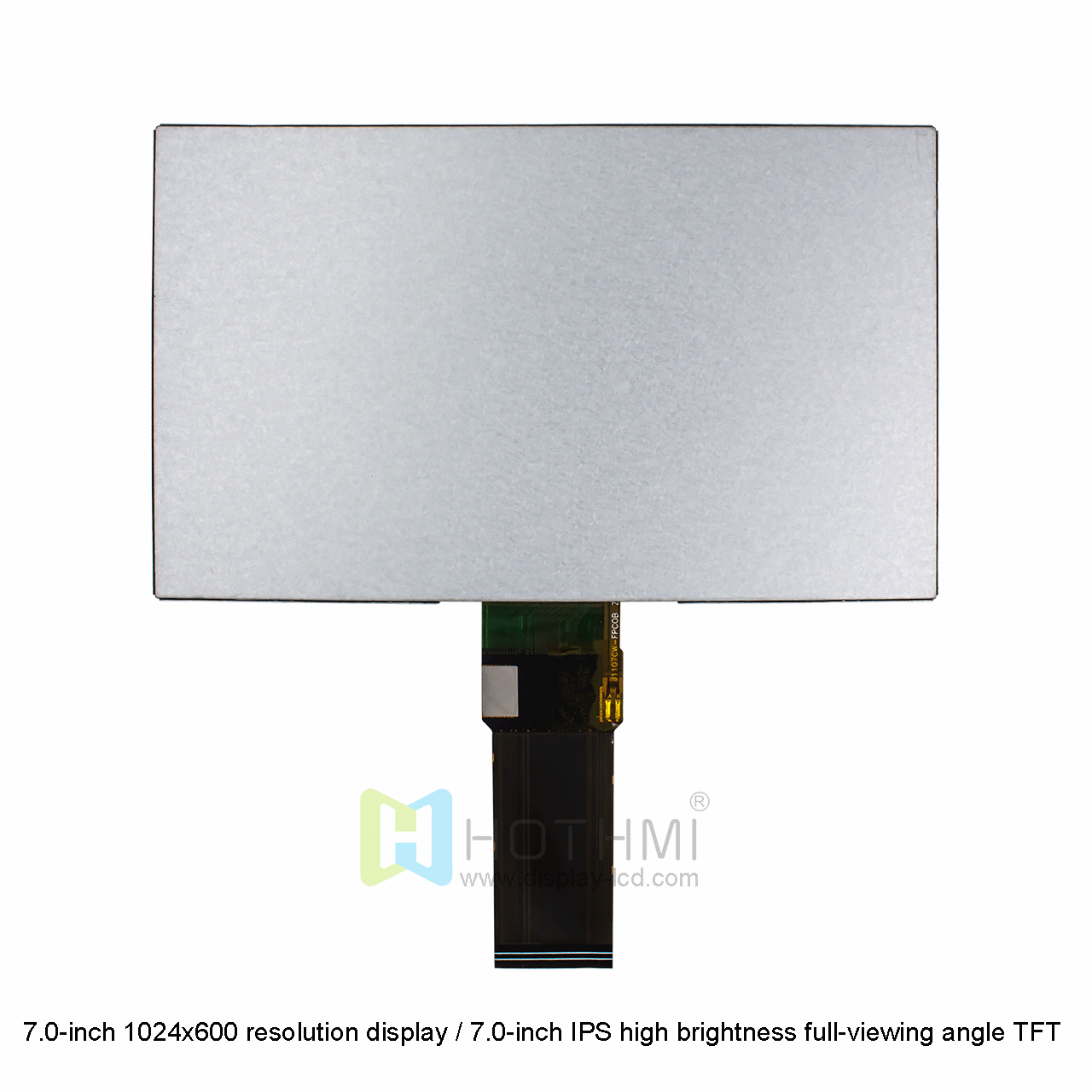

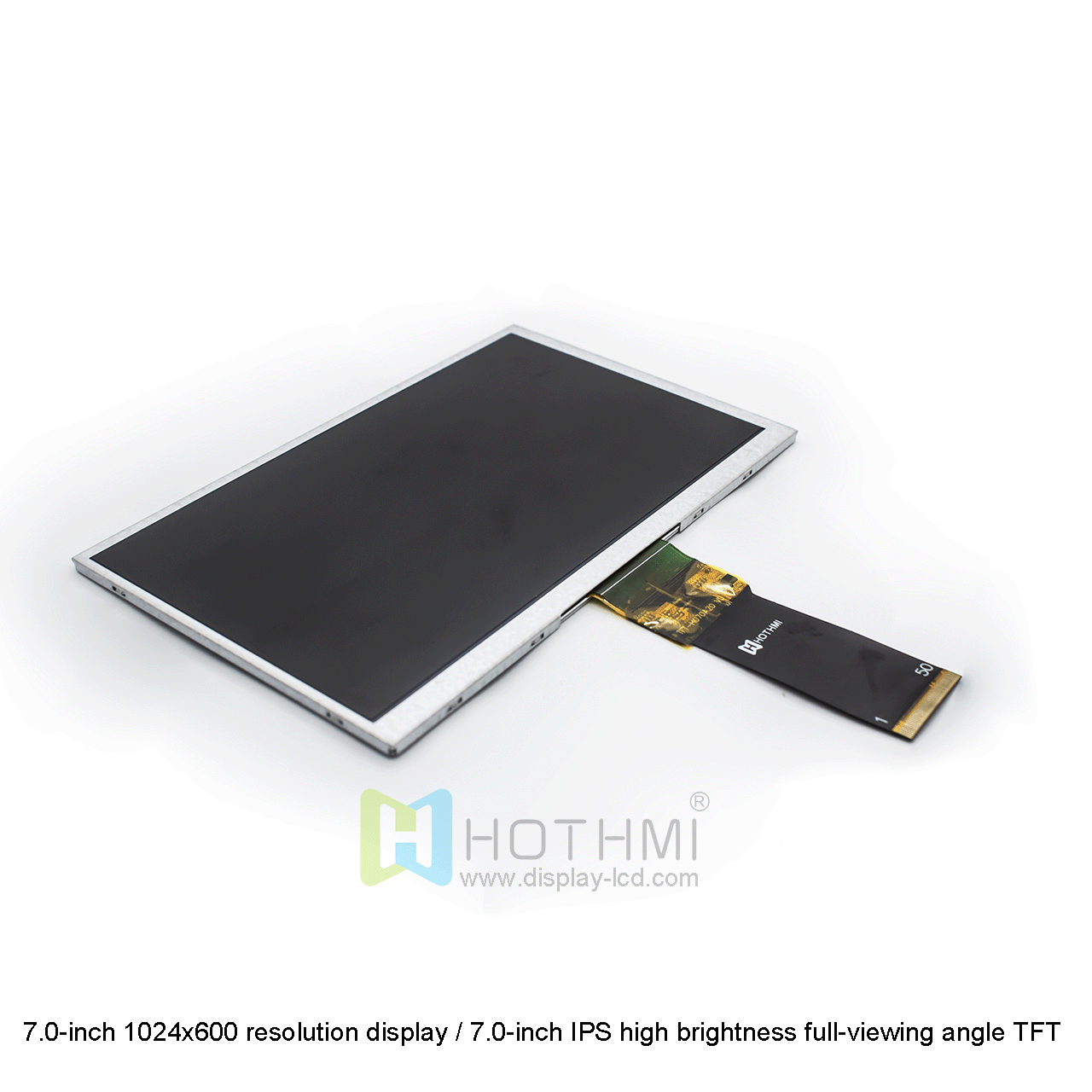

7.0-inch 1024x600 resolution display/7.0-inch IPS high brightness full-viewing angle TFT / visible in sunlight / T.B.D controller / RGB interface / STM32 / RK

7.0-inch 1024x600 resolution display / 7.0-inch IPS high brightness full-viewing angle TFT / visible in sunlight / T.B.D controller / RGB interface / STM32 / RK

▶ Model: TFT-H070A20WSIFT8N50

▶ Type: TFT standard display
▶ Display pixels: 1024x600
▶ Display inches: 7.0"
▶ Dimensions (mm): 164.9x100.0x3.45
▶ AA size (mm): 154.21x85.92
▶ Application: industrial control systems, portable electronic devices
▶ Viewing angle: full viewing angle (U85/D85/R85/L85)
▶ Backlight/brightness: 800cd/m2
▶ Pin: FPC-50 pin
▶ Interface: 24-bit RGB I/F
▶ Special instructions: anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: T.B.D<TFT>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

7.0-inch 1024x600 resolution display / 7.0-inch IPS high brightness full-viewing angle TFT / visible in sunlight / T.B.D controller / RGB interface / STM32 / RK
This standard 7.0-inch TFT-H070A20WSIFT8N50 has a resolution of 1024x600 pixels, IPS full-viewing angle, and high-brightness LED backlight with a brightness of 800 nits regardless of viewing direction. The compact size, 3.3V low-voltage power supply, and impressive display quality of this display make it an excellent choice for projects that require portrait mode visual output without touch function.

This 7.0-inch LCD display uses a 50PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by a T.B.D controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include IoT, industrial automation, consumer electronics, test and measurement, and handheld devices. They are also ideal for DIY or prototyping projects due to their compatibility with STM32/RK. The RGB interface enables fast and efficient communication between STM32/RK displays, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

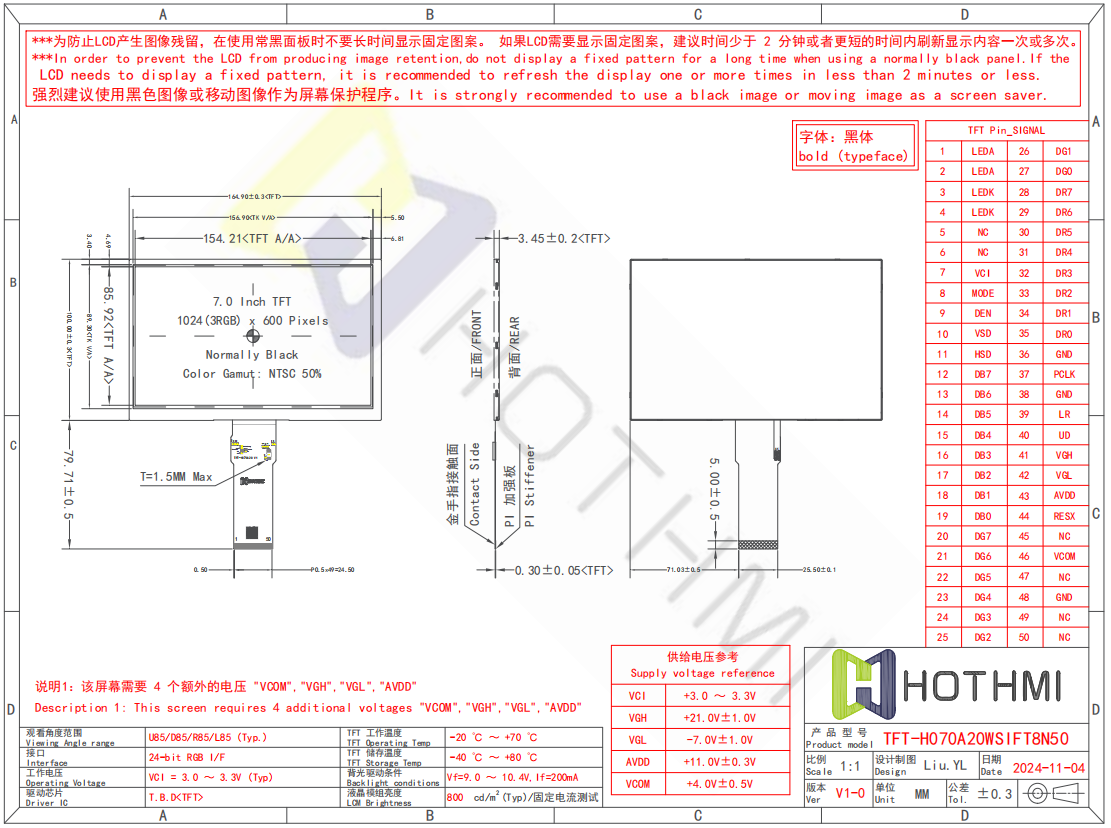

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H070A20WSIFT8N50
Diagonal size	7.0”	Inch
Resolution	1024x600	Dot
Dimensions	164.9x100.0x3.45	mm
Active area (AA)	154.21x85.92	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U85/D85/R85/L85)
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	T.B.D<TFT>
Brightness	800	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-40~80℃	℃
