4.3 inch TFT Display Screen | 480x272 RGB resistive TFT LCD panel

4.3 inch TFT Display Screen | 480x272 RGB resistive TFT LCD panel

▶ Model: TFT-H043A2WQIST5R40

▶ Type: 4.3 inch TFT Display Screen
▶ Display pixels: 480x272
▶ Dimensions (mm): 105.5x 67.2x4.2
▶ Display inches: 4.3"
▶ Effective size (mm): 95.04x53.86
▶ Application: STM32/RK series
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 500cd/m2
▶ Pin: FPC-40PIN
▶ Interface: RGB
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: SC7283

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
EZUI-H Main Control Board-RGB/MCU (Universal for 800*480 and below)

Product Description
Specification
Attributes

4.3 inch TFT Display Screen | 480x272 RGB resistive TFT LCD panel
4.3 inch TFT Display Screen | 480x272 RGB resistive TFT LCD panel is a 4.3-inch TFT LCD display module equipped with SC7283 control board. This module has a 480x272 pixel resolution and provides a typical ultra-high brightness of 500 nits. It can provide a clear and bright display effect in any environment. Whether it is outdoors in the sun or in a dark environment, it can be clearly read. This 4.3 inch TFT Display Screen has a resistive touch function and is suitable for various applications that require touch displays, especially industrial control system display equipment applications.
This 4.3 inch TFT Display Screen uses the SC7283 controller and a unified 40-pin FPC connector. Overall, the TFT-H043A2WQIST5R40 is a high-performance TFT display tailored for embedded systems, providing excellent visual experience and reliability, and is an ideal choice for projects such as STM32 or RK. Our displays are all RoHS-compliant and adhere to strict environmental and safety standards.

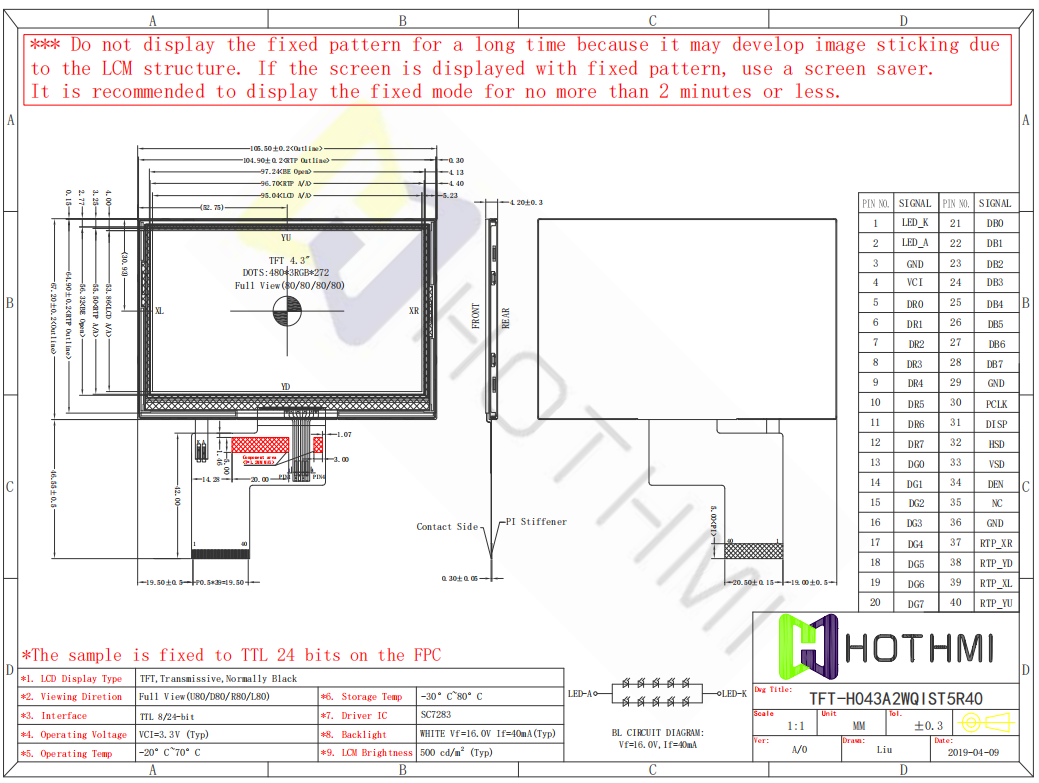

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H043A2WQIST5R40	December 12, 2024	922.96KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H043A2WQIST5R40
Diagonal size	4.3”	Inch
Resolution	480x272	Dot
Dimensions	105.5x 67.2x4.2	mm
Active area (AA)	95.04x53.86	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	SC7283
Brightness	500	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-30~80℃	℃
