  • 1.1 inch TFT LCD | 135x240 SPI interface | ST7789H2 Controller

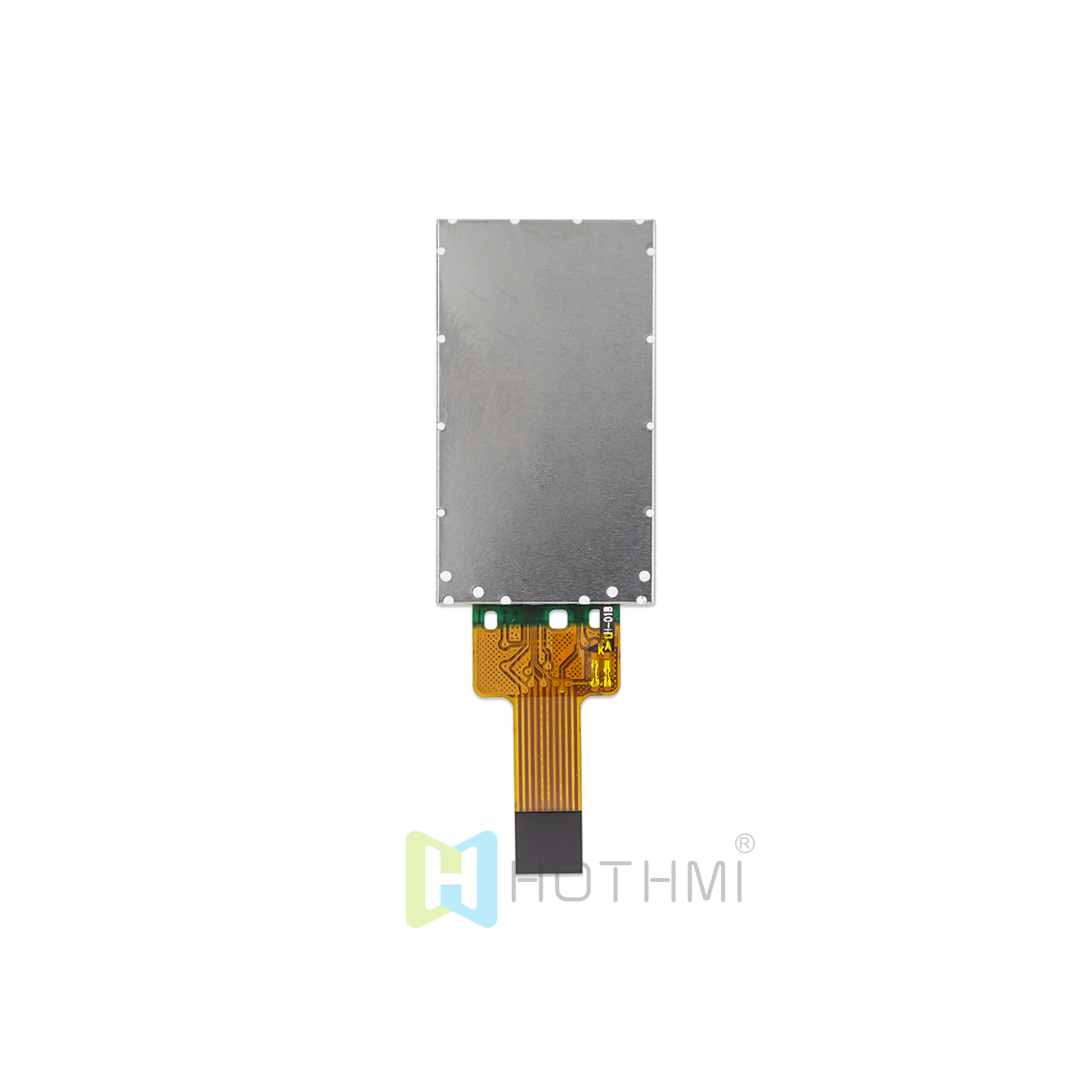

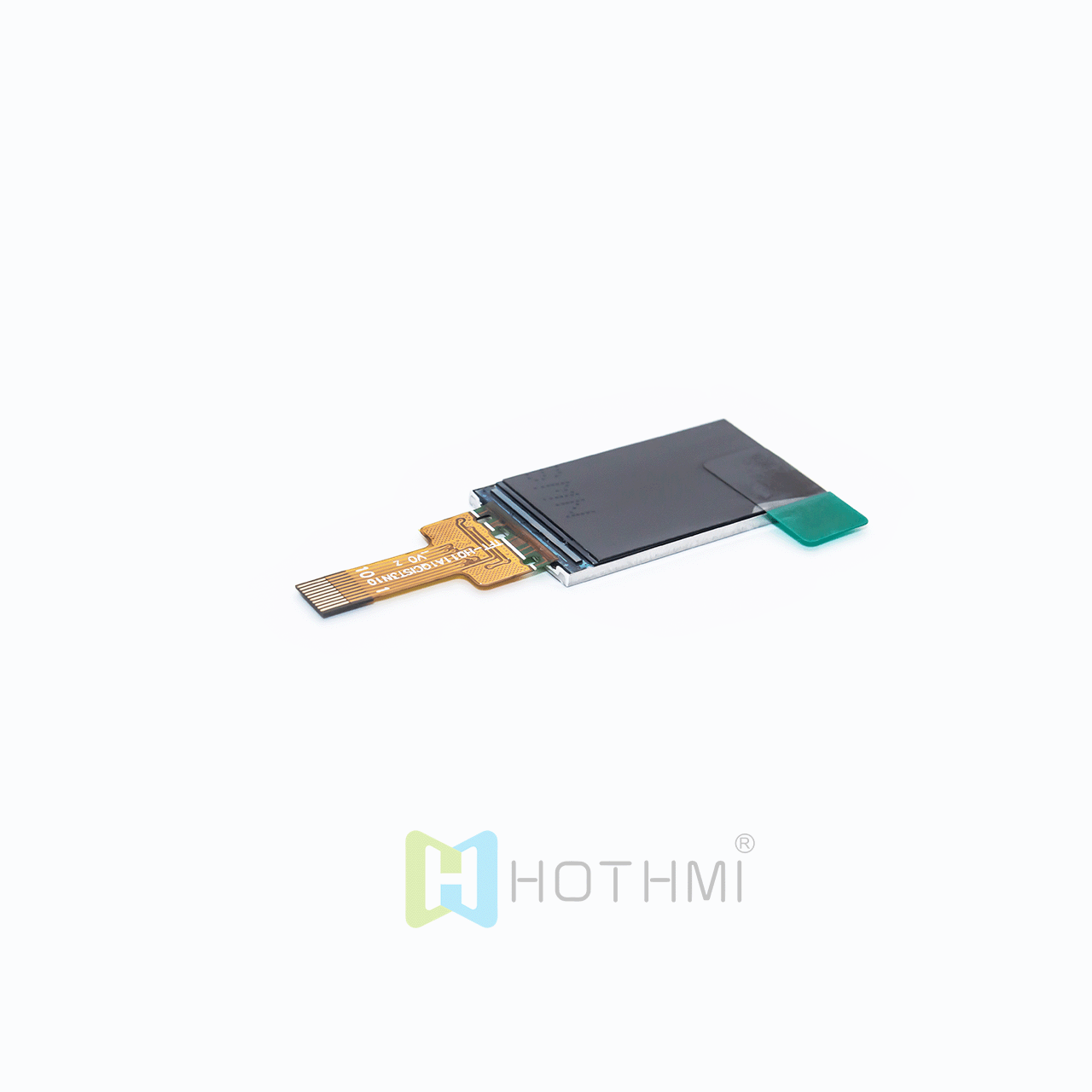

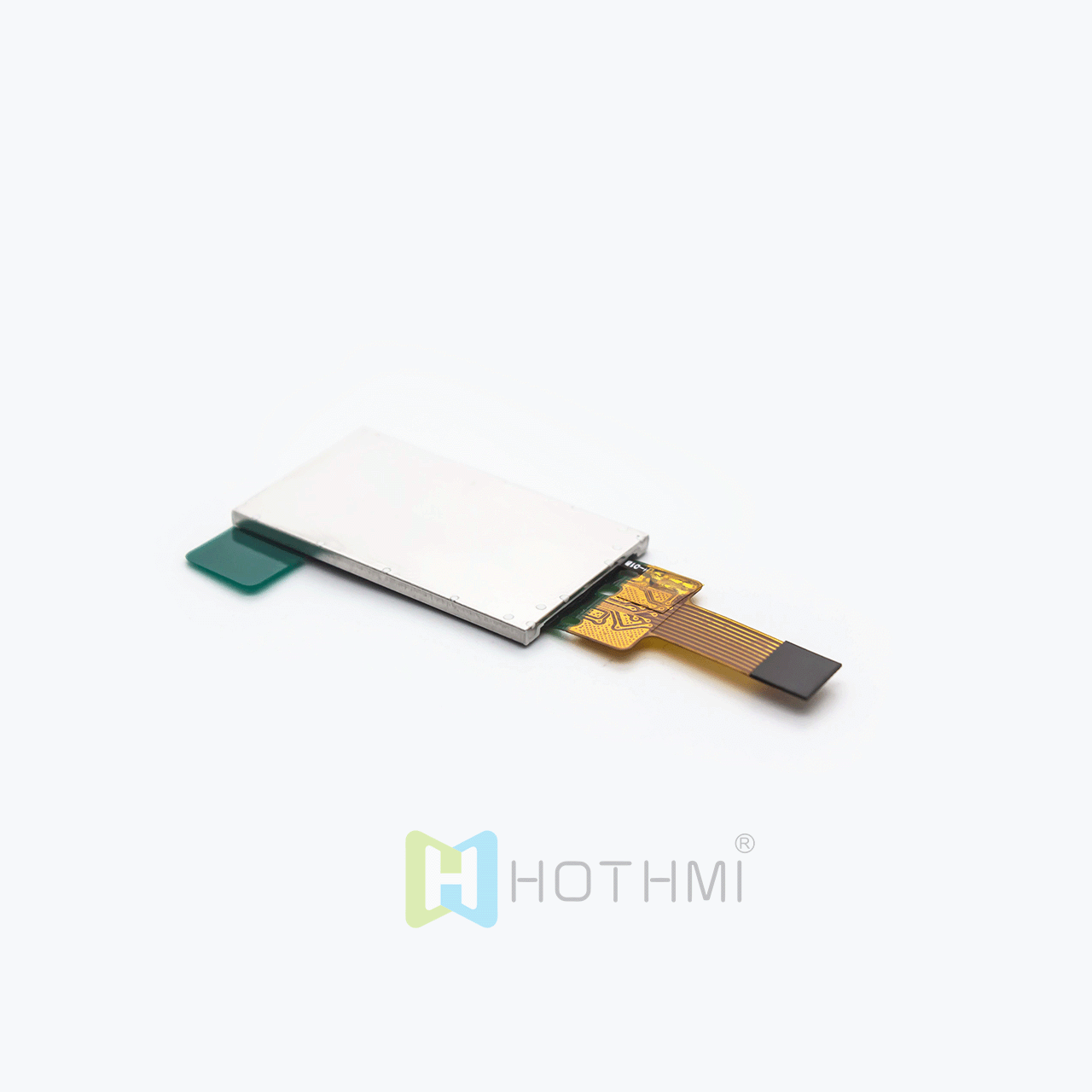

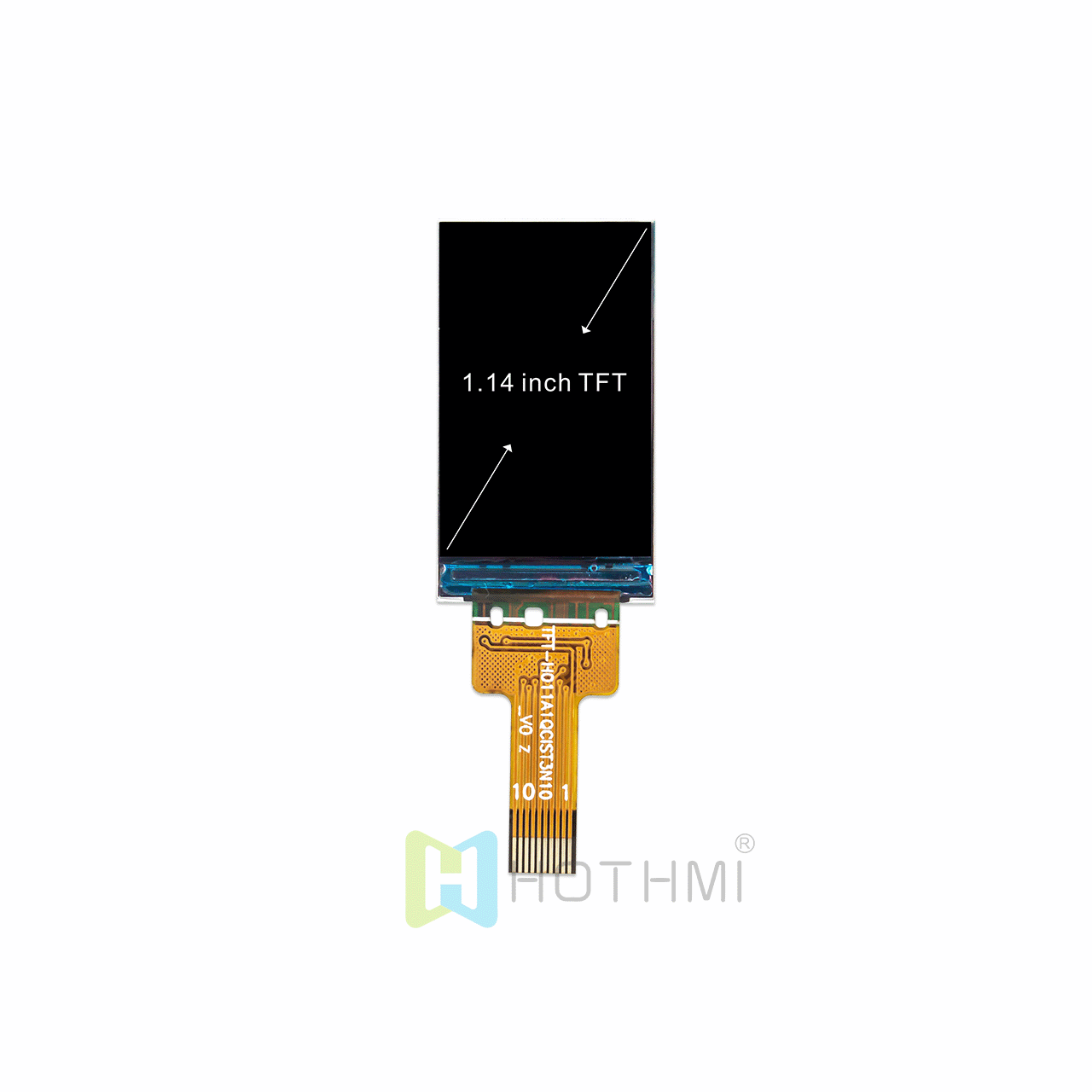

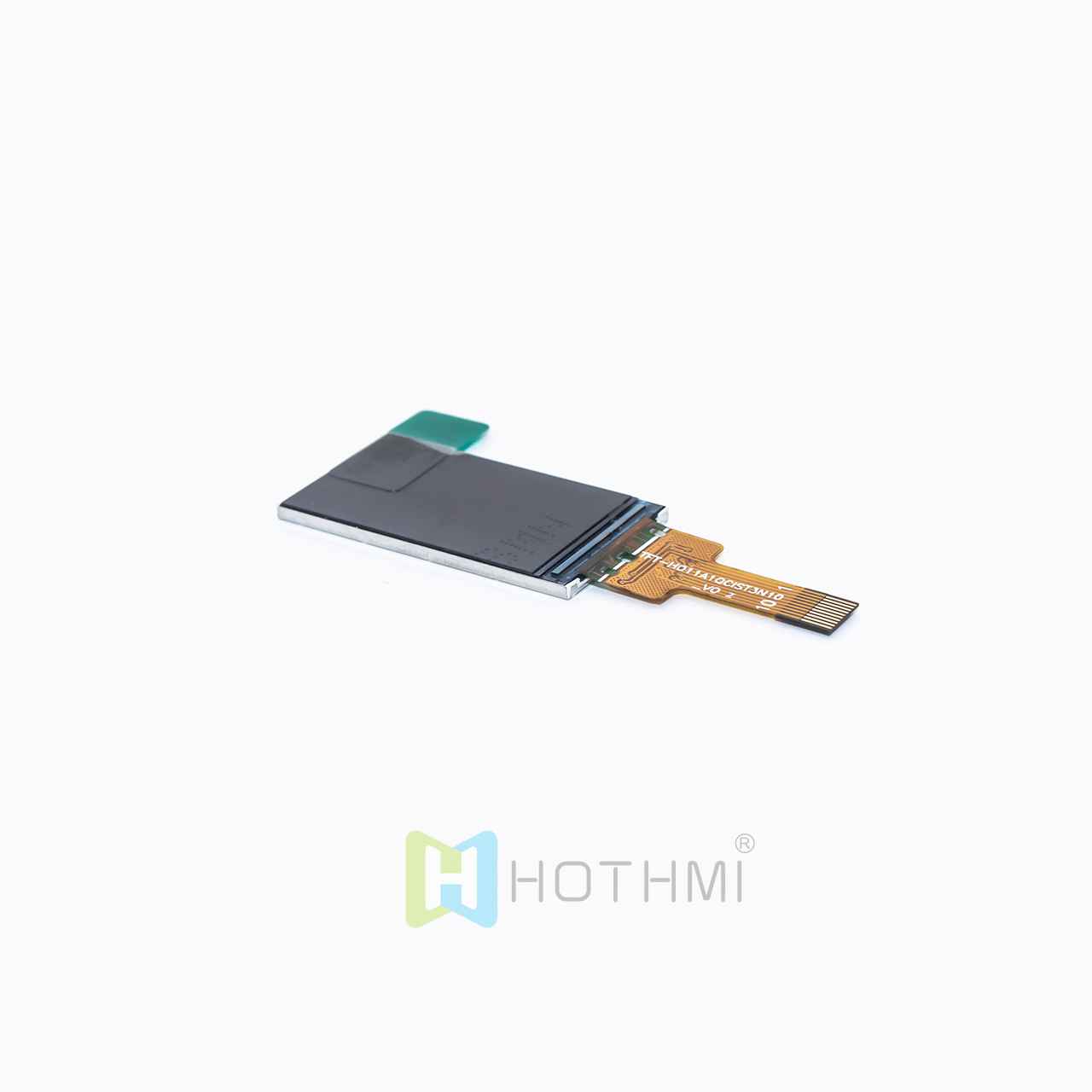

    This 1.1 inch TFT LCD TFT-H011A1QCIST3N10 is a 1.1 inch bar LCD module with a resolution of 135x240, built-in ST7789H2 controller, optional touch screen, high picture quality, IPS wide viewing angle, support 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 1.8V~2.8V voltage, and supports vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.


    This 1.1 inch TFT LCD is irreplaceable in scenarios with high requirements for miniaturization and portability, and may further penetrate into emerging fields such as smart clothing and micro robots in the future. Application areas include: wearable devices, medical and health equipment, consumer electronics, industrial and instrumentation, Internet of Things (IoT) devices, automotive electronics, education and toys, micro instruments and innovative products.


    This 1.1 inch TFT LCDl is an SPI interface display with ST7789H2 control chip. The same series also has a MIPI interface model TFT-H011A1QCIFT5N15 display. At the same time, we provide HTM-H011A1-SPI-V0 with a driver module.

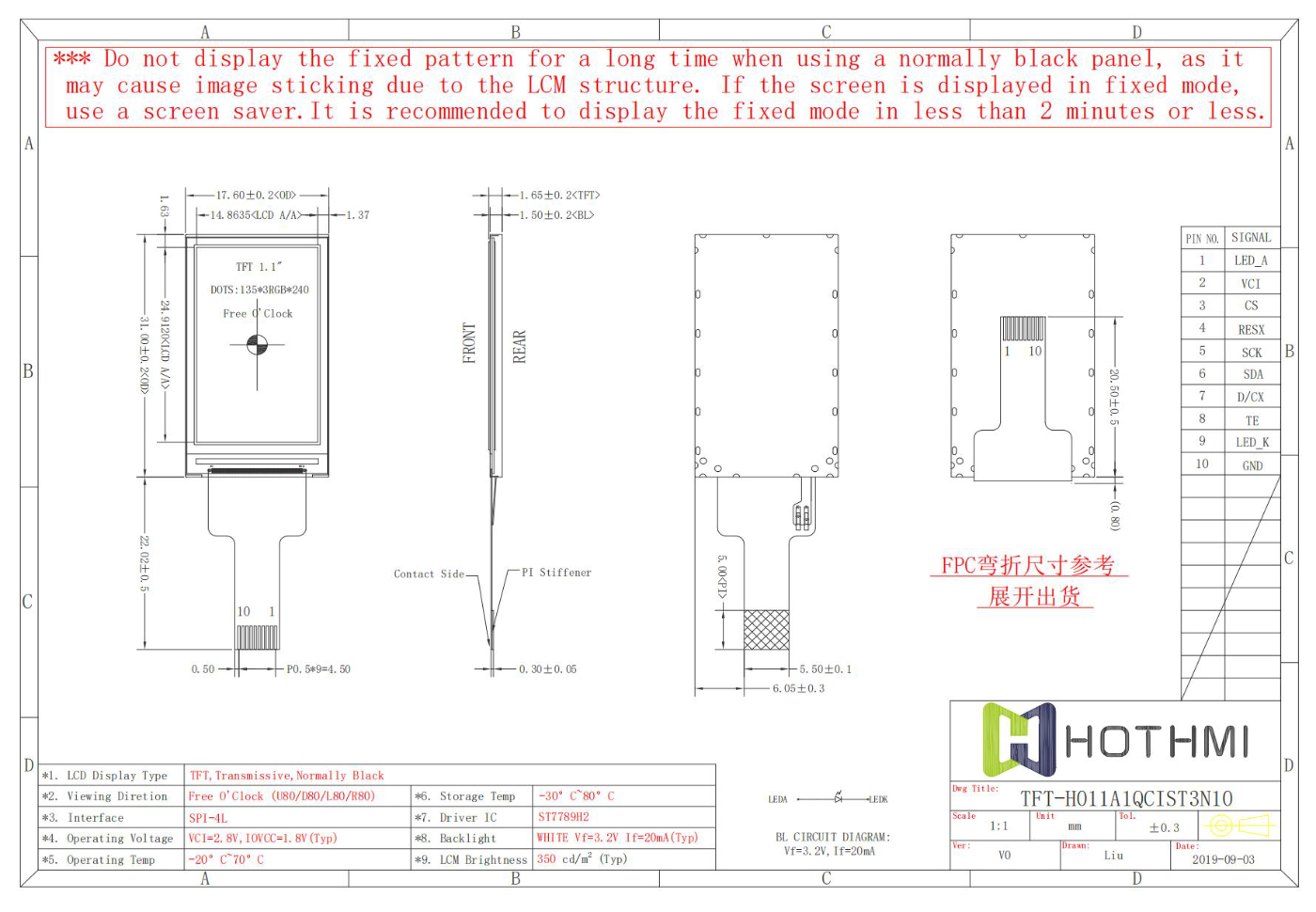

  • SPEC-H011A1QCIST3N10_V0_03.jpg

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H011A1QCIST3N10


    Diagonal size

    1.1”

    Inch

    Resolution

    135x240

    Dot

    Dimensions

    13.50x27.95x2.03

    mm

    Active area (AA)

    14.8635x24.9120

    mm

    LCD type

    1.1” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    1:2


    Backlight type

    LED white


    TFT driver IC

    ST7789H2


    Brightness

    350cd/m2

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -30~80℃
