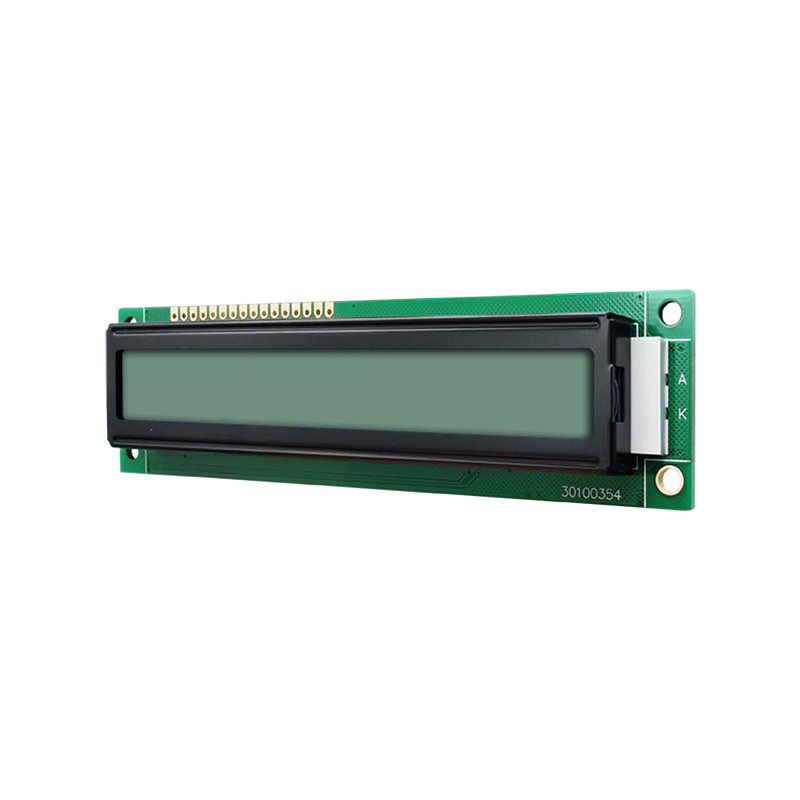

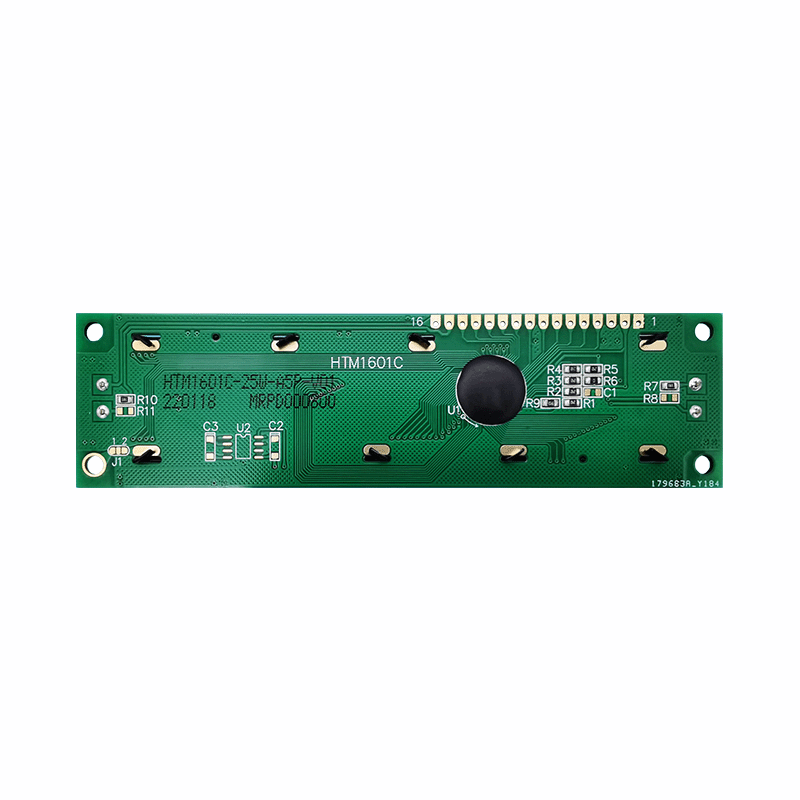

1X16 Character LCD Display | STN+ Gray with White Side Backlight 5.0V-Arduino

1X16 character LCD monochrome display with white background and gray characters | STN+ gray with white side backlight 5.0V-Arduino

▶ Model: HTM1601C-11W-A5P

▶ Product type: Standard COB character LCD module
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: white light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM1601C-11W-A5P | 1x16 Character Display | Transflective Monochrome LCD | Side White Backlight | STN (+) Positive Gray Display 5.0V

HTM1601C-11W-A5P character, monochrome LCD, displays 16 characters in one line with dark pixels on a gray background. This particular transflective LCD remains visible under ambient light or can be used in poor lighting conditions with the added backlight. The operating temperature range is -20 to 70 degrees Celsius. The viewing angle is 6:00, and it operates with a supply voltage of 5.0V and comes with a built-in ST7066U controller. This RoHS-compliant eight-character display is compatible with Arduino and other similar development boards.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Specification content	Unit
model	HTM1601C-11W-A5P
words × lines	16words × 1line	dots
Module size	122x33x11.3 (MAX)	mm
Visual (VA) area	99x13	mm
Valid (AA) area	94.73x9.56	mm
Point (pixel) spacing	1.04x1.17	mm
IC	ST7066U
voltage	5V	V
backlight	White light
model	STN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
characteristic	Transflective polarizer
