1.28 inch TFT Display Modules | 240x240 SPI TFT Screen Panel

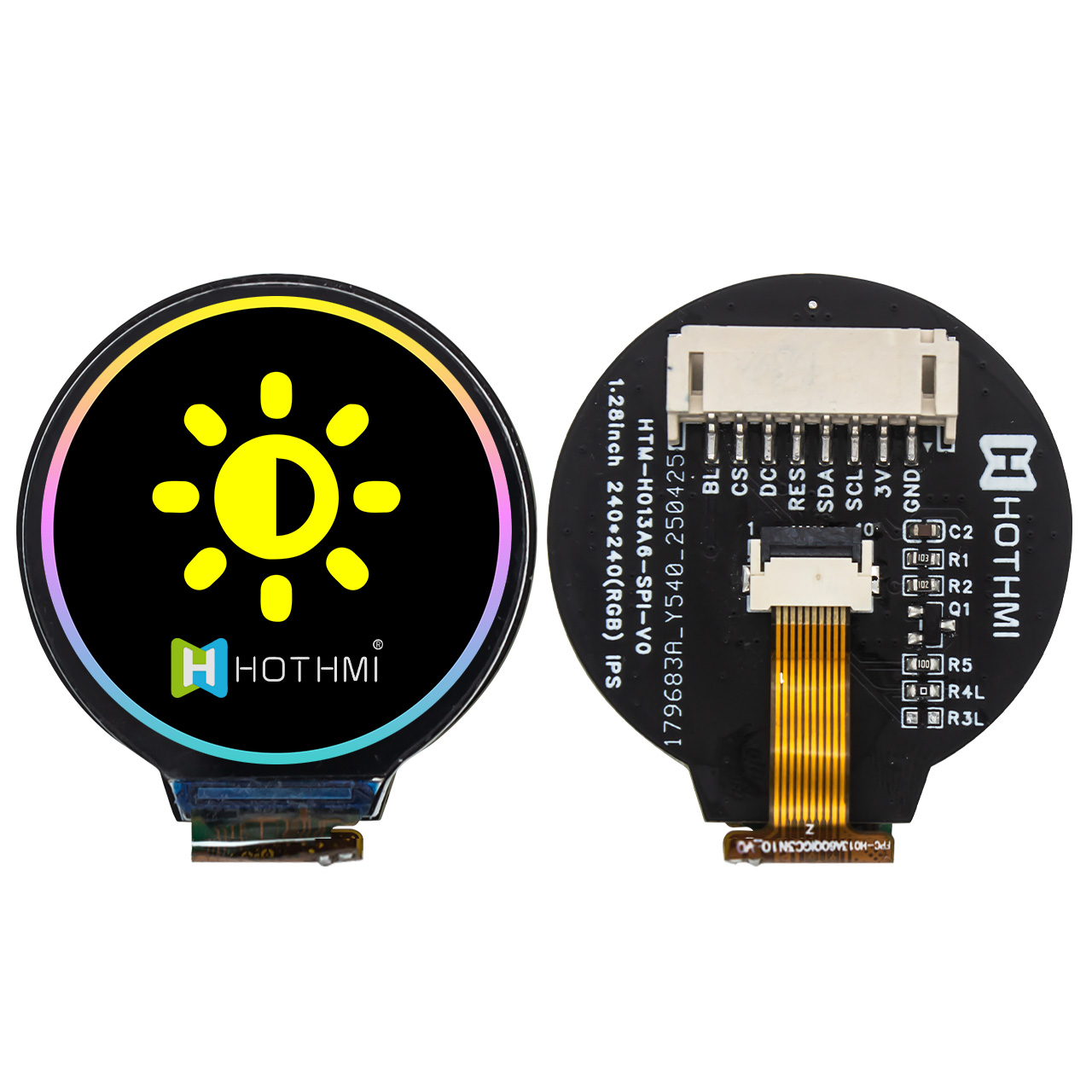

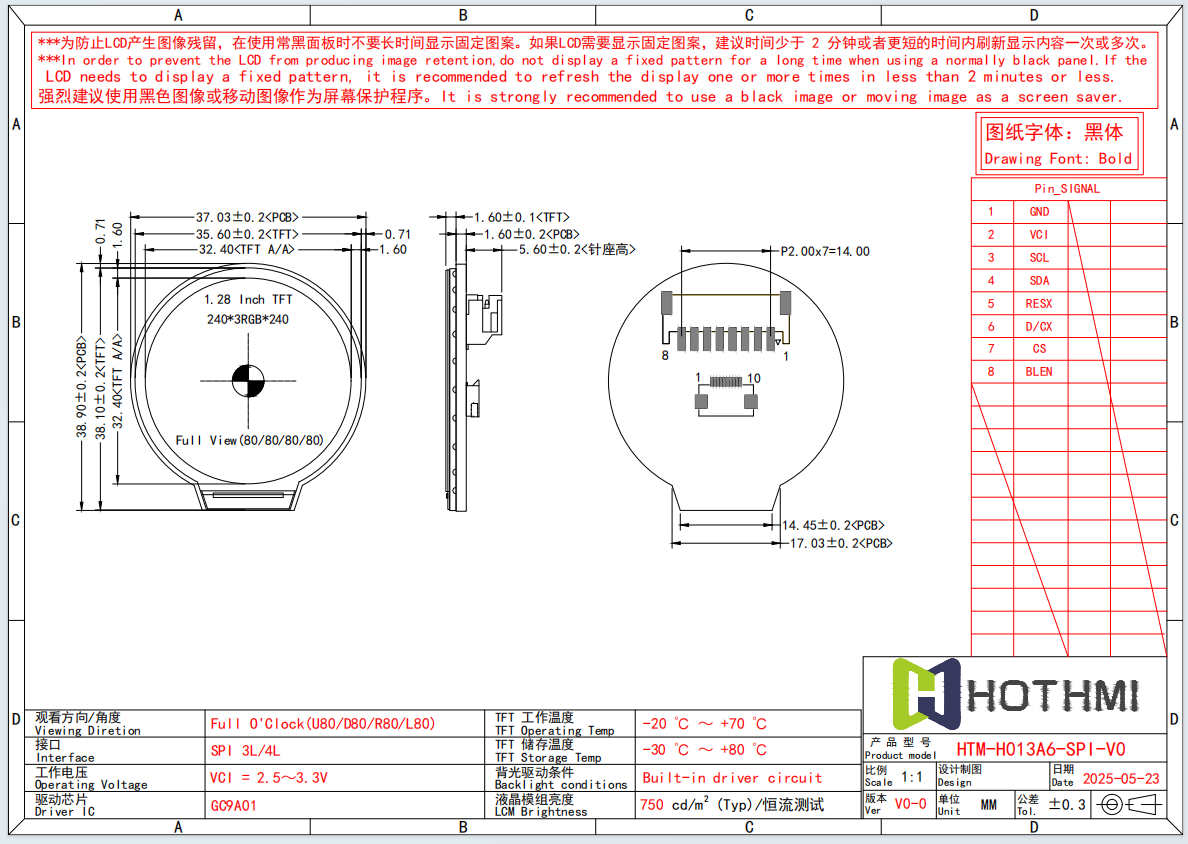

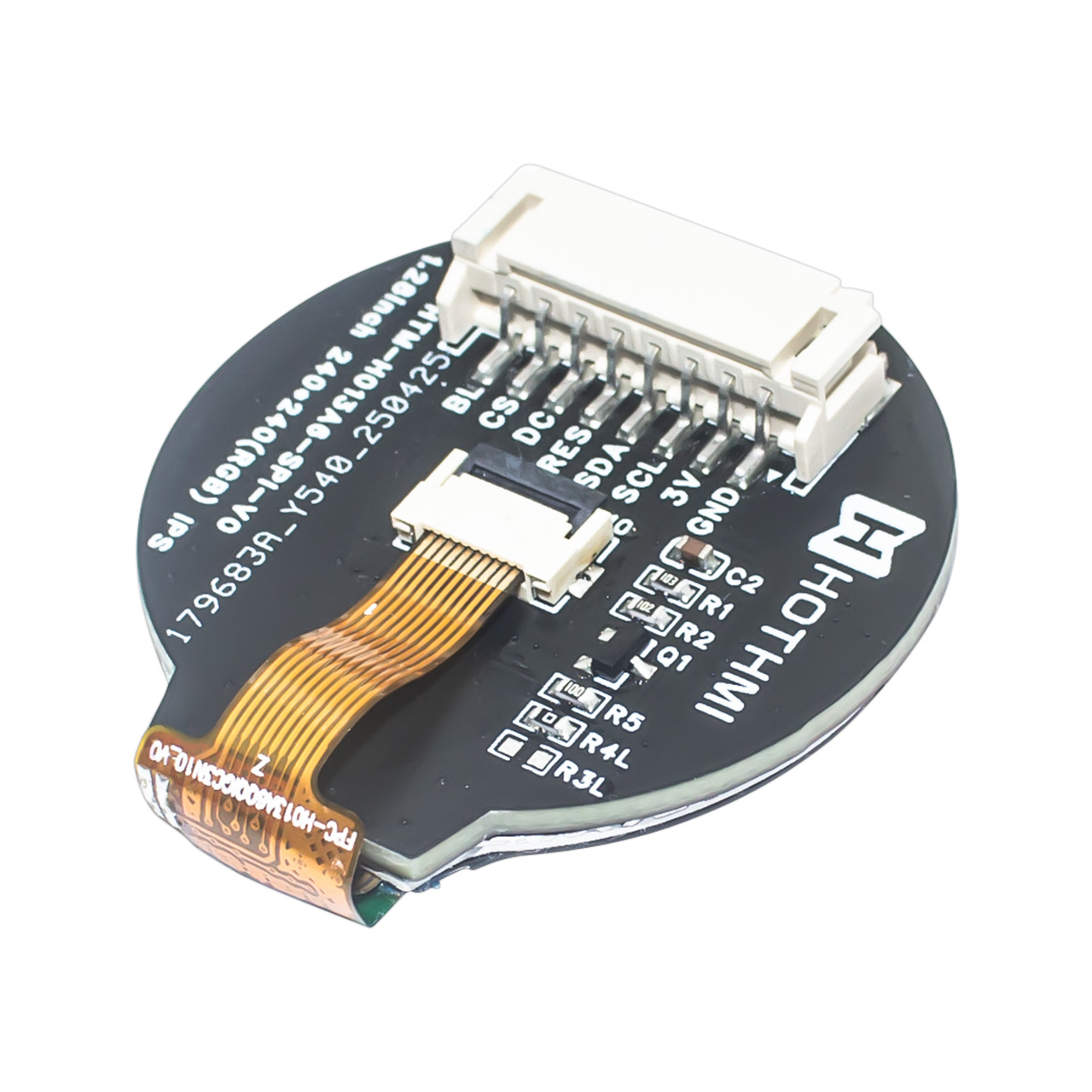

1.28寸TFT Display Modules is a high-performance TFT LCD display module based on SPI interface. 1.28寸TFT Display Modules adopts 1.28-inch full-viewing angle screen with a resolution of 240×240 (RGB three-color pixels), which can provide clear and delicate display effects. The module is equipped with GC9A01 driver chip, supports a wide voltage operating range of 2.5V to 3.3V, and is suitable for a variety of embedded scenarios. Its typical brightness reaches 750 cd/m² (constant current test), and with a wide viewing angle of 80/80/80/80, it ensures that a clear picture can still be presented in complex light environments. The module has built-in drive circuit, supports SPI 3-wire/4-wire communication, and the interface pins cover power supply, control signal and backlight control (BLEN). The design is compact and easy to integrate. The 1.28寸TFT Display Modules performs stably in extreme temperature environments. The TFT operating temperature range is -30℃ to +80℃, and the storage temperature covers -20℃ to +70℃, which meets the needs of industrial applications. To prevent LCD image retention, it is recommended to avoid displaying static patterns for a long time. You can refresh the content within 2 minutes or use a black/dynamic screen saver to optimize the user experience. The module structure is precisely designed, the tolerance of key components is controlled within ±0.2mm, the backlight and PCB size are strictly calibrated, taking into account reliability and thinness, and this 1.28寸TFT Display Modules is suitable for smart wear, industrial control equipment and portable terminals.
