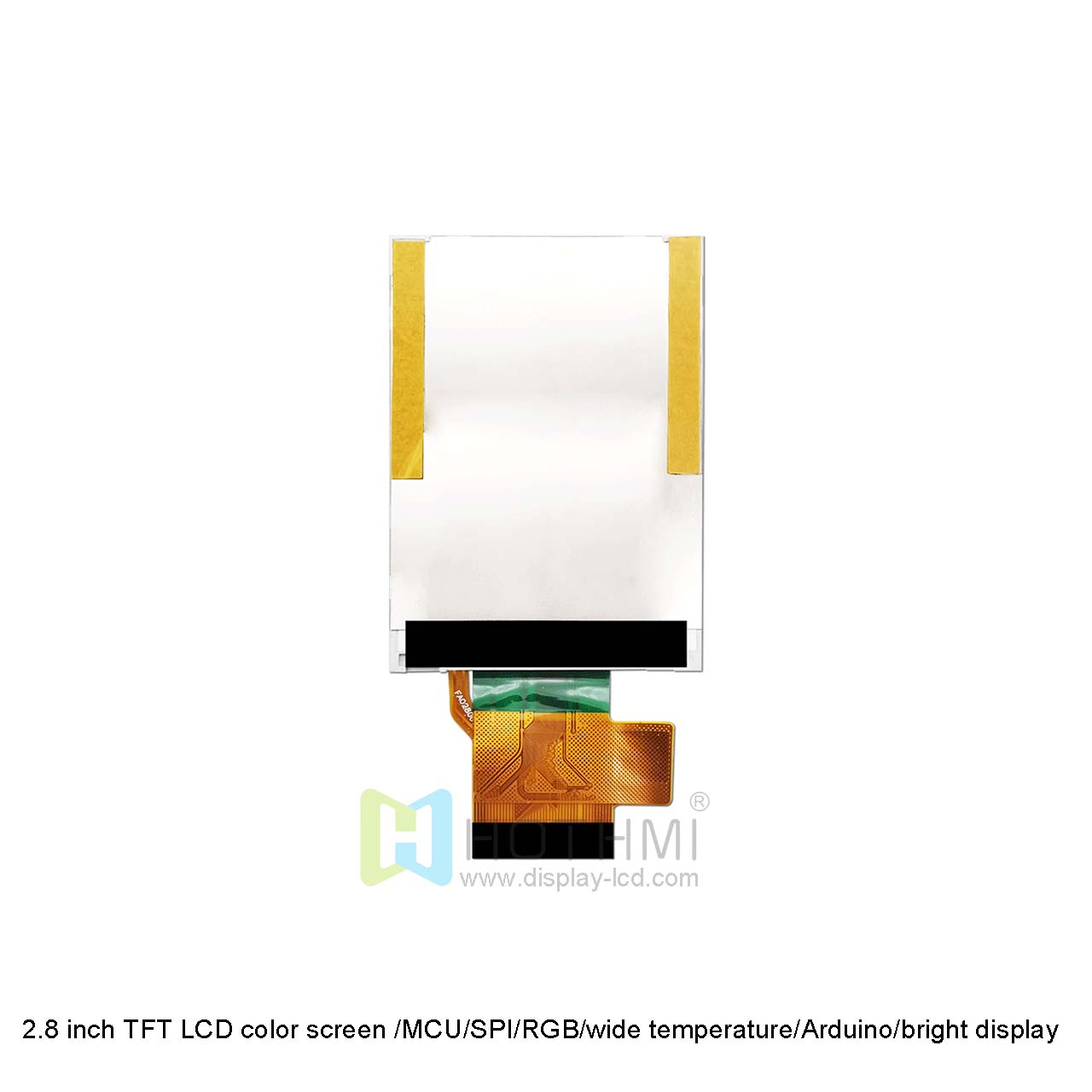

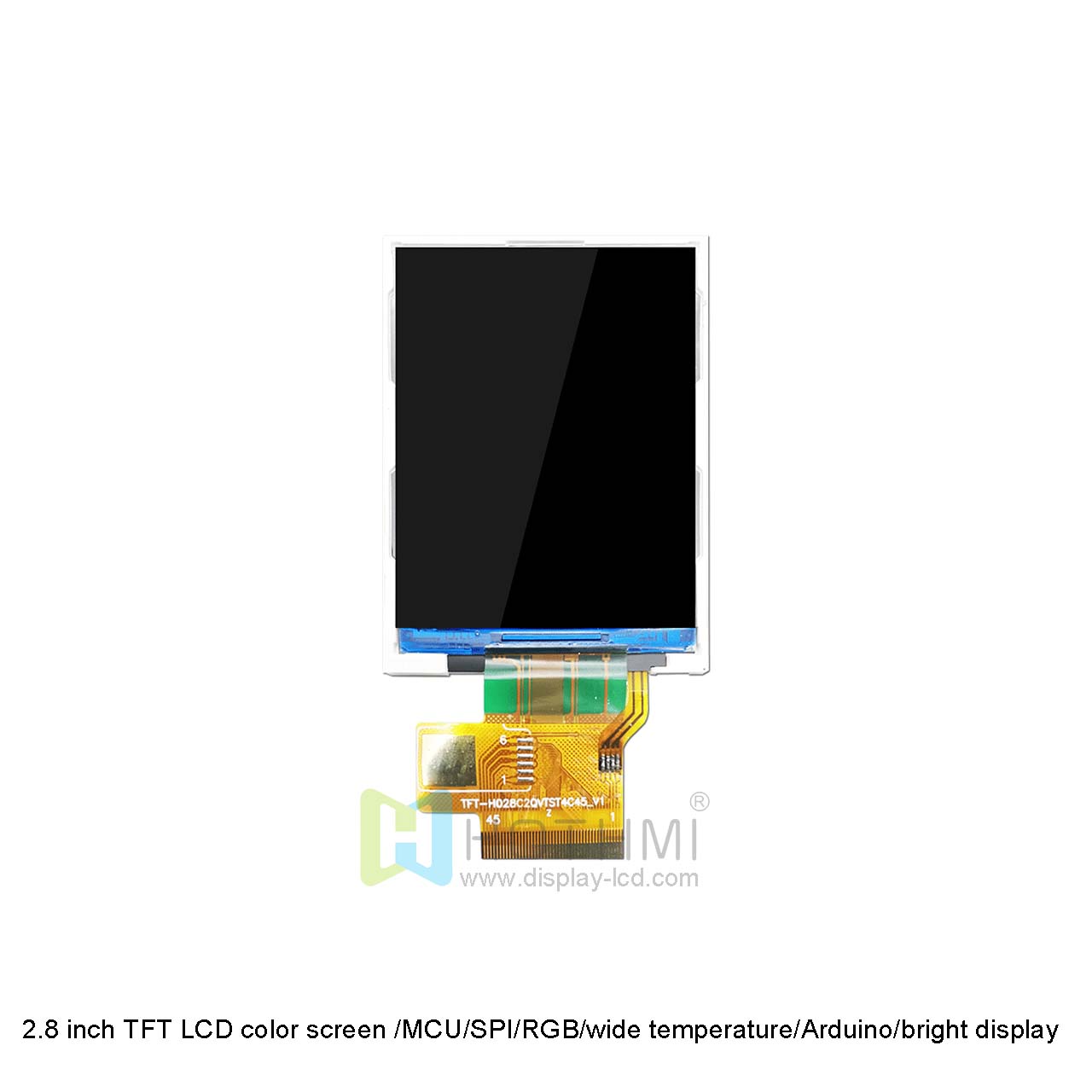

2.8-inch TFT LCD color screen /240X320 resolution TFT display /MCU/SPI/RGB/wide temperature/Arduino/bright display

2.8-inch TFT LCD color screen /240X320 resolution TFT display /MCU/SPI/RGB/wide temperature/Arduino/bright display

▶ Model: TFT-H028C2QVTST3N45

▶ Type: TFT LCD display
▶ Display content: 240X320
▶ Display inches: 2.8"
▶ Dimensions (mm): 50.0*69.2*2.5
▶ AA size (mm): 43.2*57.6
▶ Product application: medical monitor, handheld device
▶ Viewing angle: 12 O'Clock (U50/D20/L45/R45)
▶ Backlight type or brightness: white backlight 350cd/M2
▶ Connection method PIN number: 45pin
▶ Interface method: MCU/SPI/RGB
▶ Special instructions: without touch screen
▶ Operating temperature: -20~70℃
▶ Supply voltage: +2.8 V
▶ Driver chip: ST7789V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

2.8-inch TFT LCD color screen /240X320 resolution TFT display /MCU/SPI/RGB/wide temperature/Arduino/bright display

The TFT-H028C2QVTST3N45 is a rectangular 2.8-inch IPS TFT display with a sharp resolution of 240x320 pixels. It has an impressive 3:4 contrast ratio and an operating temperature of -20°C ~ 70°C. It excels in rendering deep blacks and bright colors, ensuring a stunning visual experience. Its 350cd/m2 brightness ensures normal colors without any extra power consumption.

IPS technology enables full viewing angles. ZIF connector is optional, and this version comes with a flexible FPC as a connector. Configurations with glass cover or touch function are also available. The TFT-TFT-H028C2QVTST3N45 has a built-in ST7789V controller. This model can choose a variety of interfaces, including MCU/SPI/RGB and other interfaces. This display is suitable for digital signage, automotive displays, industrial displays, medical displays, gaming consoles, control panels.

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen add-ons: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028C2QVTST3N45
Diagonal size	2.8”	Inch
Resolution	240X320	Dot
Dimensions	50.069.22.5	mm
Active area (AA)	43.2*57.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	12 O'Clock(U50/D20/L45/R45)
Aspect ratio	3:4
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	350	cd/m2
Operating temperature	-30~70℃	℃
Storage temperature	-40~85℃	℃
