  • 7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller

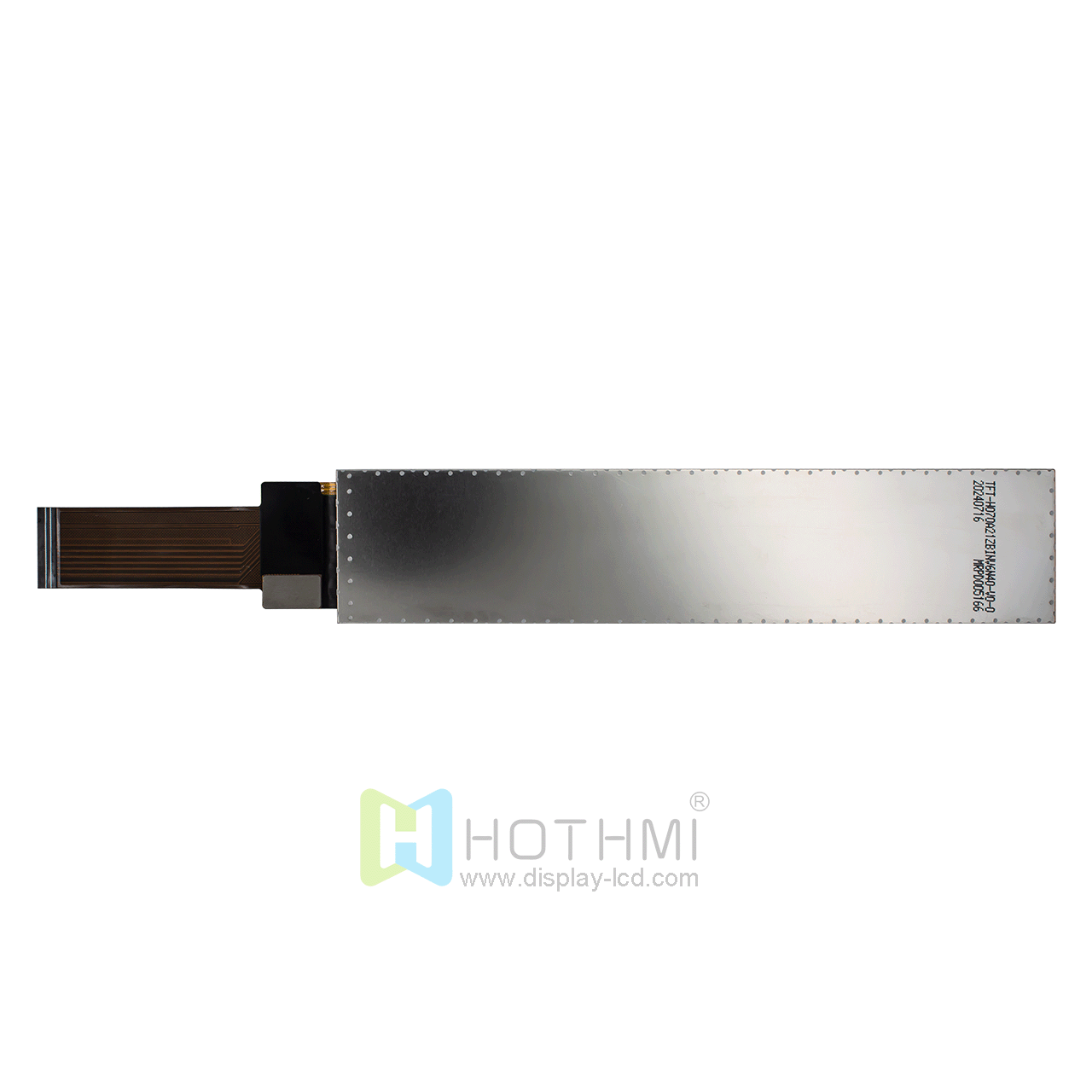

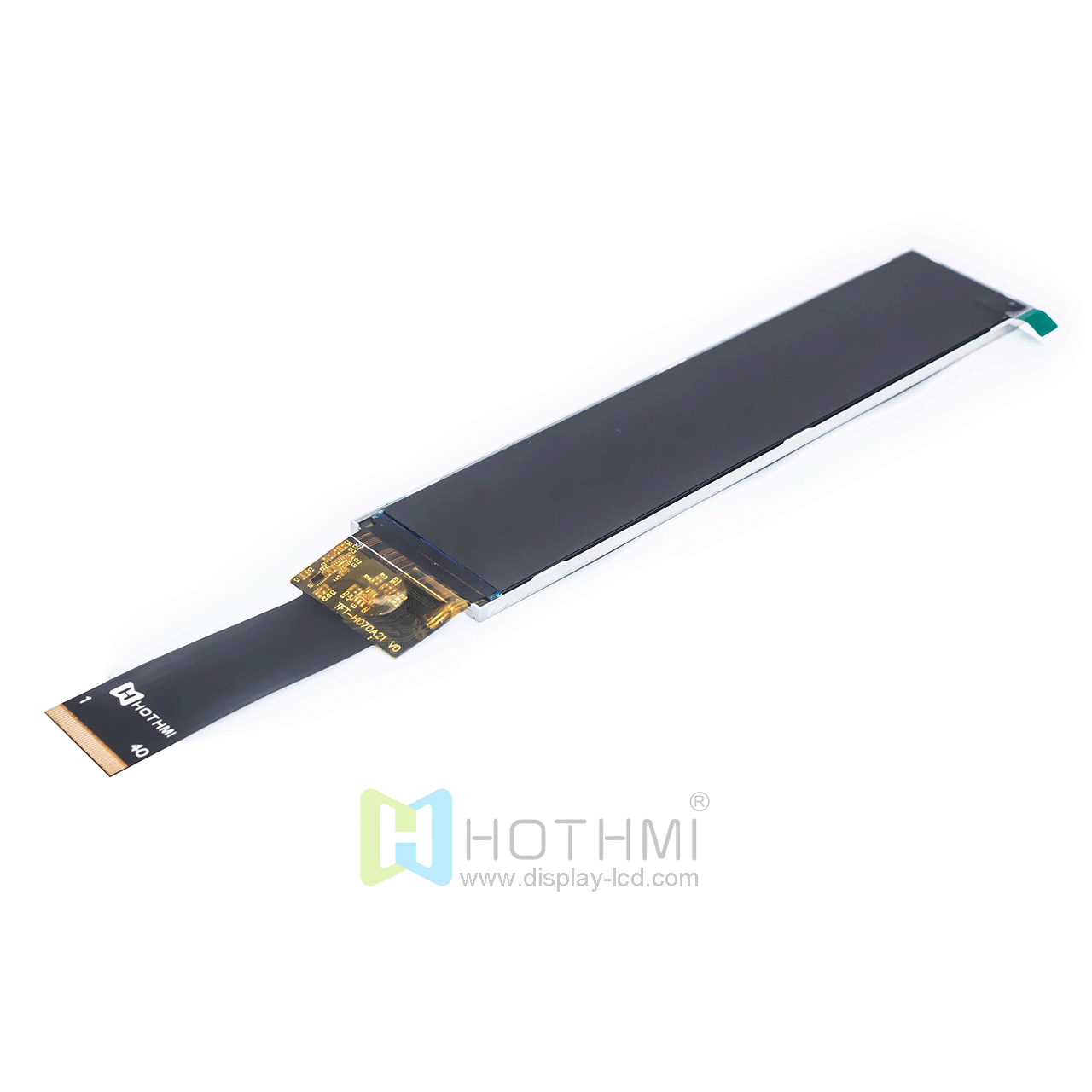

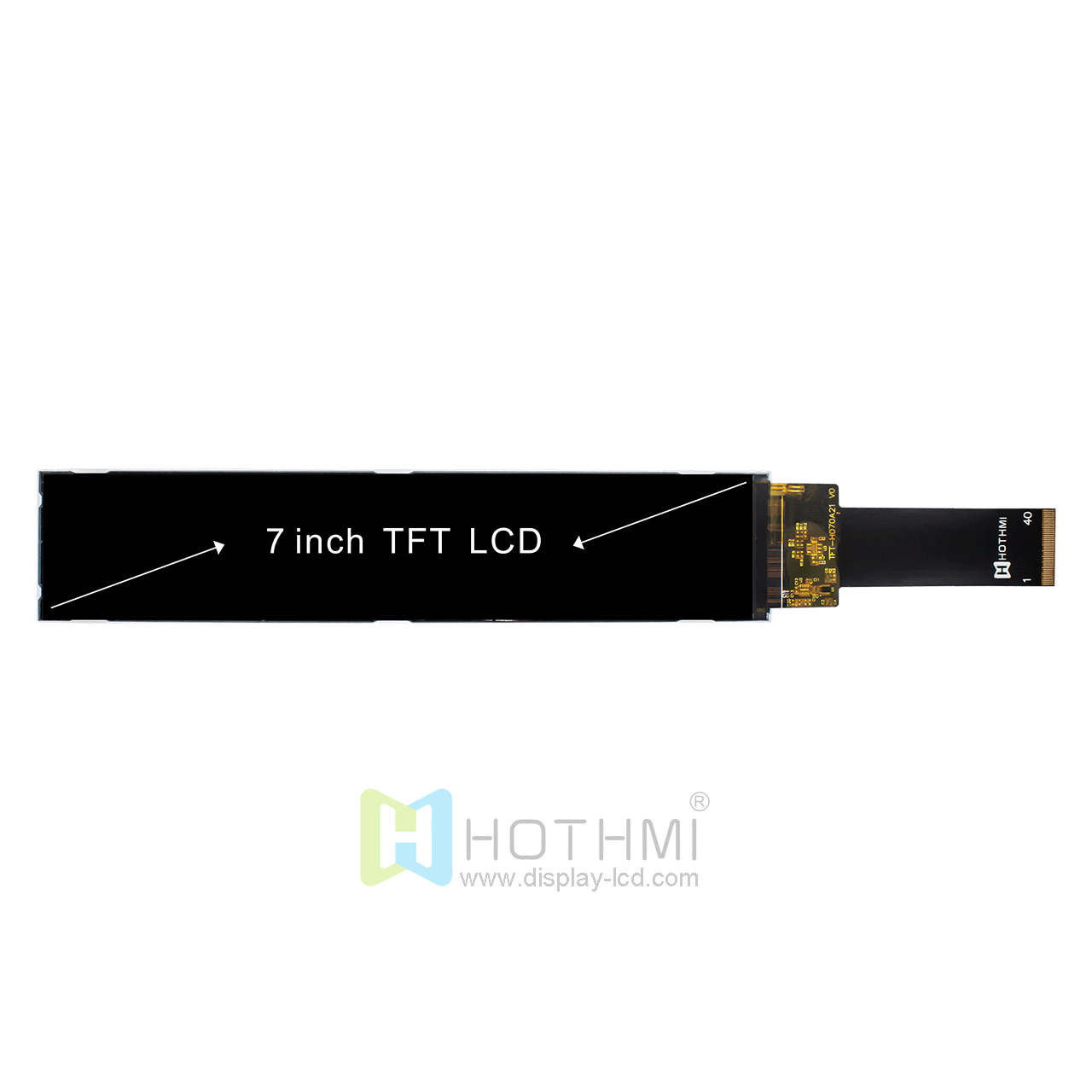

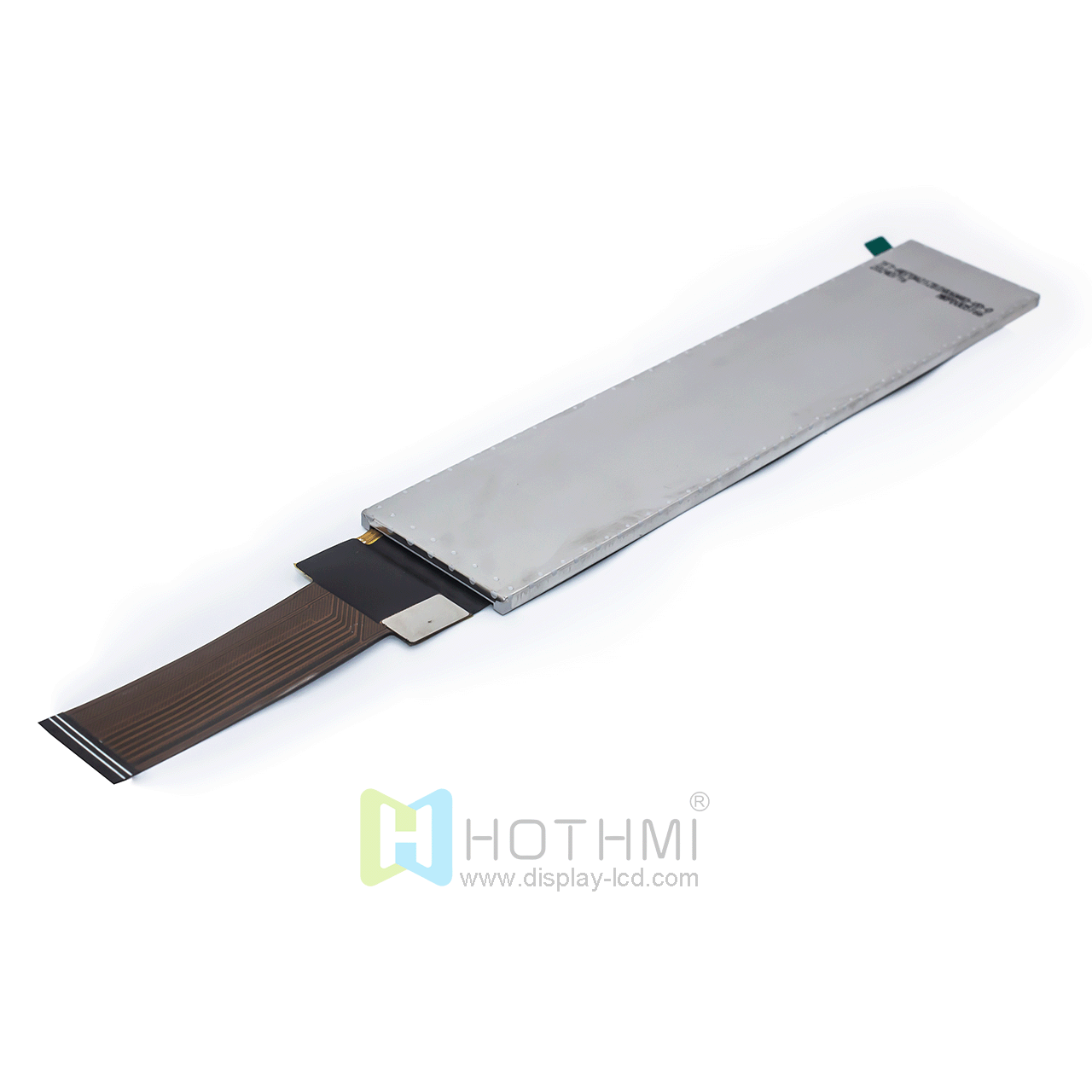

    7.0 inch IPS TFT LCD display / 280x1424 resolution color display / with ST7703 controller The TFT-H070A21ZBINV6N40 is a 7.0 inch IPS TFT display with a resolution of 280x1424 pixels. The display has a high contrast ratio of 500:1, capable of deep blacks and vivid colors. It also has a brightness of up to 650cd/m2, making it suitable for use in both indoor and outdoor environments.

    The TFT-H070A21ZBINV6N40 is equipped with optional resistive or capacitive touch screen capabilities, allowing users to interact with the display through touch. In addition, it is equipped with an optional FPC Zif connector for easy connection to other devices. It is also compatible with 8051 boards (a popular microcontroller board often used in embedded systems) and arduino shields with examples and libraries.

    Overall, the 7.0-inch IPS TFT LCD display/280x424 resolution color display/with ST7703 controller is a versatile, high-performance display suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.

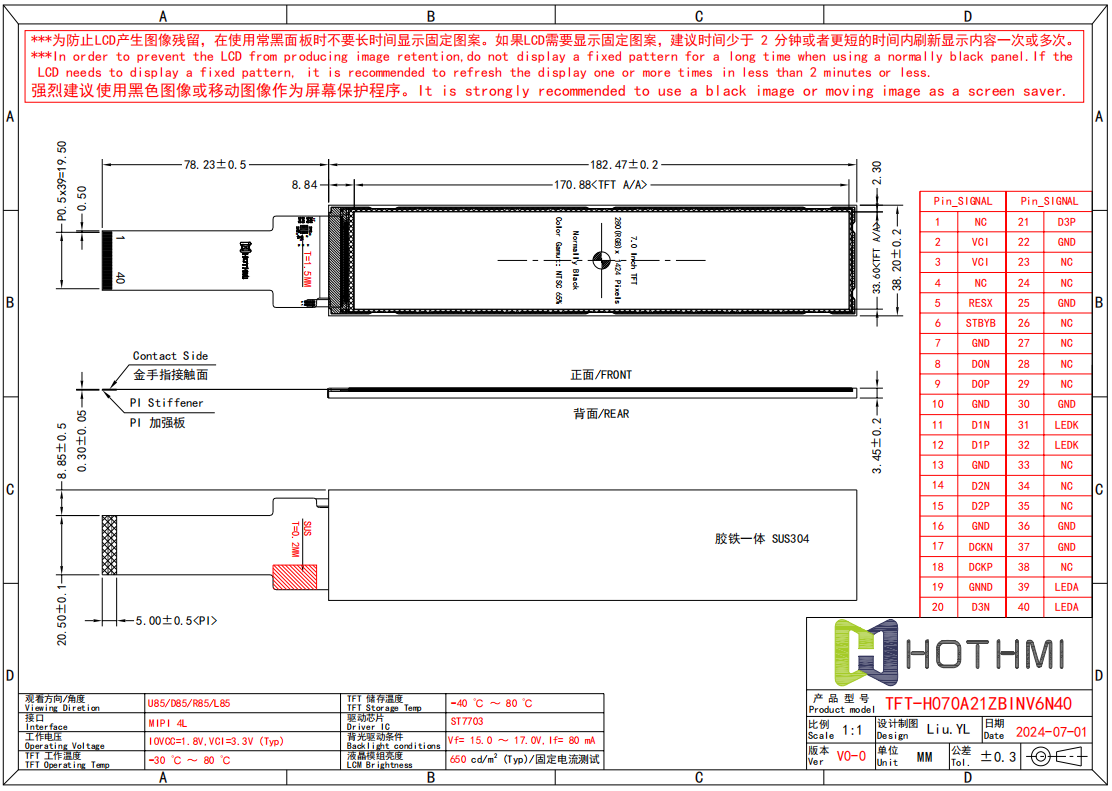

  • TFT-H070A21.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H070A21ZBINV6N40


    Diagonal size

    10.1

    Inch

    Resolution

    280X1424

    Dot

    Dimensions

    182.47x38.2x3.45

    mm

    Active area (AA)

    170.88x33.6

    mm

    LCD type

    TFT LCD Display

    mm

    Display viewing angle

    Full View


    Aspect ratio

    5:1


    Backlight type

    LED white


    TFT driver IC

    ST7703


    Brightness

    650cd/m2

    cd/m2

    Operating temperature

    -30~80

    Storage temperature

    -40~80
