2.8 inch Capacitive Touch Screen With GT911 Driver IC

2.8 inch Capacitive Touch Screen With GT911 Driver IC

▶ Model: CTP-H028B22_V0

▶ Type: 2.8-inch capacitive touch screen
▶ Window size (mm): 44.2x58.6

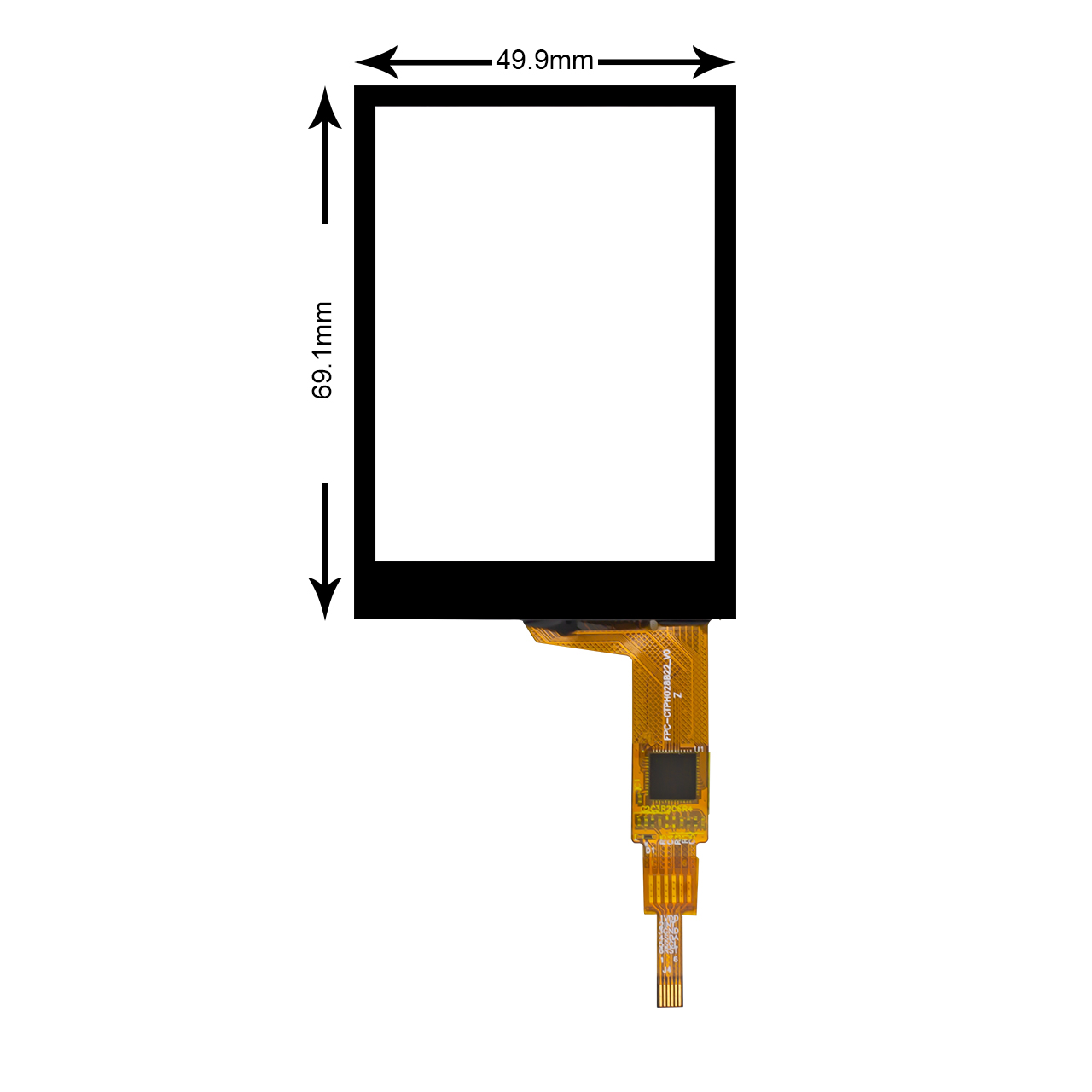

▶ Cover size: (mm): 49.9x69.1x1.45
▶ Diagonal size: 2.8 inches
▶ Touch points: 5-point touch
▶ Control chip: GT911
▶ Interface: I2C
▶ Connection type: 6 PIN FPC plug-in
▶ Process structure: G+G
▶ Cover shape: 1:1 cover
▶ Hardness: 6H
▶ Transmittance: ≥83%

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Customized Services
Attributes

2.8 inch Capacitive Touch Screen With GT911 Driver IC - G+G process-6Pin plug in

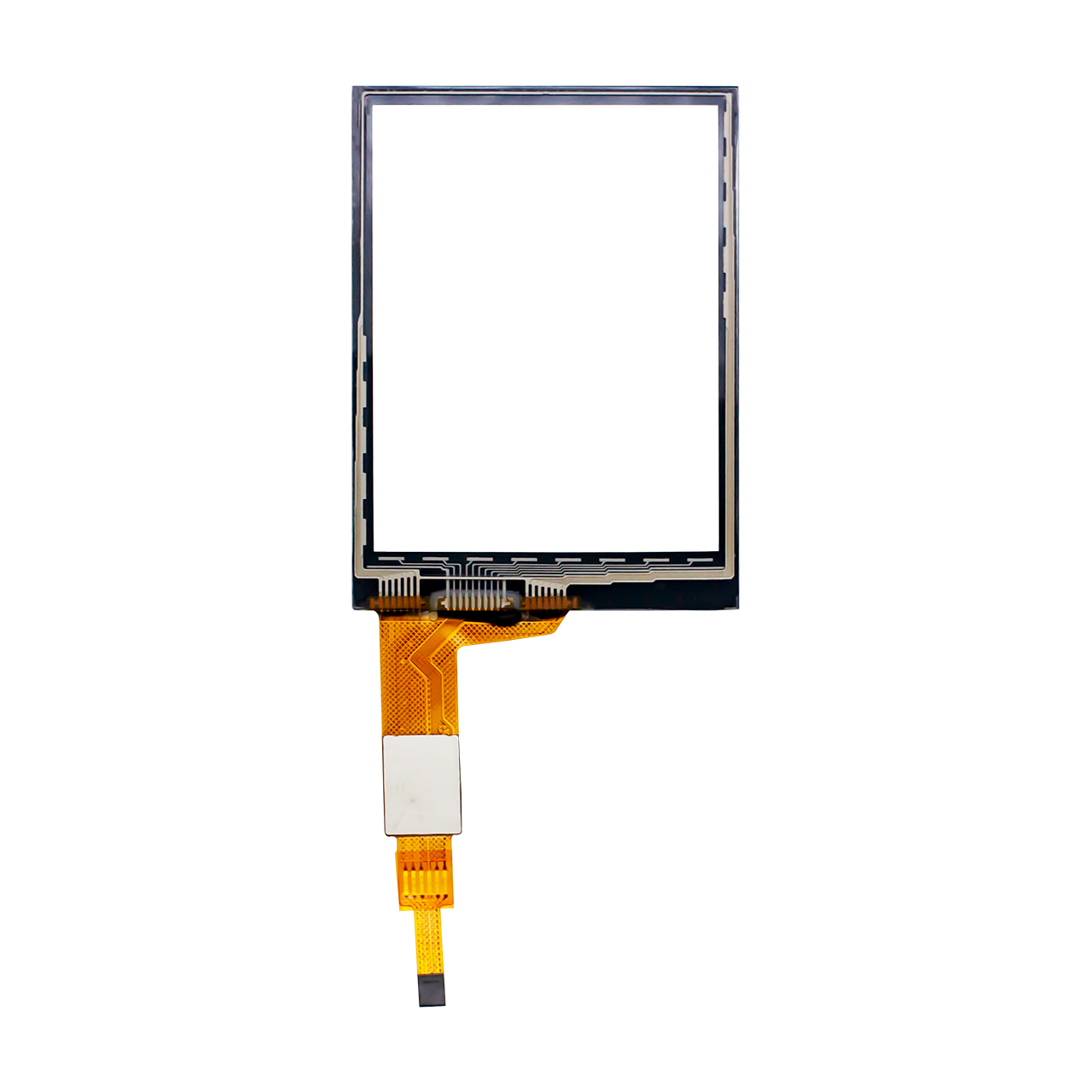

This is a 2.8-inch capacitive touch panel. It adopts a double-layer glass structure (G+G) with good durability and optical performance. The module is combined with a 2.8-inch display through an optical bonding process to provide excellent display clarity and anti-glare effects. Its touch function is driven by Goodix Technology's GT911 controller chip and supports multi-touch. The connection with the host adopts a 6-pin design and supports both plug-in (FPC connector) and welding (FPC pad) interface modes, providing installation flexibility.

We provide customized services for this touch panel, whether it is the interface, connection mode (plug-in/welding/connector), process structure (G+G/G+FF/G+F/P+G/P+F), or the size of the cover, hardness (3H/6H/7H/9H) and surface treatment (AF/AG/AR), we can realize it for you one by one.

Related TFT product models: 2.8-inch TFT LCD display, and module with driver board: COF-H028B22-UART-01C.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
CTP-H028B22_V0	July 07, 2025	46.79KB

Customized material: Customized touch cover of various materials: such as tempered glass (up to 7H), acrylic material, etc.

Customized special-shaped contour: Support special-shaped cutting/opening/edging (2.5D, 3D)/transmittance.

Cover color and logo silk screen customization: Supports silk screen printing in different colors (usually black or white); supports silk screen printing of logos in multiple colors.

Customized cover thickness: 0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0/8.0/10.0(mm)，etc.

Customized different transmittance: High light transmission efficiency, which directly affects the visual effect of the touch screen.

Opening service: Through holes with a diameter of ≤10mm can be opened.

Cover surface treatment: Optional touch screen surface treatment methods are available: AG anti-glare/AR anti-reflection/AF anti-fingerprint.

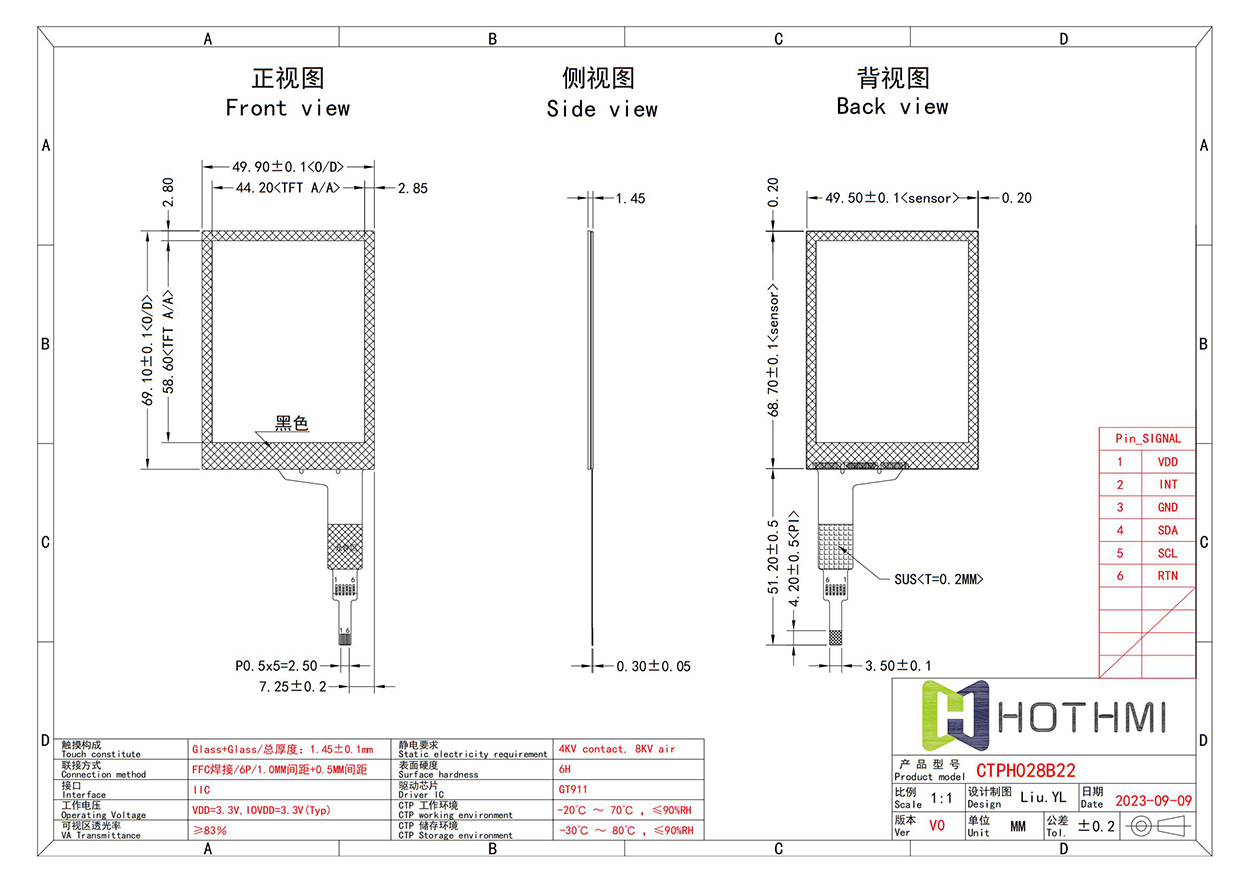

ITEM	Parameter description	Unit
CTP model	CTP-H028B22_V0
Viewing window size (mm)	44.2x58.6	Mm
Appearance size (mm)	49.9x69.1x1.45	mm
Driver chip	GT911
Structure	G+G
Interface	I2C
Cover shape	aTouch
Connection method	6 PIN FPC plug
Surface hardness	H6
Transmittance	≥83％
Operating voltage	+3.3V	V
Operating temperature	-20℃ ～ 70℃	℃
