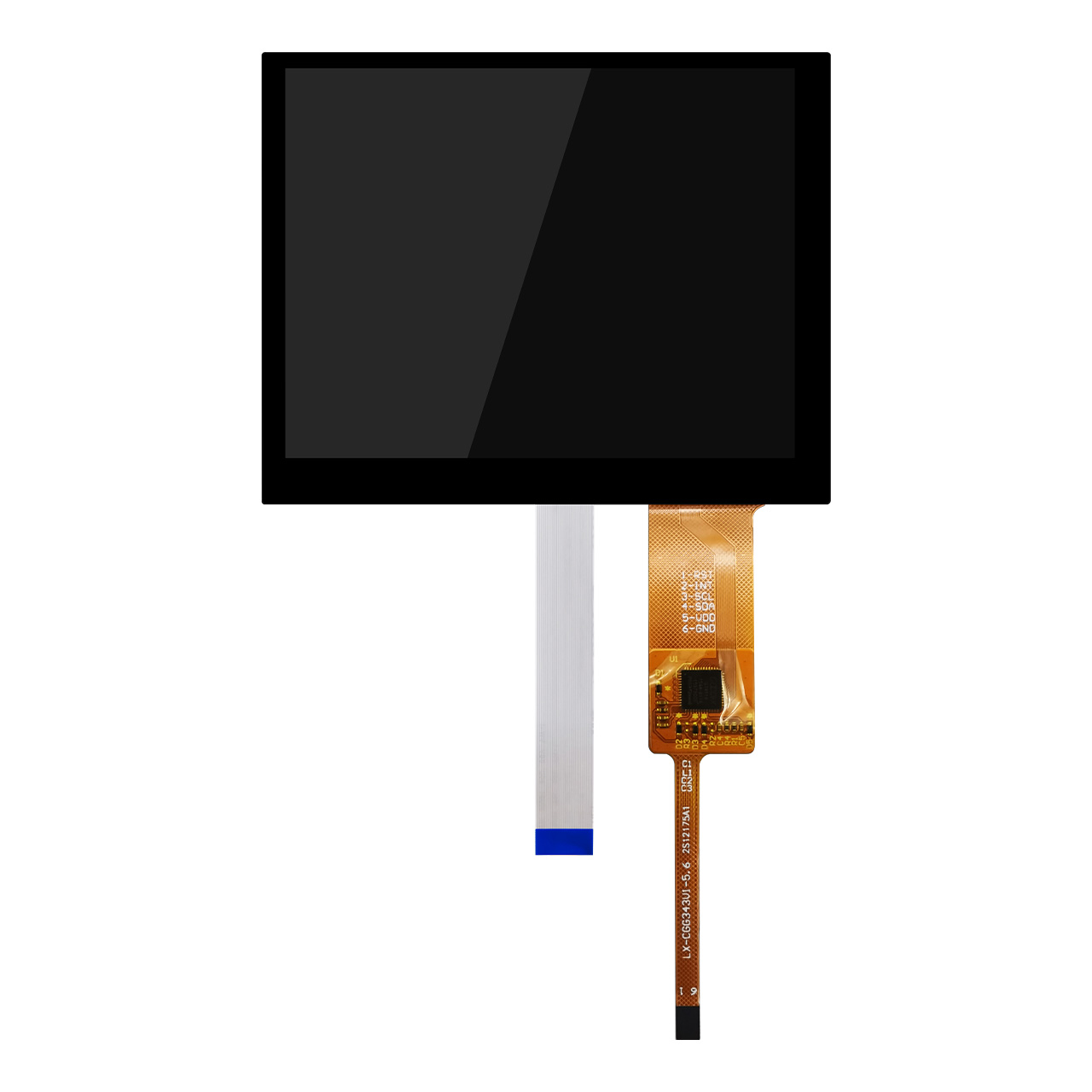

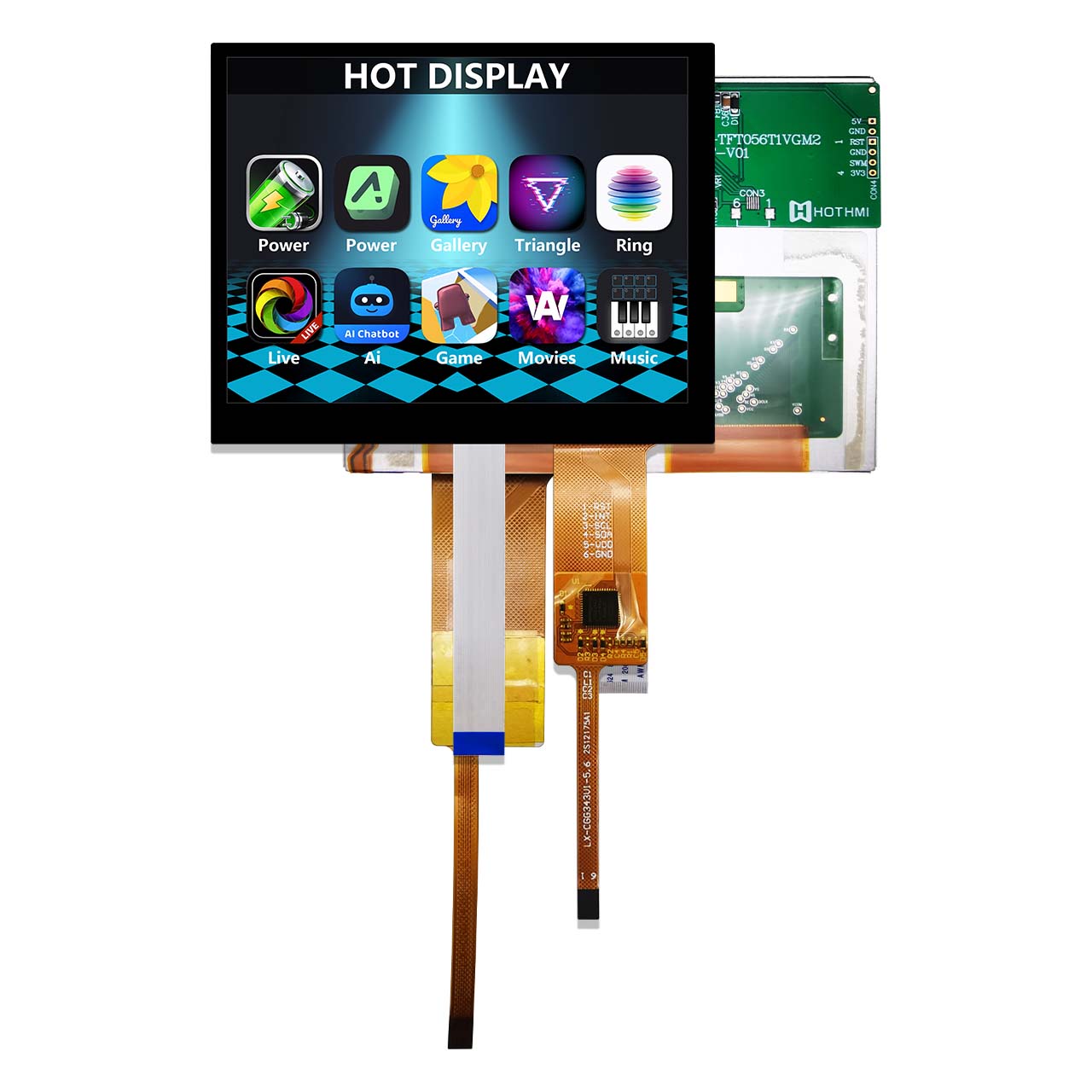

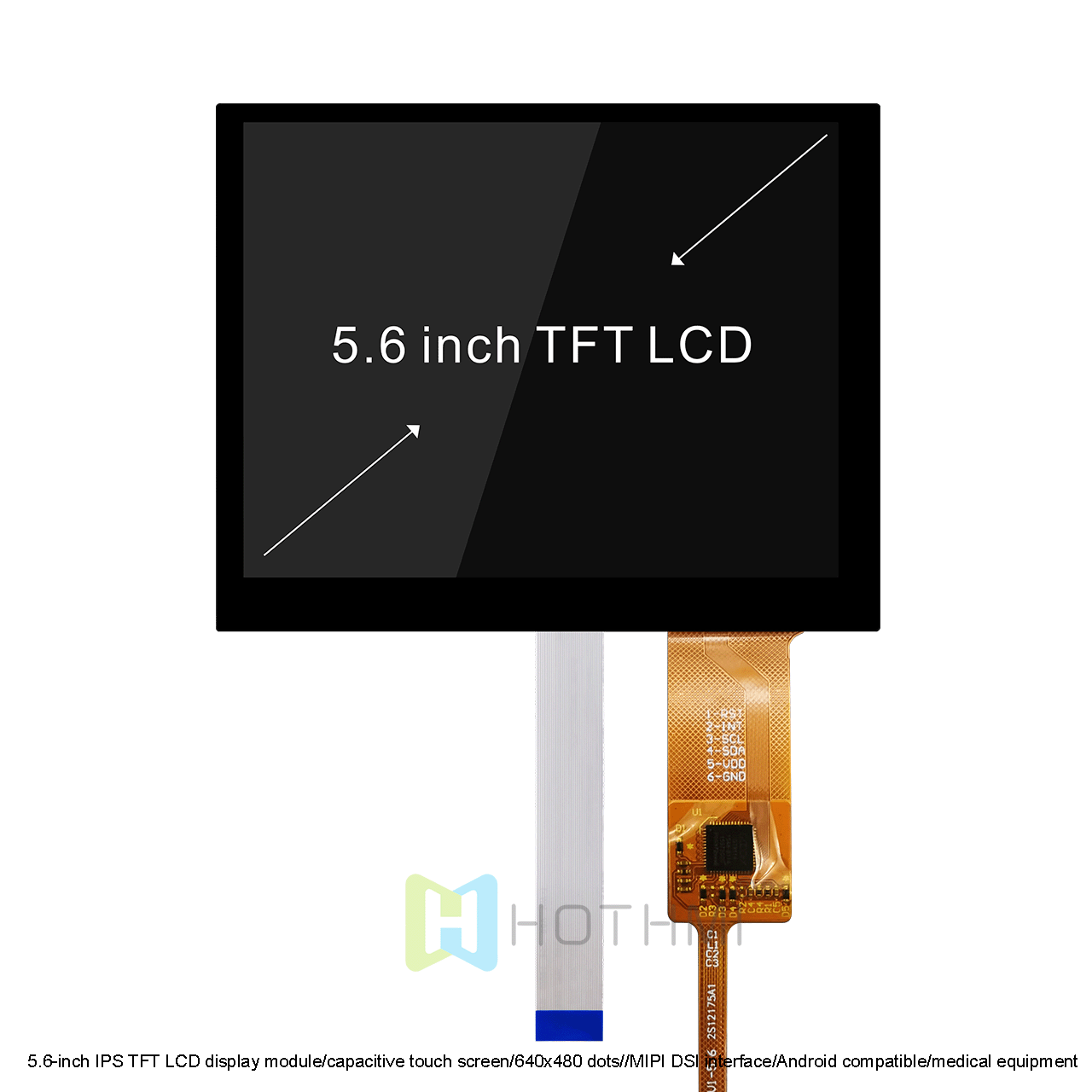

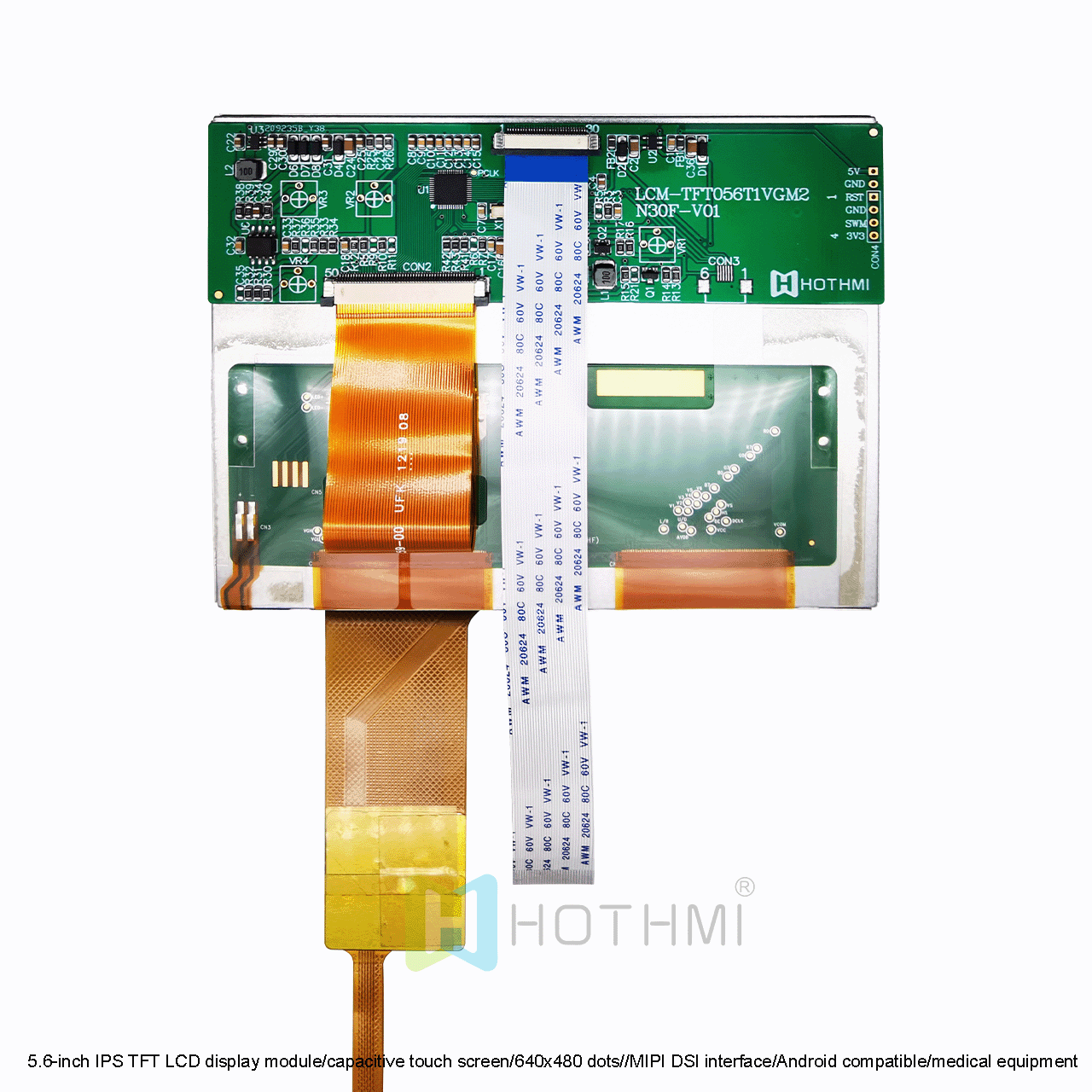

5.6-inch IPS TFT LCD display module/capacitive touch screen/640x480 dots//MIPI DSI interface/Android compatible/medical equipment

5.6-inch IPS TFT LCD display module/capacitive touch screen/640x480 dots//MIPI DSI interface/Android compatible/medical equipment

▶ Model: TFT-TFT056T1VGM2N30F

▶ Type: TFT horizontal screen
▶ Display pixels: 640x480 dot matrix
▶ Dimensions (mm): 126.5x100x9.5

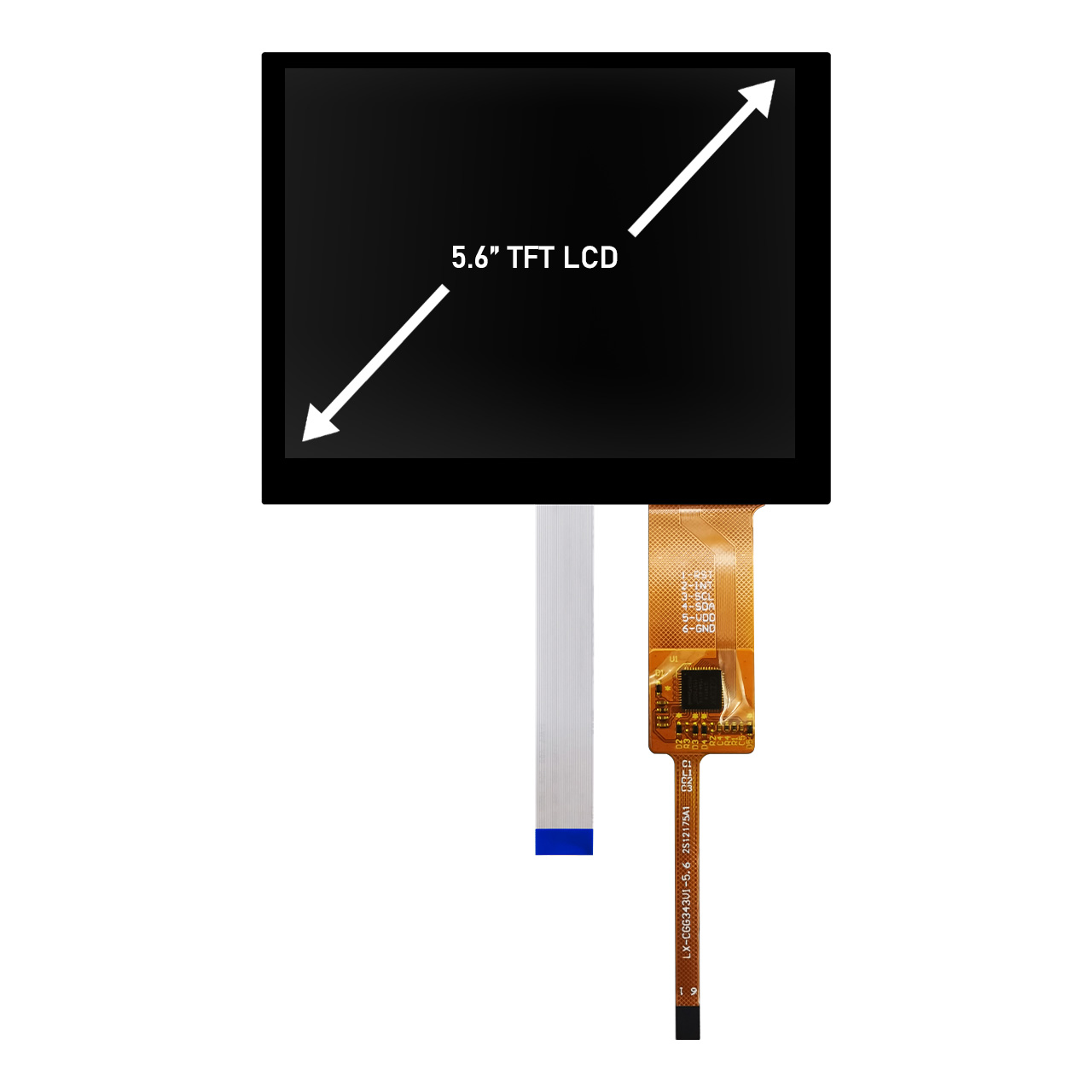

▶ Display inches: 5.6"
▶ Effective size (mm): 112.9x84.67
▶ Application: artificial intelligence equipment
▶ Viewing angle: wide viewing angle
▶ Brightness: 250cd/m2
▶ Pin: FPC-30PIN
▶ Interface: MIPI DSI
▶ Special reminder: anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip: TBD

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-TFT056T1VGM2N30F | 5.6 inch IPS TFT LCD | MIPI DSI interface | 480x854px High Resolution LCD Screen | Capacitive Touch / Resistive Touch Optional | Android

This 5.6-inch IPS TFT LCD display features a high resolution of 480x854 pixels and built-in EMI shielding. The TFT includes a high-brightness LED backlight with a typical brightness rating of 250 nits. Because this LCD has built-in IPS technology, the display has amazing clarity, excellent color reproduction, better image consistency, and high contrast at all viewing angles.

The impressive graphics quality provided by its 5.0V power supply makes it an excellent choice for projects that want high-end visual output without touchscreen functionality. This TFT display is powered by a built-in TBD driver IC and is compatible with Raspberry Pi/Android/RK, providing excellent performance and reliability. The driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. This LCD uses an FFC (Flat Flexible Cable) connection method to ensure easy electrical connection. Our monitors are all RoHS compliant and adhere to strict environmental and safety standards.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

parameter	Parameter Description	unit
TFT LCD	Standard TFT
Diagonal inches	5.6”	Inch
resolution	640 × RGB × 480 (TFT)	dots

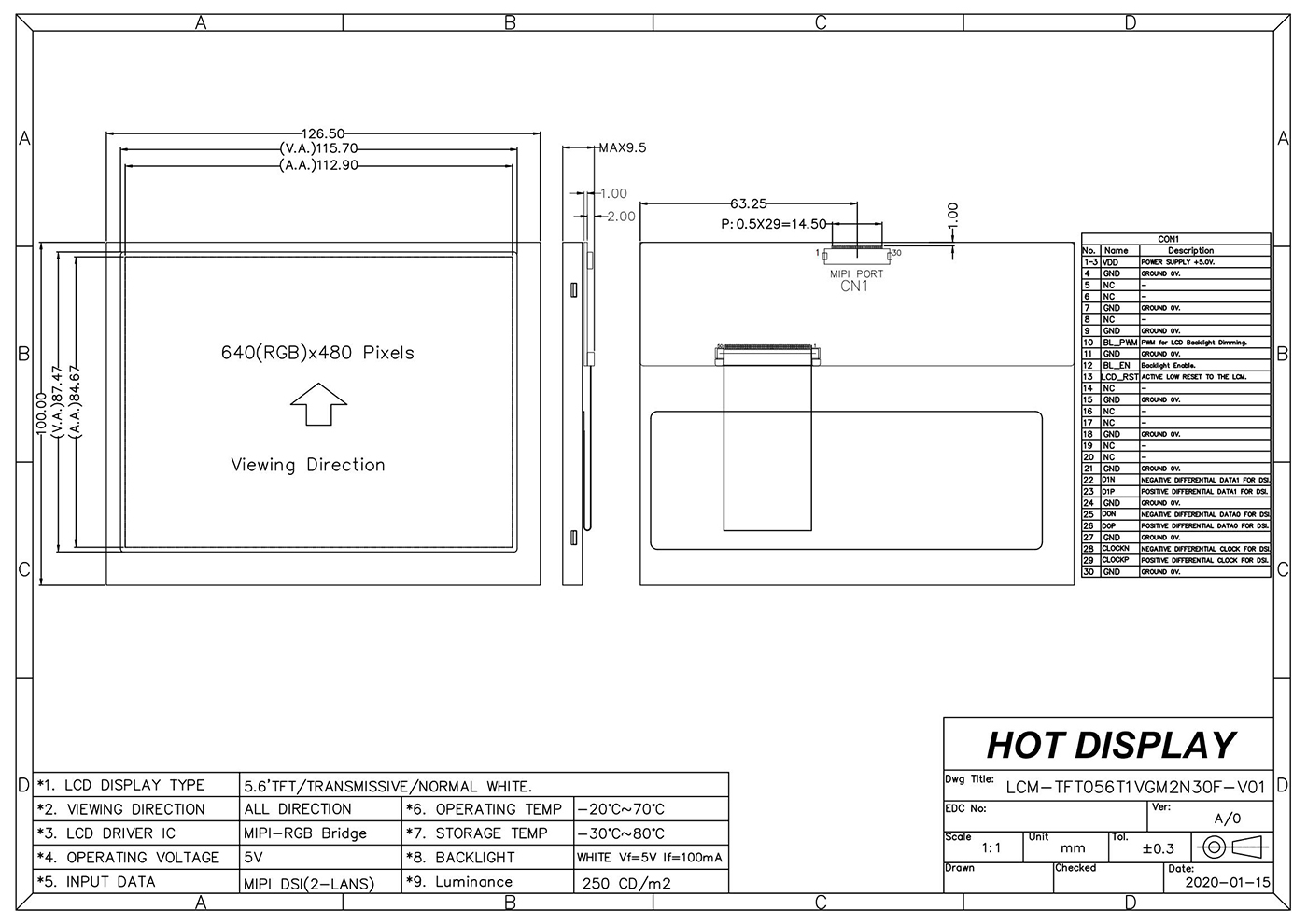

Dimensions	126.5x100x9.5	mm
Size (AA) area	112.9x84.67	mm
LCD specifications	TFT, white, transmissive
Display perspective	IPS(U80/D80/L80/R80)
aspect ratio	4:3
Backlight specifications	LED, white
TFT driver chip	TBD
Touch glass type	Capacitive touch
surface	Glossy
Display brightness	250	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
