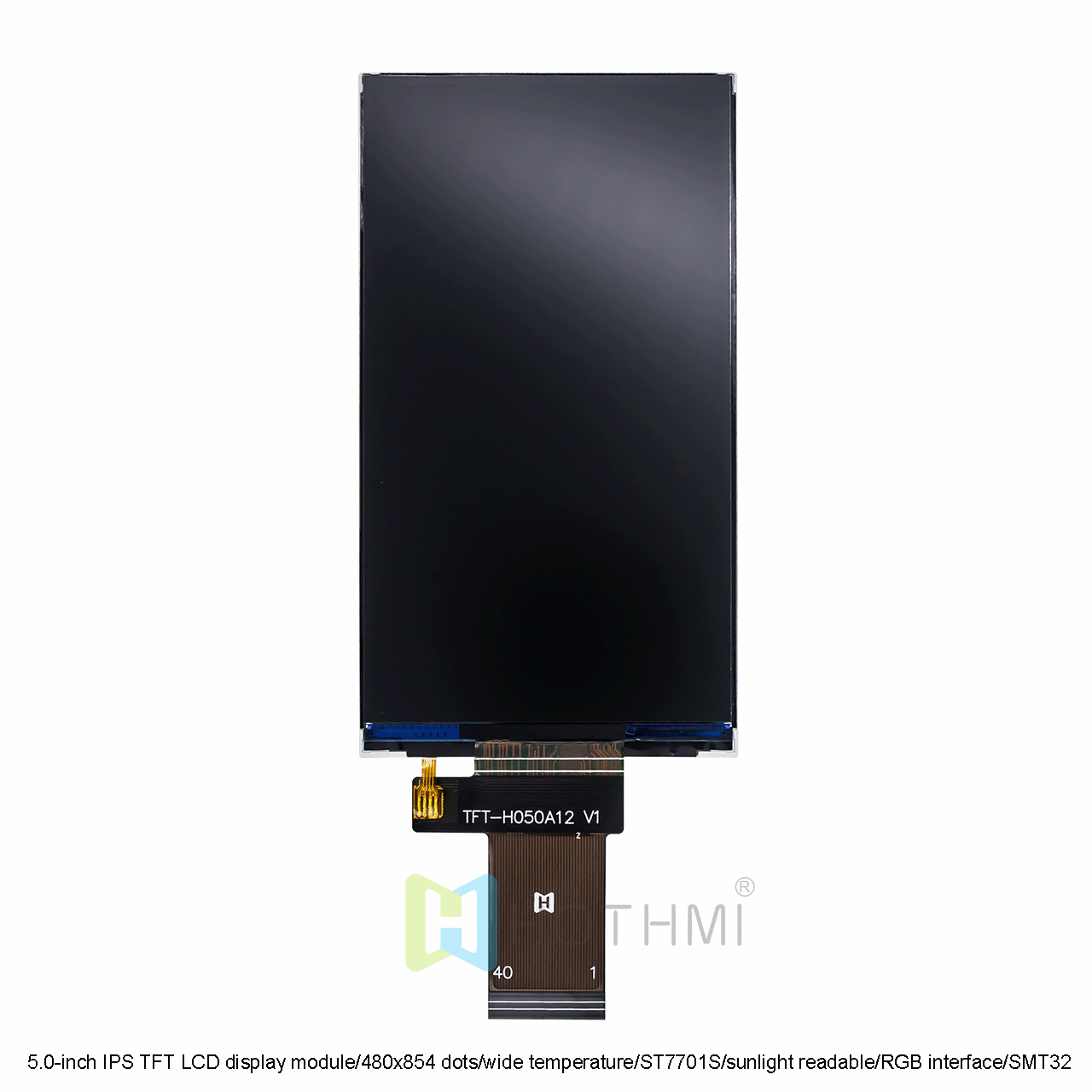

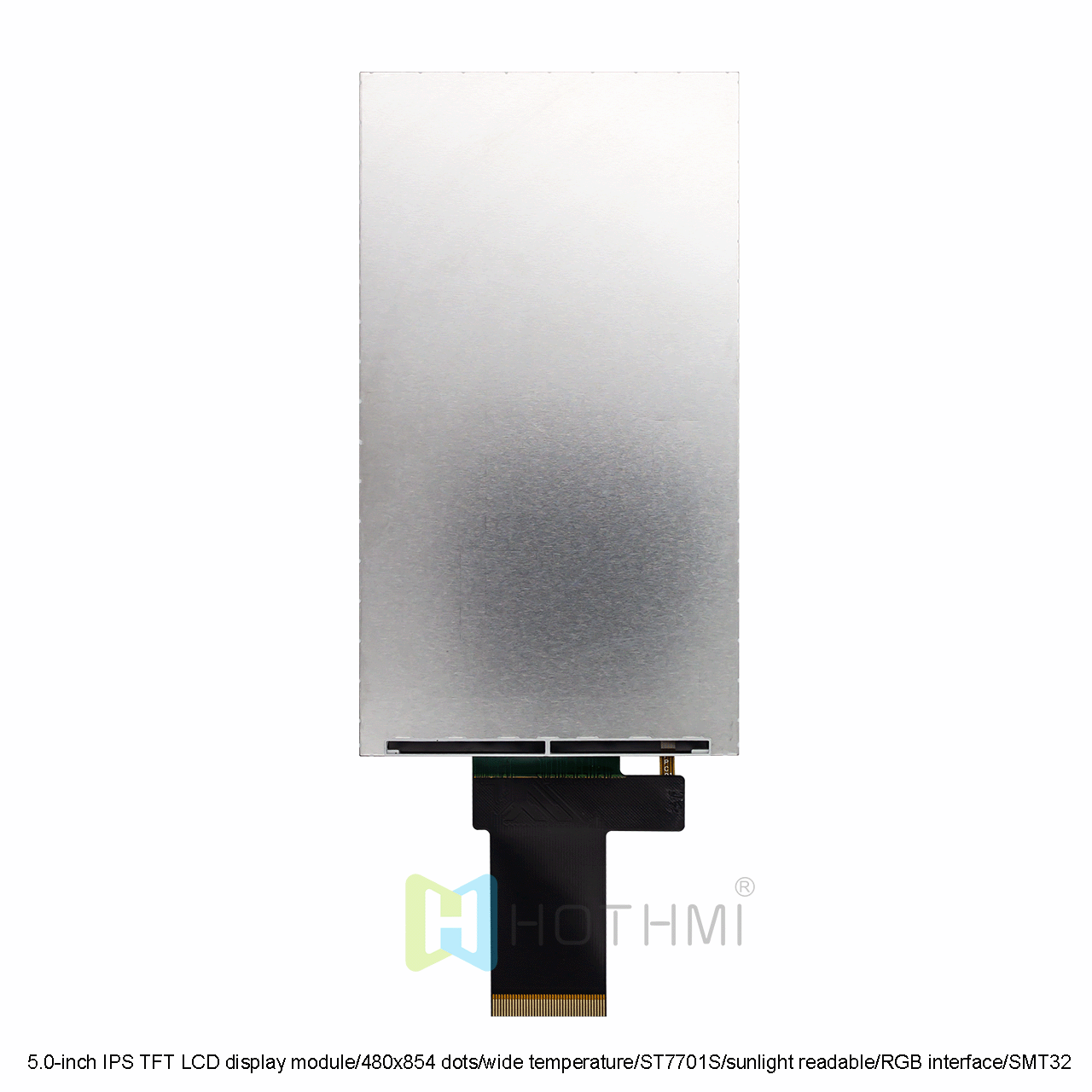

5.0-inch IPS TFT LCD display module/480x854 dots/wide temperature/ST7701S/sunlight readable/RGB interface/SMT32

5.0-inch IPS TFT LCD display module/480x854 dots/wide temperature/ST7701S/sunlight readable/RGB interface/SMT32

▶ Model: TFT-H050A12FWIST5N40

▶ Type: TFT wide temperature vertical screen
▶ Display pixels: 480x854 dot matrix

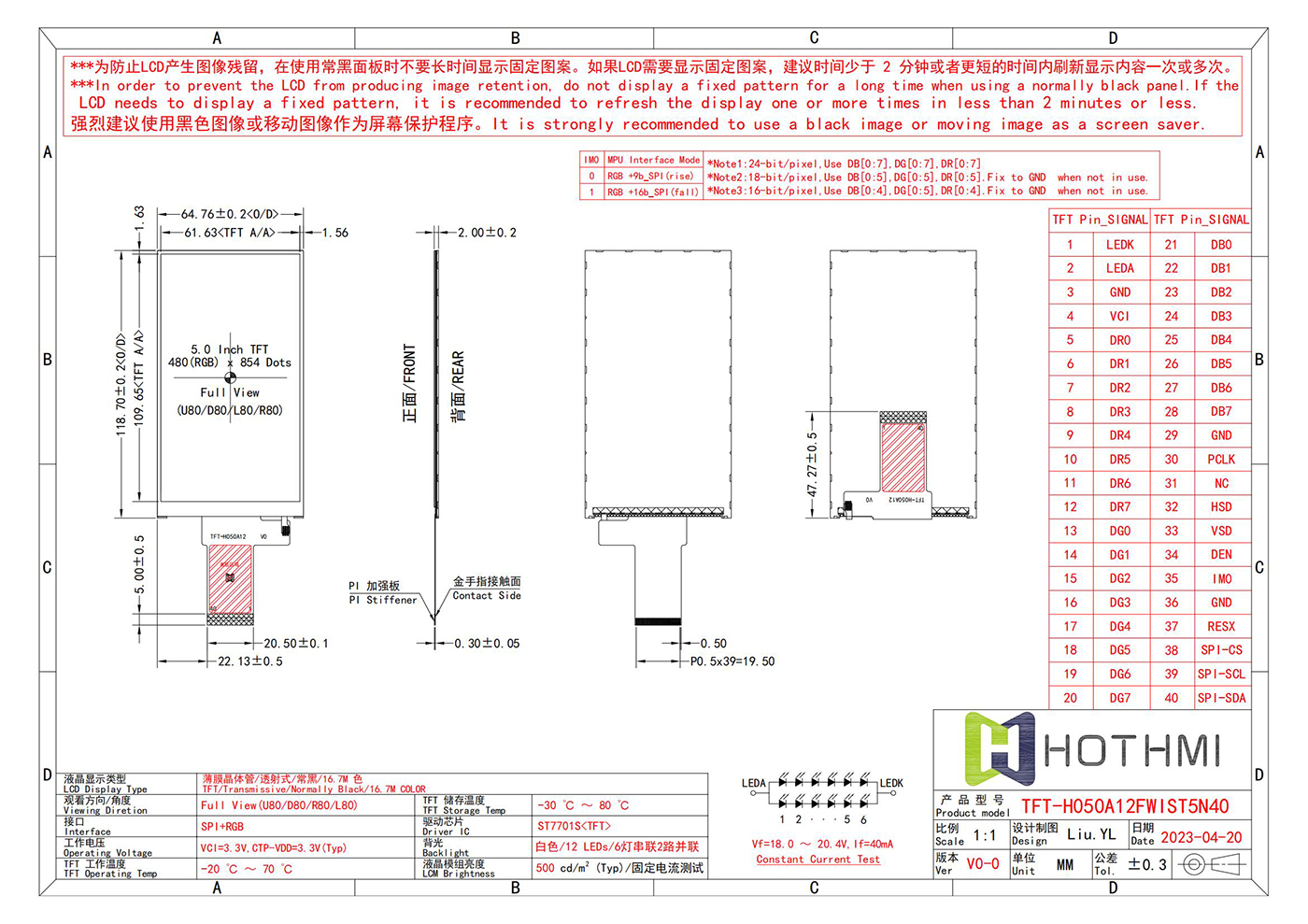

▶ Dimensions (mm): 64.76x118.7x2.0
▶ Display inches: 5.0"
▶ Effective size (mm): 61.63x109.65
▶ Application: handheld smart devices
▶ Viewing angle: IPS (U80/D80/L80/R80)
▶ Brightness: 500cd/m2
▶ Pin: FPC-40PIN
▶ Interface: SPI+RGB
▶ Special reminder: anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

TFT-H050A12FWIST5N40 | 5.0-inch TFT wide temperature LCD display | RGB+SPI interface | 480x854 pixel resolution LCD screen | Optional capacitive touch/resistive touch | Sunlight readable | Wide temperature -20~70℃

TFT-H050A12FWIST5N40 is a 5.0-inch TFT wide temperature LCD display with a resolution of 480x854 pixels. The display uses the ST7701S display driver IC and plug-in FPC, which can be used with connectors. Its IPS technology provides full viewing angles and excellent color reproduction, ensuring that it is not distorted when viewed from all angles. The display has a high contrast ratio of 1000:1, which can present deep blacks and bright colors, and is still clearly readable under sunlight. The brightness is up to 500cd/m², supports 3.3V voltage and vertical screen display, FPC connection (optional connector). All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as STM32, 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard vertical screen TFT
Diagonal size	5.0”	Inch
Resolution	480 × RGB × 854 (TFT)	dots
Dimensions	64.76x118.7x2.0	mm
Effective area (AA)	61.63x109.65	mm
LCD type	TFT, white, transmissive
Display perspective	IPS(U80/D80/L80/R80)
Aspect ratio	1.1:2
Backlight type	LED, white
TFT driver IC	ST7701S
Touch panel	-
Surface	Glossy
Brightness	500	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
