▶ Model: HTM1602A-41W-A5P

▶ Type: Character LCD Module
▶ Display content: 16x2 characters

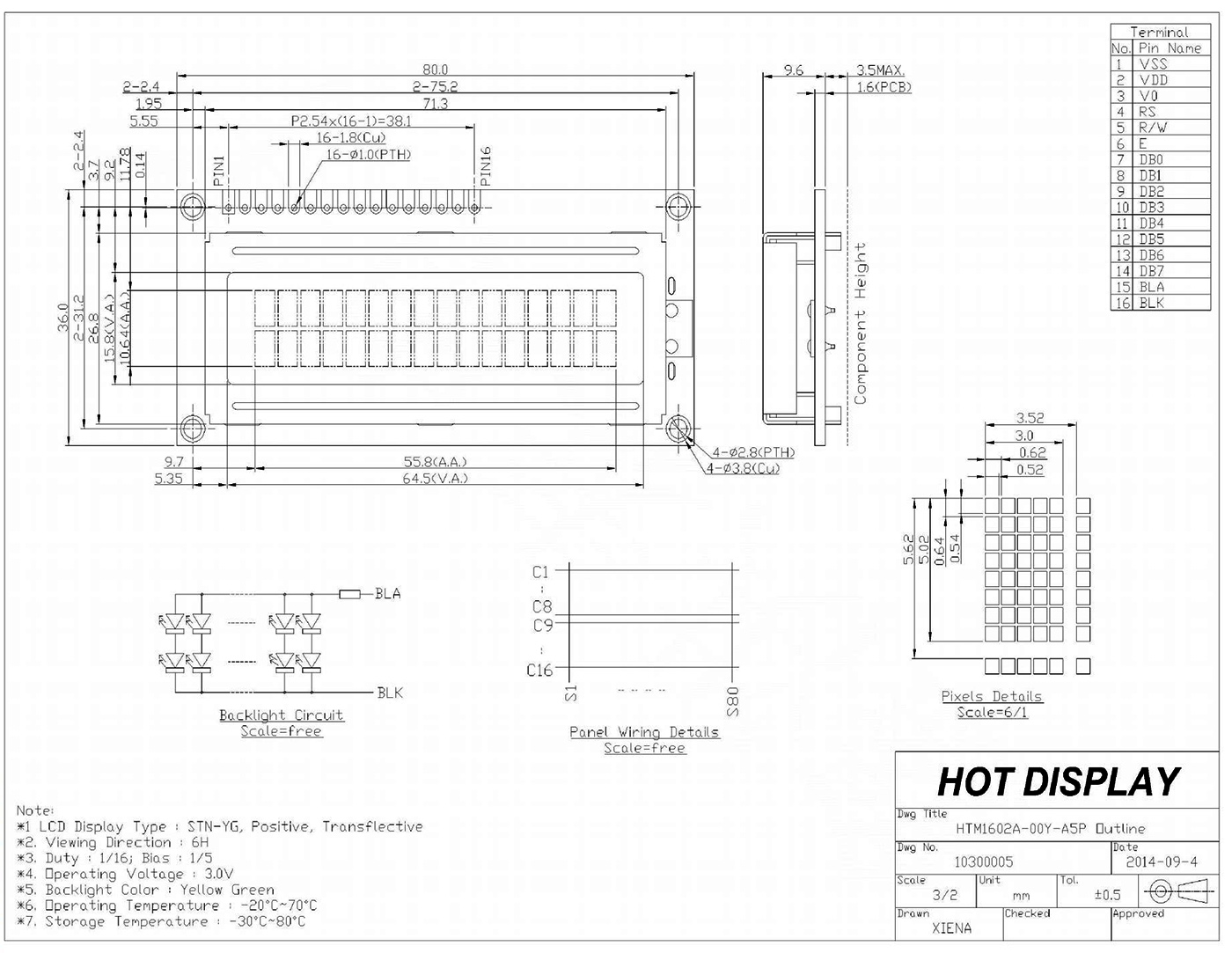

▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ VA size (mm): 64.5x15.8
▶ AA size (mm): 55.8x10.64
▶ Point spacing mm: 0.62x0.64
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type or: White
▶ Number of PINs: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD Module |2X16 DFSTN- with Side White Backlight Display-Arduino

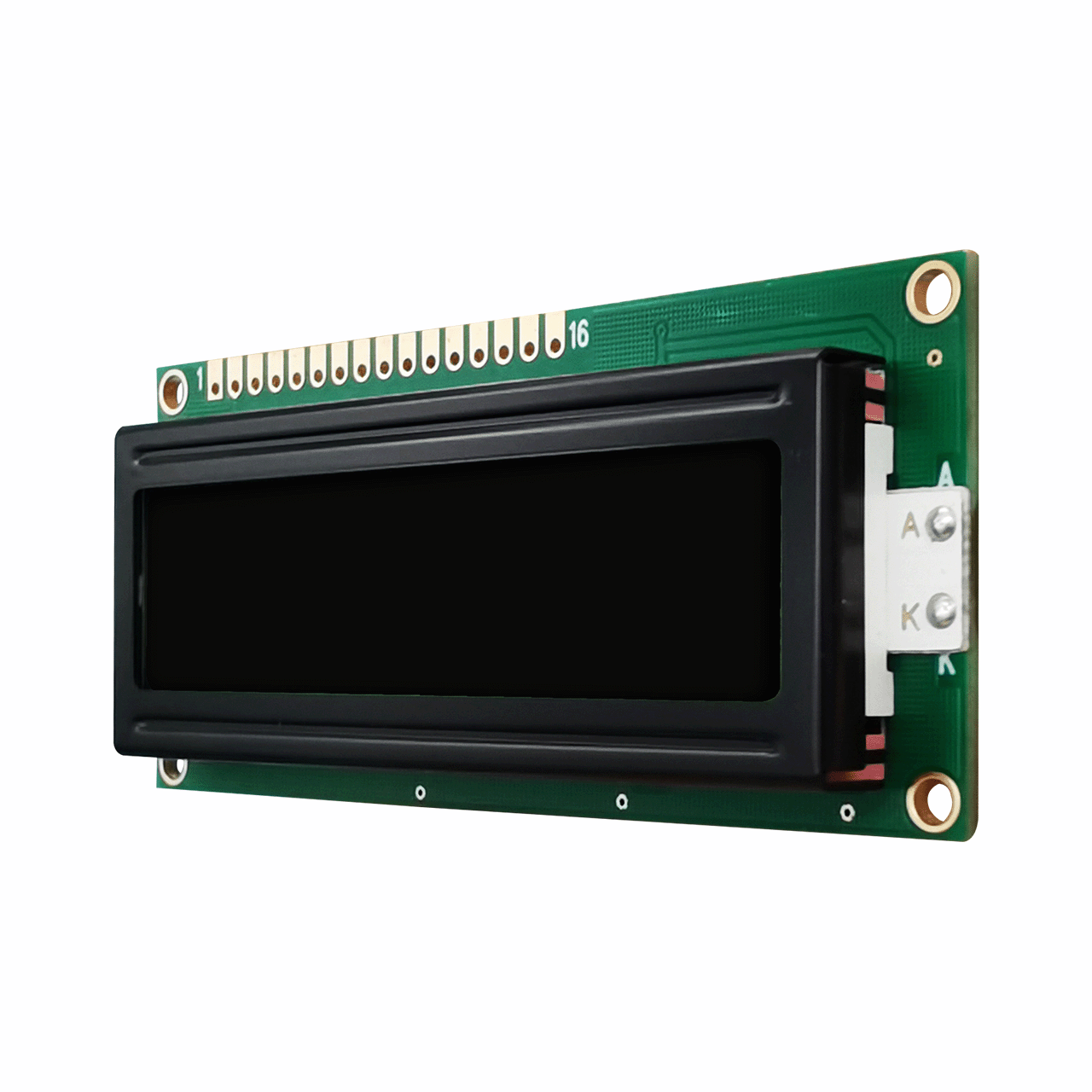

This Character LCD Module 16x2 character LCD shows bright white pixels on a black background. The transmissive display mode uses the built-in LED backlight to provide the best visibility in low-light conditions. This HTM1602A-41W-A5P display has an optimal view of 6:00, a wide operating temperature range from -20 to 70 degrees Celsius, and operates at 5V supply voltage. This Arduino compatible display that comes with an ST7066U controller offers a great viewing experience and performance at an affordable price.

project	Specification	unit
Model name	HTM1602A-41W-A5P
resolving power	16 x 2	dots
External dimensions	80.0x36.0x13.1 (MAX)	mm
Visual Area (VA)	64.0(W)x15.8	mm
Effective Area (AA)	55.8x10.64(H)	mm
Point size	0.52 × 0.54	mm
Point spacing	0.62(W) × 0.64(H)mm	mm
IC	ST7066U driver
supply voltage	5.0V	V
Backlight	White LED
mode	DFSTN(-)black
Driving method	duty cycle 1/16
type	Character LCD/character module
Polarizer Type	Transflective polarizer
