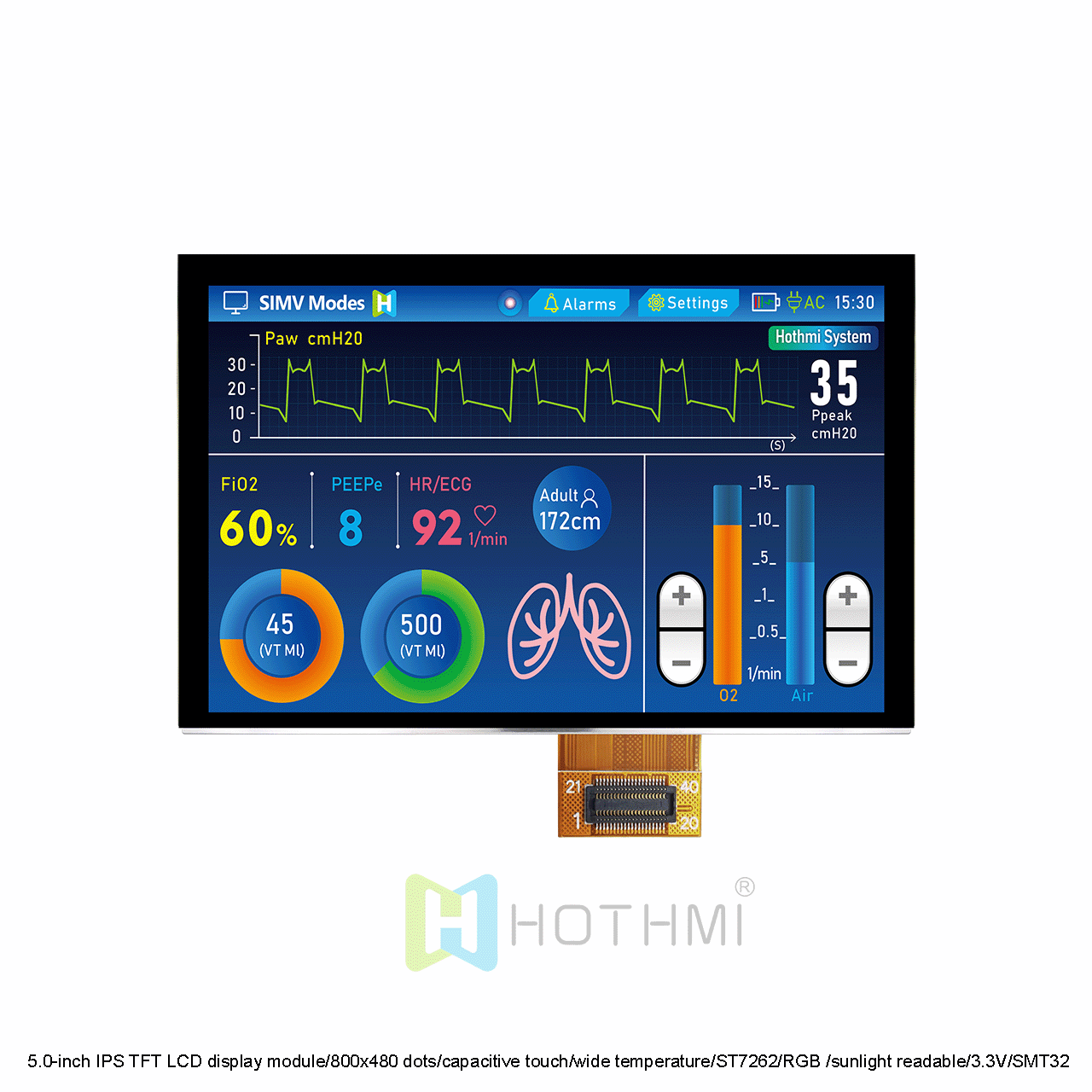

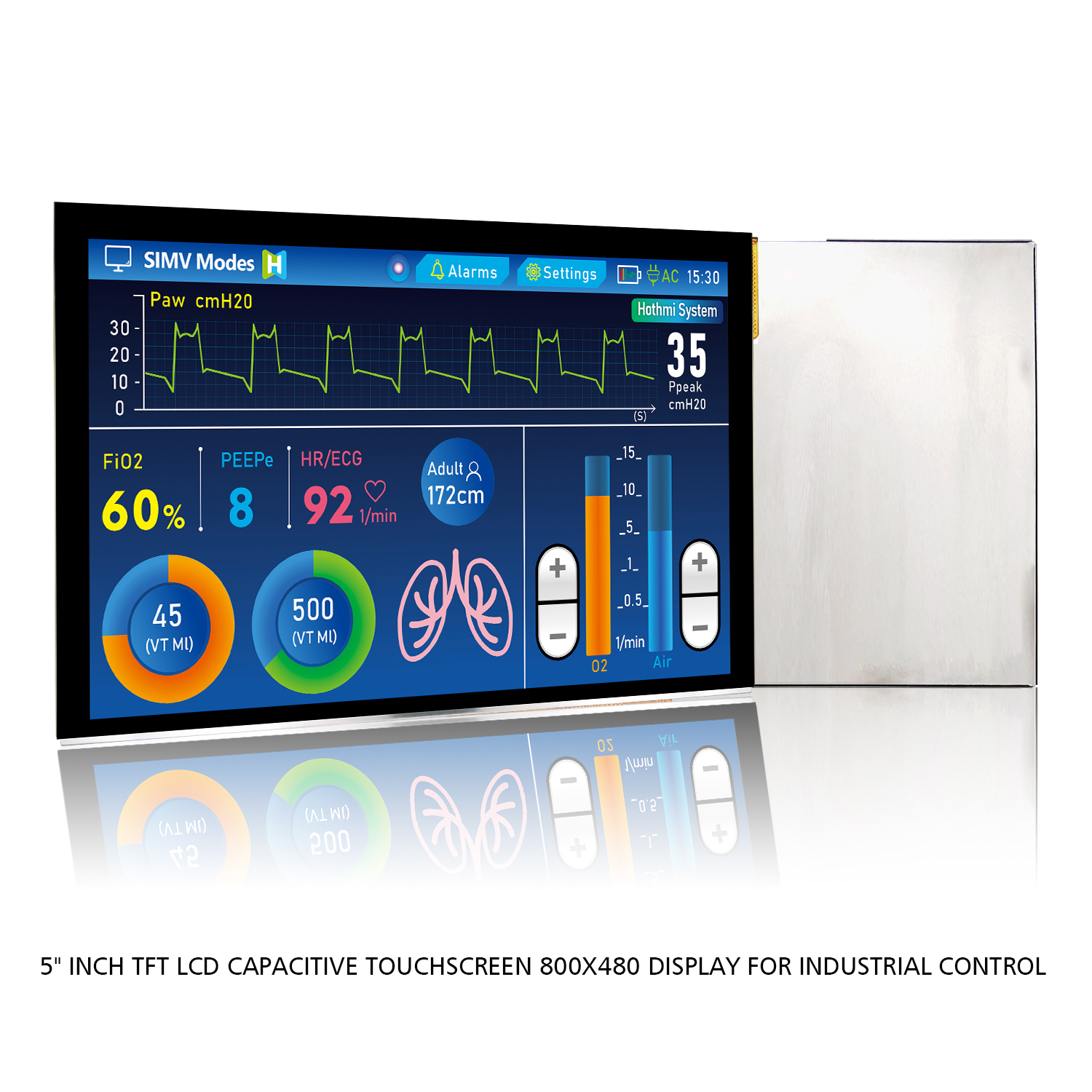

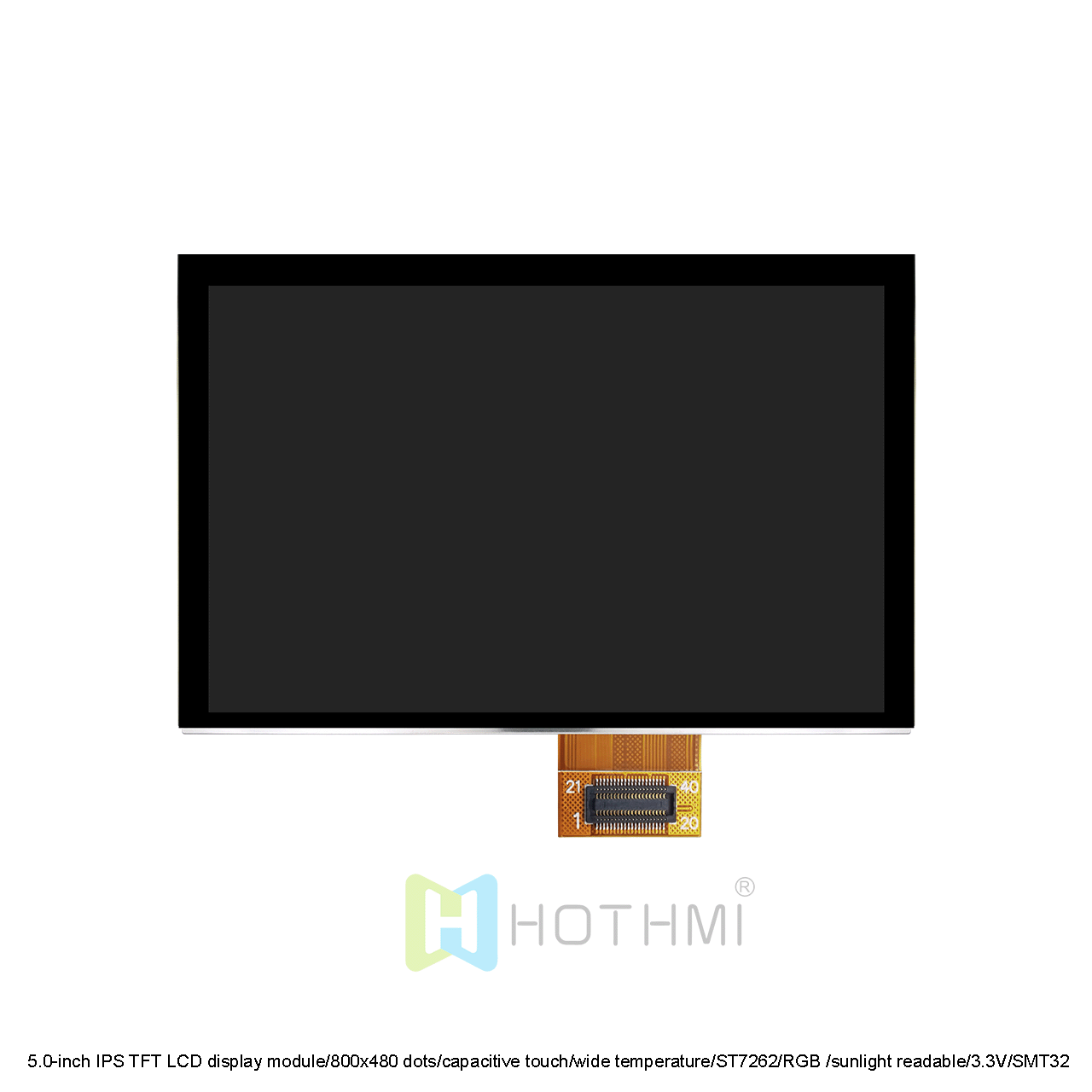

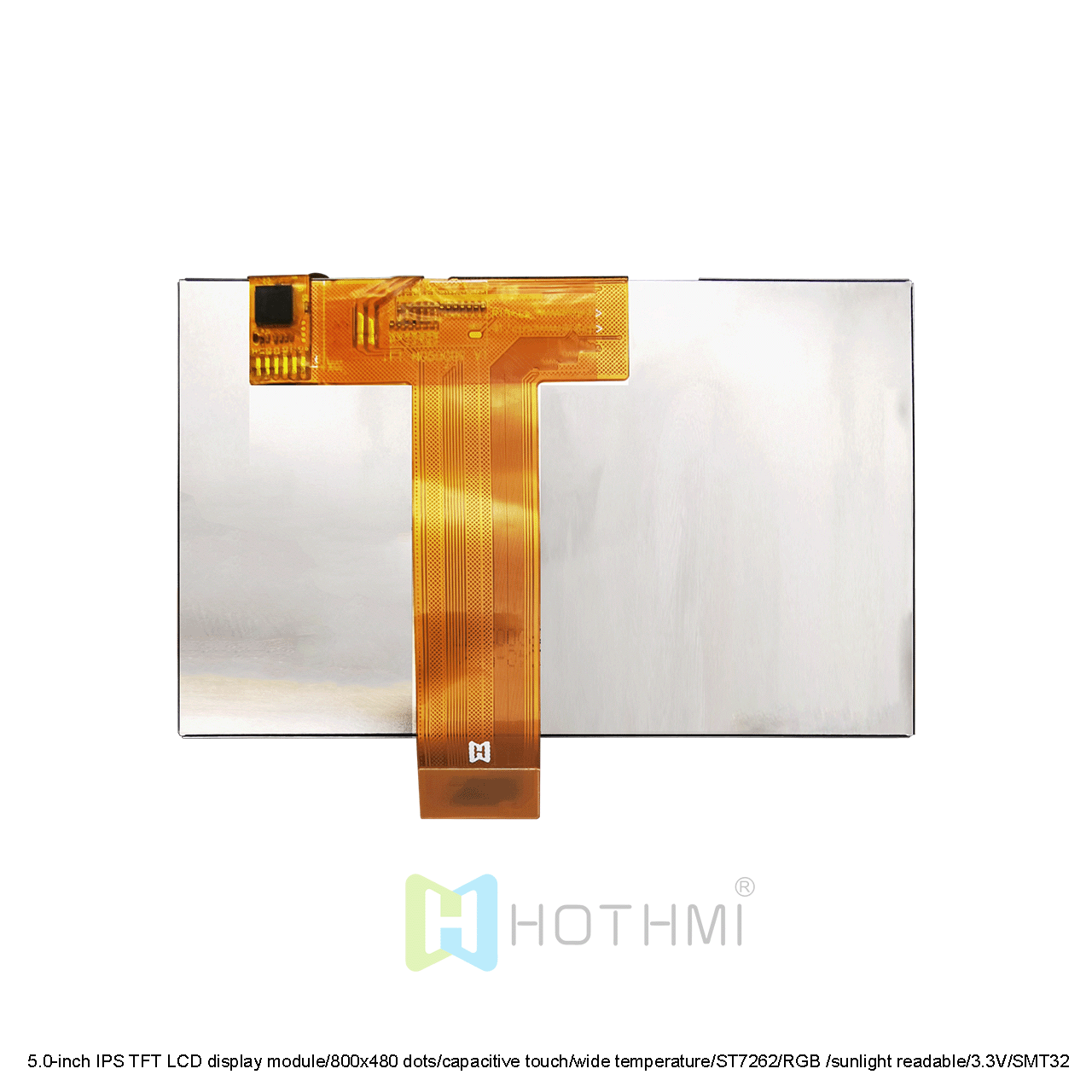

5.0-inch IPS TFT LCD display module/800x480 dots/capacitive touch display/wide temperature/ST7262/RGB interface/high brightness sunlight readable/3.3V/SMT32 compatible

5.0-inch IPS TFT LCD display module/800x480 dots/capacitive touch display/wide temperature/ST7262/RGB interface/high brightness sunlight readable/3.3V/SMT32 compatible

▶ Model: TFT-056T1VGM2N30F

▶ Type: TFT wide temperature horizontal screen
▶ Display pixels: 800x480 dot matrix
▶ Dimensions (mm): 120.7x75.8x4.85
▶ Display inches: 5.0"
▶ Effective size (mm): 108x64.8
▶ Application: industrial control, vehicle-mounted equipment
▶ Viewing angle: IPS (U80/D80/R80/L80)
▶ Brightness: 1000cd/m2
▶ Pin: FPC-40PIN
▶ Interface: RGB
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7262

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes
Download Related Materials

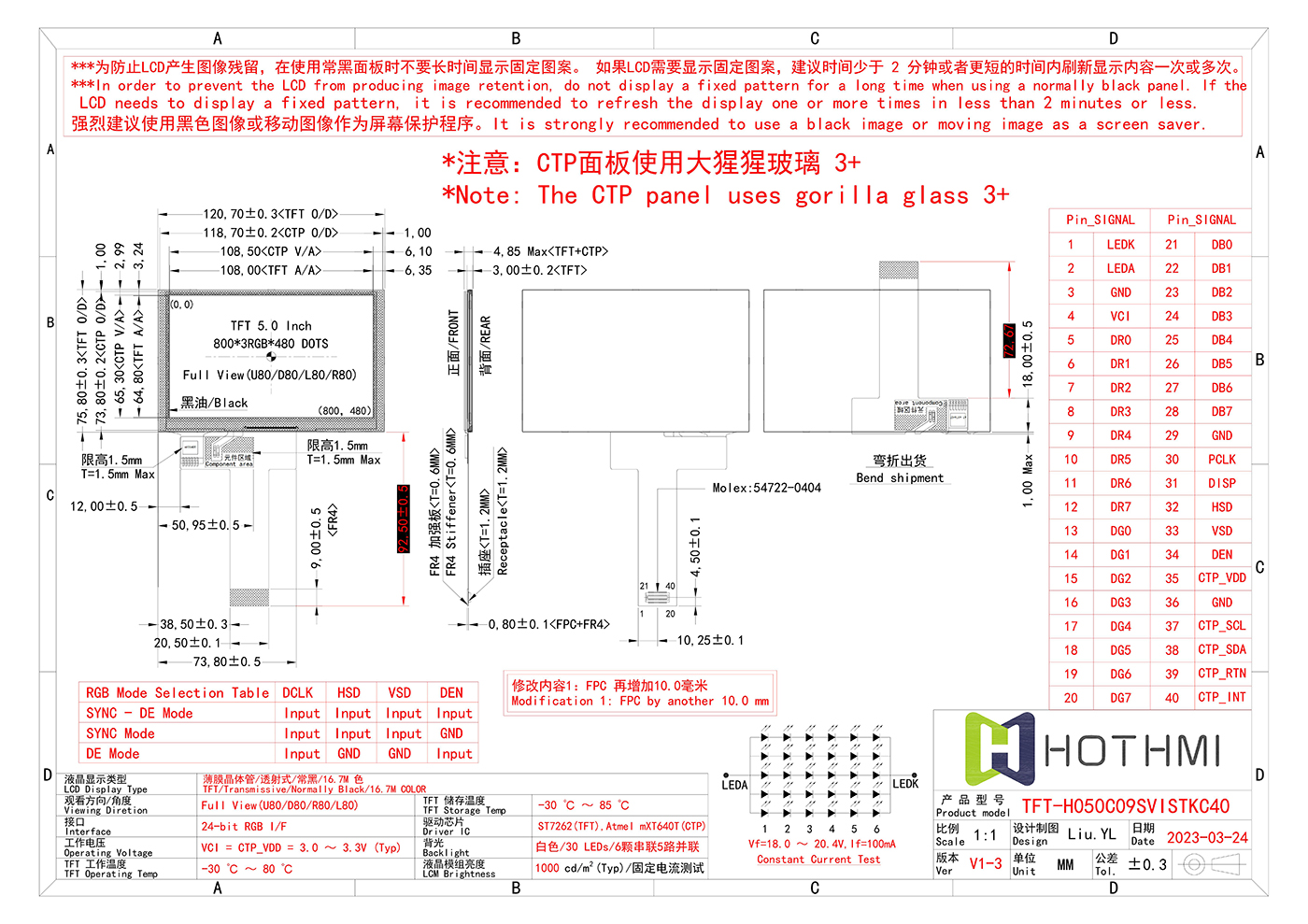

TFT-H050C09SVISTKC40 | 5.0 inch IPS TFT LCD | RGB interface | 800x480 px LCD screen | Capacitive touch / Resistive touch optional | SMT32

This 5.0 inch IPS TFT LCD display features a high resolution of 800x480 pixels and built-in EMI shielding. The TFT includes a high-brightness LED backlight with a typical brightness rating of 1000 nits. Because this LCD has built-in IPS technology, the display has amazing clarity, excellent color reproduction, better image consistency, and high contrast at all viewing angles.

The impressive graphics quality provided by its 3.3V power supply makes it an excellent choice for projects that want high-end visual output without touchscreen functionality. This TFT display is powered by a built-in ST7262 driver IC, Atmel mXT640T(CTP) is a capacitive touch chip. It is compatible with STM32/RK and provides excellent performance and reliability. The driver optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. This LCD monitor uses FFC (Flat Flexible Cable) connection to ensure easy electrical connection. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard wide temperature horizontal screen TFT
Diagonal size	5.0”	Inch
Resolution	800 × RGB × 480 (TFT)	dots
Dimensions	120.7x75.8x4.85	mm
Effective area (AA)	108x64.8	mm
LCD type	TFT, white, transmissive
Display perspective	IPS(U80/D80/L80/R80)
Aspect ratio	3:2
Backlight type	LED, white
TFT driver IC	ST7262
Touch panel	Capacitive touch CTP
Surface	Glossy
Brightness	1000	cd/㎡
Operating temperature	-30~+70	°C
Storage temperature	-30~+80	°C
