3.2"128X64 monochrome graphic LCD module | with yellow-green backlight | STN(+) | 5.0v | parallel interface

3.2"128X64 monochrome graphic LCD module | with yellow-green backlight | STN(+) | 5.0v | parallel interface | Arduino

▶ Model: HTM12864A-01Y-N5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64
▶ Dimensions (mm): 113.0x65.0x12.7
▶ VA size (mm): 72.0x39.5
▶ AA size (mm): 66.52x33.24
▶ Pixel pitch (mm): 0.52x0.52
▶ Application: Industrial control
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow/green light
▶ Pin: 20PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0v
▶ Driver chip: KS0108 +KS0107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM12864A-01Y-A5P | 128X64 Monochrome Graphic LCD Module | With Yellow-Green Backlight | STN(+) | 5.0v | Parallel Interface | Arduino

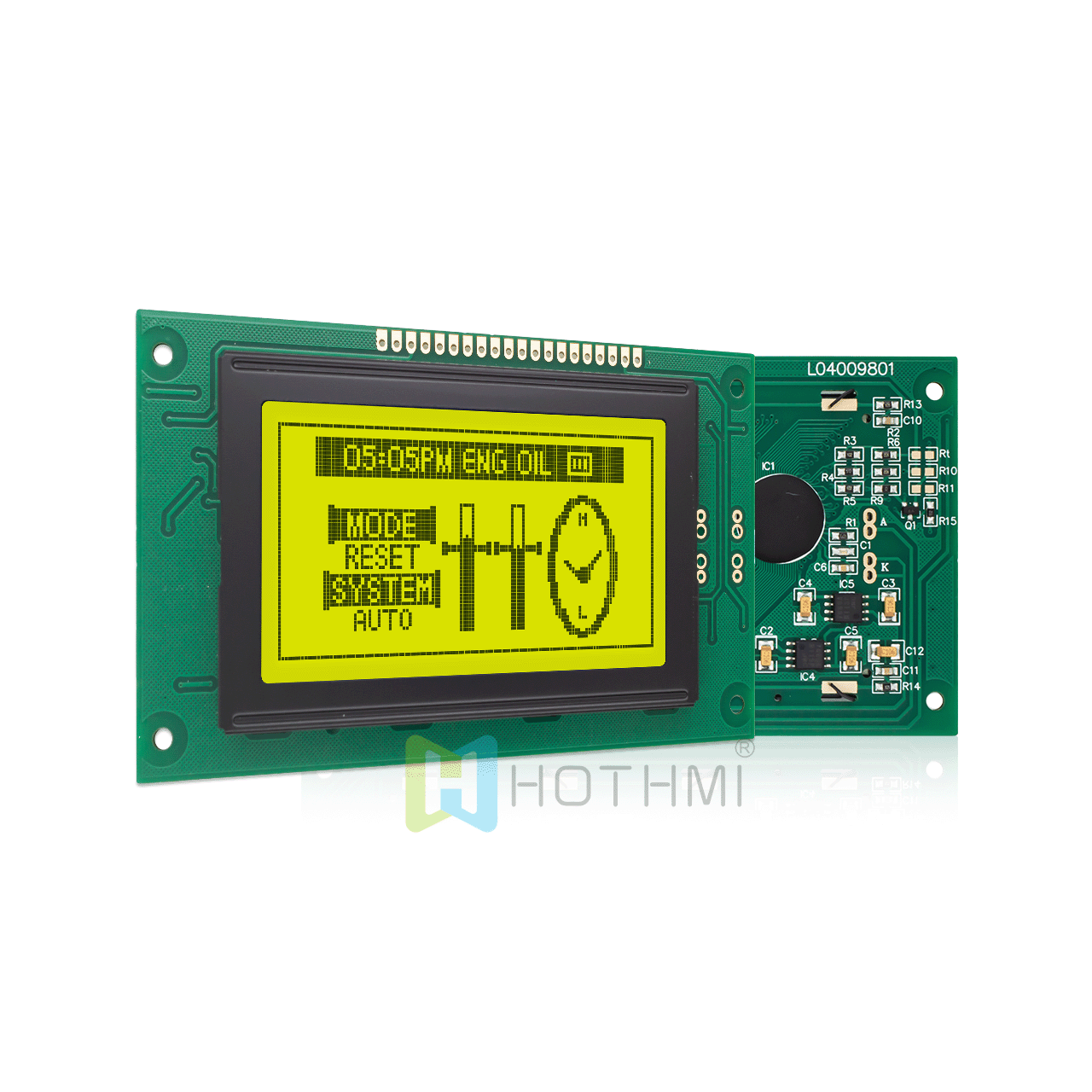

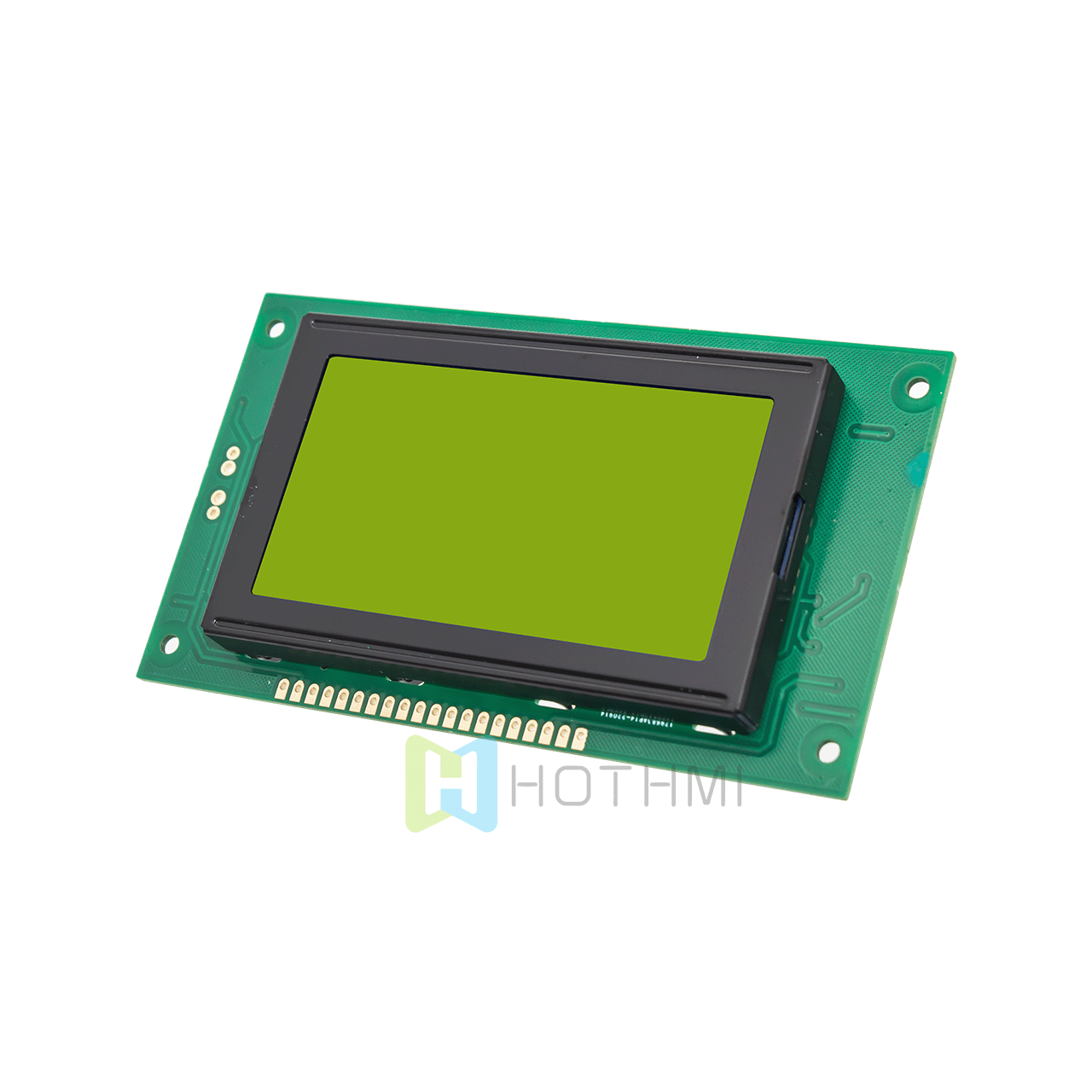

This 128x64 LCD Graphic Display Module displays black pixels on a bright yellow-green background. This transferable LCD display is designed to provide ideal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD screen has a powerful built-in backlight to provide high contrast and display bright graphics for the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This LCD display graphic module is fully compatible with Arduino and can be perfectly connected to other electronic systems for a wide range of applications. The HTM12864-01Y-A5P is designed to withstand harsh operating conditions and has an operating temperature of -20 degrees Celsius to +70 degrees Celsius

item	Specification content	unit
Model	HTM12864A-01Y-A5P
Column× Line	128 Column × 64rows	dots

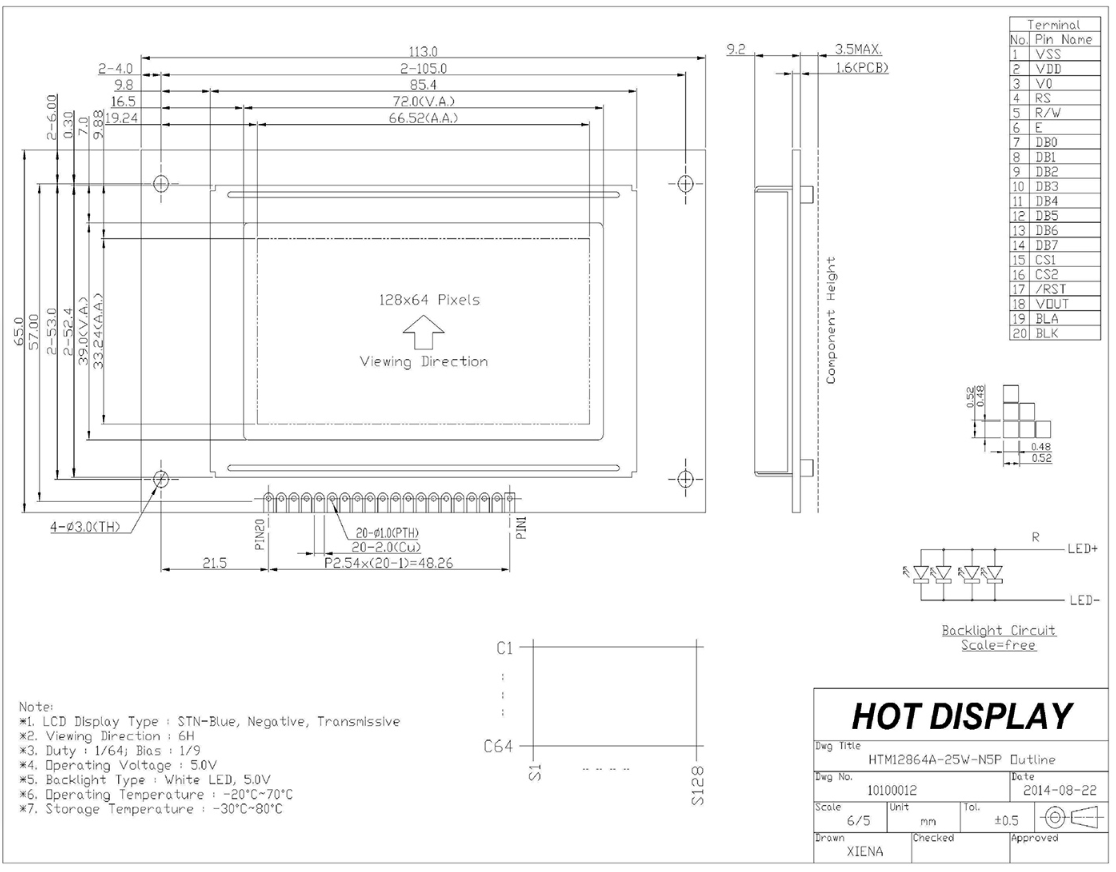

Module Size	113.0 x 65 x 12.7 (MAX)	mm
Visual (VA) Area	72.0 x 39.5	mm
Active (AA) Area	66.52 x 33.24	mm
Pixel (Pixel) Pitch	0.52 x 0.52	mm
IC	K0108+K0107 or compatible
Power Supply Voltage	5V	V
Backlight	Yellow/green
Mode	STN(+)
Drive Mode (Duty)	1/64 duty cycle
Type	Graphic LCD Module
Features	Transflective polarizing film
