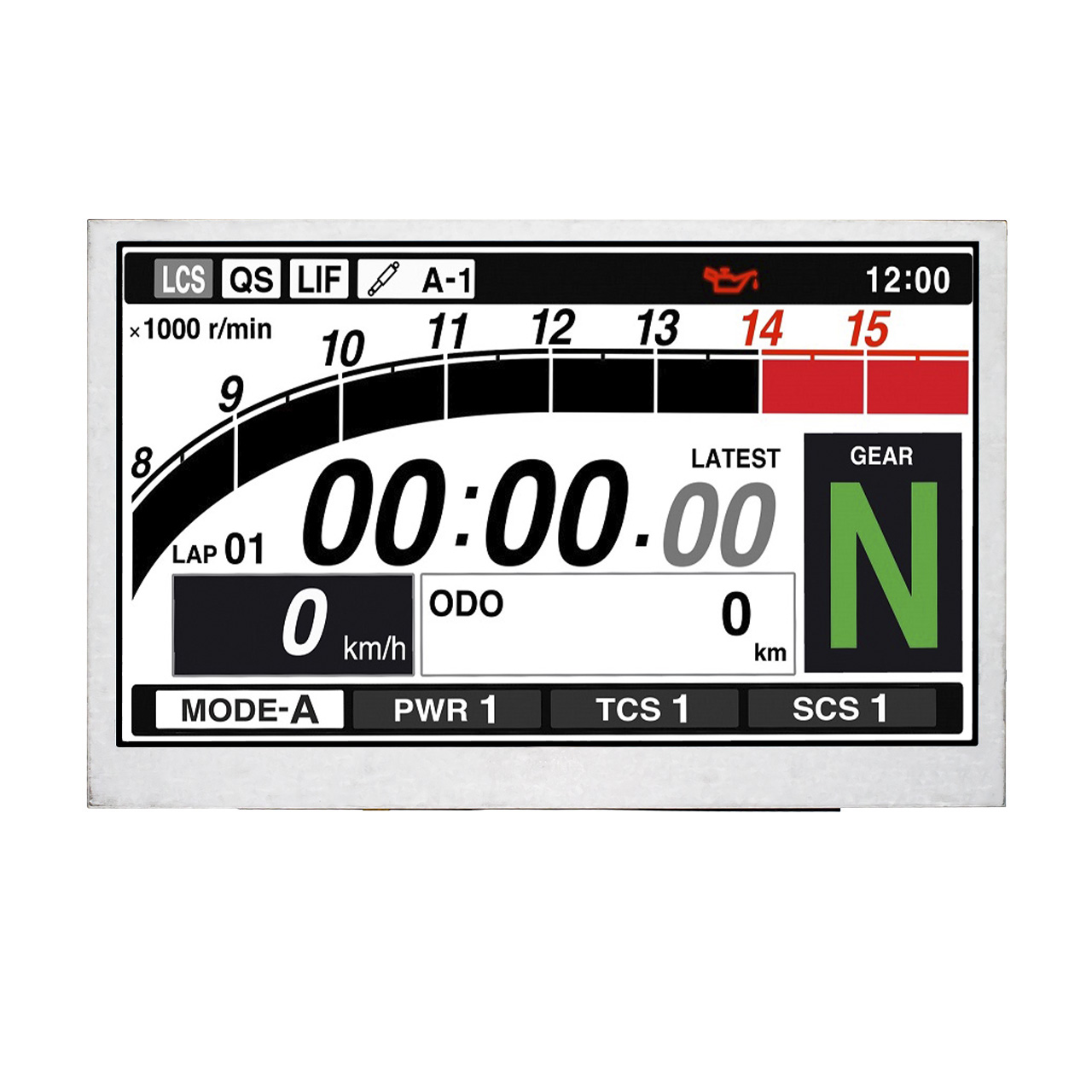

5.0 inch TFT display | 480x272 IPS TFT LCD Panel | SPI-QSPI-MCU interface TFT compatible with ultra-high brightness TFT | NV3041
TFT-H050A19WQINVKN22 is a 5.0 inch TFT LCD display module with a normally black mode design, a resolution of 480×272 pixels, and a color gamut coverage of NTSC 60%. It can present high-contrast clear images and is suitable for industrial control, smart devices, medical instruments and other fields. The module has outstanding core features. In terms of display performance, the brightness can reach 800 cd/m² (constant current drive test), and it supports a wide operating temperature environment of -30℃ to +80℃, ensuring stable operation under extreme temperatures; in terms of color performance, the NTSC 60% color gamut coverage makes the picture color rich and the visual effect excellent. In terms of electrical parameters, it adopts a 3.3V ±0.3V low-power design and is equipped with an NV3041 TFT driver chip to achieve accurate display.

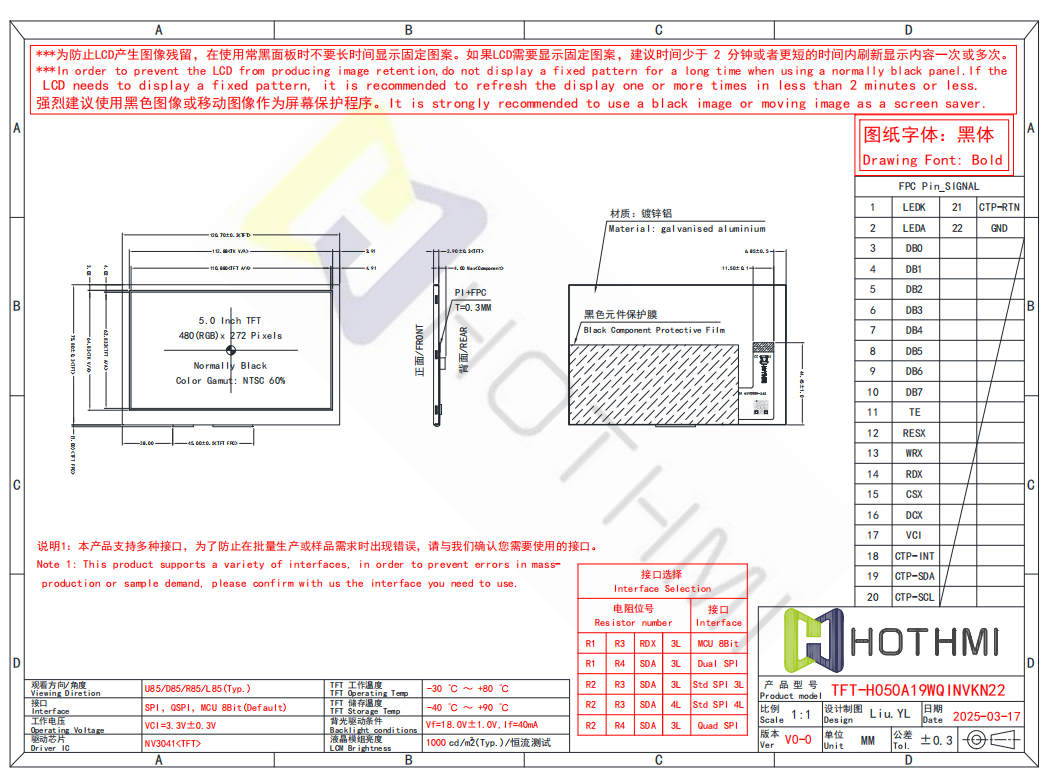

This 5.0-inch TFT display has flexible interface configuration, supports MCU 8Bit interface by default, and can also switch to SPI or QSPI mode by adjusting the resistor position number (such as R1/R2/R3). Users need to confirm the interface type with the manufacturer before mass production to avoid compatibility issues. The structural design uses a 0.3mm thick galvanized aluminum alloy shell, which is both lightweight and corrosion-resistant. The size tolerance of key components is controlled within ±0.3mm to ensure assembly consistency.
In terms of usage suggestions, in order to avoid image retention, it is recommended that the static screen display time does not exceed 2 minutes, and it is recommended to use a black background or dynamic screen saver; the module storage temperature range is -40℃ to +90℃, which can adapt to harsh environmental requirements. The backlight design uses a black component protection film to further improve contrast and durability. It should be noted that the interface configuration must strictly refer to the resistor position number description in the document, or contact technical support for confirmation; the touch module (CTP) and TFT size tolerances are marked separately, and attention should be paid to matching during installation.
This 5.0-inch TFT display module has an ultra-high brightness of 1000cd/m2 and is readable in sunlight. In the same series of products, we also provide a version with content touch TFT-H050A19WQINV8C22. It is mainly used in industrial HMI interfaces, portable instruments, smart home control panels and other scenarios. Its high brightness and wide temperature, flexible configuration of multiple interfaces, lightweight corrosion-resistant structure and anti-residual image design can meet the reliable display needs in various scenarios.
