▶ Model: HTM1604B-11W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 4x16 characters

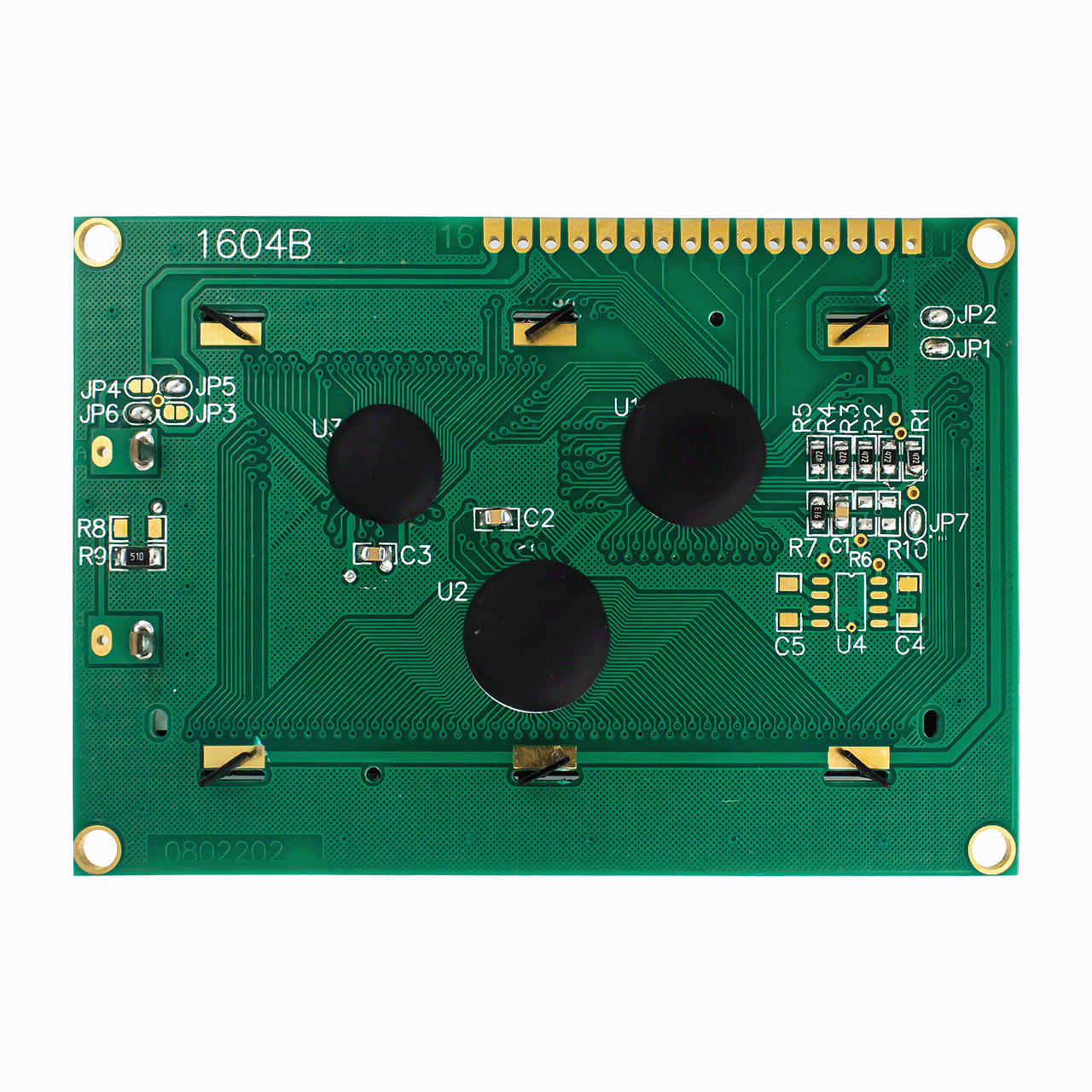

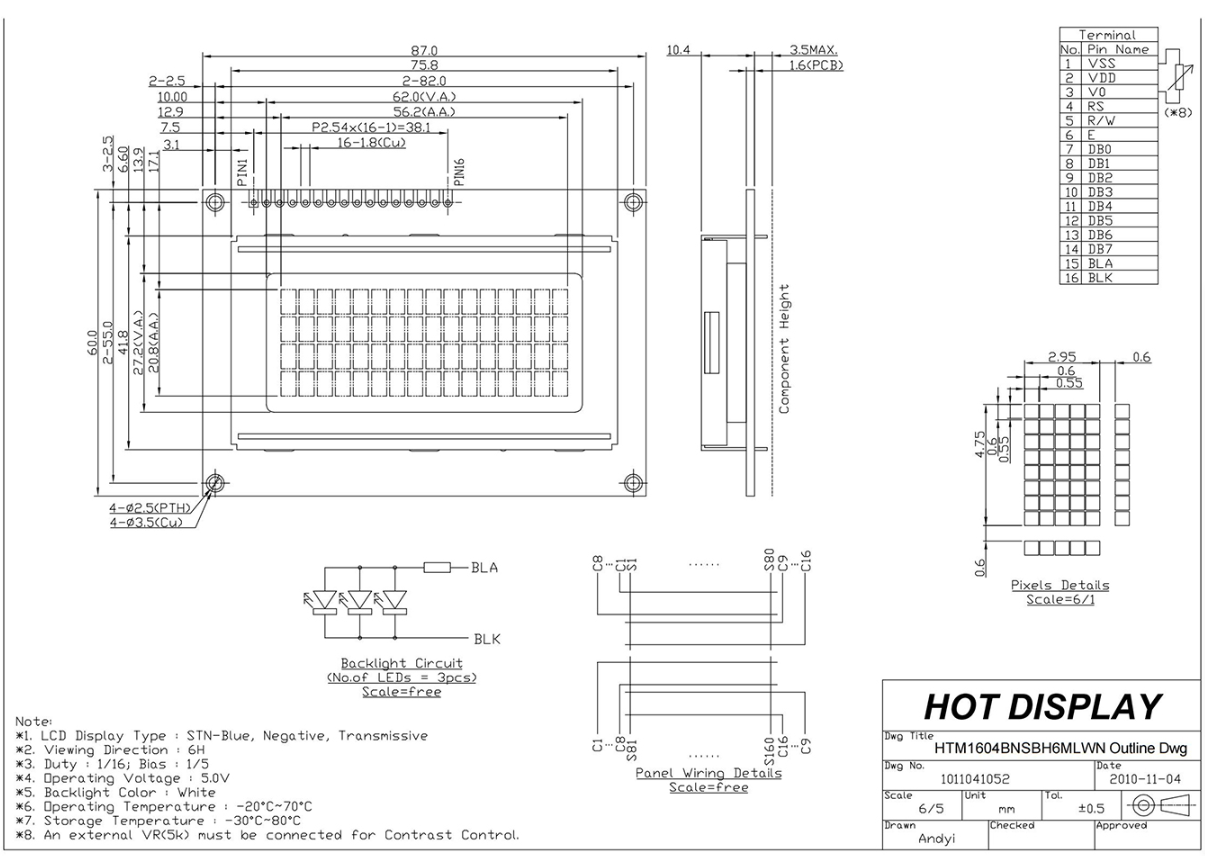

▶ Overall dimensions (mm): 87x60x10.4
▶ VA size (mm): 62x27.2
▶ AA size (mm): 56.2x20.8
▶ Point spacing mm: 0.6x0.6
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight: white
▶ Connection method PIN number: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

4x16 character LCD | STN(+) white side-backlit monochrome display | Arduino | MCU interface | ST7066U controller | Transflective

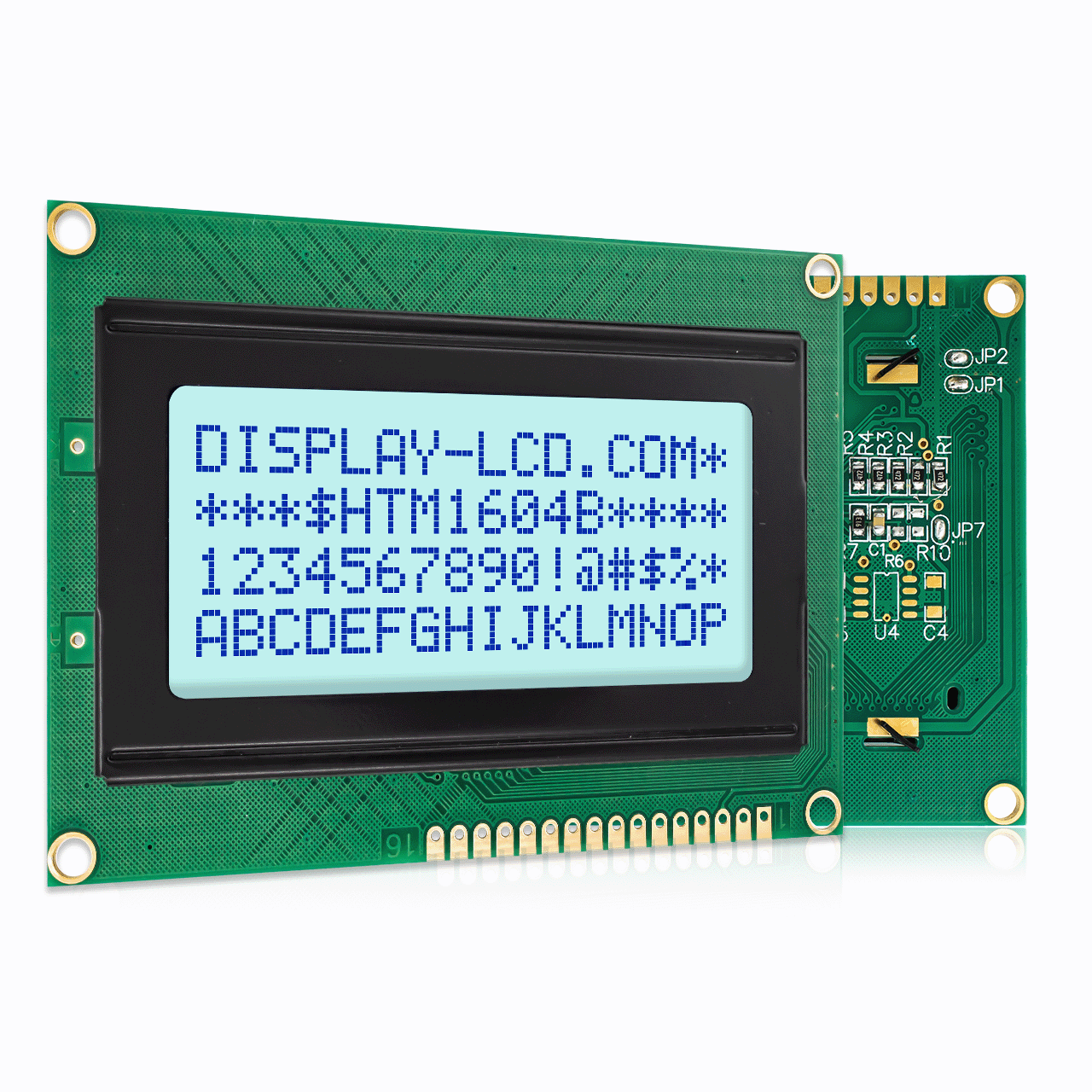

HOT DISPLAY HTM1604B-11W-A5P is a 16-character wide, 4-line character LCD module, dark blue text on gray, wide operating temperature range, compliant with Rohs standards, built-in character set supports English, Russian text, for the complete character set, please refer to ST7066U data sheet. Choice of pin header connections, 5V or 3.3V power supply, and arduino adapter board.

It can be easily controlled through 8051, ARDUINO, and other MCUs. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

parameter	Specification content	Unit
model	HTM1604B-11W-A5P
resolution	16 words × 4 lines	dots
Module size	87.0（W） × 60.0（H） × 10.4 （D）mm	mm
Visual (VA) area	62x27.2mm	mm
Valid (AA) area	56.2x20.8	mm
Pixel pitch	0.60 × 0.60	mm
IC	ST7066U
Applied voltage	5.0V	V
backlight	white
display mode	STN positive
Drive mode	1/16 duty cycle
product type	Character LCD
characteristic	Semi Transflective polarizer
