character LCD modules |2x20 s transmissive LCD display Module | red green blue LED backlight | FSTN (+) front display

character LCD modules |2x20 s transmissive LCD display Module | red green blue LED backlight | FSTN (+) front display | st7066u controller

▶ Model: HTM2002B-35S-A5P

▶ Type: character LCD modules
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: red/green/blue backlight
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

character LCD modules |2x20 s transmissive LCD display Module | red green blue LED backlight | FSTN (+) front display | st7066u controller

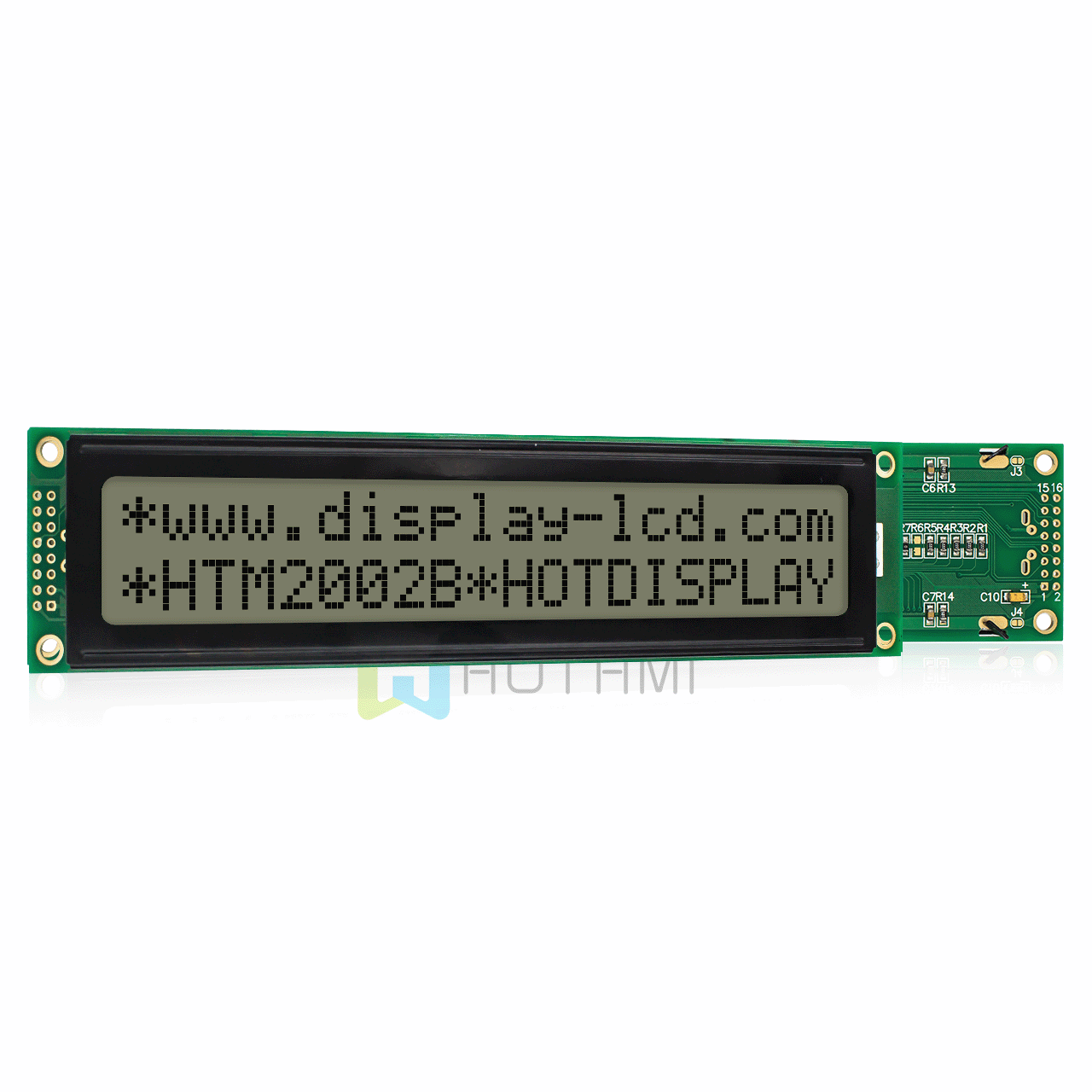

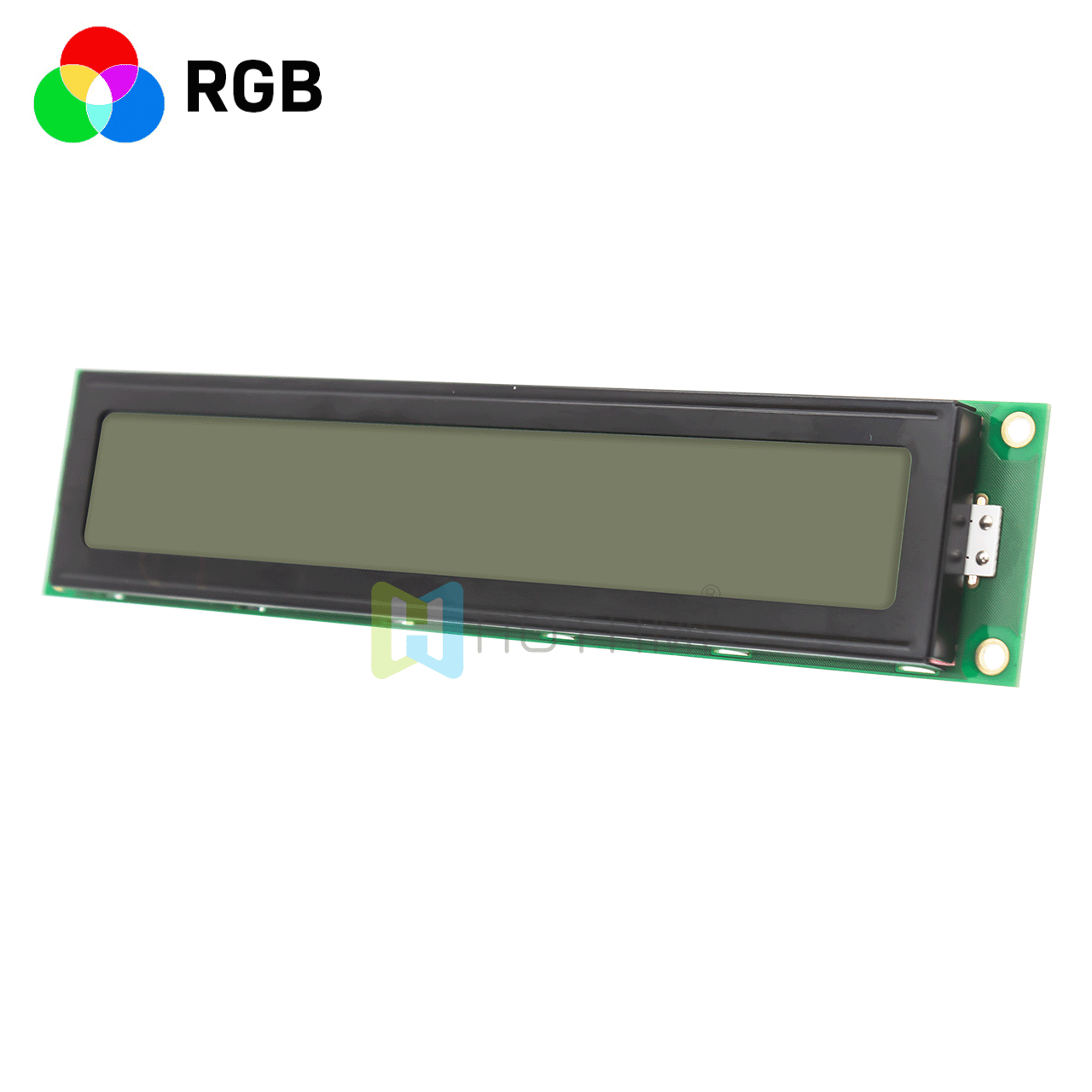

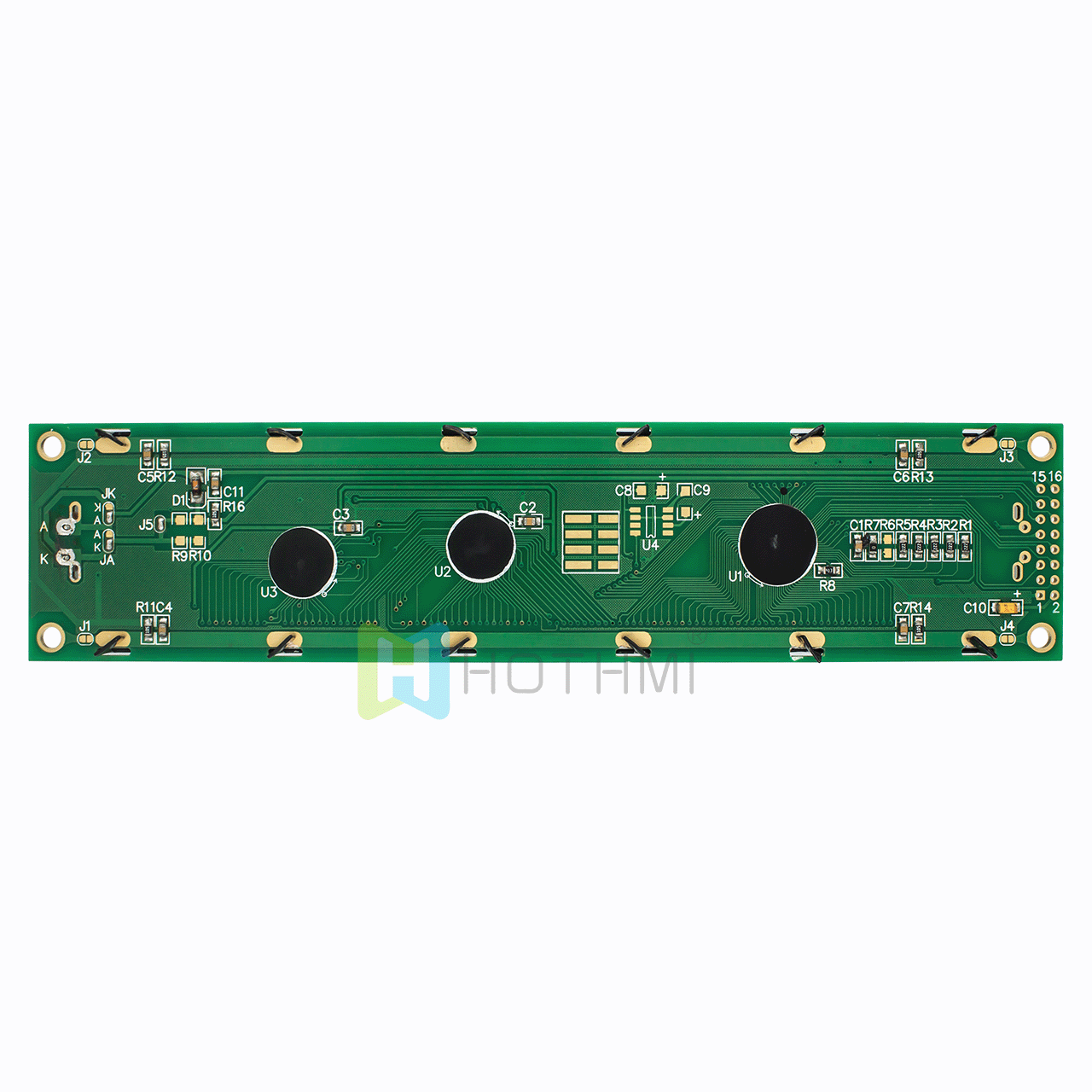

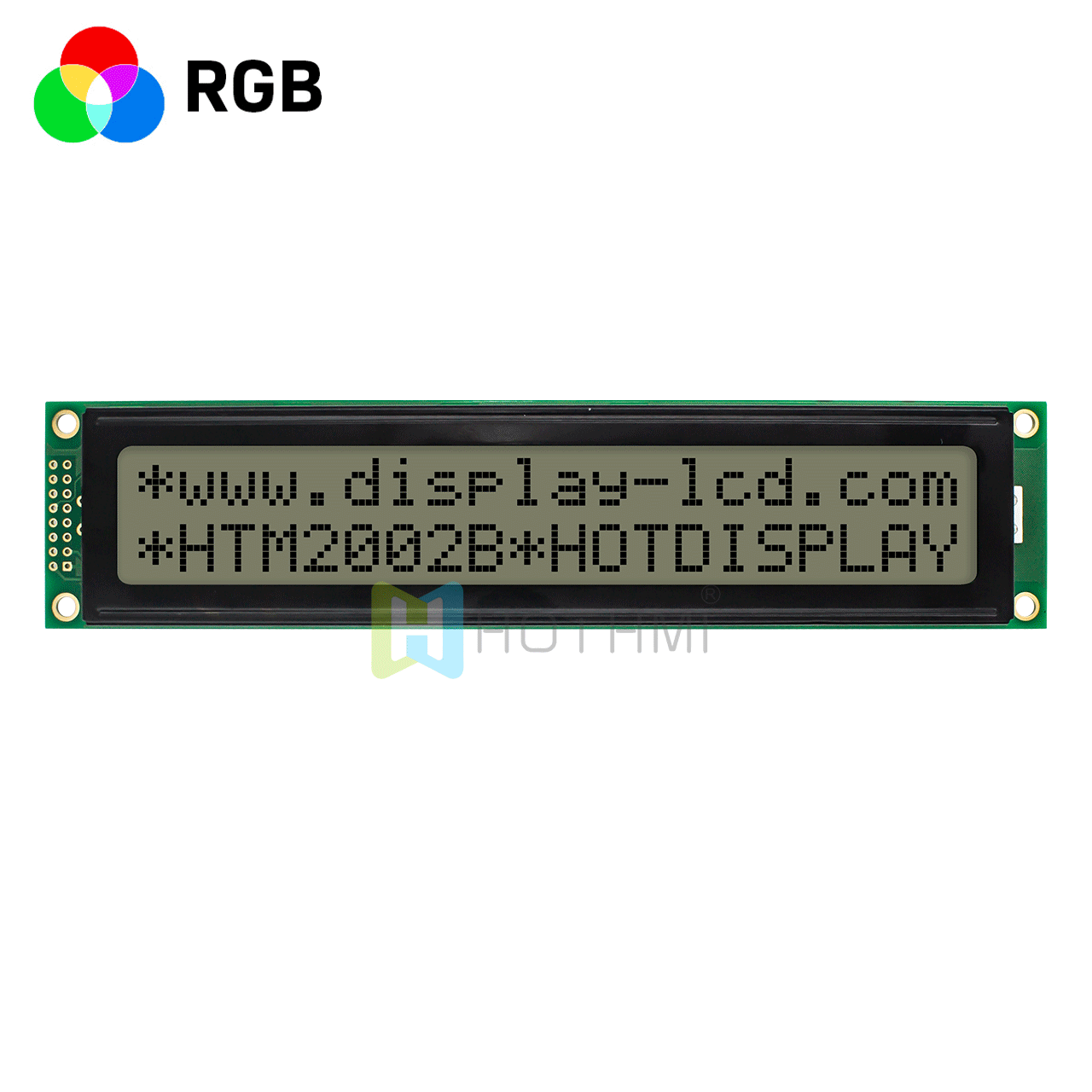

The character LCD modules 2x20 LCD display can display up to 40 characters divided into two lines, with each line displaying 16 dark pixel characters on a light gray background. RGB displays have three backlight colors built into each display, allowing you to choose from red, green, or blue backlight colors. You can also mix the intensities of these colors to create new custom colors.
This transflective LCD display ensures excellent visibility in ambient or low-light conditions with built-in LED backlighting. It has a wide operating temperature range of -20 to 70 degrees Celsius. This Arduino compatible HTM2002B-35S-A5P display is best viewed at 6:00. The monitor operates on a 5V supply voltage and is RoHS compliant

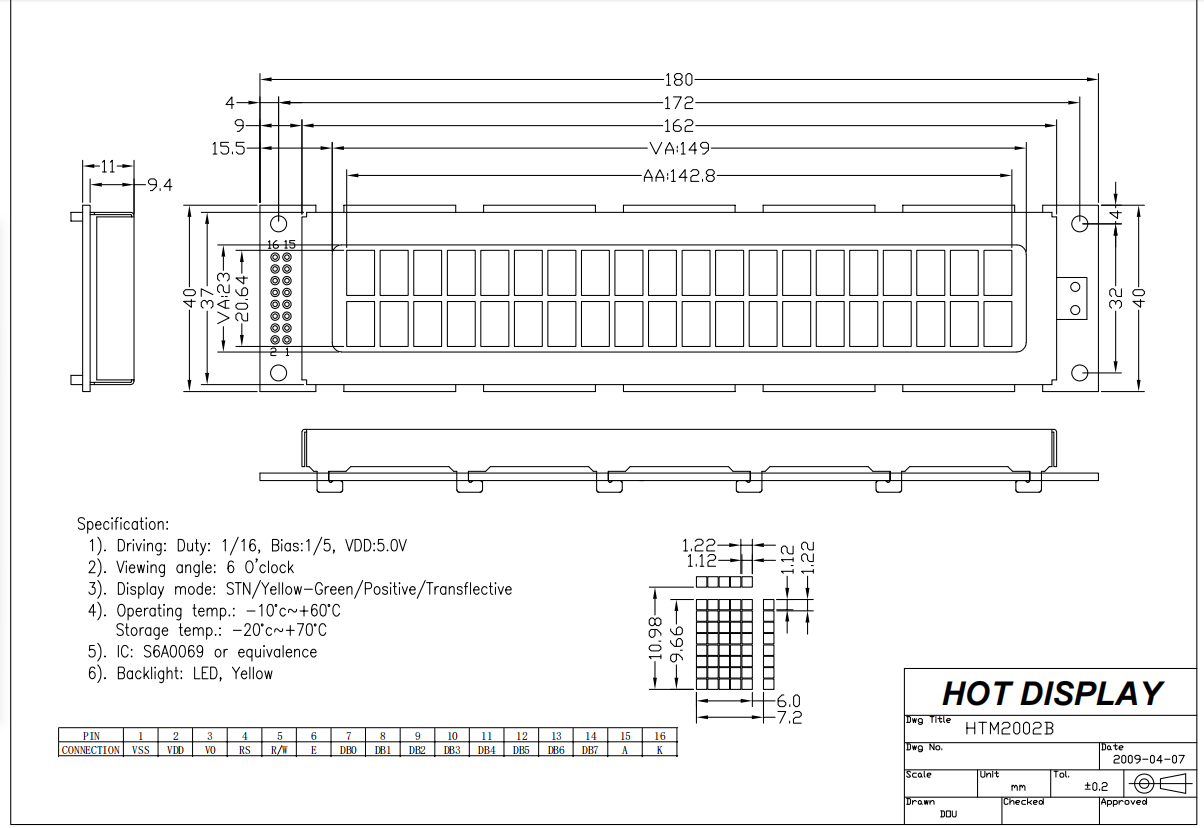

Item	Parameter Description	Unit
name	HTM2002B-35S-A5P
Number of dots	20Words × 2lines	dots
Module size	180.0 × 40.0 × 11.0 (MAX)	mm
Visual (VA) area	149.0（W） × 23.0（H）	mm
Valid (AA) area	142.8（W） × 20.64（H）	mm
Point (pixel) spacing	1.22 × 1.22mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	Yellow/green backlight
display mode	FSTN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Total Transflective
