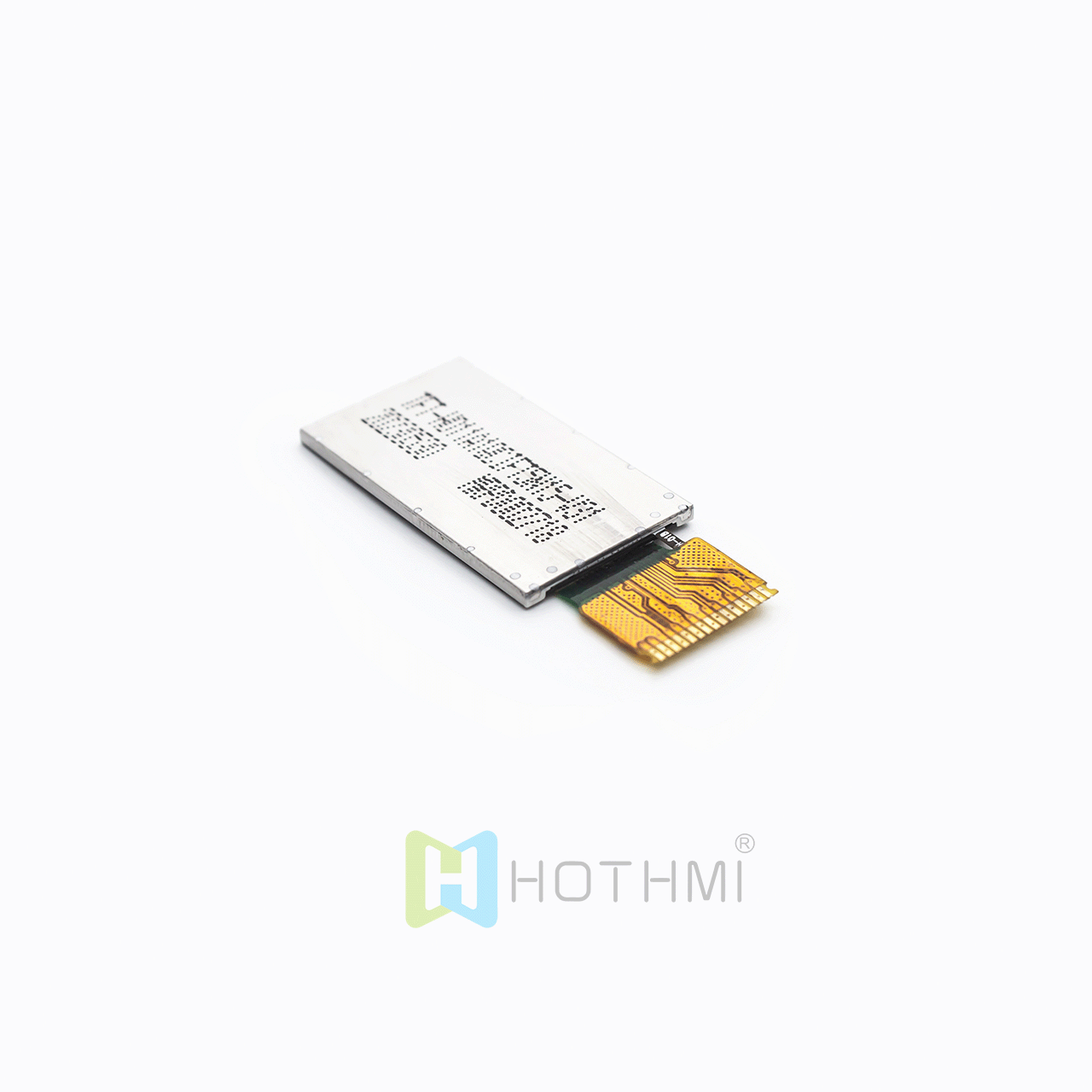

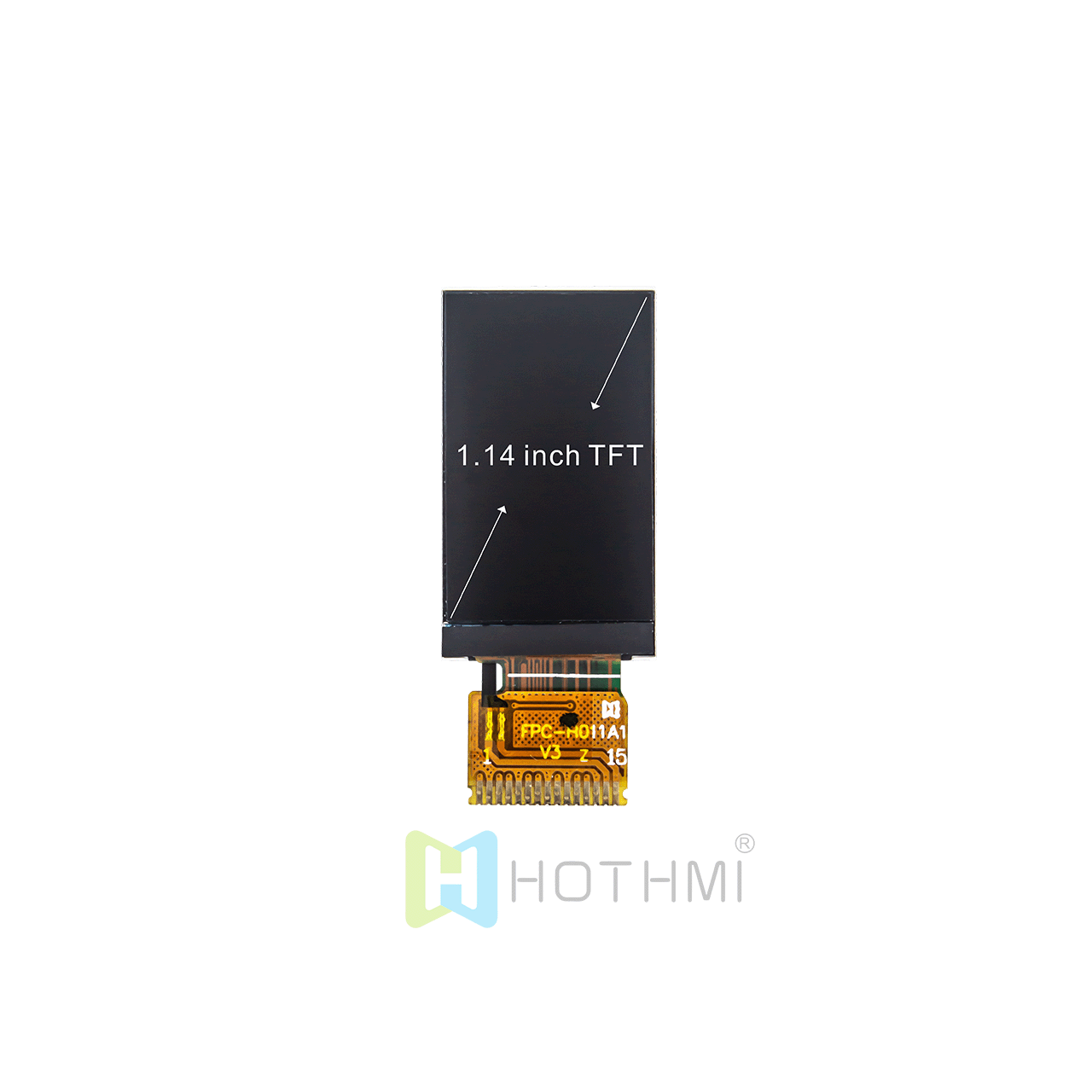

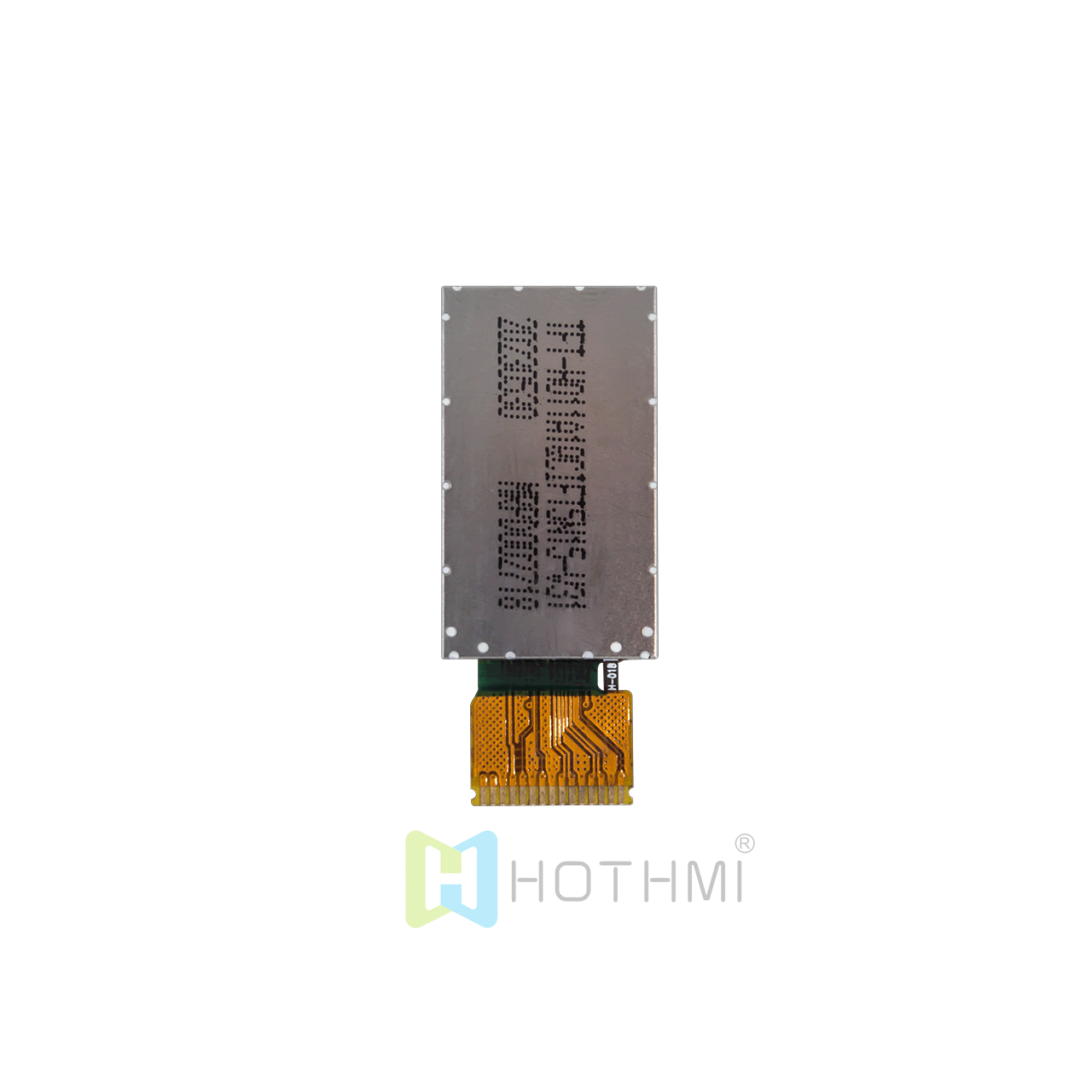

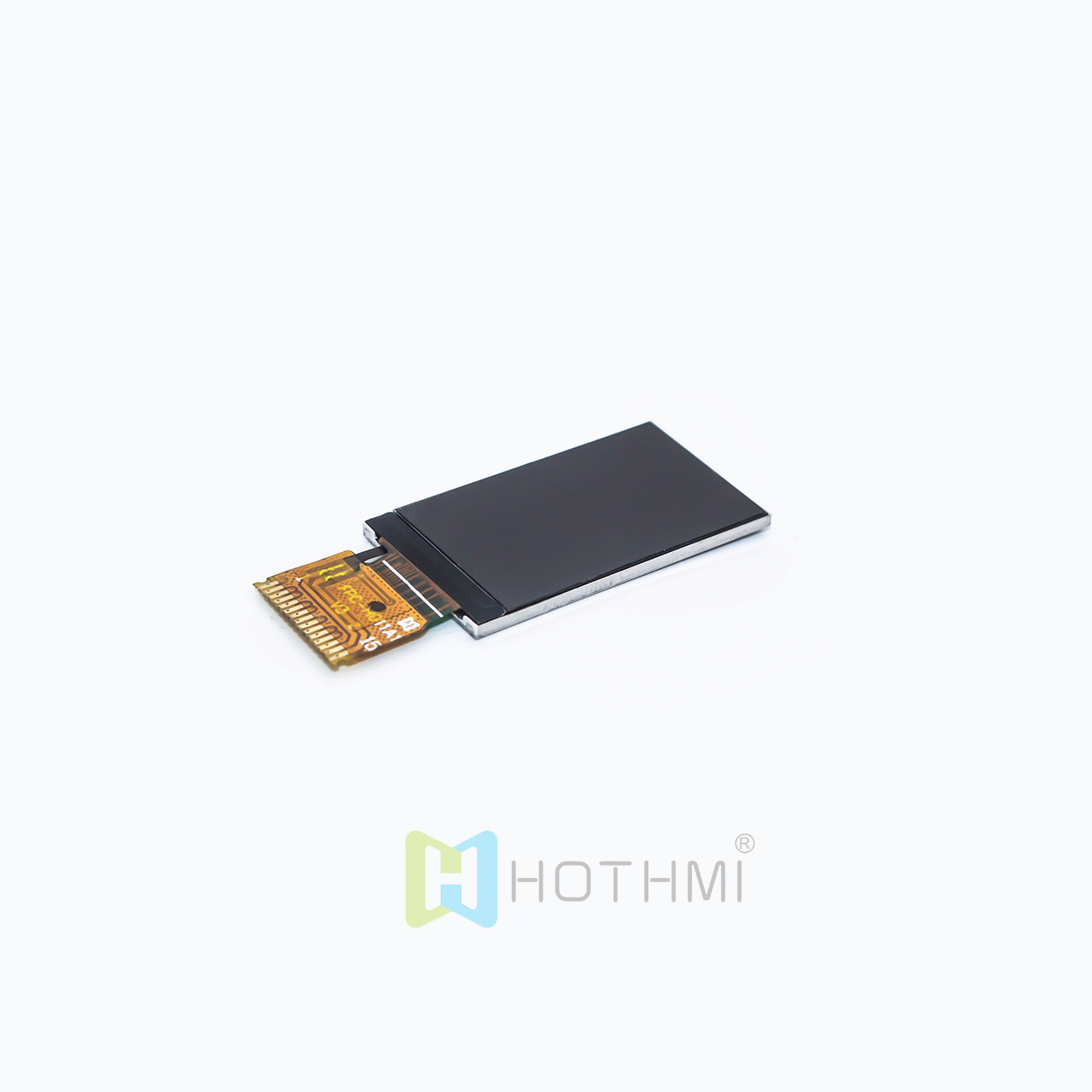

1.14-inch bar TFT LCD display module/IPS full viewing angle/135x240 dot matrix/MIPI DSI/JD9852/readable in sunlight/compatible with Android motherboard/RK motherboard

1.14-inch bar TFT LCD display module/IPS full viewing angle/135x240 dot matrix/MIPI DSI/JD9852/readable in sunlight/compatible with Android motherboard/RK motherboard

▶ Model: TFT-H011A1QCIFT5N15

▶ Type: TFT bar display
▶ Display pixels: 135x240 dot matrix

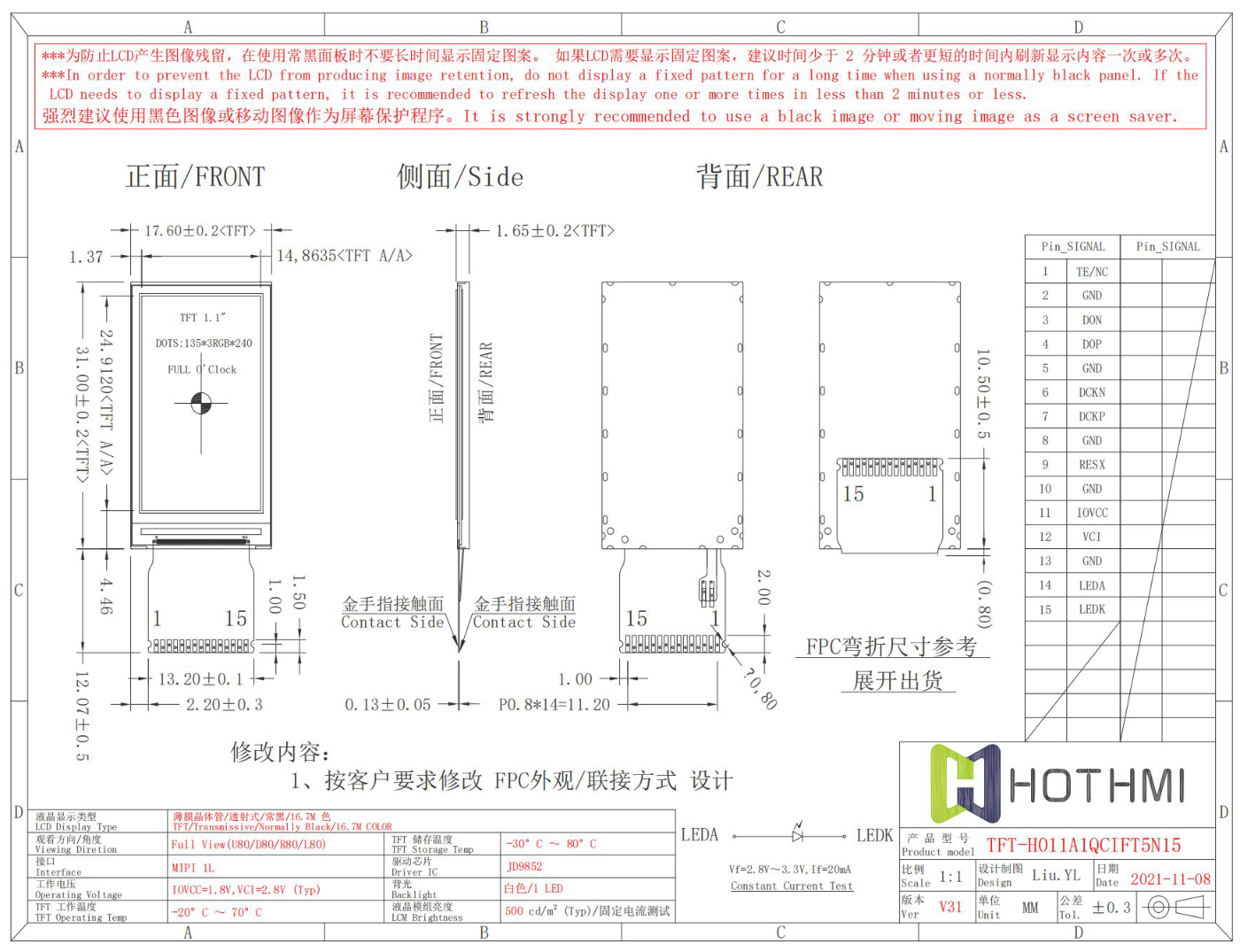

▶ Dimensions (mm): 17.60x31.0x1.65
▶ Display inches: 1.14"
▶ Effective size (mm): 14.8635x24.9120
▶ Application: smart home appliances
▶ Viewing angle: IPS (U80/D80/L80/R80)
▶ Brightness: 500cd/m2
▶ Pin: FPC-15PIN
▶ Interface: MIPI
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 2.8V
▶ Driver chip: JD9852

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H011A1QCIFT5N15 | 1.14-inch IPS TFT bar LCD screen | MIPI interface | 135x240 dot matrix LCD screen | optional capacitive touch / resistive touch | compatible with Android motherboard / RK motherboard | IPS

TFT-H011A1QCIFT5N15 is a 1.14-inch IPS TFT bar LCD screen with a resolution of 135x240, built-in JD9852 controller, optional touch screen, high picture quality, IPS wide viewing angle, MIPI interface, 65K/262K true color, FPC connection (optional connector), 1.8V~2.8V voltage, and supports vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi, Android motherboard, RK motherboard and other single-chip development platforms.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	Standard TFT
Diagonal size	1.14”	Inch
Resolution	135 × RGB × 240 (TFT)	dots
Dimensions	17.60x31.0x1.65	mm
Effective area (AA)	14.8635x24.9120	mm
LCD type	Strip TFT
Display perspective	80/80/80/80 (IPS)
Aspect ratio	3:5
Backlight type	LED, white
TFT driver IC	JD9852
Touch panel	None
Surface	Glossy
Brightness	500	cd/㎡
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
