4X20 monochrome character LCD display / STN+ gray display / with yellow-green backlight / Arduino display / transflective LCD display / 5.0v

4X20 monochrome character LCD display / STN+ gray display / with yellow-green backlight / Arduino display / transflective LCD display / 5.0v

▶ Model: HTM-2004-2-11Y-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 20x4 characters

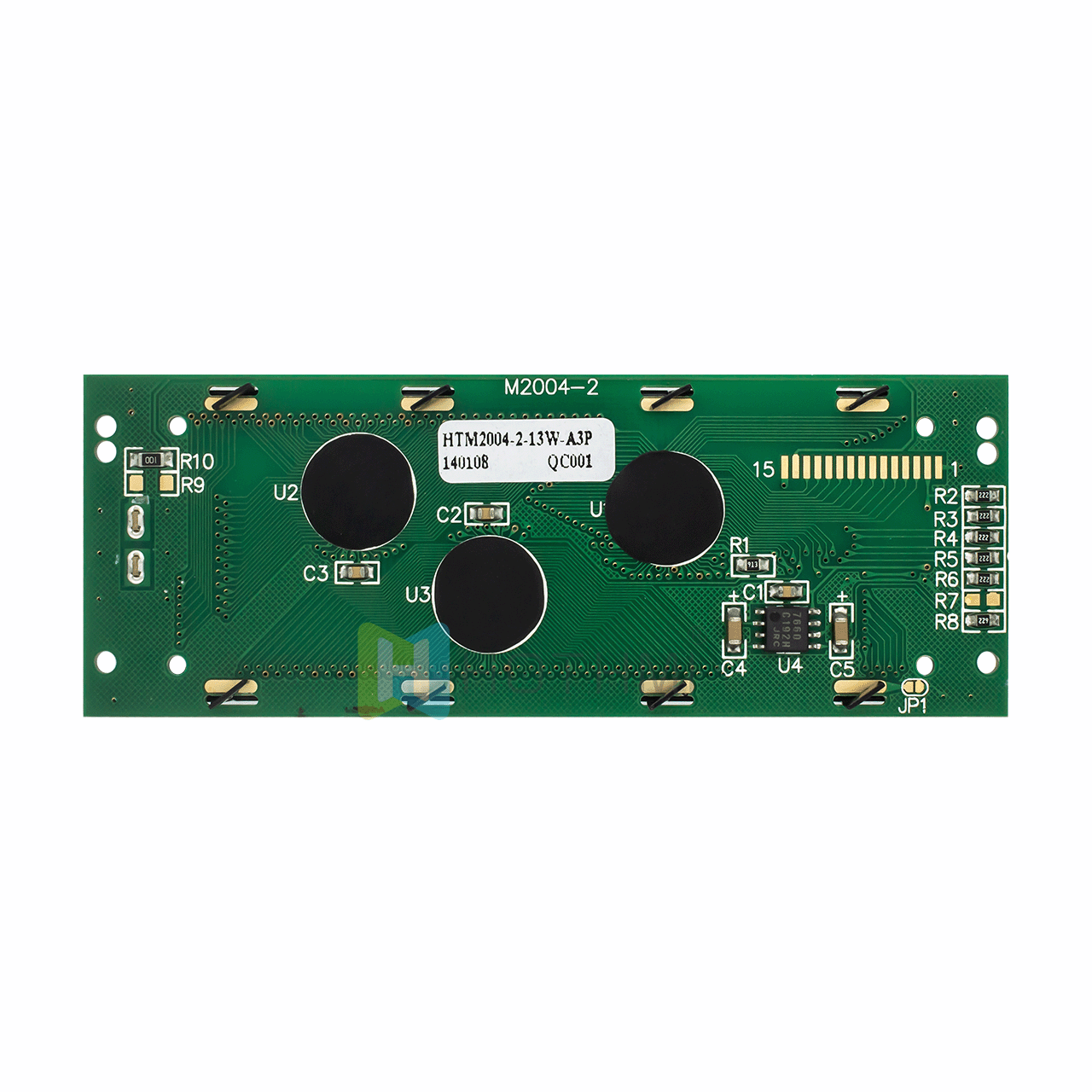

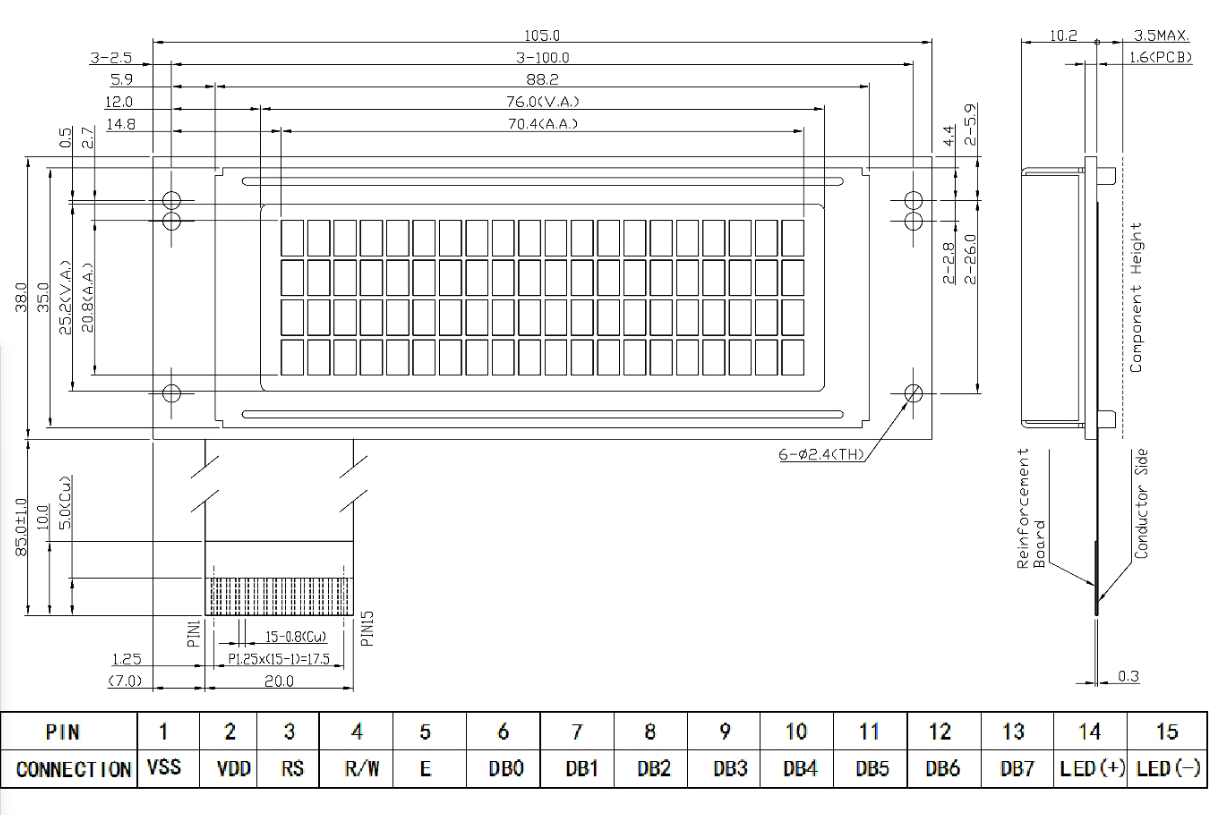

▶ Overall dimensions (mm): 105.0x38.0x10.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.60x0.60
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/white light
▶ Number of PINs: 15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM-2004-2-11Y-A5P/4X20 Monochrome Character LCD/STN+Gray Display/With Yellow-Green Backlight/Arduino Display/Transflective LCD/5.0v

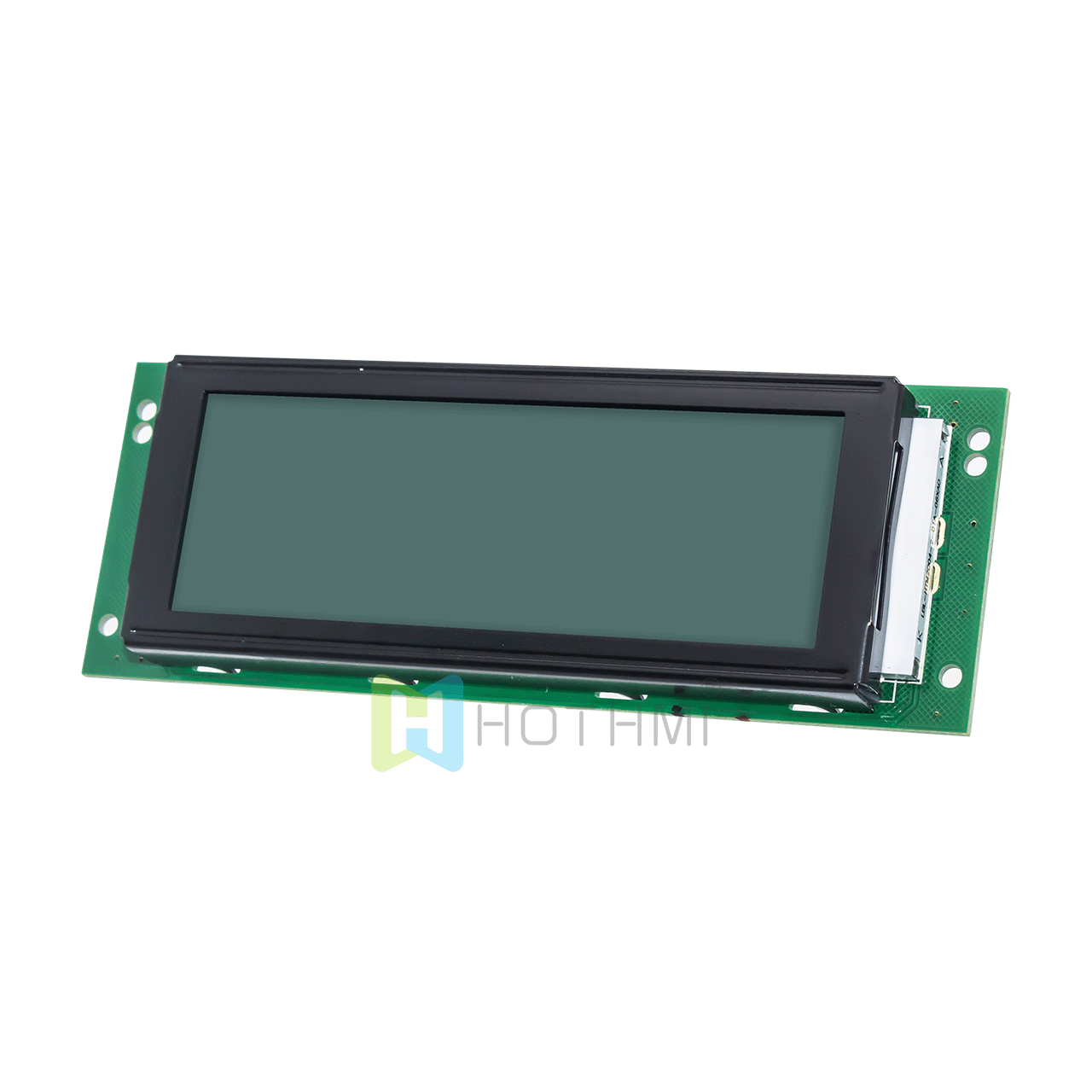

HOT Display's 20x4 character LCD displays dark pixel characters on a bright yellow/green background. This transflective display is visible in natural light environments or when using a backlight in low light conditions. It offers a wide operating temperature range from -20 to 70 degrees Celsius. This HTM - 2004 - 2 - 11Y - A5P display has an optimal viewing angle of 6:00 and operates at 3.3V or 5.0V. This premium LCD is also compatible with Arduino and other development boards, making it a top choice for hobbyists and developers.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

parameter	Specifications	unit
Model	HTM-2004-2-11Y-A5P
Resolution	20 words × 4lines	dots
Module size	105.0（W） × 38.0（H） × 10.2 （D）mm	mm
Viewable (VA) area	76.0 × 25.8mm	mm
Active (AA) area	70.4 × 20.8	mm
Pixel pitch	0.60 × 0.6	mm
IC	ST7066U
Applied voltage	5.0V	V
Backlight	Yellow/green backlight
Display mode	STN+
Drive mode	1/16 duty cycle
Product type	Character LCD
Features	Transflective
