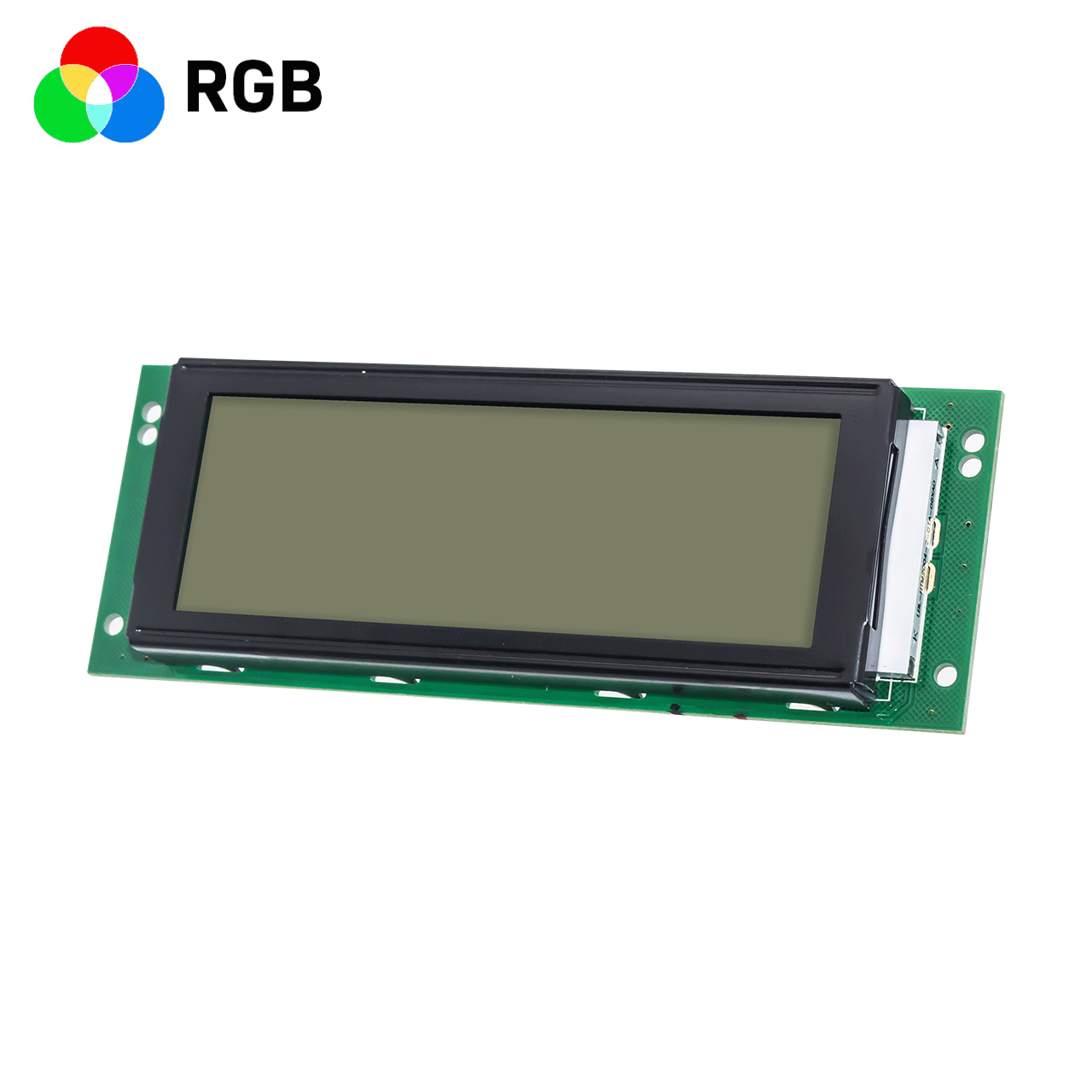

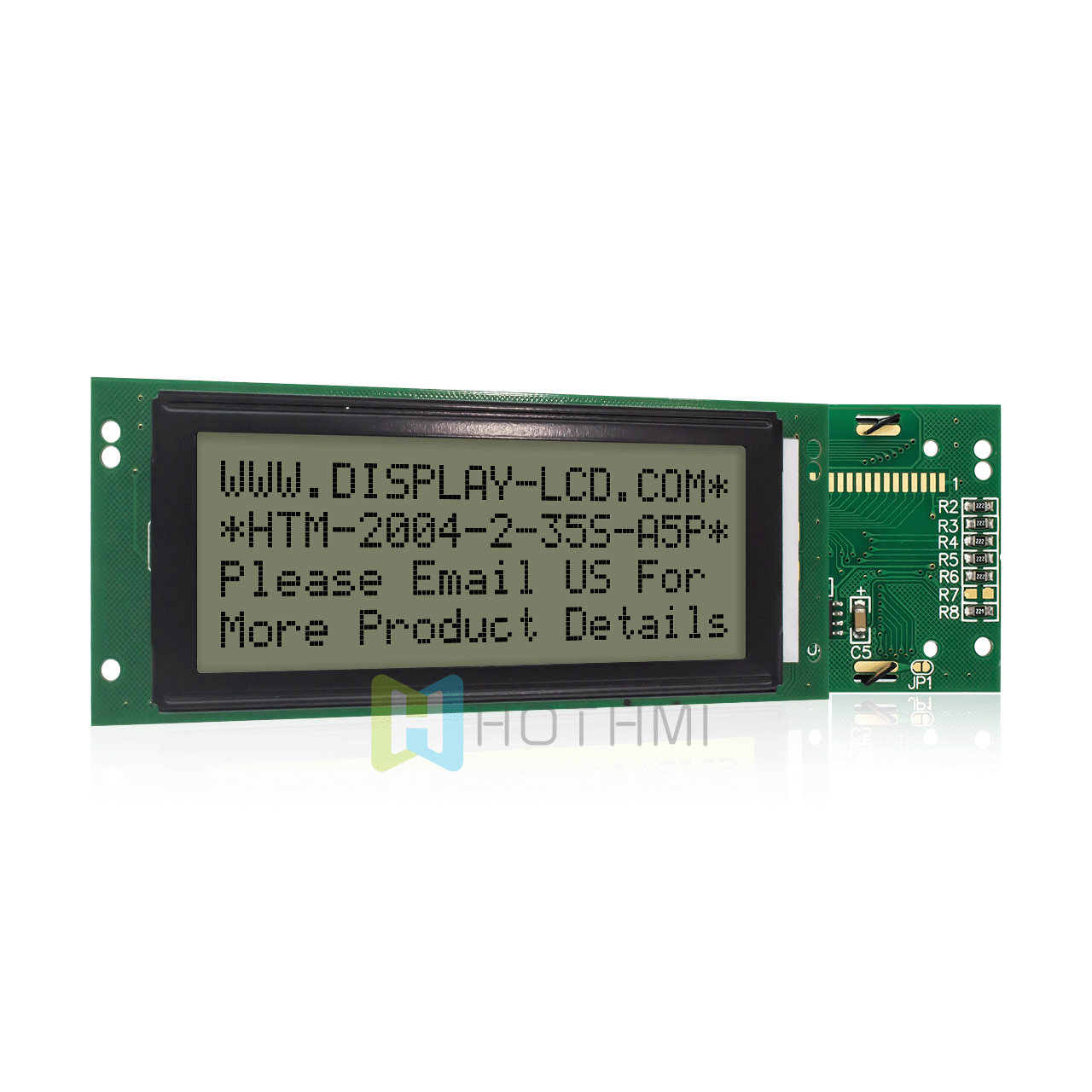

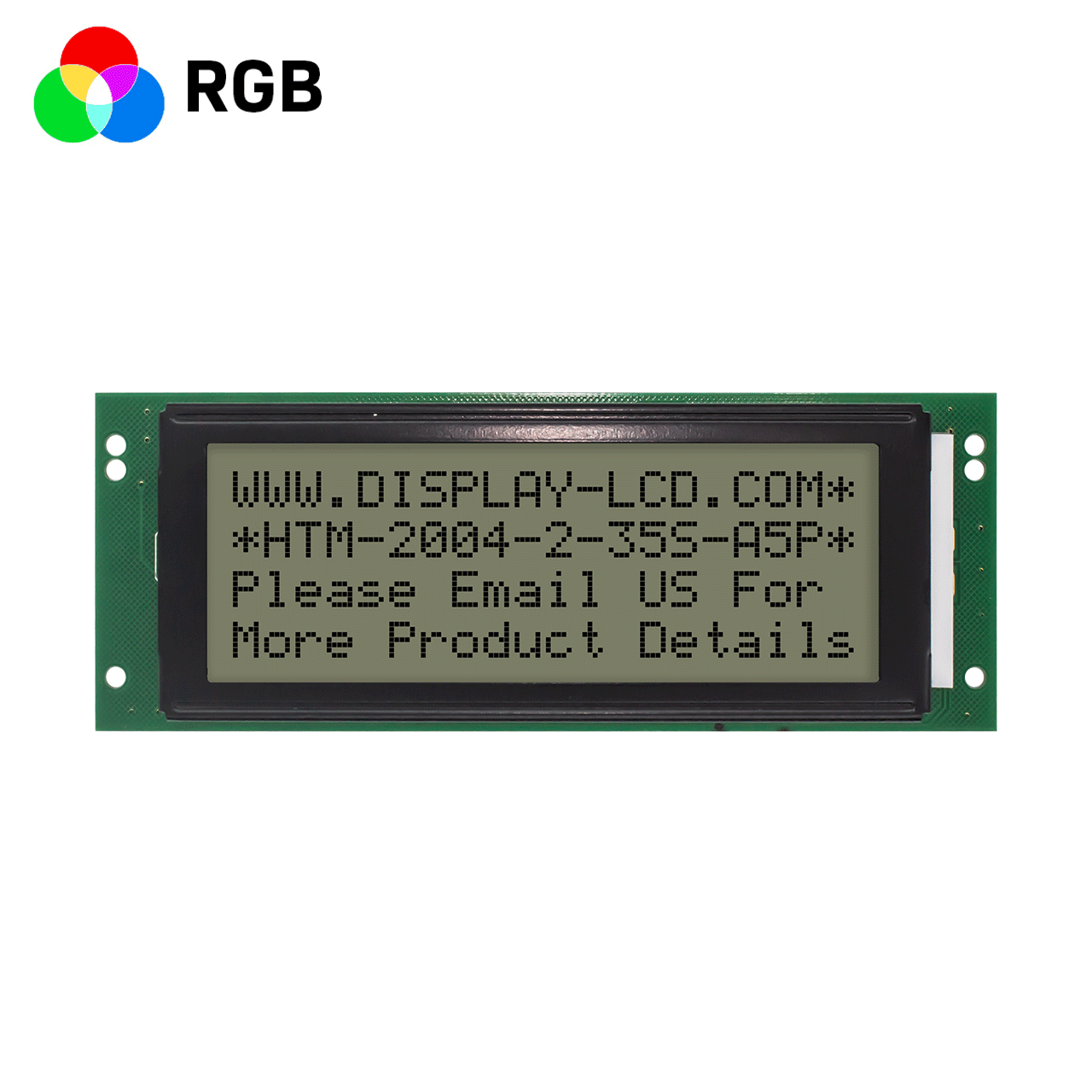

4X20 RGB character LCD module/FSTN positive display/with red, green and blue backlight/Arduino/full transflective LCD display/5.0v

4X20 RGB character LCD module/FSTN positive display/with red, green and blue backlight/Arduino/full transflective LCD display/5.0v

▶ Model: HTM-2004-2-35S-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 20x4 characters

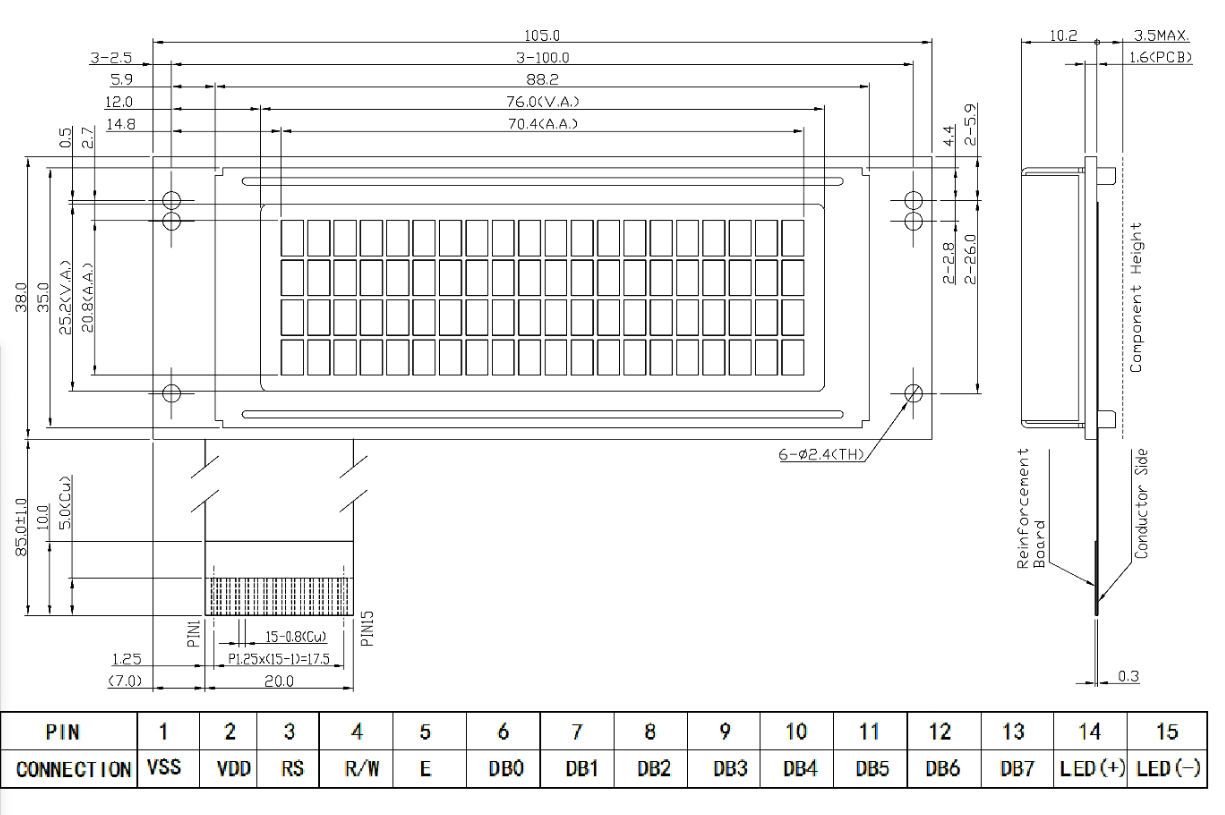

▶ Overall dimensions (mm): 105.0x38.0x10.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.60x0.60
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type:Red/green/blue light
▶ Number of PINs: 15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM-2004-2-35S-A5P/4X20 RGB Character LCD Module/FSTN Positive Display/With RGB Backlight/Arduino/Fully Transflective LCD Display/5.0v

The 4x20 Hot LCD can display up to 80 characters on two lines of 20 characters each, with dark pixels on a light gray background. The RGB display has three built-in color-backlights, which allow you to choose between red, green, or blue backlight colors. You can also mix the intensities of these colors to create new custom colors. This fully transflective LCD display has an integrated LED backlight for excellent visibility in ambient or low-light conditions. It has a wide operating temperature range of -20 to 70 degrees Celsius. The optimal viewing angle of this Arduino - HTM Compatible - 2004 - 2 - 35s - A5P display is 6:00. The display operates on a 5V supply voltage and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

item	Specifications	Unit
Model	HTM-2004-2-35S-A5P
Character × Line	20words × 4lines	dots
Module Size	105.0 × 38.0 × 10.2 (MAX)	mm
VA Size	76.0（W） × 25.8（H）	mm
AA Size	70.4 × 20.8	mm
Pixel Pitch	0.60（W） × 0.60（H）mm	mm
IC	ST7066U
Applied Voltage	5V	V
Backlight	Red/green/blue
Mode	FSTN+
Drive Mode	1/16 duty cycle
Type	Character LCD Module
Polarizer Type	Full reflection
