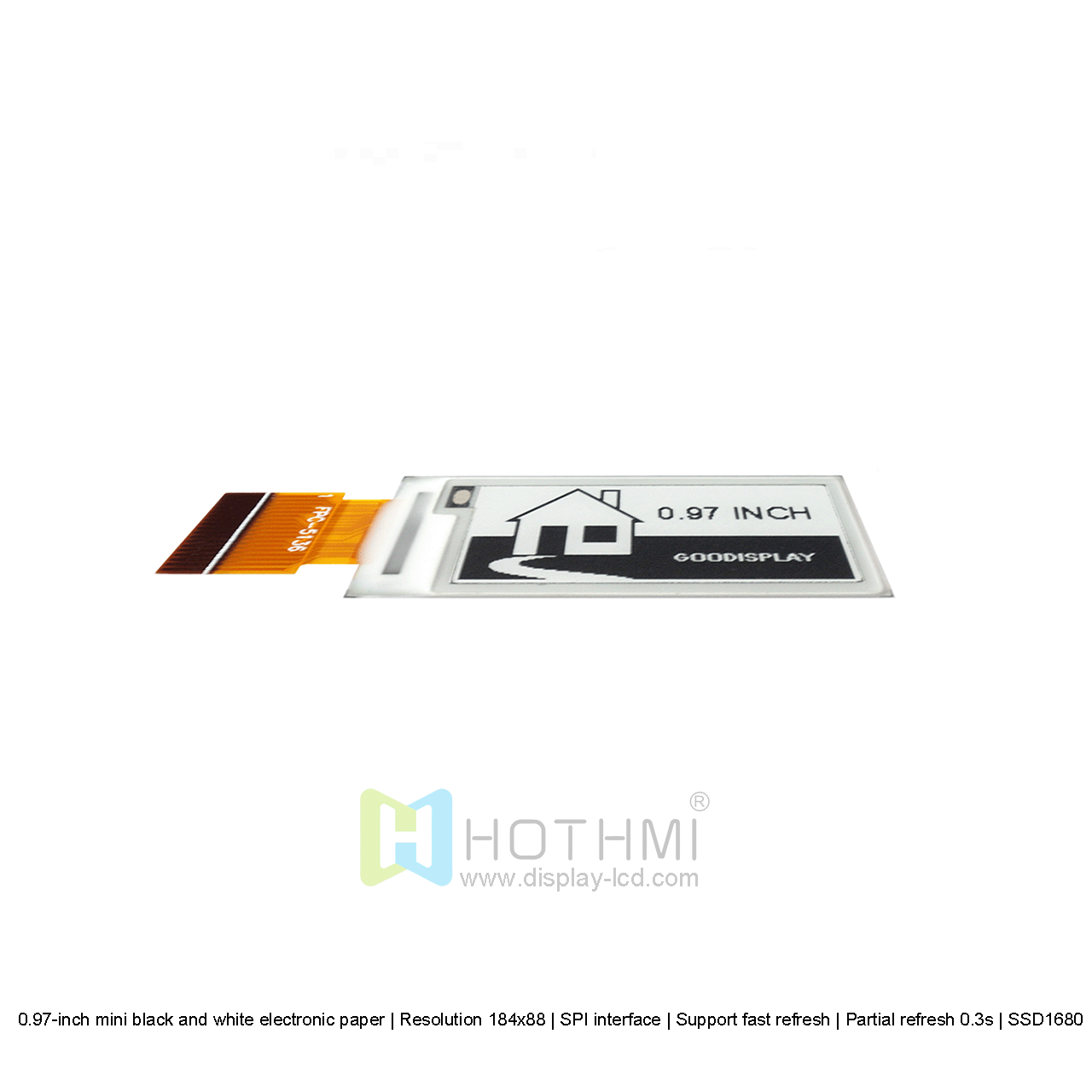

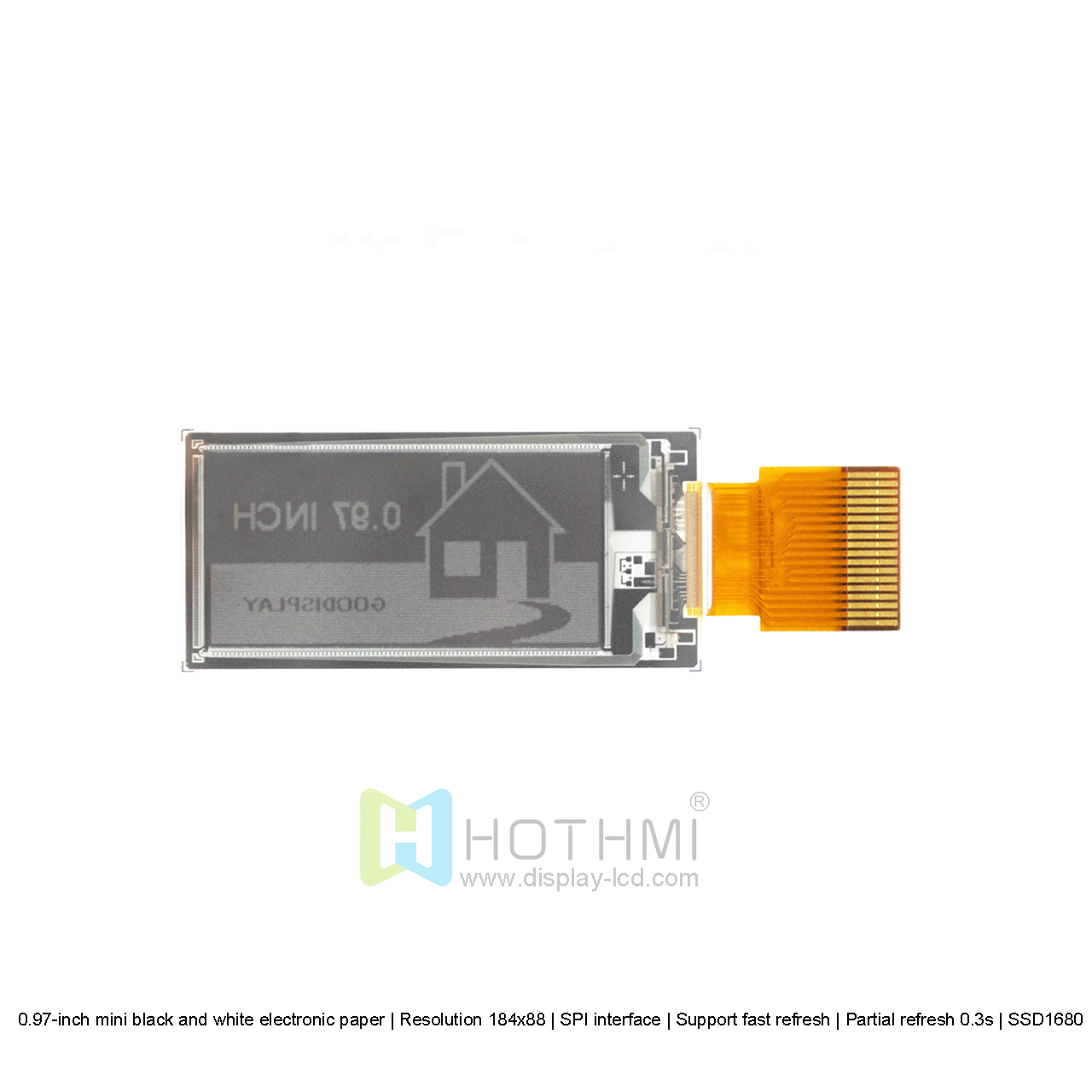

0.97-inch mini black and white electronic paper | Resolution 184x88 | SPI interface | Support fast refresh | Partial refresh 0.3s

0.97-inch mini black and white electronic paper | Resolution 184x88 | SPI interface | Support fast refresh | Partial refresh 0.3s | SSD1680

▶ Model: HTE-097-18488-0

▶ Type: black and white electronic paper
▶ Resolution: 184x88
▶ Driver IC: SSD1680
▶ Dimensions (mm): 30.0x14.15x1.0
▶ VA size (mm): 22.26x10.65
▶ Pixel pitch (mm): 0.121x0.121
▶ Operating temperature: 0℃~50℃
▶ Storage temperature: -25℃~70℃

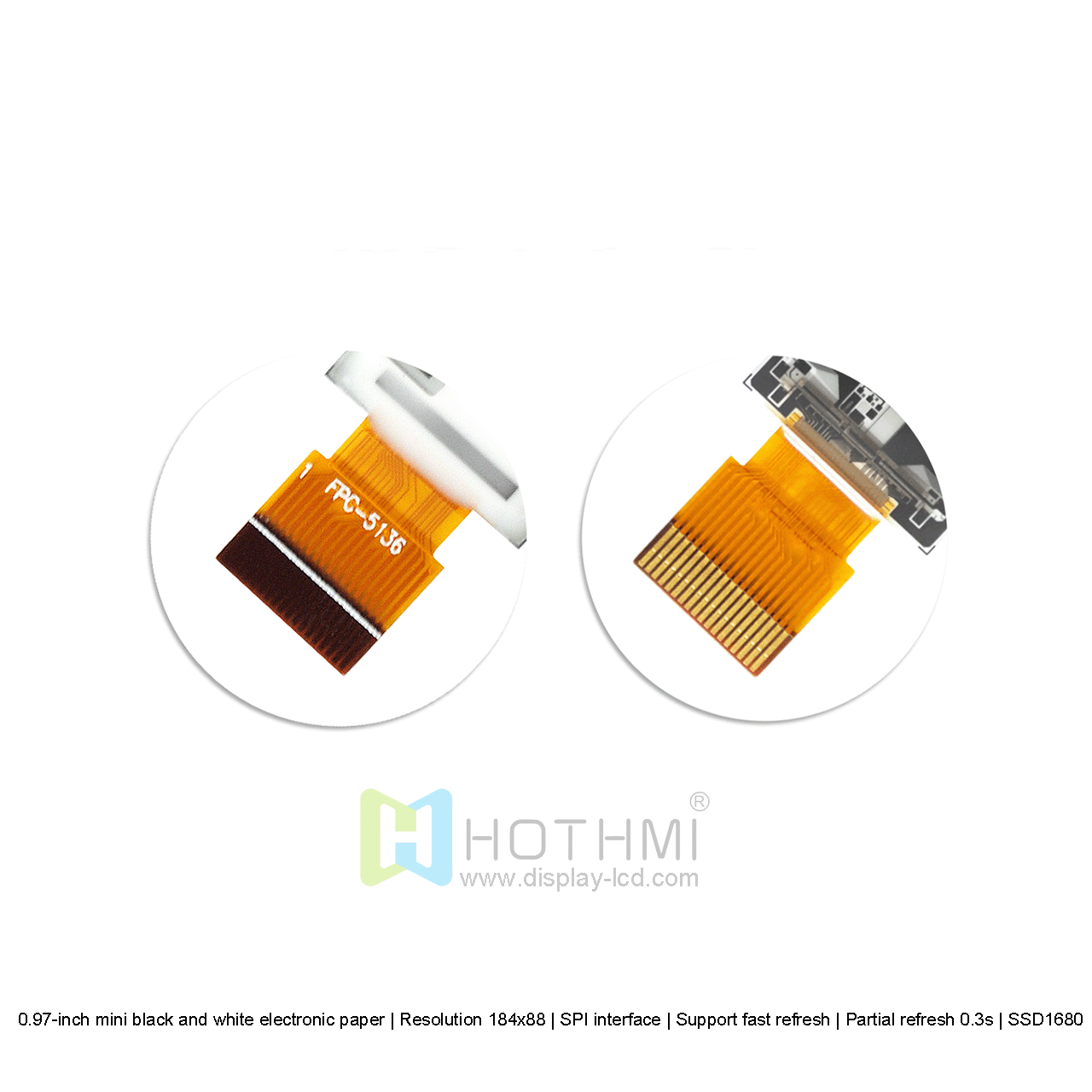

▶ Connector: 18Pin FPC
▶ Maximum grayscale: 4 (refresh time 2s)
▶ Color: black and white
▶ Operating voltage: 3.3V
▶ Power consumption (mW): 6
▶ Standby power consumption (mV): 0.03

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back No

Product Description
Specification
Attributes

0.97-inch mini black and white electronic paper | Resolution 184x88 | SPI interface | Support fast refresh | Partial refresh 0.3s | SSD1680
This is a 0.97-inch black and white electronic paper with a resolution of 184x88. Its driver chip is SSD1680. The refresh time is fast enough, no power consumption when the screen is not refreshed, low power consumption, no blue light emission, zero radiation, and good protection for the eyes. The operating temperature is 0℃~50℃, with a wide viewing angle of more than 170 degrees. The application scenarios are shelf labels, smart labels, wearable devices, smart home applications, industrial instruments, smart cards, etc. Support partial refresh, high cost performance, short supply cycle, and long-term stable supply.

ITEM	SPECIFICATION CONTENT	UNIT
Model	HTE-097-18488-0
Resolution	184 x 88	dots
Dimensions (mm)	30.0x14.15x1.0	mm
Viewing area size VA (mm)	22.26x10.65	mm
Dot pitch (mm)	0.121x0.121	mm
Operating temperature (℃)	0℃~50℃	℃
Storage temperature (℃)	-25℃~70℃	℃
Driver IC	SSD1680
Interface	SPI 18Pin FPC
Maximum grayscale	4（Refresh time 2s）
Color	Black & White
Operating voltage (V)	3.3V	V
Power consumption (mW)	6.0
Standby power consumption (mW)	0.03
