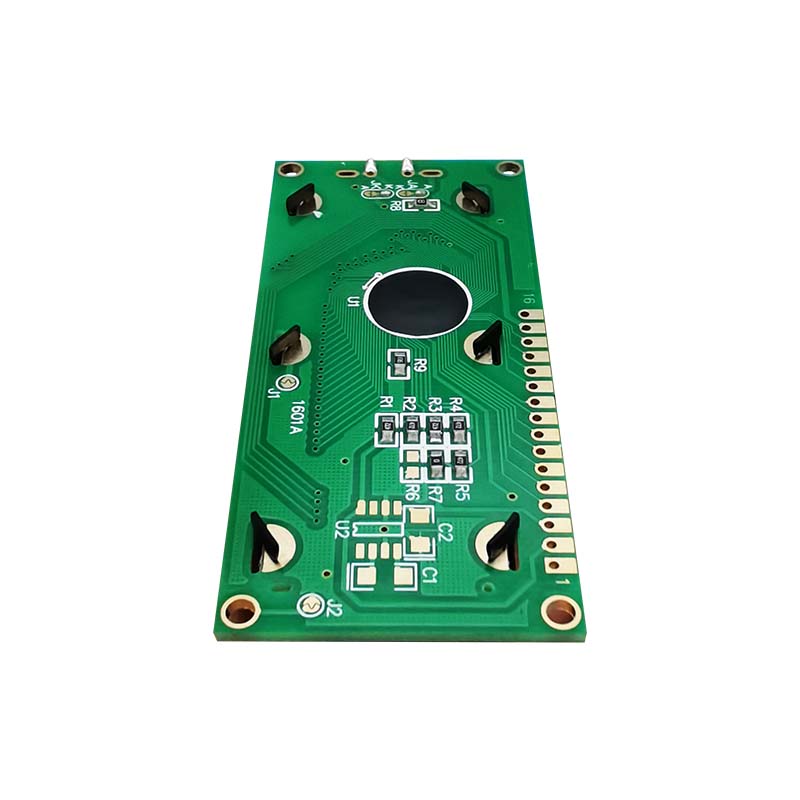

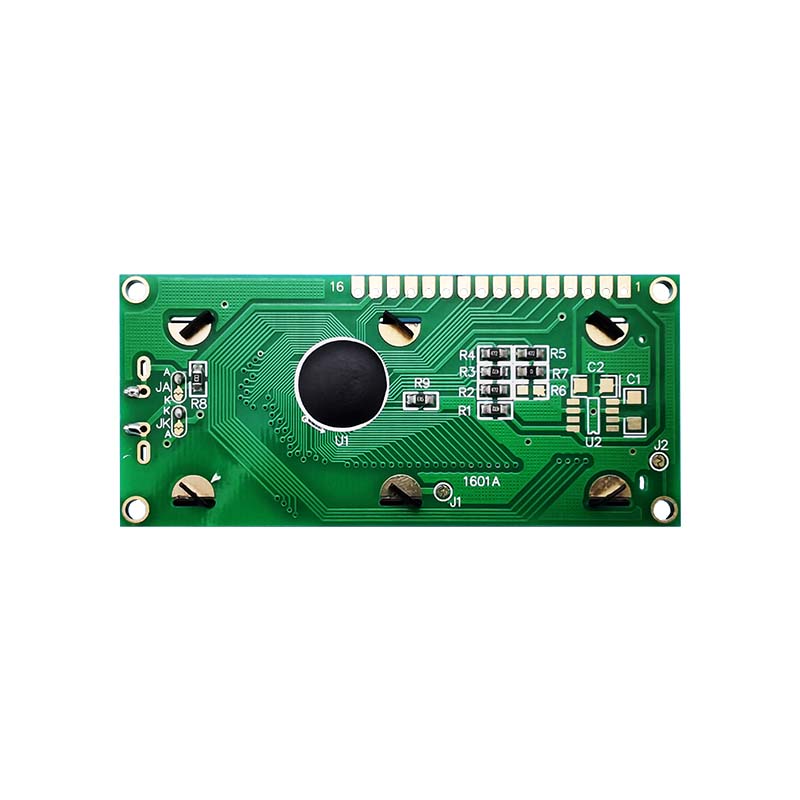

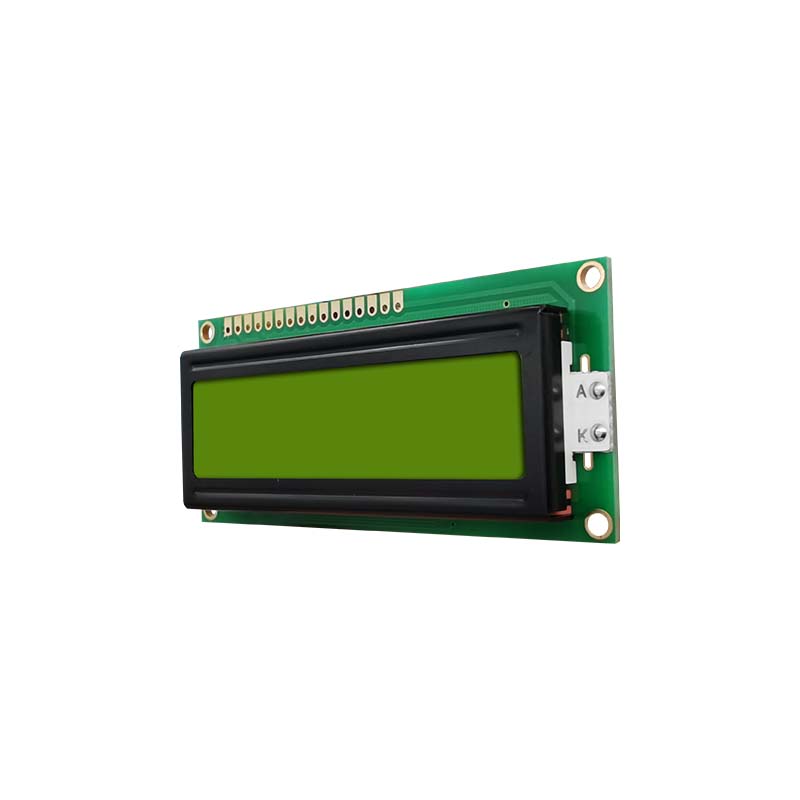

HTM-1601A-01Y-A5P-V03 | 1x16 Character Display | Reflective LCD | STN (+)Yellow/Green Display | Arduino Display
High-quality on-screen performance experience with HTM - 1601A - 01Y - A5P. This compact transfective LCD display has a single 16 character line. This single-line LCD display features dark pixels on an intense yellow/green background and ensures optimal readability in various lighting conditions, making it adaptable for use in ambient light or with its own built-in backlight.
The HTM - 1601A - 01Y - A5P emits a clear yellow/green screen that improves visibility and user interaction.With an ideal viewing angle fixed for 6:00 am and a wide spectrum of operating temperatures ranging from - 20 to about 70 degrees Celsius, this LCD screen is suitable for different environmental conditions.
Powered by a voltage of 5 V, this high-performance display is compatible with different power sources.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
